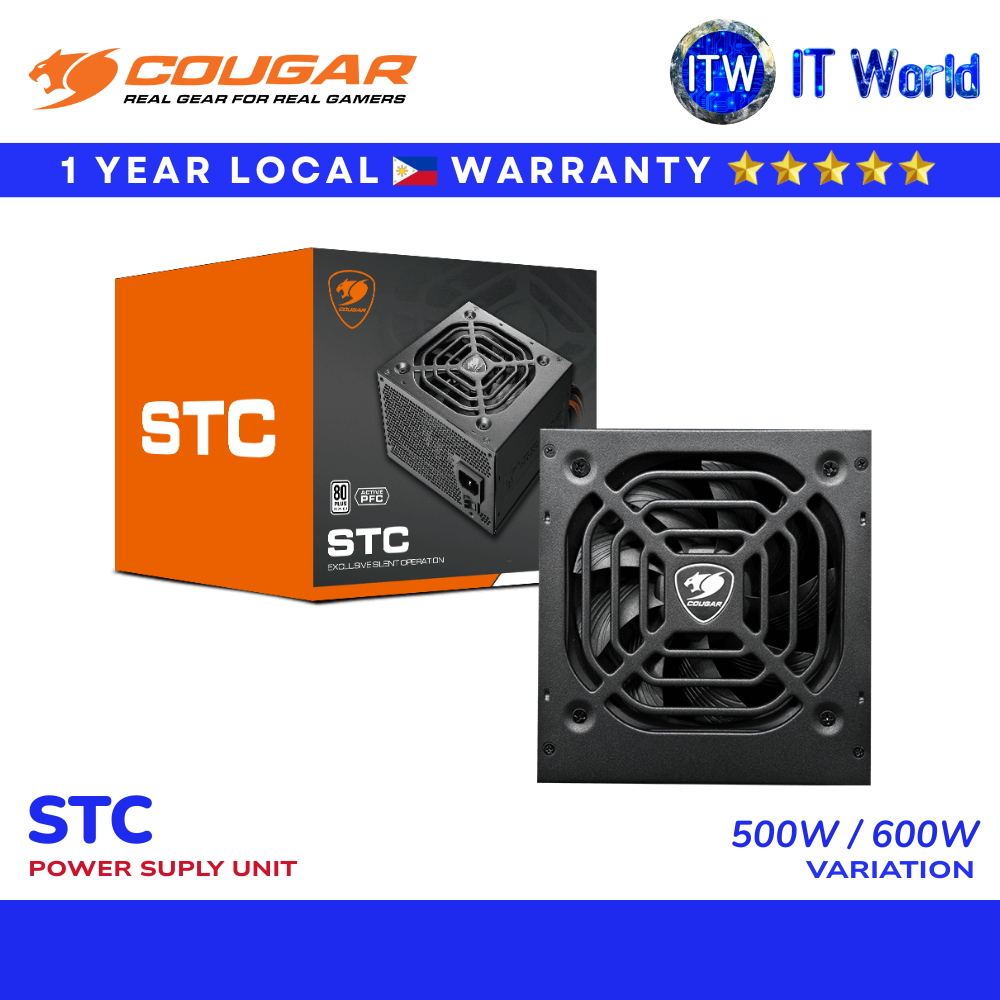

Product Name: Cougar STC 500W / 600W 80 Plus Non-Modular Power Supply Unit | itw
*Features
- Active Power Factor Correction (Active PFC)
PFC value up to 99%, provides clean and reliable power.
- Superior Fan Curve Tuning
Advanced technology for noise minimization
- Strong Safeguards : OCP, OPP, OVP, UVP & SCP
Maximum safety for your key system components
- Compatible with the Newest Components
Created for use with multi-core CPU and PCI express 3.0 graphics cards with 8(6+2) pin PCI-e connector.
- 105°C Japanese Standby Capacitors
Reliable and durable components that extend the PSU’s useful life.
Specification
Model Name: STC 500W
*AC Input:
Voltage: 200-240V~
Frequency: 50Hz/4A
*DC Output
+3.3V: 16A 110W
+5V: 18A
+12V: 38A 456W
-12V: 0.3A
+5Vsb: 2.5A
Total: 500W
Model Name: STC 600W
*AC Input:
Voltage: 200-240V~
Frequency: 50Hz/5A
*DC Output
+3.3V: 18A 130W
+5V: 20A
+12V: 49A 588W
-12V: 0.3A
+5Vsb: 3A
Total: 600W
Product Number (PIN): STC 500 (31SC050001P01) / STC 600 (31SC060001P01)
EAN CODE: 4710483774317 / 4710483774324
UPC CODE: 192554004891 / 192554004907
JAN CODE: 4541995037023 / 4541995037030
Individual W/O Packaging Weight (N-Weight): 1.48 (Kg) / 1.52 (Kg)
Individual Packaging Weight (G.Weight): 1.76 (Kg) / 1.80 (Kg)
Individual Size W/O Packaging (LxWxH): 140 x 150 x 86 (mm)
Individual Packaging Size (LxWxH): 187 X 158 x 165 (mm)
