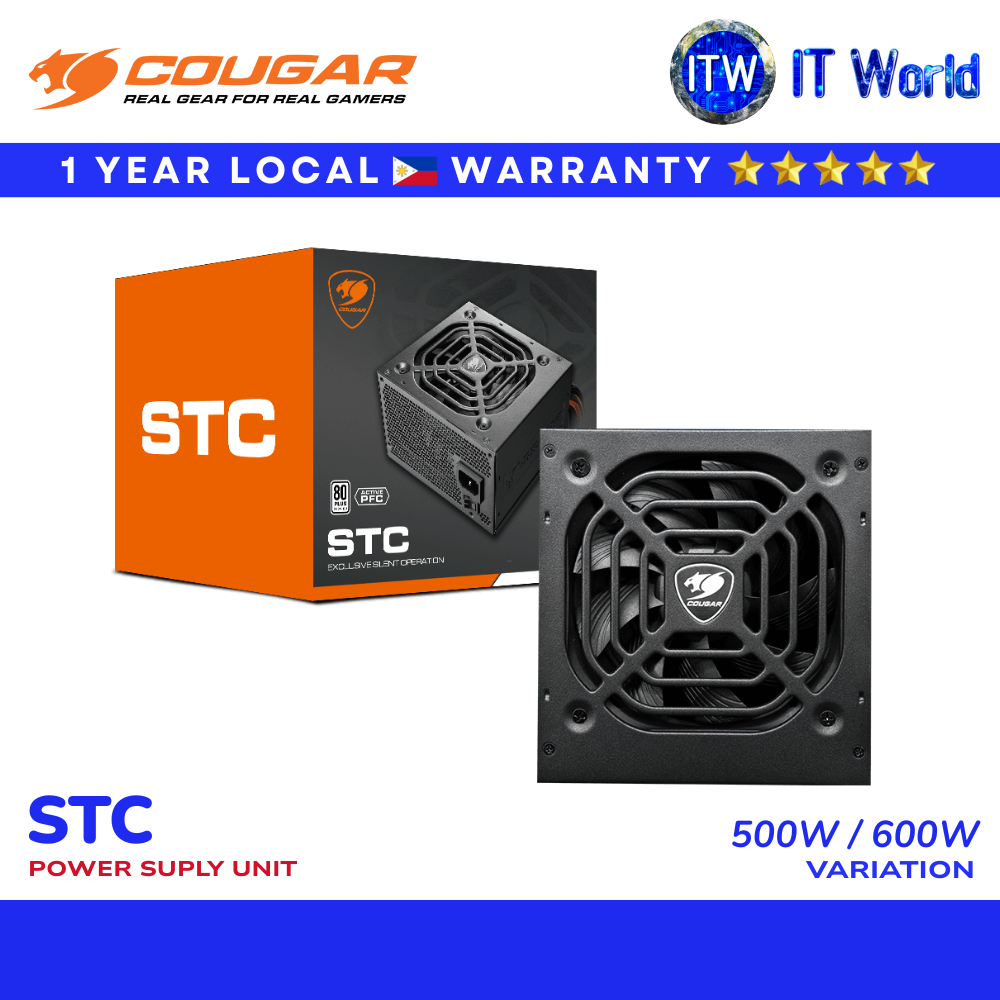

Cougar STC 500W / 600W 80 Plus Non-Modular Power Supply Unit | itw

Product Name: Cougar STC 500W / 600W 80 Plus Non-Modular Power Supply Unit | itw

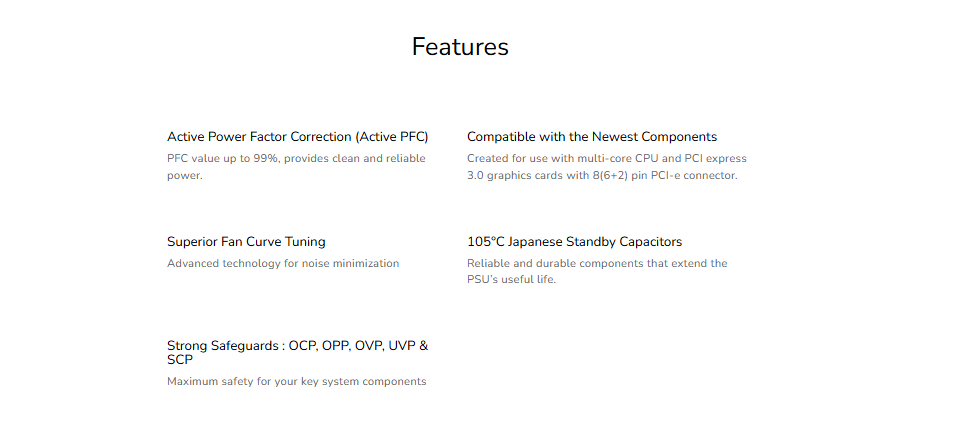

*Features

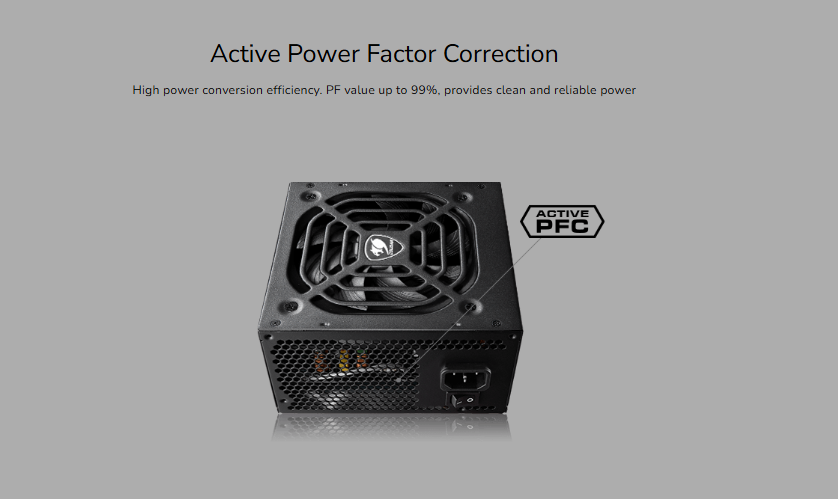

- Active Power Factor Correction (Active PFC)

PFC value up to 99%, provides clean and reliable power.

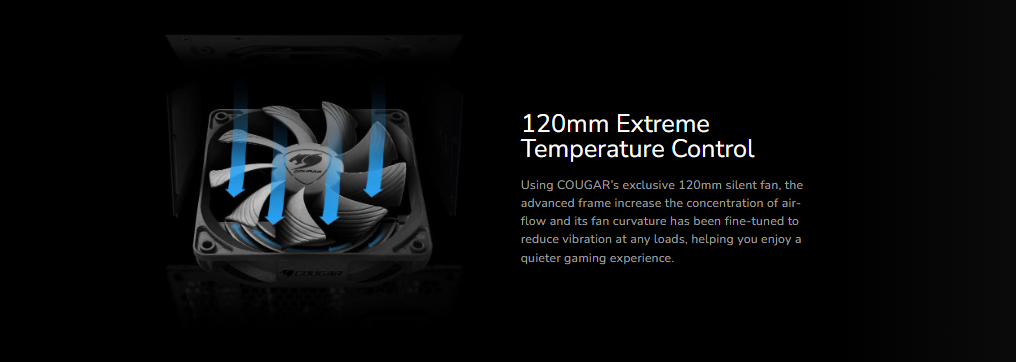

- Superior Fan Curve Tuning

Advanced technology for noise minimization

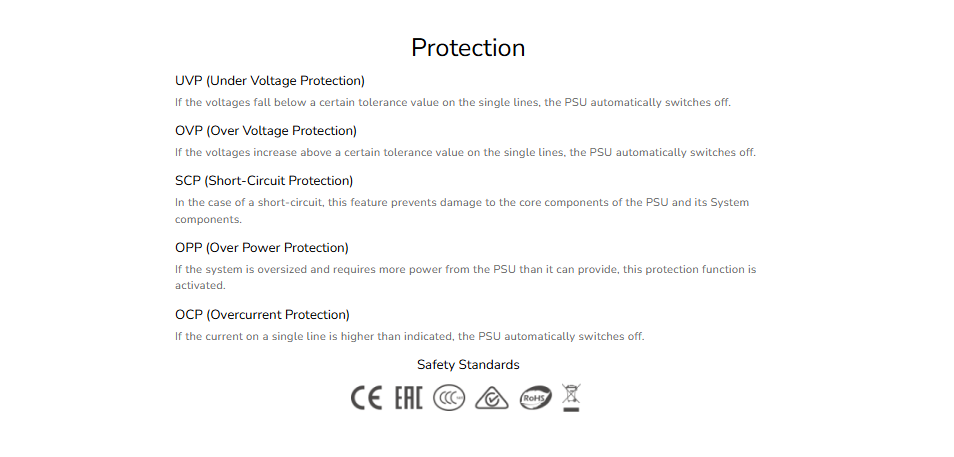

- Strong Safeguards : OCP, OPP, OVP, UVP & SCP

Maximum safety for your key system components

- Compatible with the Newest Components

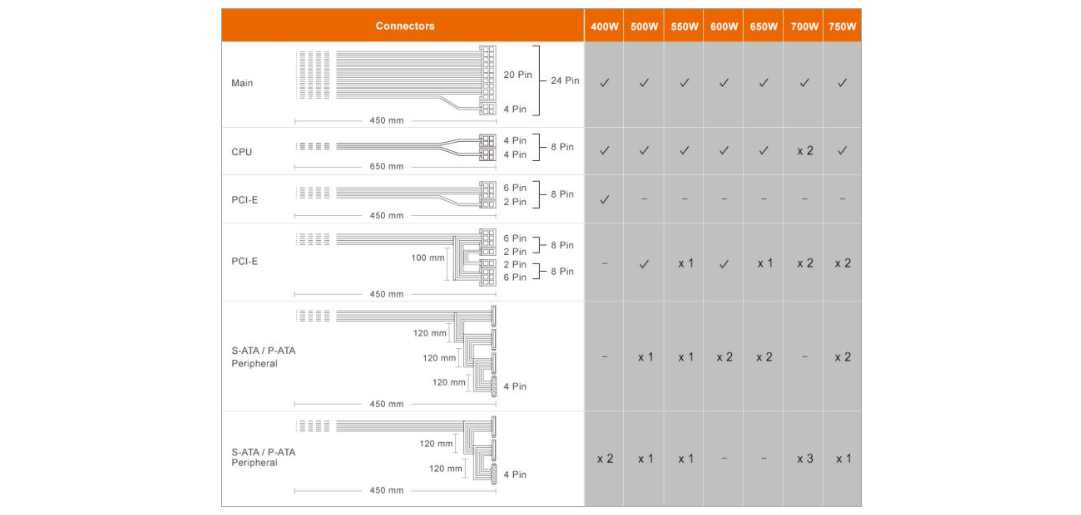

Created for use with multi-core CPU and PCI express 3.0 graphics cards with 8(6+2) pin PCI-e connector.

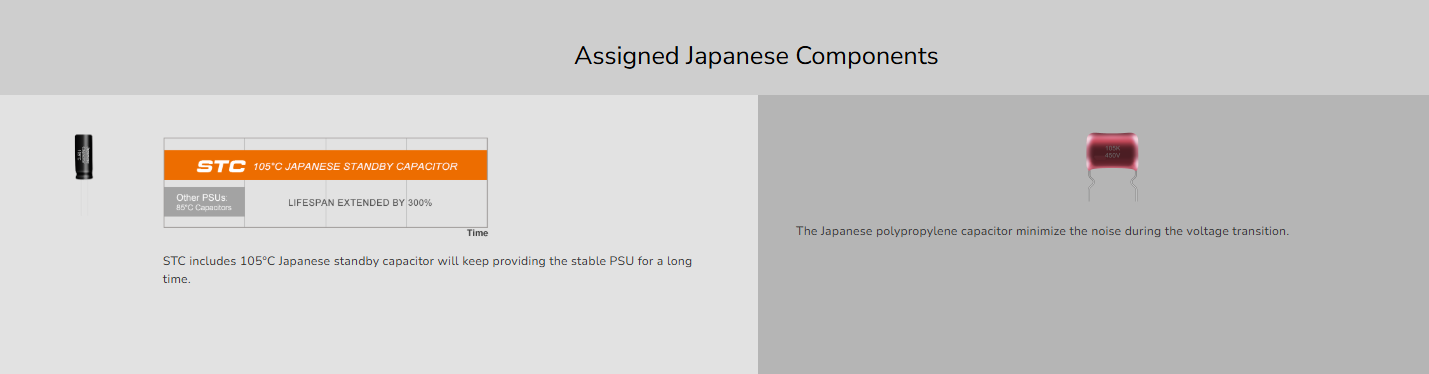

- 105°C Japanese Standby Capacitors

Reliable and durable components that extend the PSU’s useful life.

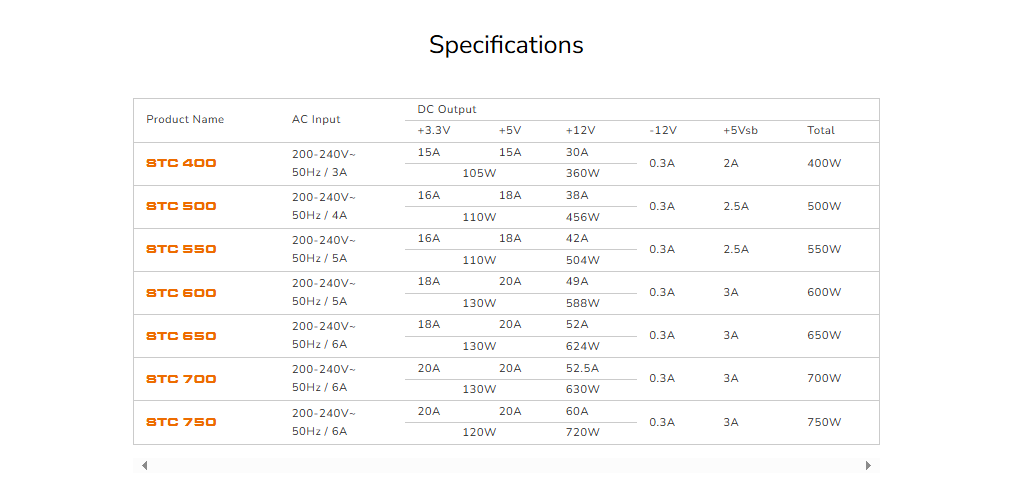

Specification

Model Name: STC 500W

*AC Input:

Voltage: 200-240V~

Frequency: 50Hz/4A

*DC Output

+3.3V: 16A 110W

+5V: 18A

+12V: 38A 456W

-12V: 0.3A

+5Vsb: 2.5A

Total: 500W

Model Name: STC 600W

*AC Input:

Voltage: 200-240V~

Frequency: 50Hz/5A

*DC Output

+3.3V: 18A 130W

+5V: 20A

+12V: 49A 588W

-12V: 0.3A

+5Vsb: 3A

Total: 600W

Product Number (PIN): STC 500 (31SC050001P01) / STC 600 (31SC060001P01)

EAN CODE: 4710483774317 / 4710483774324

UPC CODE: 192554004891 / 192554004907

JAN CODE: 4541995037023 / 4541995037030

Individual W/O Packaging Weight (N-Weight): 1.48 (Kg) / 1.52 (Kg)

Individual Packaging Weight (G.Weight): 1.76 (Kg) / 1.80 (Kg)

Individual Size W/O Packaging (LxWxH): 140 x 150 x 86 (mm)

Individual Packaging Size (LxWxH): 187 X 158 x 165 (mm)
