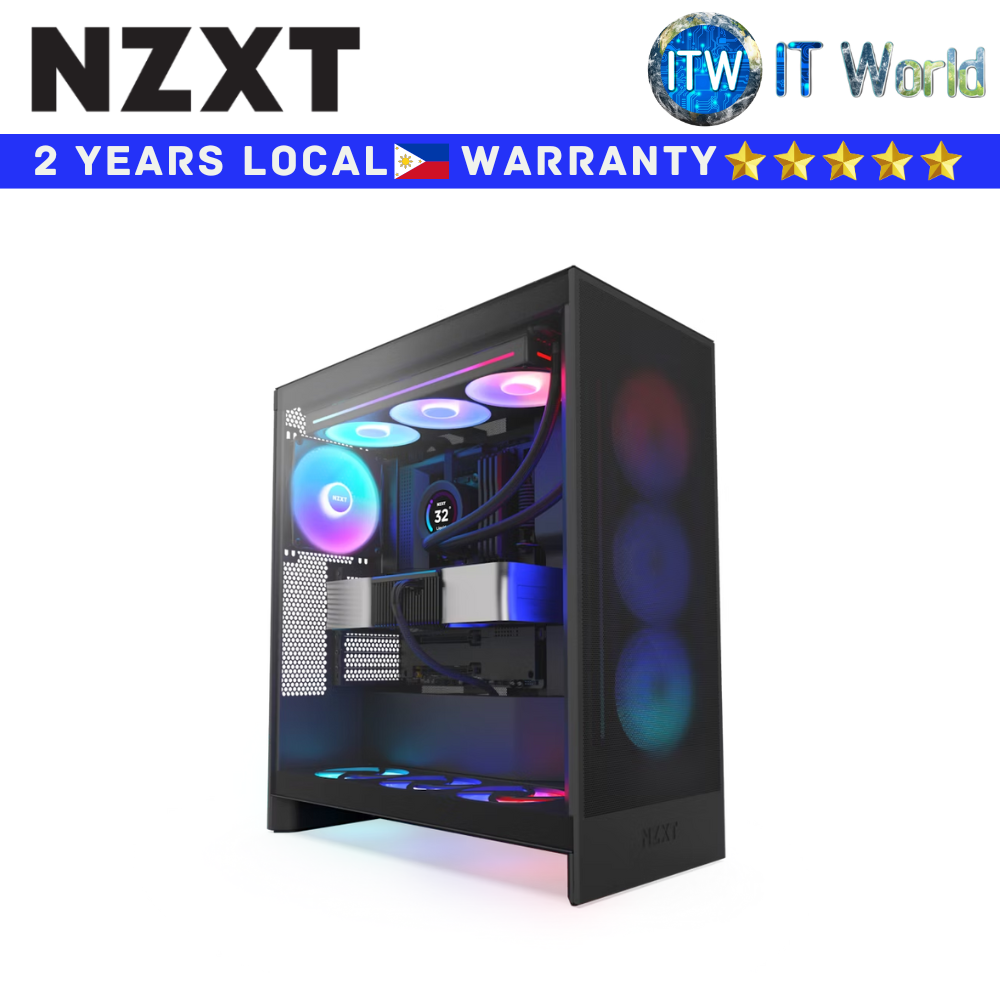

NZXT Computer PC Case H7 Flow RGB Mid-Tower ATX Airflow Case with RGB Fans (Matte Black)(CM-H72FB-R1)

Product Name: Itw | NZXT Computer PC Case H7 Flow RGB Matte Black/White Mid-Tower ATX Airflow Case with RGB Fans

Key Feature

The H7 Flow RGB revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

• Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.

• Comes equipped with a F360 RGB Core single-frame fan for exceptional out-of-the-box cooling and RGB lighting.

• High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.

• Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.

• Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.

• Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

• Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

• Tool-less access to the front, top, and side panels makes building and upgrading a breeze.

Specification

Key Specs

• Motherboard Support:E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX

• Enclosure Type:Mid-Tower

• Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

• Height (With Feet):544 mm

• Width:244 mm

• Depth:468 mm

• Weight:11.13 kg

Compatibility & Clearance

• CPU Cooler Height:Up to 185mm

• GPU Length:Up to 410 mm

• PSU Length:Up to 200 mm

• Cable Management:Up to 34.5 mm

• Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 57 mm

Front I/O Ports

• USB 3.2 Gen 1 Type-A:2

• USB 3.2 Gen 2 Type-C:1

• Headset Audio Jack:1

• Expansion Slots

• Standard:7

• Vertical:0

Drive Bays

• 2.5":2+2

• 3.5":2

Fan Support

• Front:3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)

• Top:3 x 120 mm / 2 x 140 mm

• Bottom:3 x 120 mm

• Rear:1 x 120 mm / 1 x 140 mm

• Filters:High-Performance Mesh

Radiator Support

• Front:Up to 420 mm

• Top:Up to 360mm

• Rear:Up to 140mm

Fan Specs

• Model:F360 RGB Core Fan (Case Version)

• Speed:1,700 ± 200 RPM

• Airflow:50.1 CFM

• Static:1.27 mm-H₂O

• Noise:23.3 dBA

• Fan Connector:3-pin
