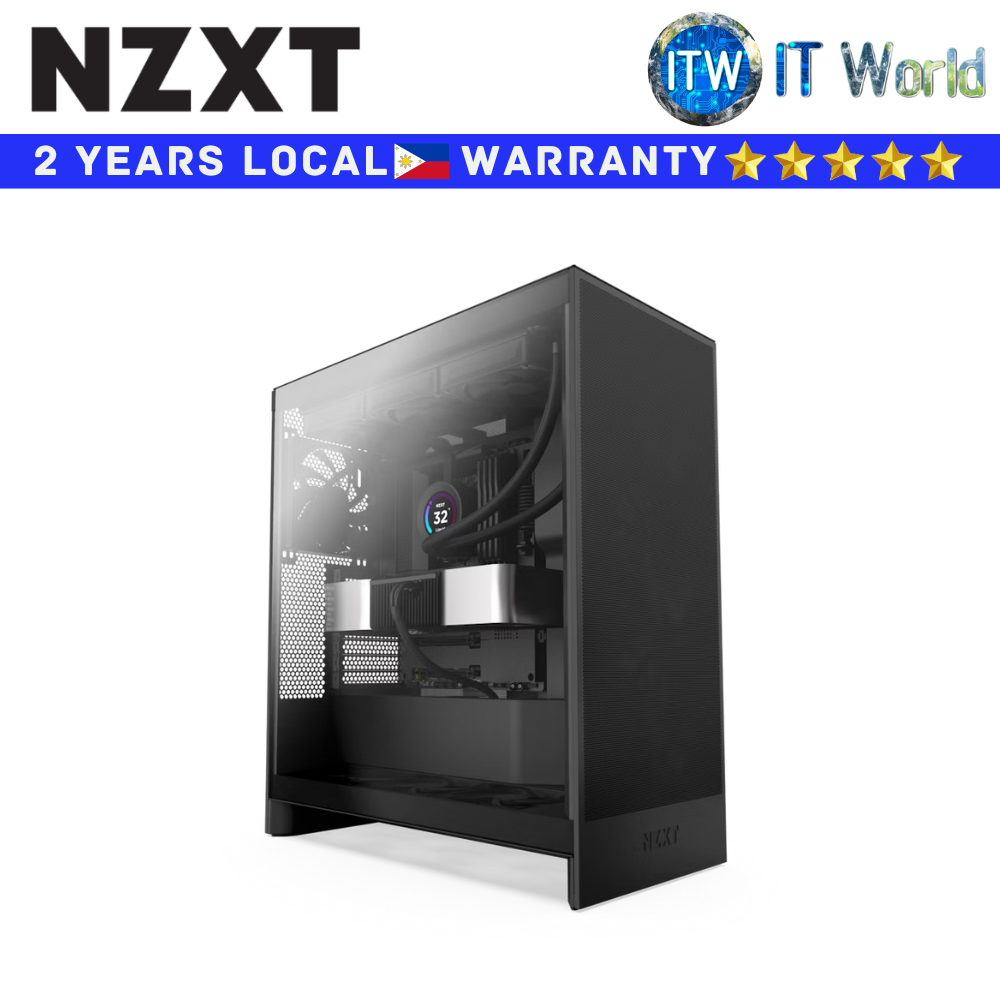

Product Name: Itw | NZXT Computer PC Case H7 Flow Matte Black/White Mid-Tower ATX Airflow Case
Key Feature
The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
• Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
• Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
• High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
• Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
• Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
• Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
• Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
• Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Specification
Key Specs
• Motherboard Support:E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX
• Enclosure Type:Mid-Tower
• Case Material:SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
• Height (with feet):544 mm
• Width:244 mm
• Depth:468 mm
• Weight:11.13 kg
Compatibility & Clearance
• CPU Cooler Height:Up to 185 mm
• GPU Length:Up to 410 mm
• PSU Length:Up to 200 mm
• Cable Management:Up to 34.5 mm
• Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness:Up to 57 mm
Front I/O Ports
• USB 3.2 Gen 1 Type-A:2
• USB 3.2 Gen 2 Type-C:1
• Headset Audio Jack:1
Expansion Slots
• Standard:7
• Vertical:0
Drive Bays
• 2.5":2+2
• 3.5":2
Fan Support
• Front:3 x 120 mm / 3 x 140 mm (3 x F120Q included)
• Top:3 x 120 mm / 2 x 140 mm
• Rear:1 x 120 mm / 1 x 140 mm
• Filters:High-Performance Mesh
Radiator Support
• Front:Up to 420 mm
• Top:Up to 360mm
• Rear:Up to 140mm
Fan Specs
• Model:F120Q Airflow Fan (Case Version)
• Speed:1,350 ± 150 RPM
• Airflow:60.2 CFM
• Static:1.05 mm - H2O
• Noise:24.1 dBA
• Fan Connector:3-pin
