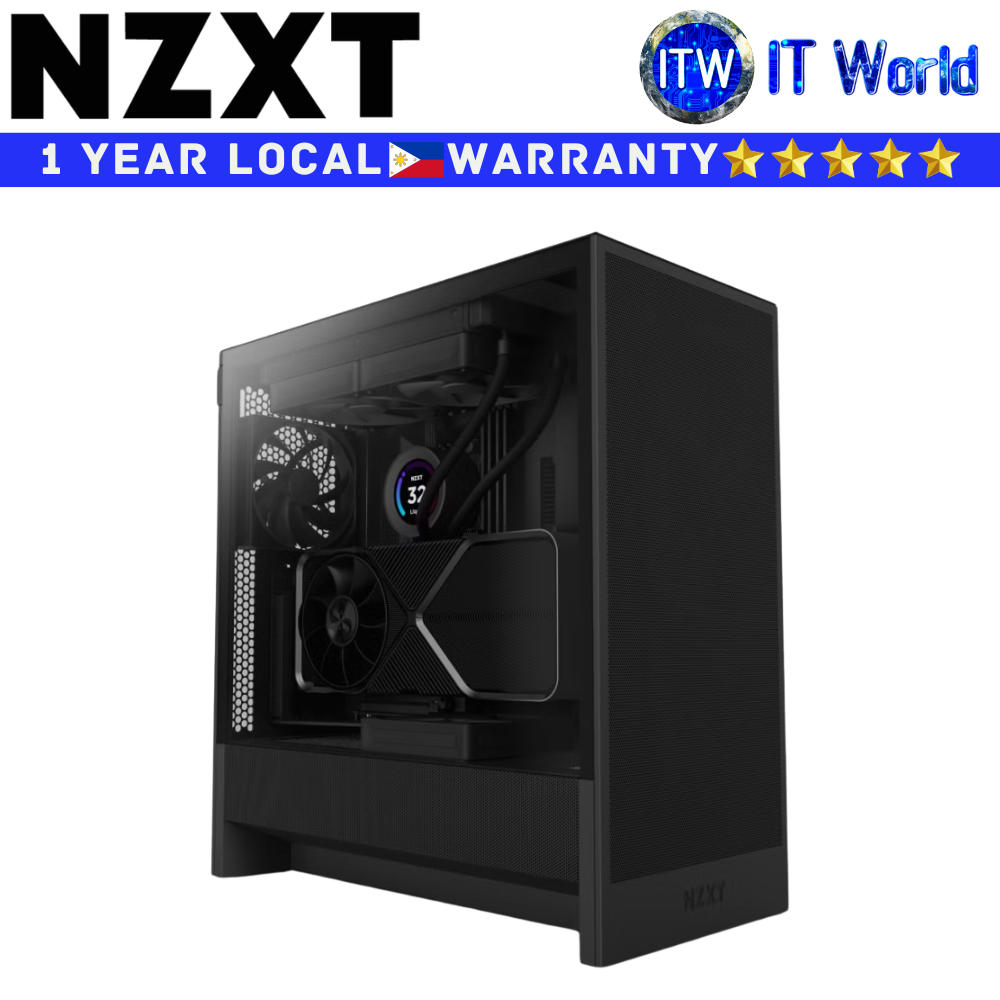

Product Name: Itw | NZXT Computer PC Case H5 Flow Compact Mid-Tower ATX Airflow Tempered Glass (Black | White)
Details
> The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.
- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).
- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.
- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.
- Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.
- Effortlessly route and conceal cables using the wide channels, hooks, and straps.
Specification
Key Specs
* Motherboard Support: E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX
* Enclosure Type: Mid-Tower
* Case Material: SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)
Dimensions
* Height (with feet): 465mm / 18.31in
* Width: 225mm / 8.86in
* Depth: 430mm / 16.93in
* Weight: 7.28kg / 16.04lb
Compatibility & Clearance
* CPU Cooler Height: Up to 170mm
* GPU Length: Up to 410mm
* PSU Length: Up to 200mm
* Cable Management: Up to 28.7mm
* Top Radiator: Up to 240mm (280mm with low-profile memory)
* Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: Up to 55mm
Front Ports
* USB 3.2 Type-A: 1
* USB 3.2 Gen 2x2 Type-C (20 Gbps): 1
* Headset Audio Jack: 1
Expansion Slots
* Standard: 7
* Vertical: 0
Drive Bays
* 2.5": 2
* 3.5": 1
Fan Support
* Front: 3 x 120mm / 2 x 140mm (1 x F120Q Case Version included)
* Top: 2 x 120mm / 2 x 140mm
* Bottom: 2 x 120mm
* Rear: 1 x 120mm (1 x F120Q Case Version included)
Radiator Support
* Front: Up to 360mm
* Top: Up to 240mm (280mm with low-profile memory only)
Fan Specs
* Model: F120Q (Case Version)
* Speed: 1,350 ± 150RPM
* Airflow: 60.2CFM
* Static: 1.05mm-H₂O
* Noise: 24.1dBA
* Fan Connector: 3-pin
General
* Model Number
> Black: CC-H52FB-01
> White: CC-H52FW-01
