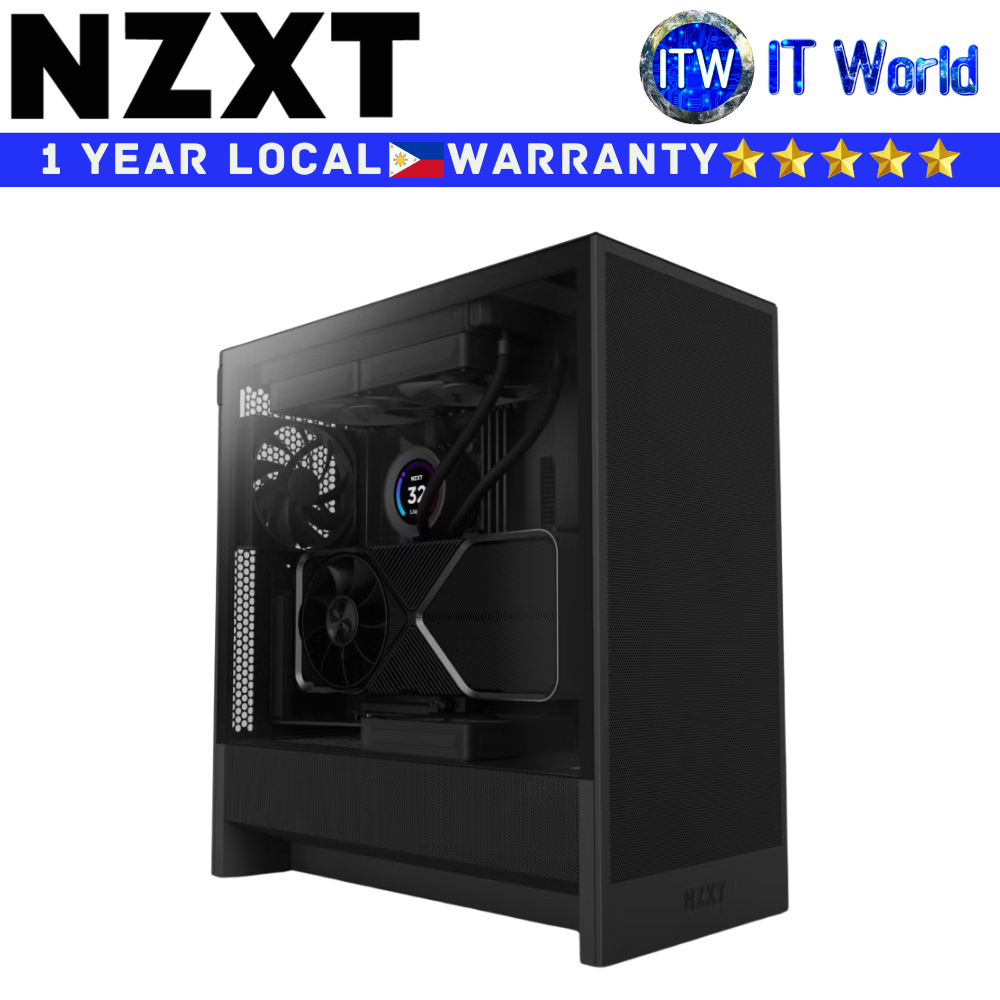

NZXT Computer PC Case H5 Flow Compact Mid-Tower ATX Airflow Tempered Glass Black (CC-H52FB-01)

Product Name: Itw | NZXT Computer PC Case H5 Flow Compact Mid-Tower ATX Airflow Tempered Glass (Black | White)

Details

> The H5 Flow boosts airflow and GPU cooling with its perforated PSU shroud, mesh panels, and large radiator support—all in a compact mid-tower form factor.

- The PSU shroud is perforated on the side and bottom, enabling optimal air intake from two 120mm fans (not included).

- Supports up to a 360mm radiator in front and a 240mm radiator up top for powerful liquid cooling potential.

- Ultra-fine mesh on the top, front, and side panels creates maximum airflow and filters dust.

- Equipped with two 120mm Quiet Airflow fans (CV) —one in front, one in rear—for solid out-of-the-box performance.

- Effortlessly route and conceal cables using the wide channels, hooks, and straps.

Specification

Key Specs

* Motherboard Support: E-ATX (Up to 277 mm wide), ATX, Micro-ATX, Mini-ITX

* Enclosure Type: Mid-Tower

* Case Material: SGCC Steel, Ultra-Clear Tempered Glass (White), Dark Tinted Tempered Glass (Black)

Dimensions

* Height (with feet): 465mm / 18.31in

* Width: 225mm / 8.86in

* Depth: 430mm / 16.93in

* Weight: 7.28kg / 16.04lb

Compatibility & Clearance

* CPU Cooler Height: Up to 170mm

* GPU Length: Up to 410mm

* PSU Length: Up to 200mm

* Cable Management: Up to 28.7mm

* Top Radiator: Up to 240mm (280mm with low-profile memory)

* Top Mounted 140mm / 280mm Radiator & Fan Combined Thickness: Up to 55mm

Front Ports

* USB 3.2 Type-A: 1

* USB 3.2 Gen 2x2 Type-C (20 Gbps): 1

* Headset Audio Jack: 1

Expansion Slots

* Standard: 7

* Vertical: 0

Drive Bays

* 2.5": 2

* 3.5": 1

Fan Support

* Front: 3 x 120mm / 2 x 140mm (1 x F120Q Case Version included)

* Top: 2 x 120mm / 2 x 140mm

* Bottom: 2 x 120mm

* Rear: 1 x 120mm (1 x F120Q Case Version included)

Radiator Support

* Front: Up to 360mm

* Top: Up to 240mm (280mm with low-profile memory only)

Fan Specs

* Model: F120Q (Case Version)

* Speed: 1,350 ± 150RPM

* Airflow: 60.2CFM

* Static: 1.05mm-H₂O

* Noise: 24.1dBA

* Fan Connector: 3-pin

General

* Model Number

> Black: CC-H52FB-01

> White: CC-H52FW-01
