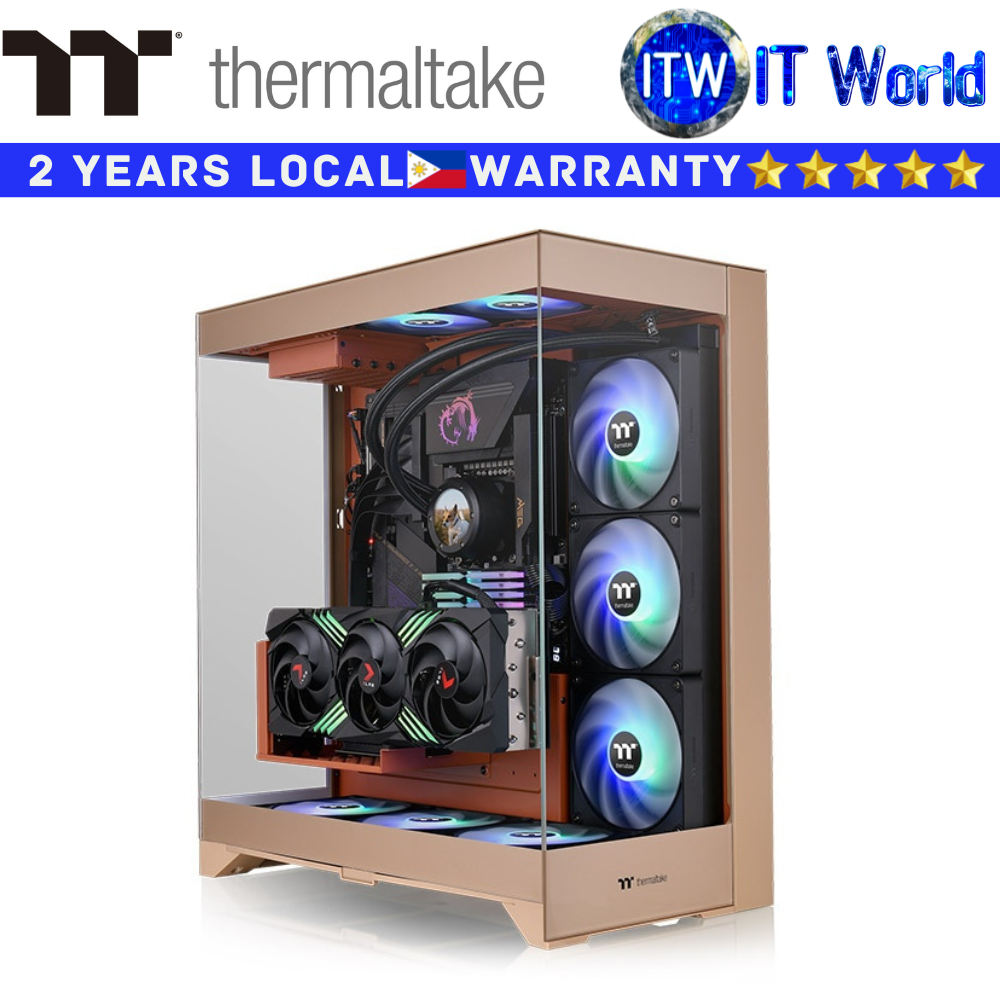

Thermaltake Computer PC Case CTE E550 TG Travel Sand Mid Tower Chassis (CA-1Z8-00MGWN-00)

Product Name: Itw | Thermaltake Computer PC Case CTE E550 TG Travel Sand Mid Tower Chassis (CA-1Z8-00MGWN-00)

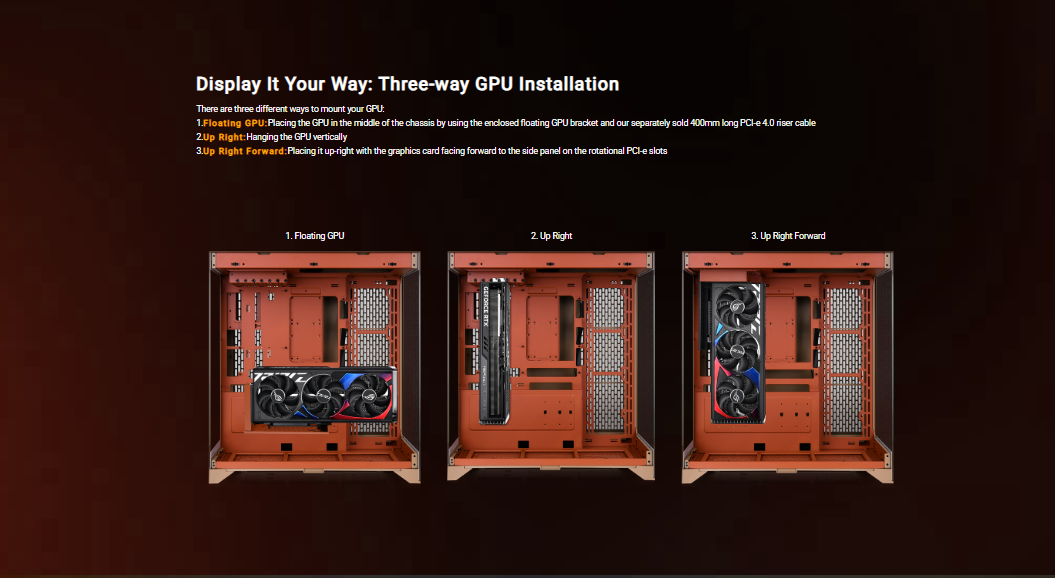

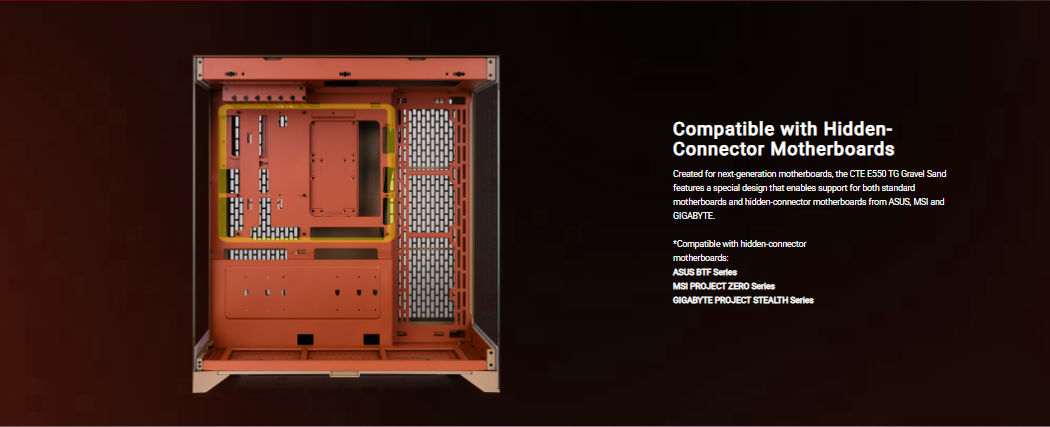

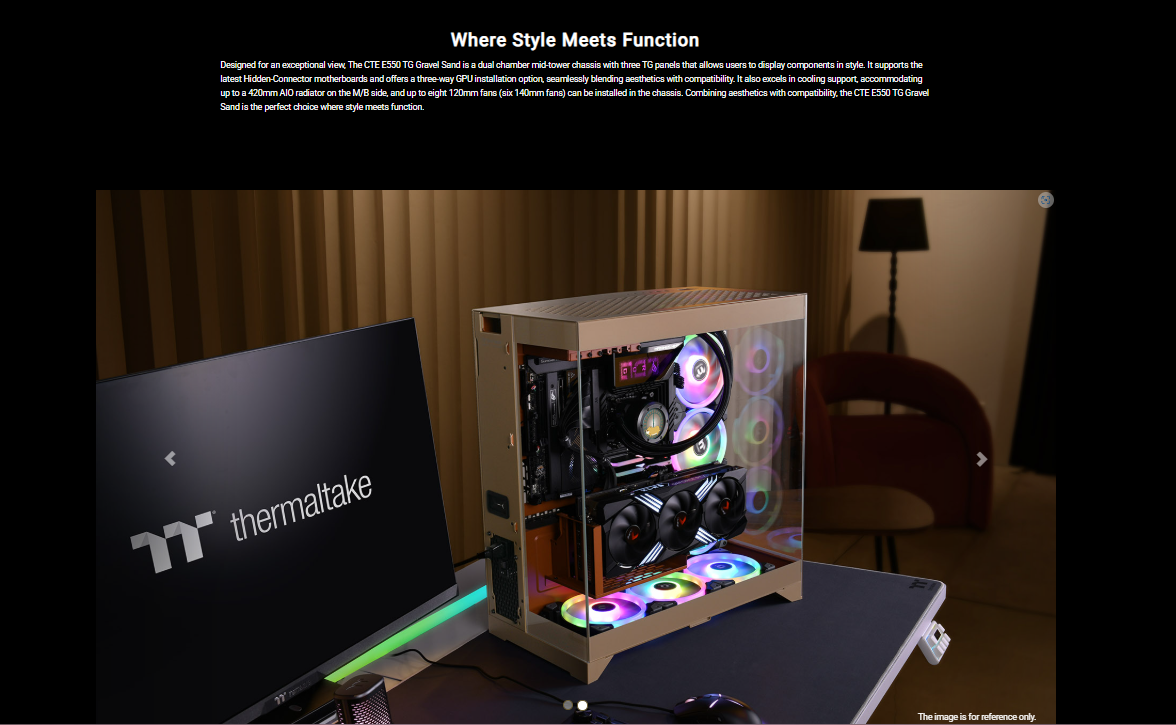

*Designed for an exceptional view, The CTE E550 TG Gravel Sand is a dual chamber mid-tower chassis with three TG panels that allows users to display components in style. It supports the latest Hidden-Connector motherboards and offers a three-way GPU installation option, seamlessly blending aesthetics with compatibility.

Specification

P/N: CA-1Z8-00MGWN-00

Series: CTE

CASE TYPE: Mid Tower

Dimension:

(H x W x D)

558.5 x 270 x 513mm

(21.99 x 10.63 x 20.2 inch)

NET WEIGHT: 14.5 kg / 31.97 lbs.

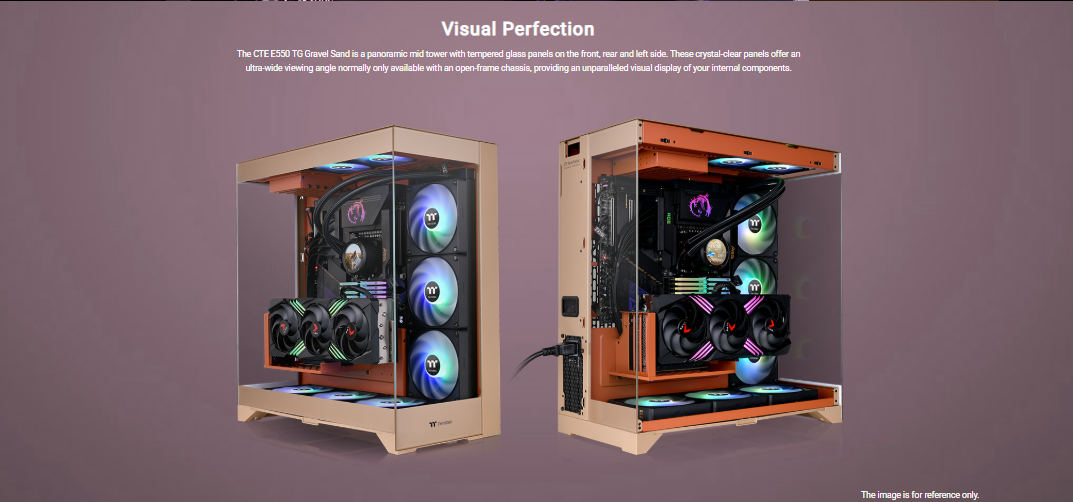

PANEL: 4mm Tempered Glass x 3

MATERIAL: SPCC

COOLING SYSTEM: 3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5”

EXPANSION SLOTS: 7

MOTHERBOARDS:

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 10.5” (E-ATX)

I/O Port: USB 3.0 x 2, Type-c x1, HD Audio x 1

PSU: Standard PS2 PSU (optional)

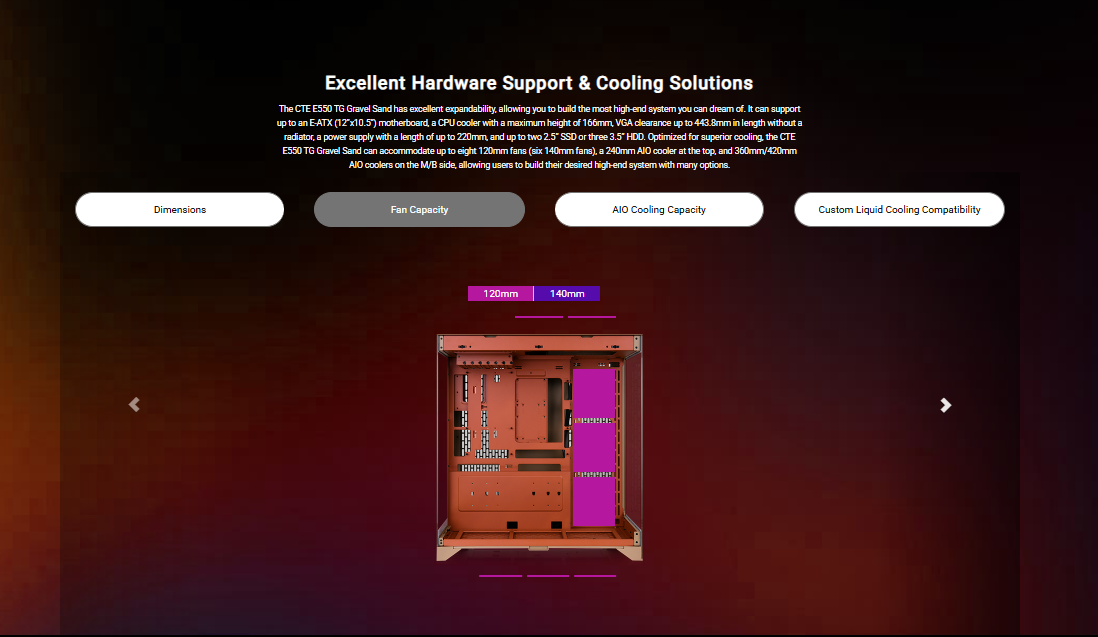

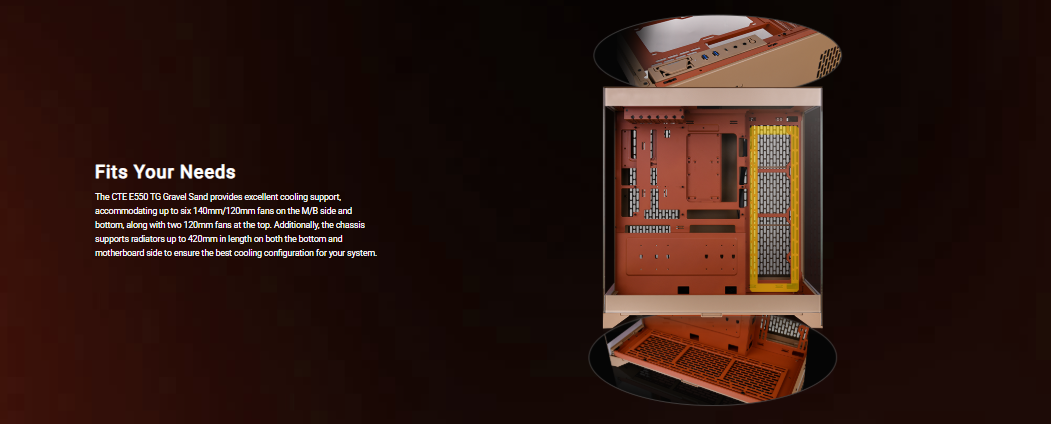

FAN SUPPORT:

- Top:

2 x 120mm, 1 x 120mm

- Right (M/B Side):

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm ,2x 140mm, 1 x 140mm

- Bottom:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm ,2x 140mm, 1 x 140mm

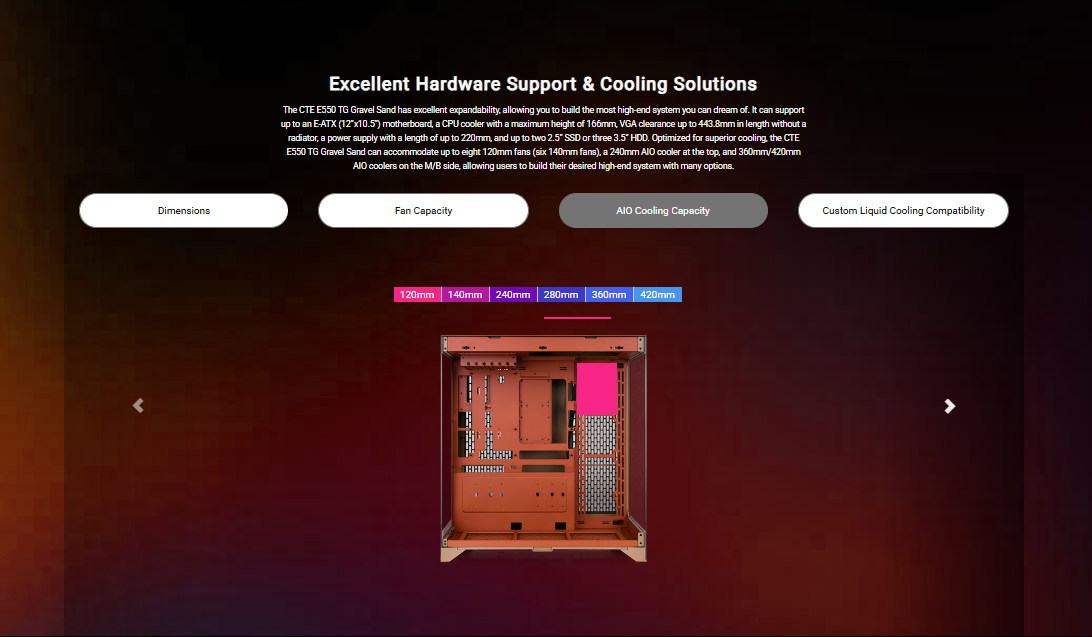

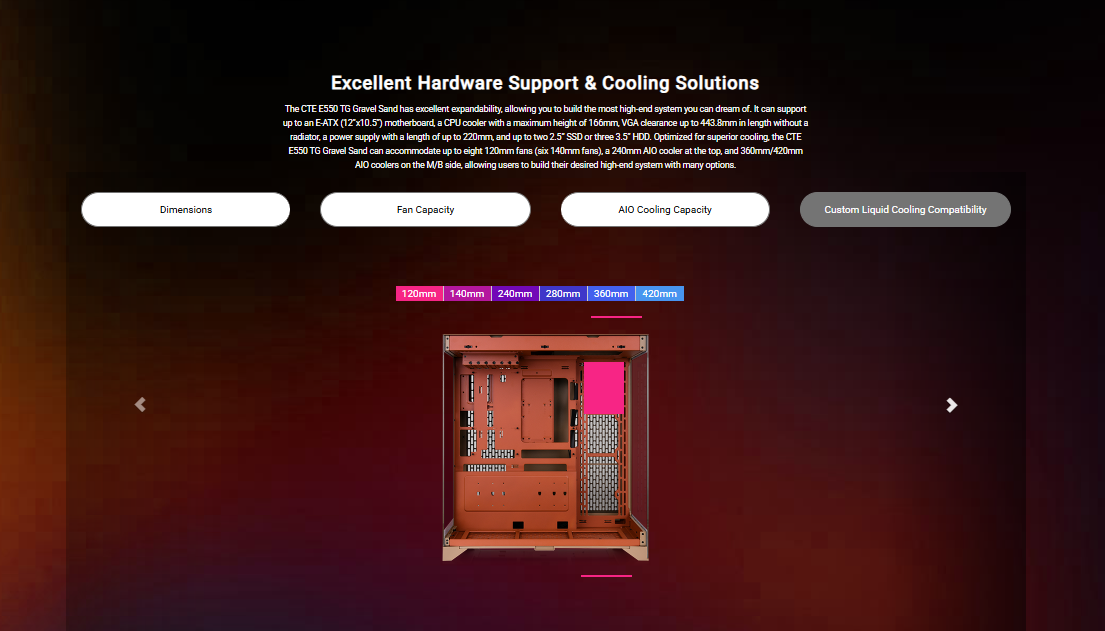

RADIATOR SUPPORT:

- Top:

1 x 240mm, 1 x 120mm

- Right (M/B Side):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

- Bottom (DIY only):

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm, 1 x 280mm, 1 x 140mm

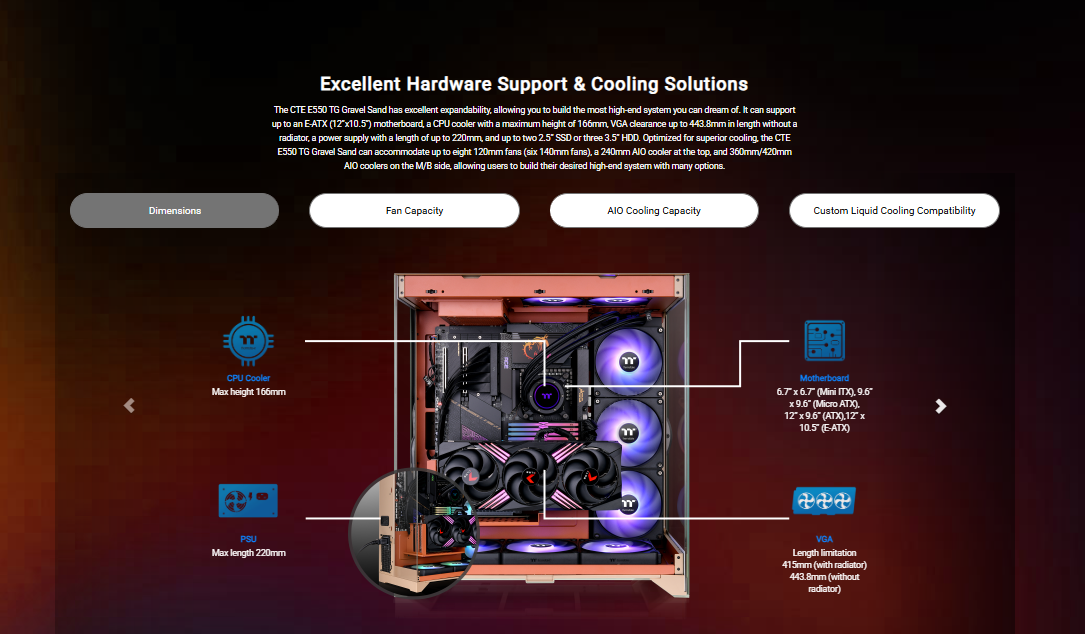

CLEARANCE:

CPU cooler max height: 166mm

VGA max length: 415mm (with radiator)

443.8mm (without radiator)

PSU max length: 220mm
