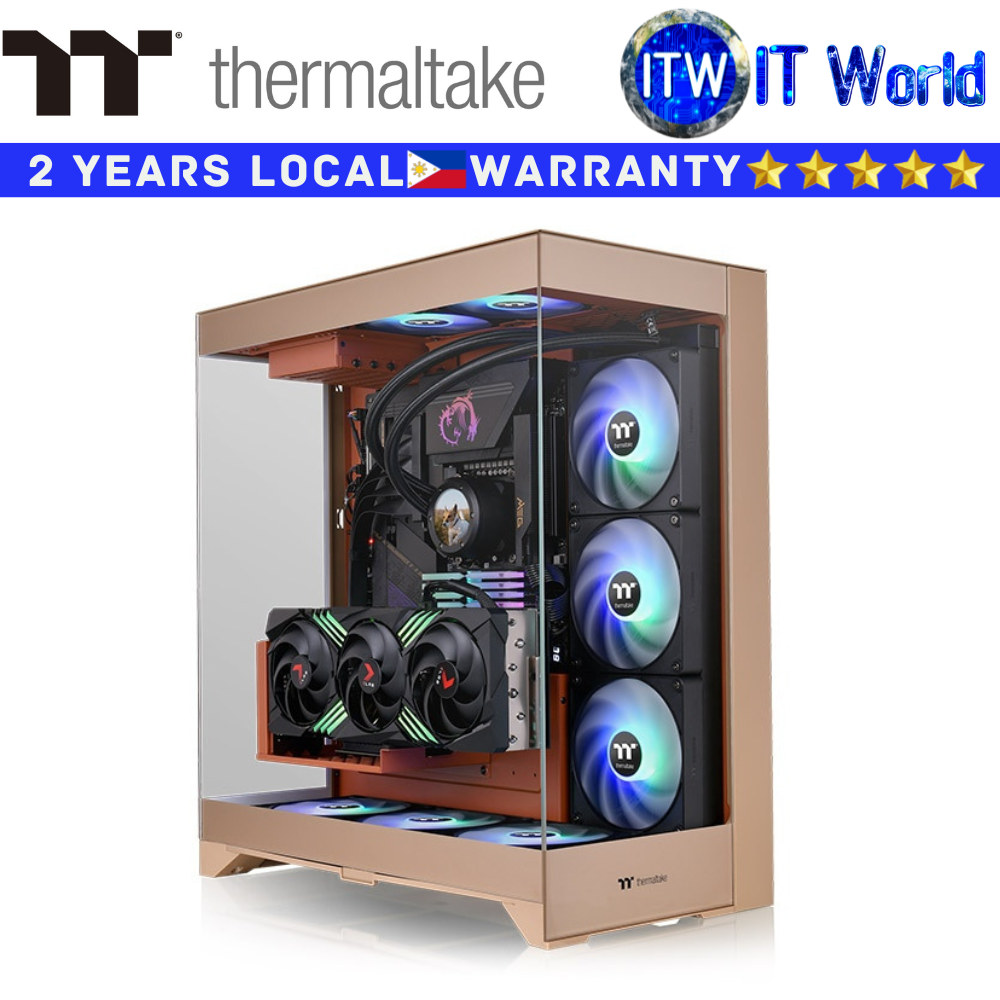

Product Name: Itw | Thermaltake Computer PC Case CTE E550 TG Travel Sand Mid Tower Chassis (CA-1Z8-00MGWN-00)
*Designed for an exceptional view, The CTE E550 TG Gravel Sand is a dual chamber mid-tower chassis with three TG panels that allows users to display components in style. It supports the latest Hidden-Connector motherboards and offers a three-way GPU installation option, seamlessly blending aesthetics with compatibility.
Specification
P/N: CA-1Z8-00MGWN-00
Series: CTE
CASE TYPE: Mid Tower
Dimension:
(H x W x D)
558.5 x 270 x 513mm
(21.99 x 10.63 x 20.2 inch)
NET WEIGHT: 14.5 kg / 31.97 lbs.
PANEL: 4mm Tempered Glass x 3
MATERIAL: SPCC
COOLING SYSTEM: 3 x 3.5”, 1 x 2.5” or 2 x 3.5”, 2 x 2.5”
EXPANSION SLOTS: 7
MOTHERBOARDS:
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),
12” x 9.6” (ATX), 12” x 10.5” (E-ATX)
I/O Port: USB 3.0 x 2, Type-c x1, HD Audio x 1
PSU: Standard PS2 PSU (optional)
FAN SUPPORT:
- Top:
2 x 120mm, 1 x 120mm
- Right (M/B Side):
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm ,2x 140mm, 1 x 140mm
- Bottom:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm ,2x 140mm, 1 x 140mm
RADIATOR SUPPORT:
- Top:
1 x 240mm, 1 x 120mm
- Right (M/B Side):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
- Bottom (DIY only):
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm
CLEARANCE:
CPU cooler max height: 166mm
VGA max length: 415mm (with radiator)
443.8mm (without radiator)
PSU max length: 220mm
