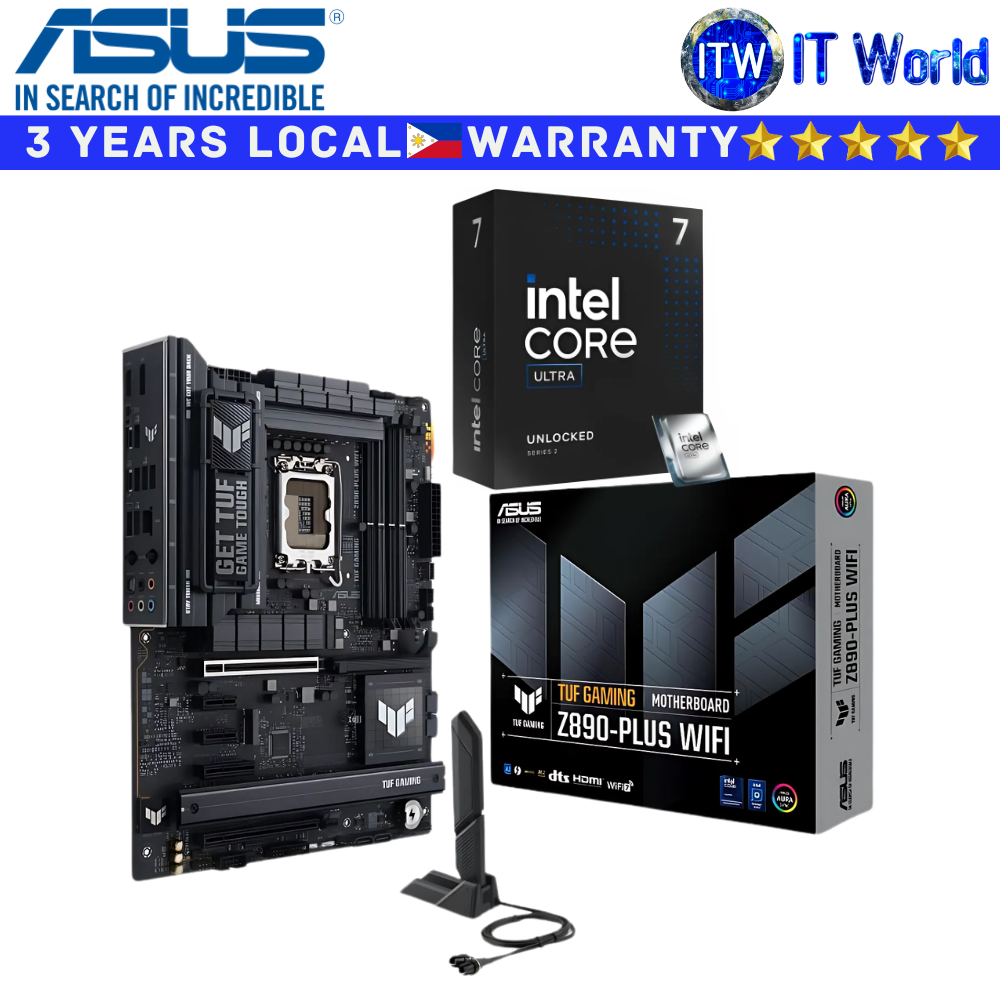

Product Name: Itw | ASUS Motherboard Bundle Intel Core Ultra 7 265K with TUF Gaming Z890-Plus Wifi
*** Intel Core Desktop Processor Ultra 7 265K ***
CPU Specs
> Total Cores: 20
> # of Performance-cores: 8
> # of Efficient-cores: 12
> Total Threads: 20
> Max Turbo Frequency: 5.5 GHz
> Intel® Turbo Boost Max Technology 3.0 Frequency ‡: 5.5 GHz
> Performance-core Max Turbo Frequency: 5.4 GHz
> Efficient-core Max Turbo Frequency: 4.6 GHz
> Performance-core Base Frequency: 3.9 GHz
> Efficient-core Base Frequency: 3.3 GHz
> Cache: 30 MB Intel® Smart Cache
> Total L2 Cache: 36 MB
> Processor Base Power: 125 W
> Maximum Turbo Power: 250 W
> Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
> AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
> CPU Lithography: TSMC N3B
Memory Specs
> Max Memory Size (dependent on memory type): 192 GB
> Memory Types: Up to DDR5 6400 MT/s
> Maximum Memory Speed: 6400 MHz
> Max # of Memory Channels: 2
> ECC Memory Supported ‡: Yes
*** ASUS Motherboard TUF Gaming Z890-Plus Wifi ATX LGA1851 DDR5 ***
CPU
> Support Intel® Core™ Ultra Processors (Series 2), LGA1851*
> Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
> Intel® Z890 Chipset
Memory
> 4 x DIMM slots, max. 192GB, DDR5
> Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
> Dual channel memory architecture
> DIMM Fit
> Supports Intel® Extreme Memory Profile (XMP) memory module
> ASUS Enhanced Memory Profile III(AEMPIII)
Graphics
> 1 x DisplayPort**
> 1 x HDMI™ port***
> 1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****
> 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output******
Expansion Slots
> Intel® Core™ Ultra Processors(Series 2)*
- 1 x PCIe 5.0 x16 slot
> Intel® Z890 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 1 x PCIe 4.0 x4 slot
- 2 x PCIe 4.0 x1 slots
Storage
> Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
> Intel® Core™ Ultra Processors(Series 2)*
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
> Intel® Z890 Chipset
- M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
- M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
Ethernet
> 1 x Intel® 2.5Gb Ethernet
> TUF LANGuard
Wireless & Bluetooth
> Wi-Fi 7*
> 2x2 Wi-Fi 7 (802.11be)
> Supports 2.4/5/6GHz frequency band**
> Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
> Bluetooth® v5.4***
USB
> Rear USB (Total 8 ports)
- 1 x Thunderbolt™ 4 port (1 x USB Type-C®)
- 1 x USB 20Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (3 x Type-A)
- 3 x USB 5Gbps ports (3 x Type-A)
> Front USB (Total 7 ports)
- 1 x USB 20Gbps connector (supports USB Type-C®)
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Type-C® power delivery output: max. 5V/3A
Audio
> Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
> Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
Back Panel I/O Ports
> 1 x Thunderbolt™ 4 USB Type-C® port
> 1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
> 3 x USB 10Gbps ports (3 x Type-A)
> 3 x USB 5Gbps ports (3 x Type-A)
> 1 x DisplayPort
> 1 x HDMI™ port
> 1 x Wi-Fi module
> 1 x Intel® 2.5Gb Ethernet port
> 5 x Audio jacks
> 1 x Optical S/PDIF out port
> 1 x BIOS FlashBack™ button
Form Factor
> ATX / 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
