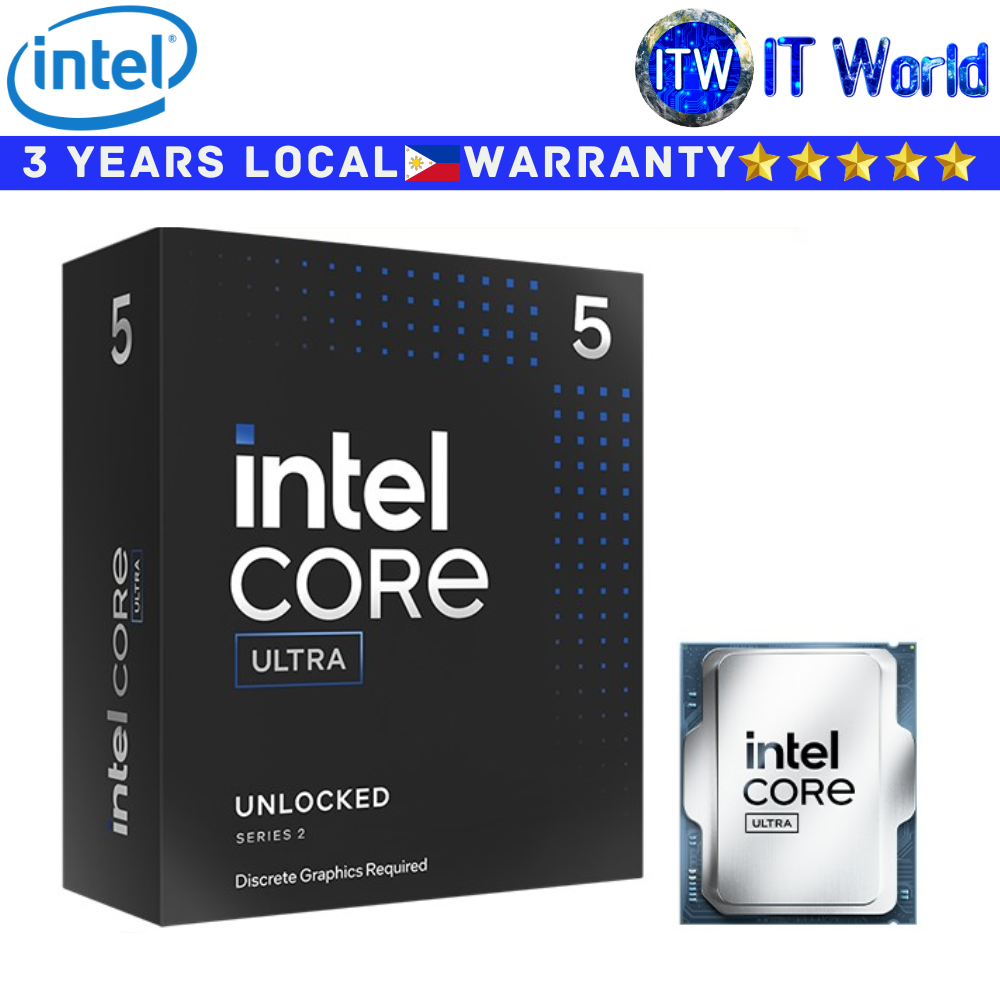

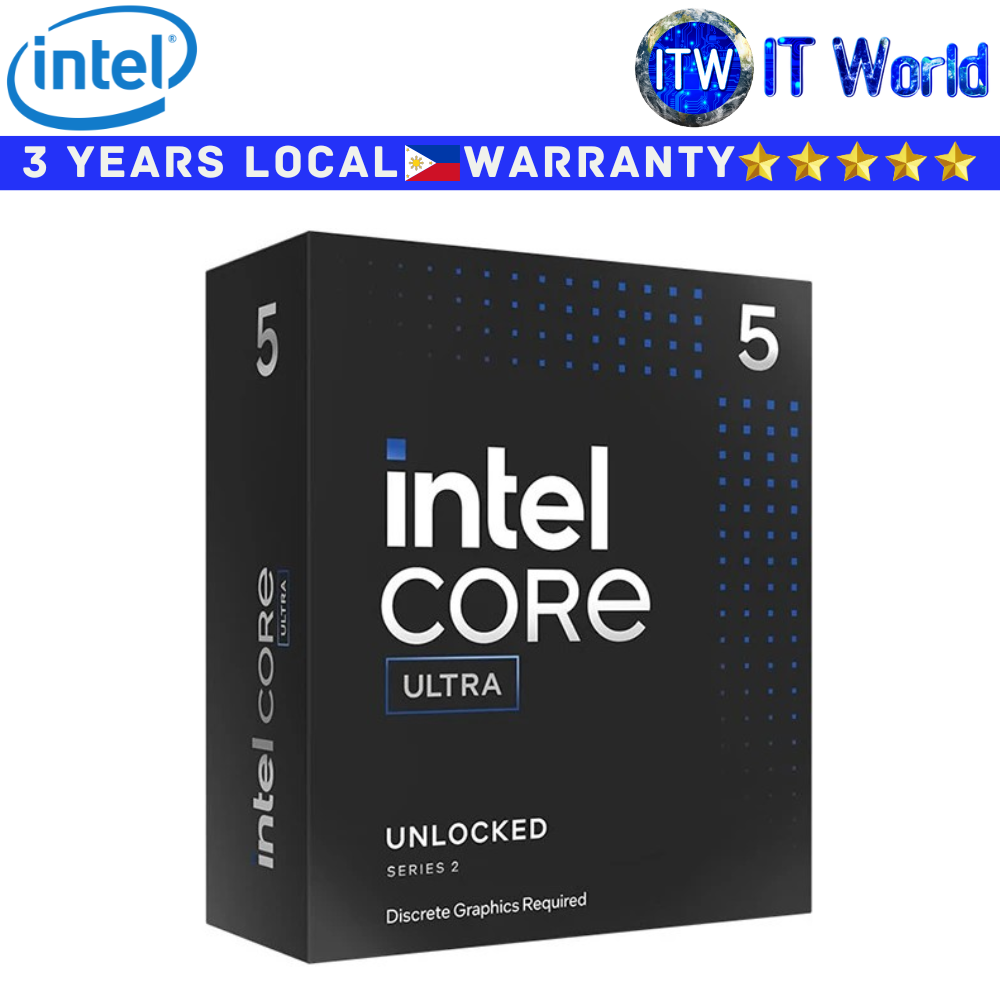

Intel Core Ultra 5 245KF 24MB Cache, up to 5.20Ghz Desktop Processor (BX80768245KF)

Product Name: Itw | Intel Core Ultra 5 245KF 24MB Cache, up to 5.20Ghz Desktop Processor (BX80768245KF)

Specifications

Essentials

* Product Collection: Intel® Core™ Ultra Processors (Series 2)

* Code Name: Products formerly Arrow Lake

* Vertical Segment: Desktop

* Processor Number: 245KF

* Overall Peak TOPS (Int8): 22

CPU Specifications

* Total Cores: 14

* # of Performance-cores: 6

* # of Efficient-cores: 8

* Total Threads: 14

* Max Turbo Frequency: 5.2 GHz

* Performance-core Max Turbo Frequency: 5.2 GHz

* Efficient-core Max Turbo Frequency: 4.6 GHz

* Performance-core Base Frequency: 4.2 GHz

* Efficient-core Base Frequency: 3.6 GHz

* Cache: 24 MB Intel® Smart Cache

* Total L2 Cache: 26 MB

* Processor Base Power: 125 W

* Maximum Turbo Power: 159 W

* Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes

* AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

* CPU Lithography: TSMC N3B

Supplemental Information

* Marketing Status: Launched

* Launch Date: Q4'24

* Embedded Options Available: No

* Use Conditions: PC/Client/Tablet

Memory Specifications

* Max Memory Size (dependent on memory type): 192 GB

* Memory Types: Up to DDR5 6400 MT/s

* Maximum Memory Speed: 6400 MHz

* Max # of Memory Channels: 2

NPU Specifications

* NPU Name: Intel® AI Boost

* NPU Peak TOPS (Int8): 13

* Sparsity Support: Yes

* Windows Studio Effects Support: Yes

* AI Software Frameworks Supported by NPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN

Expansion Options

* Direct Media Interface (DMI) Revision: 4

* Max # of DMI Lanes: 8

* Intel® Thunderbolt™ 4: Yes

* Scalability: 1S Only

* PCI Express Revision: 5.0 and 4.0

* PCI Express Configurations ‡: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4

* Max # of PCI Express Lanes: 24

Package Specifications

* Sockets Supported: FCLGA1851

* Thermal Solution Specification: PCG 2020A

* Max Operating Temperature: 105 °C

Advanced Technologies

* Intel® Volume Management Device (VMD): Yes

* Intel® Gaussian & Neural Accelerator: 3.5

* Intel® Thread Director: Yes

* Intel® Speed Shift Technology: Yes

* Intel® Turbo Boost Technology ‡: 2.0

* Intel® 64 ‡: Yes

* Instruction Set: 64-bit

* Instruction Set: Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

* Idle States: Yes

* Enhanced Intel SpeedStep® Technology: Yes

* Thermal Monitoring Technologies: Yes

Security & Reliability

* Intel® Standard Manageability (ISM) ‡: Yes

* Intel® Control-Flow Enforcement Technology: Yes

* Intel® AES New Instructions: Yes

* Secure Key: Yes

* Intel® Trusted Execution Technology ‡: Yes

* Execute Disable Bit ‡: Yes

* Intel® OS Guard: Yes

* Intel® Boot Guard: Yes

* Mode-based Execute Control (MBEC): Yes

* Intel® Virtualization Technology (VT-x) ‡: Yes

* Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes

* Intel® VT-x with Extended Page Tables (EPT) ‡: Yes
