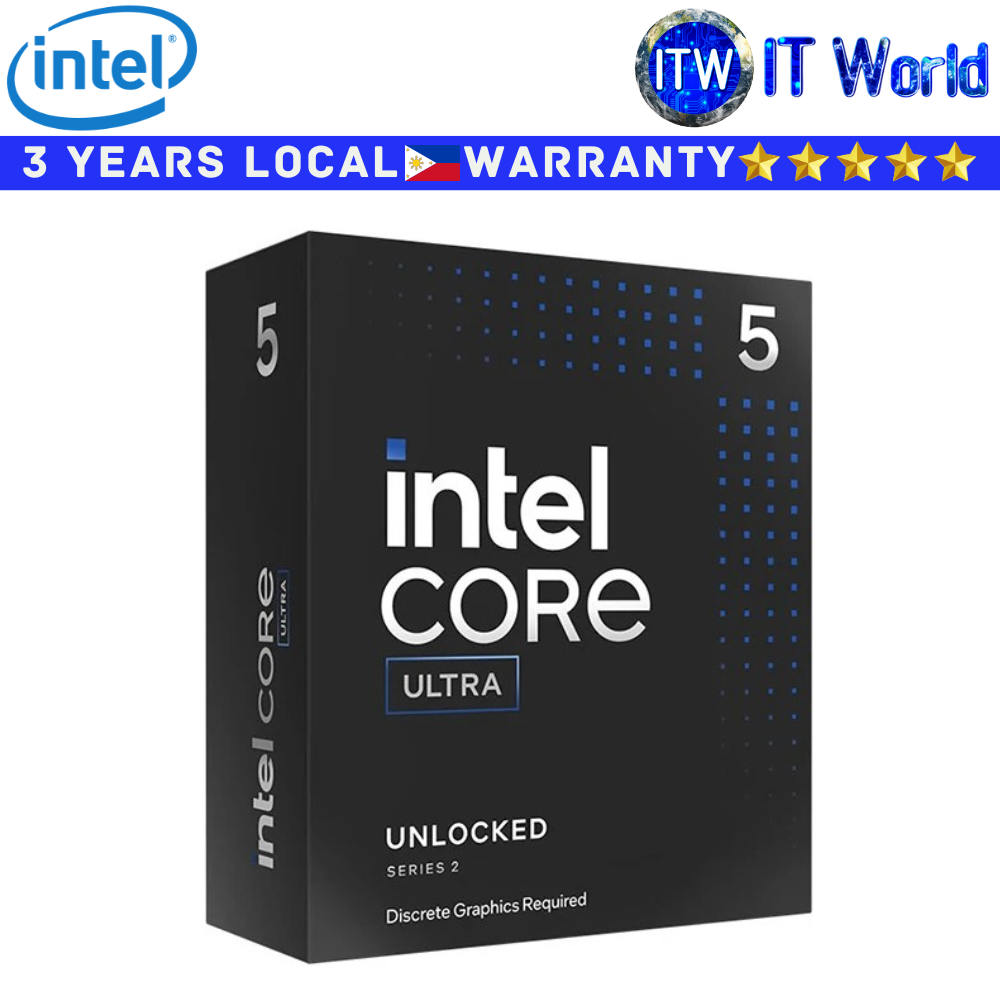

Product Name: Itw | Intel Core Ultra 5 245K 24MB Cache, up to 5.20Ghz Desktop Processor (BX80768245K)
Specifications
Essentials
* Product Collection: Intel® Core™ Ultra Processors (Series 2)
* Code Name: Products formerly Arrow Lake
* Vertical Segment: Desktop
* Processor Number: 245K
* Overall Peak TOPS (Int8): 30
CPU Specifications
* Total Cores: 14
* # of Performance-cores: 6
* # of Efficient-cores: 8
* Total Threads: 14
* Max Turbo Frequency: 5.2 GHz
* Performance-core Max Turbo Frequency: 5.2 GHz
* Efficient-core Max Turbo Frequency: 4.6 GHz
* Performance-core Base Frequency: 4.2 GHz
* Efficient-core Base Frequency: 3.6 GHz
* Cache: 24 MB Intel® Smart Cache
* Total L2 Cache: 26 MB
* Processor Base Power: 125 W
* Maximum Turbo Power: 159 W
* Intel® Deep Learning Boost (Intel® DL Boost) on CPU: Yes
* AI Software Frameworks Supported by CPU: OpenVINO™, WindowsML, DirectML, ONNX RT, WebNN
* CPU Lithography: TSMC N3B
Supplemental Information
* Marketing Status: Launched
* Launch Date: Q4'24
* Embedded Options Available: No
* Use Conditions: PC/Client/Tablet, Workstation
Memory Specifications
* Max Memory Size (dependent on memory type): 192 GB
* Memory Types Up to: DDR5 6400 MT/s
* Maximum Memory Speed: 6400 MHz
* Max # of Memory Channels: 2
* ECC Memory Supported ‡: Yes
GPU Specifications
* GPU Name‡ Intel® Graphics
* Graphics Base Frequency: 300 MHz
* Graphics Max Dynamic Frequency: 1.9 GHz
* GPU Peak TOPS (Int8): 8
* Graphics Output: DP2.1 UHBR20, HDM2.1 FRL 12GHz, eDP1.4b Xe-cores4
* Max Resolution (HDMI)‡: 4K @ 60Hz (HDMI 2.1 TMDS) 8K @ 60Hz (HDMI2.1 FRL)
* Max Resolution (DP)‡: 8K @ 60Hz
* Max Resolution (eDP - Integrated Flat Panel)‡: 4K @ 60Hz
* DirectX* Support: 12
* OpenGL* Support: 4.5
* OpenCL* Support: 3
* Intel® Quick Sync Video: Yes
* # of Displays Supported ‡: 4
* Device ID: 0x7D67
* Intel® Deep Learning Boost (Intel® DL Boost) on GPU: Yes
NPU Specifications
* NPU Name‡: Intel® AI Boost
* NPU Peak TOPS (Int8): 13
* Sparsity Support: Yes
* Windows Studio Effects Support: Yes
* AI Software Frameworks Supported by NPU: OpenVINO™, * WindowsML, DirectML, ONNX RT, WebNN
Expansion Options
* Direct Media Interface (DMI) Revision: 4
* Max # of DMI Lanes: 8
* Intel® Thunderbolt™ 4: Yes
* Scalability: 1S Only
* PCI Express Revision: 5.0 and 4.0
* PCI Express Configurations ‡: Up to 1x16+2x4, 2x8+2x4, 1x8+4x4
* Max # of PCI Express Lanes: 24
Package Specifications
* Sockets Supported: FCLGA1851
* Thermal Solution Specification: PCG 2020A
* Max Operating Temperature: 105 °C
Advanced Technologies
* Intel® Volume Management Device (VMD): Yes
* Intel® Gaussian & Neural Accelerator: 3.5
* Intel® Thread Director: Yes
* Intel® Speed Shift Technology: Yes
* Intel® Turbo Boost Technology ‡: 2.0
* Intel® 64 ‡: Yes
* Instruction Set: 64-bit
* Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
* Idle States: Yes
* Enhanced Intel SpeedStep® Technology: Yes
* Thermal Monitoring Technologies: Yes
Security & Reliability
* Intel vPro® Eligibility ‡: Intel vPro® Enterprise, Intel vPro® Platform
* Intel® Threat Detection Technology (TDT): Yes
* Intel® Active Management Technology (AMT) ‡: Yes
* Intel® Standard Manageability (ISM) ‡: Yes
* Intel® Remote Platform Erase (RPE) ‡: Yes
* Intel® One-Click Recovery ‡: Yes
* Intel® Hardware Shield Eligibility ‡: Yes
* Intel® Control-Flow Enforcement Technology: Yes
* Intel® Total Memory Encryption - Multi Key: Yes
* Intel® AES New Instructions: Yes
* Secure Key: Yes
* Intel® Trusted Execution Technology ‡: Yes
* Execute Disable Bit ‡: Yes
* Intel® OS Guard: Yes
* Intel® Boot Guard: Yes
* Mode-based Execute Control (MBEC): Yes
* Intel® Stable IT Platform Program (SIPP): Yes
* Intel® Virtualization Technology with Redirect Protection (VT-rp) ‡: Yes
* Intel® Virtualization Technology (VT-x) ‡: Yes
* Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes
* Intel® VT-x with Extended Page Tables (EPT) ‡: Yes
