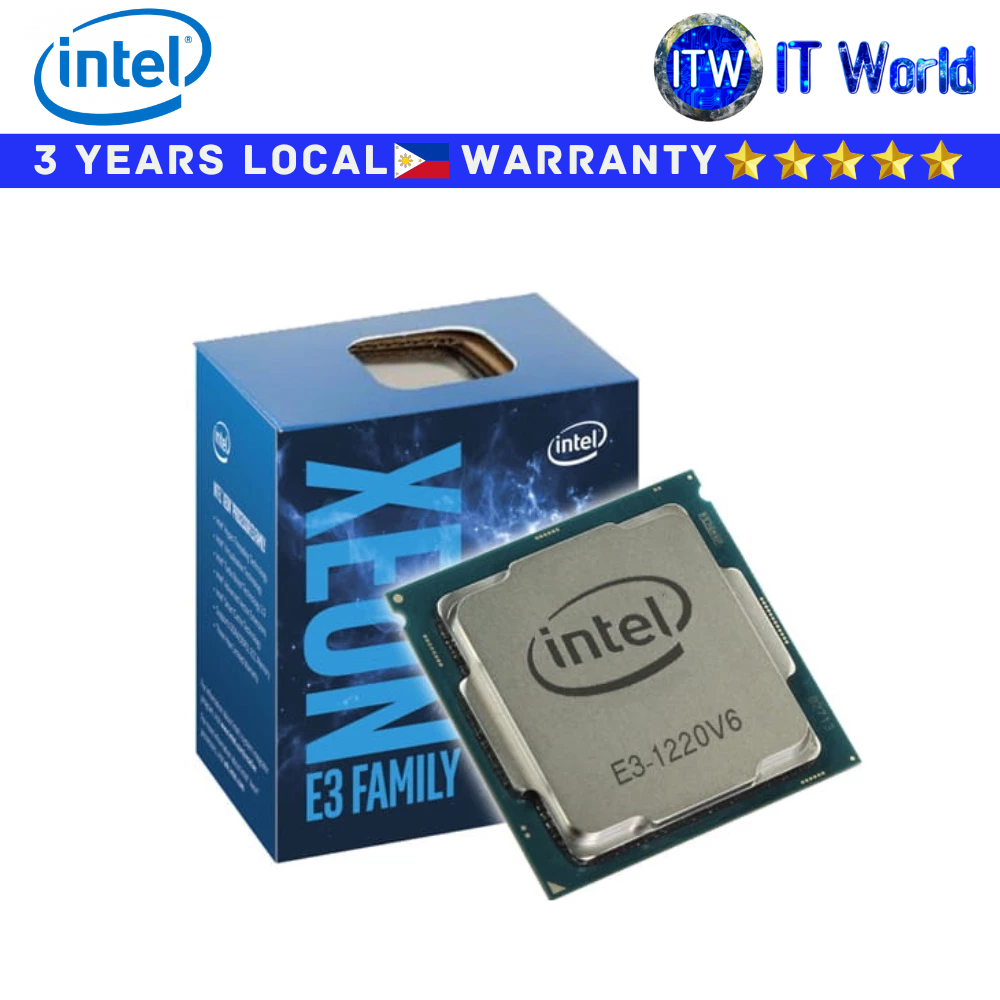

Product Name: Itw | Intel Xeon E3-1220 v6 8M Cache, 3.00Ghz Desktop Processor (BX80677E31220V6)
KEY FEATURES
■ Xeon E3-1220 v6 is a 64-bit quad-core x86 workstation/entry server microprocessor introduced by Intel in early 2017.
■ This chip, which is based on the Kaby Lake microarchitecture, is fabricated on Intel's 14nm+ process.
■ The E3-1220 v6 operates at 3 GHz with a TDP of 72 W supporting a Turbo Boost frequency of 3.5 GHz.
■ The processor supports up to 64 GiB of dual-channel DDR4-2400 ECC memory. This model has no integrated graphics processor.
SPECIFICATION
Essentials
✎ Product Collection: Intel® Xeon® Processor E3 v6 Family
✎ Code Name: Products formerly Kaby Lake
✎ Vertical Segment: Server
✎ Processor Number: E3-1220V6
✎ Lithography: 14 nm
CPU Specifications
✎ Total Cores: 4
✎ Total Threads: 4
✎ Max Turbo Frequency: 3.50 GHz
✎ Intel® Turbo Boost Technology 2.0 Frequency‡: 3.50 GHz
✎ Processor Base Frequency: 3.00 GHz
✎ Cache: 8 MB Intel® Smart Cache
✎ Bus Speed: 8 GT/s
✎ TDP: 72 W
Supplemental Information
✎ Marketing Status: Launched
✎ Launch Date: Q1'17
✎ Embedded Options Available: No
Memory Specifications
✎ Max Memory Size (dependent on memory type): 64 GB
✎ Memory Types: DDR4-2400, DDR3L-1866
✎ Max # of Memory Channels: 2
✎ Max Memory Bandwidth: 37.5 GB/s
✎ ECC Memory Supported ‡: Yes
Processor Graphics
✎ Graphics Output: N/A
✎ 4K Support: No
✎ Max Resolution (HDMI)‡: N/A
✎ Max Resolution (DP)‡: N/A
✎ Max Resolution (eDP - Integrated Flat Panel)‡: N/A
✎ Max Resolution (VGA)‡: N/A
✎ DirectX* Support: N/A
✎ OpenGL* Support: N/A
✎ Intel® Quick Sync Video: No
✎ Intel® InTru™ 3D Technology: No
✎ Intel® Clear Video HD Technology: No
✎ Intel® Clear Video Technology: No
✎ # of Displays Supported ‡: 0
Expansion Options
✎ Scalability: 1S Only
✎ PCI Express Revision: 3.0
✎ PCI Express Configurations ‡: 1x16, 2x8, 1x8+2x4
✎ Max # of PCI Express Lanes: 16
Package Specifications
✎ Sockets Supported: FCLGA1151
✎ Max CPU Configuration: 1
✎ Package Size: 37.5mm x 37.5mm
Advanced Technologies
✎ Intel® Optane™ Memory Supported ‡: Yes
✎ Intel® Turbo Boost Technology ‡: 2.0
✎ Intel® Hyper-Threading Technology ‡: No
✎ Intel® Transactional Synchronization Extensions: Yes
✎ Intel® 64 ‡: Yes
✎ Instruction Set: 64-bit
✎ Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
✎ Idle States: Yes
✎ Enhanced Intel SpeedStep® Technology: Yes
✎ Thermal Monitoring Technologies: Yes
Security & Reliability
✎ Intel vPro® Eligibility ‡: Intel vPro® Platform
✎ Intel® AES New Instructions: Yes
✎ Secure Key: Yes
✎ Intel® Software Guard Extensions (Intel® SGX): Yes with both Intel® SPS and Intel® ME
✎ Intel® Memory Protection Extensions (Intel® MPX): Yes
✎ Intel® OS Guard: Yes
✎ Intel® Trusted Execution Technology ‡: Yes
✎ Execute Disable Bit ‡: Yes
✎ Intel® Boot Guard: Yes
✎ Intel® Virtualization Technology (VT-x) ‡: Yes
✎ Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes
✎ Intel® VT-x with Extended Page Tables (EPT) ‡: Yes
