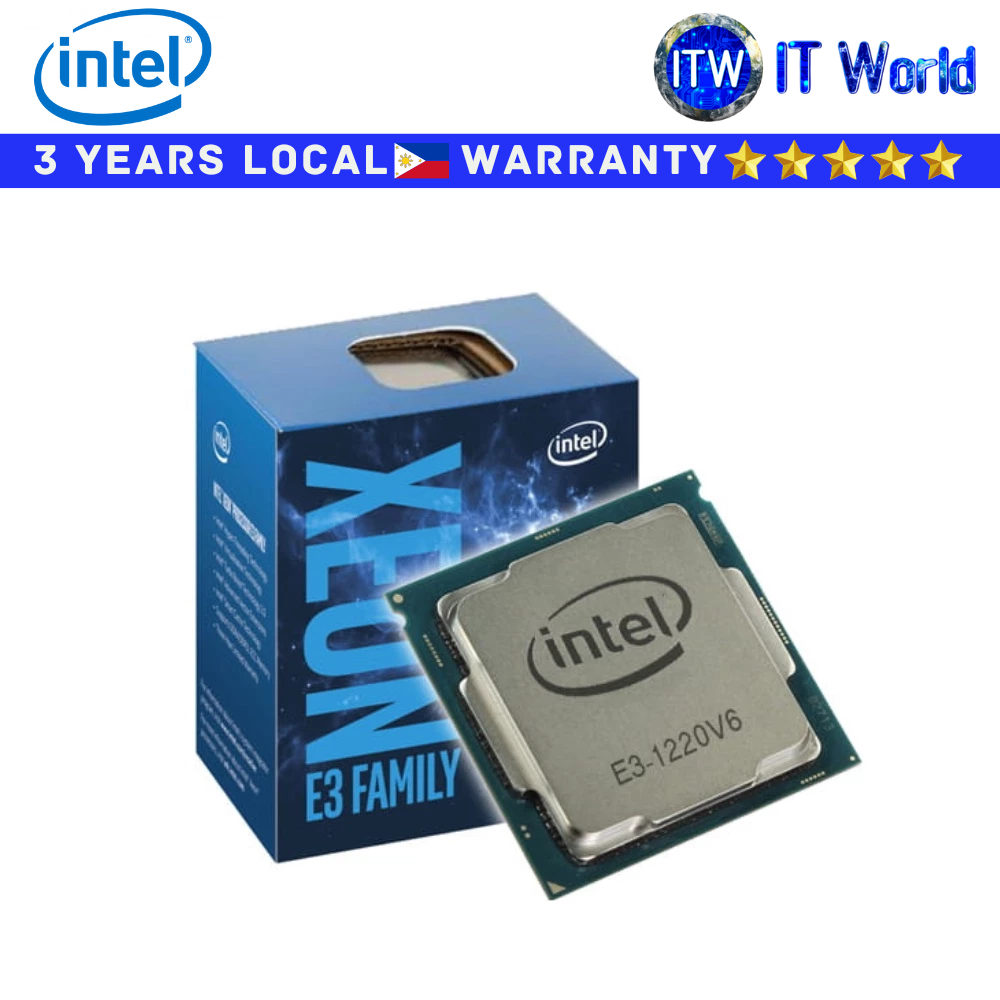

Intel Xeon E3-1220 v6 8M Cache, 3.00Ghz Desktop Processor (BX80677E31220V6)

Product Name: Itw | Intel Xeon E3-1220 v6 8M Cache, 3.00Ghz Desktop Processor (BX80677E31220V6)

KEY FEATURES

■ Xeon E3-1220 v6 is a 64-bit quad-core x86 workstation/entry server microprocessor introduced by Intel in early 2017.

■ This chip, which is based on the Kaby Lake microarchitecture, is fabricated on Intel's 14nm+ process.

■ The E3-1220 v6 operates at 3 GHz with a TDP of 72 W supporting a Turbo Boost frequency of 3.5 GHz.

■ The processor supports up to 64 GiB of dual-channel DDR4-2400 ECC memory. This model has no integrated graphics processor.

SPECIFICATION

Essentials

✎ Product Collection: Intel® Xeon® Processor E3 v6 Family

✎ Code Name: Products formerly Kaby Lake

✎ Vertical Segment: Server

✎ Processor Number: E3-1220V6

✎ Lithography: 14 nm

CPU Specifications

✎ Total Cores: 4

✎ Total Threads: 4

✎ Max Turbo Frequency: 3.50 GHz

✎ Intel® Turbo Boost Technology 2.0 Frequency‡: 3.50 GHz

✎ Processor Base Frequency: 3.00 GHz

✎ Cache: 8 MB Intel® Smart Cache

✎ Bus Speed: 8 GT/s

✎ TDP: 72 W

Supplemental Information

✎ Marketing Status: Launched

✎ Launch Date: Q1'17

✎ Embedded Options Available: No

Memory Specifications

✎ Max Memory Size (dependent on memory type): 64 GB

✎ Memory Types: DDR4-2400, DDR3L-1866

✎ Max # of Memory Channels: 2

✎ Max Memory Bandwidth: 37.5 GB/s

✎ ECC Memory Supported ‡: Yes

Processor Graphics

✎ Graphics Output: N/A

✎ 4K Support: No

✎ Max Resolution (HDMI)‡: N/A

✎ Max Resolution (DP)‡: N/A

✎ Max Resolution (eDP - Integrated Flat Panel)‡: N/A

✎ Max Resolution (VGA)‡: N/A

✎ DirectX* Support: N/A

✎ OpenGL* Support: N/A

✎ Intel® Quick Sync Video: No

✎ Intel® InTru™ 3D Technology: No

✎ Intel® Clear Video HD Technology: No

✎ Intel® Clear Video Technology: No

✎ # of Displays Supported ‡: 0

Expansion Options

✎ Scalability: 1S Only

✎ PCI Express Revision: 3.0

✎ PCI Express Configurations ‡: 1x16, 2x8, 1x8+2x4

✎ Max # of PCI Express Lanes: 16

Package Specifications

✎ Sockets Supported: FCLGA1151

✎ Max CPU Configuration: 1

✎ Package Size: 37.5mm x 37.5mm

Advanced Technologies

✎ Intel® Optane™ Memory Supported ‡: Yes

✎ Intel® Turbo Boost Technology ‡: 2.0

✎ Intel® Hyper-Threading Technology ‡: No

✎ Intel® Transactional Synchronization Extensions: Yes

✎ Intel® 64 ‡: Yes

✎ Instruction Set: 64-bit

✎ Instruction Set Extensions: Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2

✎ Idle States: Yes

✎ Enhanced Intel SpeedStep® Technology: Yes

✎ Thermal Monitoring Technologies: Yes

Security & Reliability

✎ Intel vPro® Eligibility ‡: Intel vPro® Platform

✎ Intel® AES New Instructions: Yes

✎ Secure Key: Yes

✎ Intel® Software Guard Extensions (Intel® SGX): Yes with both Intel® SPS and Intel® ME

✎ Intel® Memory Protection Extensions (Intel® MPX): Yes

✎ Intel® OS Guard: Yes

✎ Intel® Trusted Execution Technology ‡: Yes

✎ Execute Disable Bit ‡: Yes

✎ Intel® Boot Guard: Yes

✎ Intel® Virtualization Technology (VT-x) ‡: Yes

✎ Intel® Virtualization Technology for Directed I/O (VT-d) ‡: Yes

✎ Intel® VT-x with Extended Page Tables (EPT) ‡: Yes
