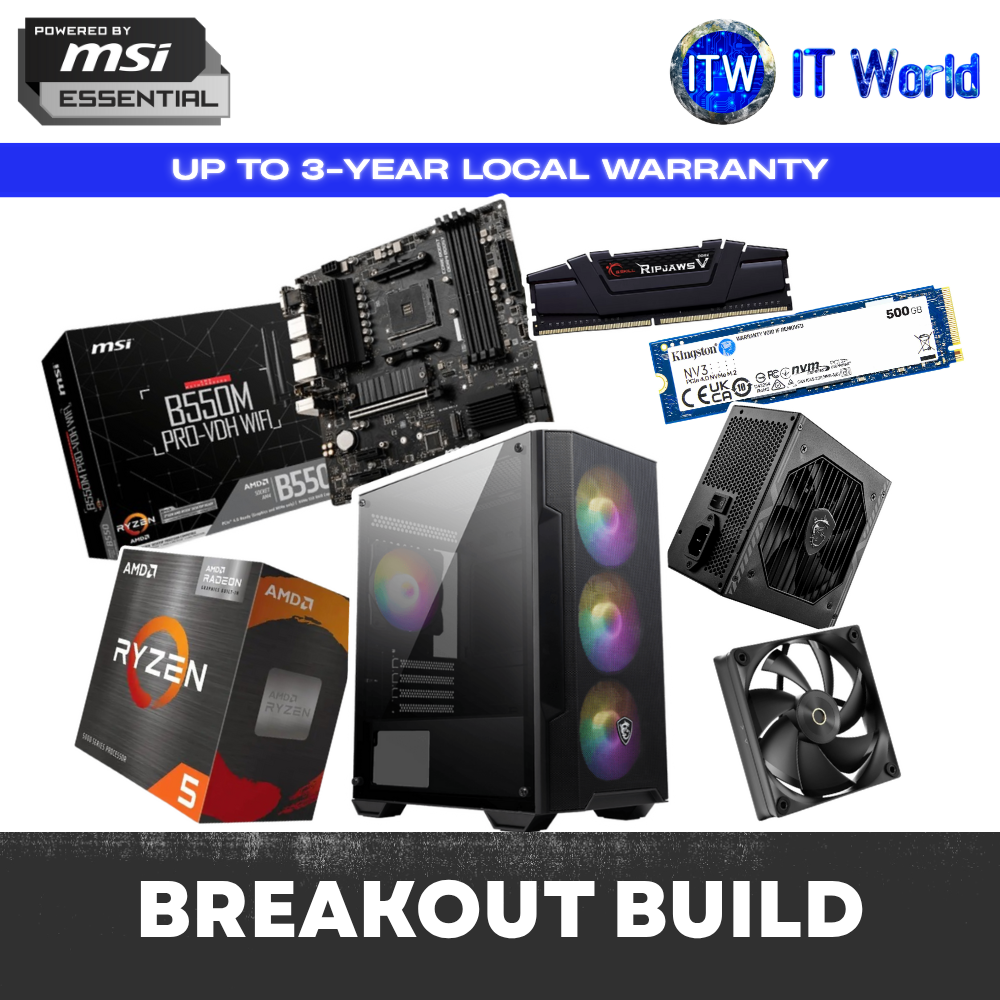

[PC Build] Breakout Build – Ryzen 5 5600G 32GB DDR4 RAM/500GB Gen4 NVMe SSD/ WiFi mATX/ 550W PSU
Full Specifications:

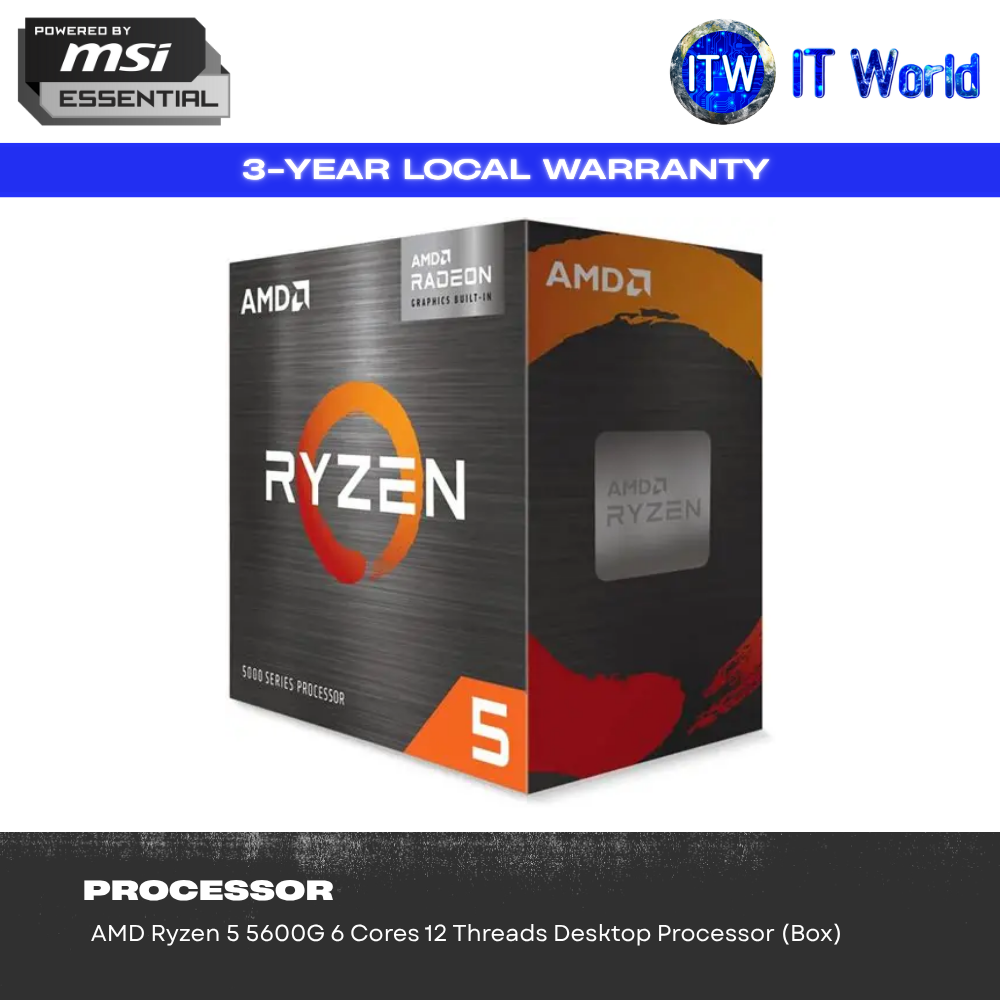

Processor: AMD Ryzen 5 5600G Desktop Processor (Boxed with Wraith Stealth Cooler)
Architecture: Zen 3, 7nm FinFET
Cores / Threads: 6 Cores / 12 Threads
Base Clock: 3.9 GHz
Max Boost Clock: Up to 4.4 GHz
Cache: L2 – 3MB | L3 – 16MB
Integrated Graphics: Radeon Graphics – 7 Cores, 1900 MHz
Default TDP: 65W
Socket: AM4
Unlocked for Overclocking: Yes
Included Cooler: AMD Wraith Stealth
OS Support: Windows 10/11 64-bit, Ubuntu, RHEL
Product Size: 1.57 x 1.57 x 0.1 inches
First Available: August 2021

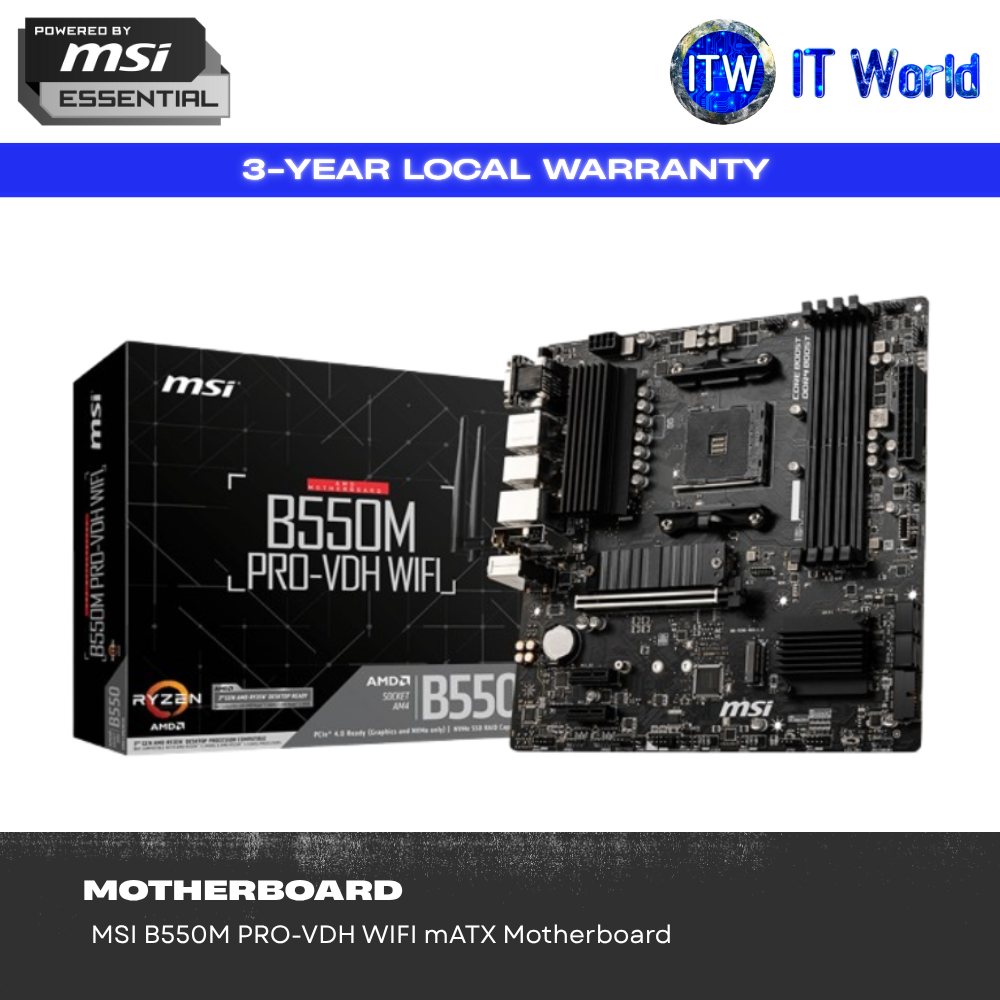

Motherboard: MSI B550M PRO-VDH WIFI mATX Motherboard
Socket: AM4
Chipset: AMD B550
Form Factor: Micro-ATX
Memory Support: 4x DDR4 DIMMs, up to 128GB, dual channel
PCIe Slots:
1x PCIe x16 (Gen4)
2x PCIe x1
Storage:
4x SATA III
2x M.2 slots (1x Gen4 x4, 1x Gen3 x4)
RAID Support: 0/1/10
Integrated WiFi-AC + Bluetooth 4.2
Rear I/O:
USB 3.2 Gen1: 4x Type-A
DisplayPort, HDMI, VGA
1x PS/2, Audio Ports
Front Panel:
1x USB 3.2 Gen1 Type-C
2x USB 3.2 Gen1 Type-A
4x USB 2.0
Audio: Realtek ALC892/ALC897 – 7.1 CH HD
OS Support: Windows 10 64-bit

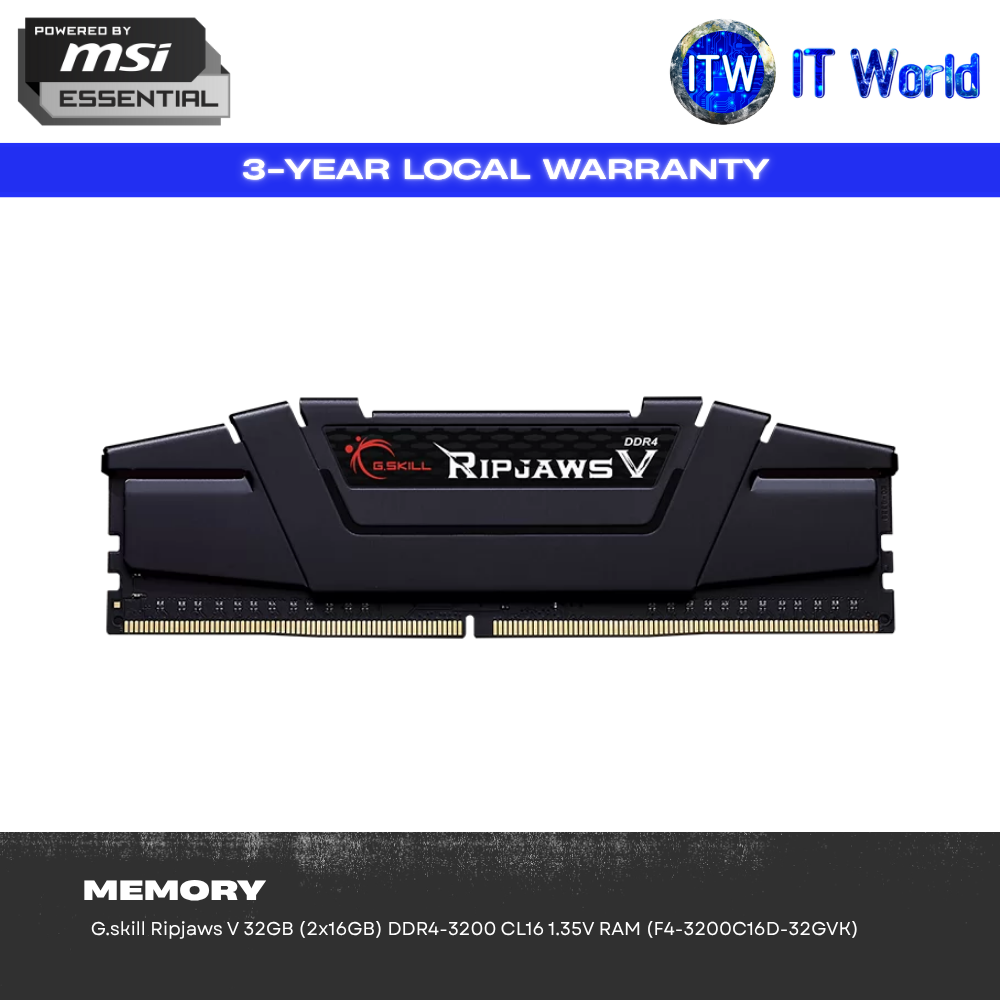

Memory (RAM): G.Skill Ripjaws V 32GB (2x16GB) DDR4-3200 CL16
Capacity: 32GB (2x16GB) Dual Channel
Speed: 3200 MHz (XMP 2.0 Ready)
Timings: CL16-18-18-38
Voltage: 1.35V (XMP) | 1.20V (Default)
ECC: Non-ECC | Registered: Unbuffered
Heat spreader: Black Aluminum
Compatibility: AMD and Intel platforms
Storage: Kingston NV2 500GB M.2 NVMe PCIe Gen4 SSD
Interface: PCIe Gen 4.0 x4 NVMe
Form Factor: M.2 2280
Sequential Read/Write: 5000 MB/s (Read), 3000 MB/s (Write)
NAND: 3D NAND
TBW: 160TB
MTBF: 2,000,000 Hours
Operating Temp: 0°C to 70°C
Shock/Vibration: 20G
Dimensions: 22mm x 80mm x 2.3mm
Weight: 7g

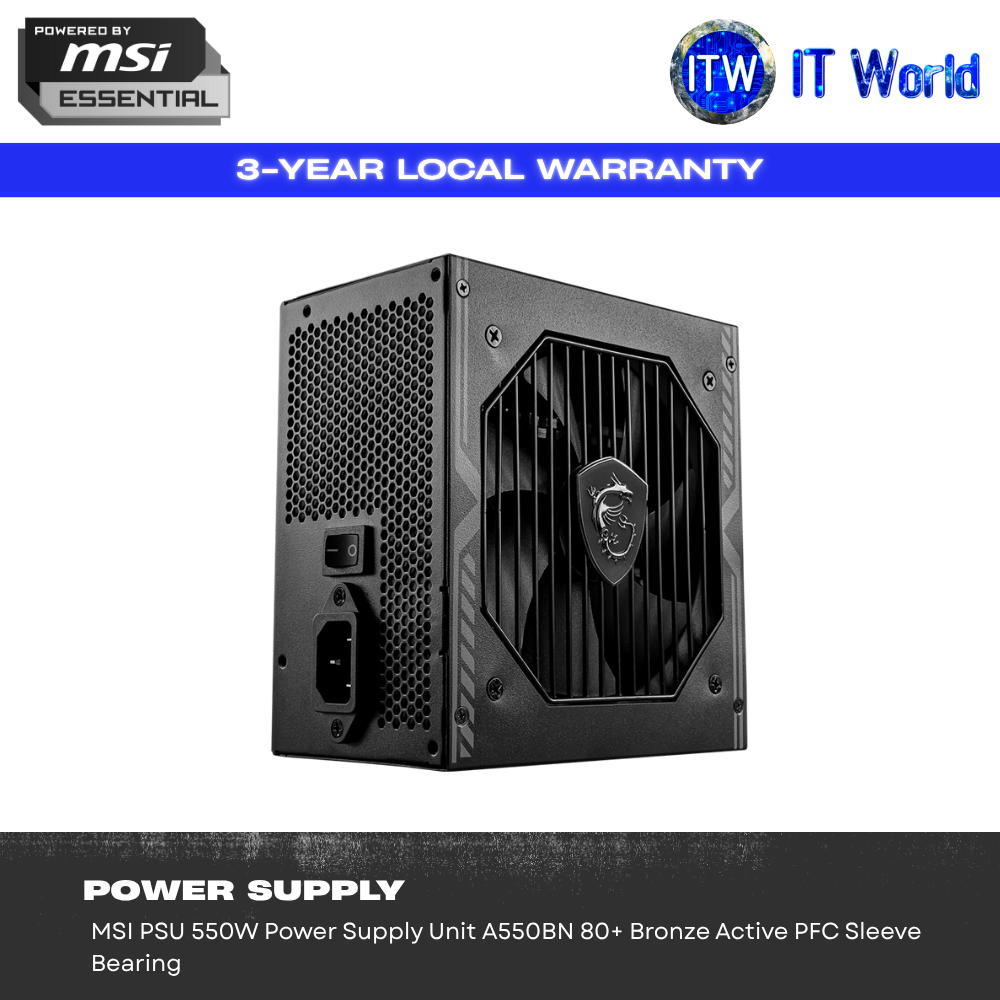

Power Supply: MSI A550BN 550W 80+ Bronze PSU
Output: 550W
Certification: 80 PLUS Bronze (up to 85% efficiency)
Type: ATX
PFC: Active
Fan: 120mm Sleeve Bearing
Protections: OVP / OCP / SCP / OPP / OTP
Modular: No (Fixed Cables)
Dimensions: 140 x 150 x 86mm
Connectors:
1x 24-pin ATX
1x 8-pin EPS
2x 6+2 PCIe
5x SATA
2x Molex
1x Floppy

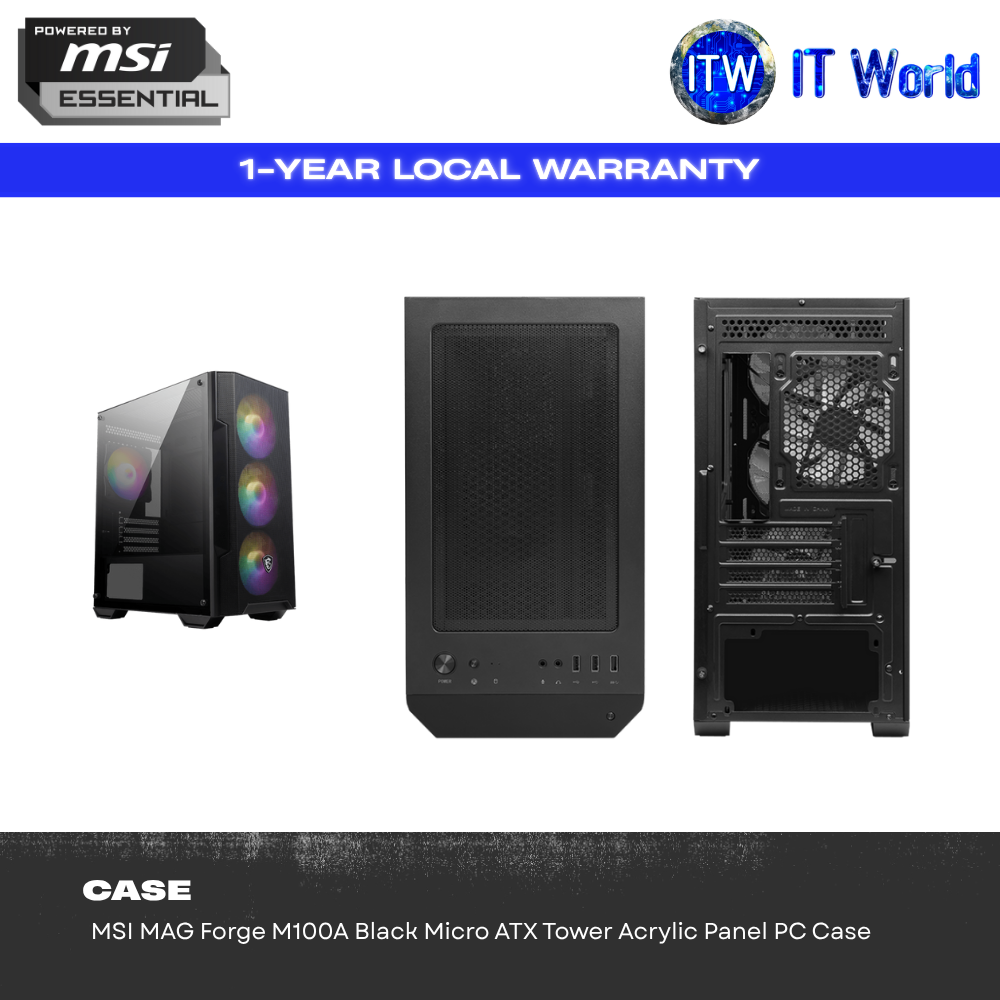

PC Case: MSI MAG Forge M100A Micro ATX Tower (with RGB Fans & Acrylic Panel)
Dimensions: 388 x 200 x 405mm
Form Factor: mATX, ITX
Left Panel: Acrylic | Right Panel: Steel
Pre-installed Fans:
Front: 3x 120mm Auto-RGB
Rear: 1x 120mm Auto-RGB
Fan Support:
Front: 3x 120mm
Top: 2x 120mm
Rear: 1x 120mm
Radiator Support:
Front: Up to 240mm
Top: Up to 240mm
Rear: 120mm
Drive Bays:
2x 2.5 inch
1x 2.5/3.5 inch
1x 3.5 inch
GPU Clearance: Up to 300mm
CPU Cooler Clearance: Up to 160mm
I/O Ports:
2x USB 2.0
1x USB 3.2 Gen1
1x Audio Out, 1x Mic In
Top Dust Filter: Magnetic (Removable)

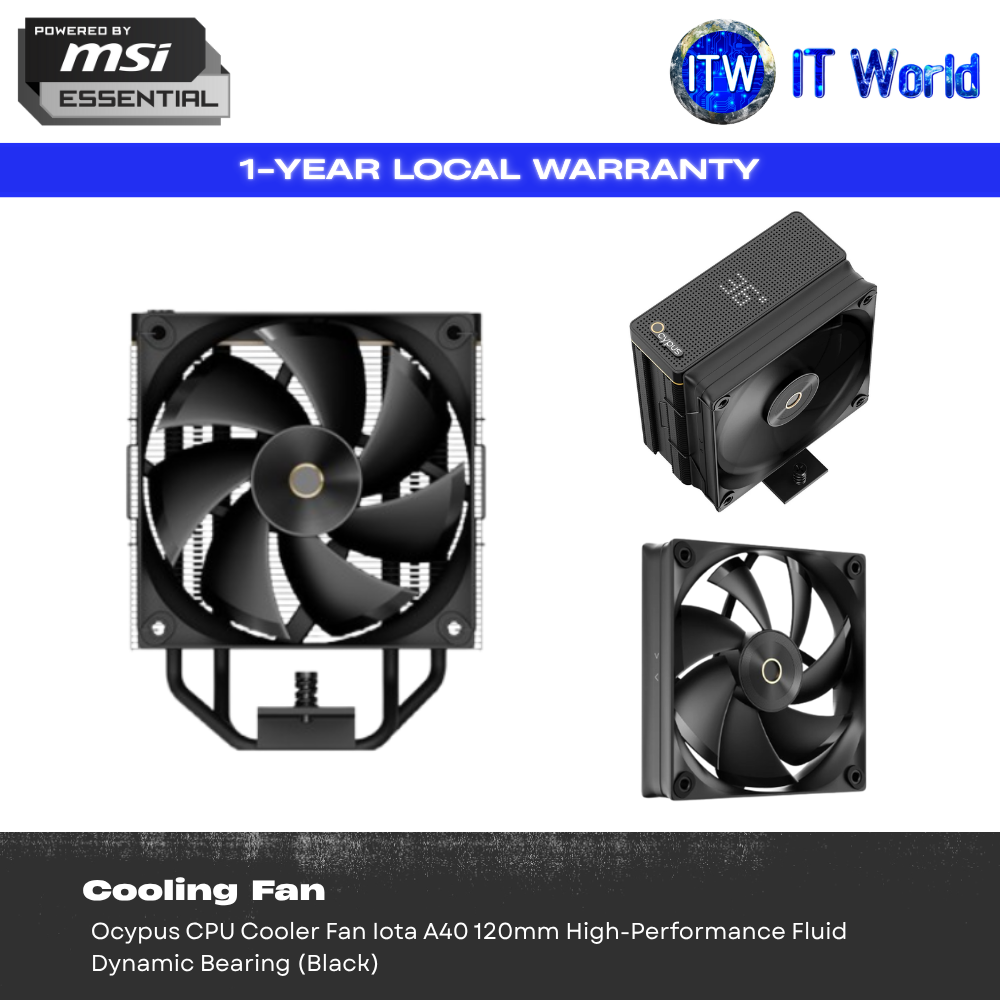

CPU Cooler: Ocypus Iota A40 (Black) – Digital Display, Tower Air Cooler
Fan Size: 120mm FDB (Fluid Dynamic Bearing)
Speed: 500 to 2000 RPM | Max Airflow: 77CFM
Noise: ≤29dBA
TDP Rating: Up to 220W
Display: Interactive Digital Temp Display
Heatpipes: 4x 6mm High-Efficiency
Dimensions: 125 x 70.5 x 156.7mm
Socket Compatibility:
Intel: LGA 115X / 1200 / 1700 / 18XX
AMD: AM4 / AM5
Color: Matte Black Finish
Features: Silent Operation, Long Lifespan, Clean Aesthetic
