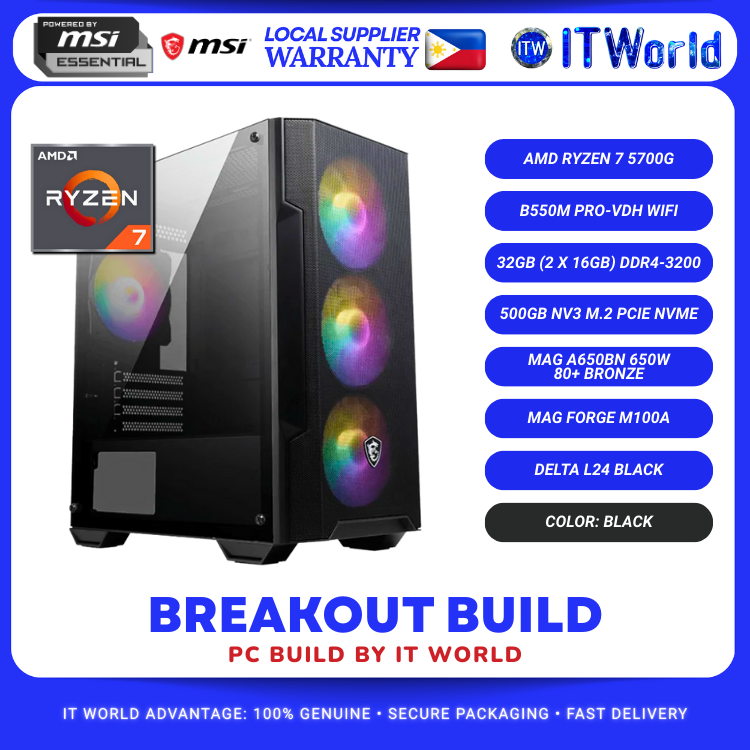

Breakout PC Build - MSI B550M PRO-VDH WIFI, Ryzen 7 5700G, 32GB RAM, 500GB NVMe SSD build by itw
🔥 Level up your performance with the IT World (itw) Breakout Build!
Powered by AMD Ryzen 7, fast DDR4 memory, NVMe Gen4 SSD, and MSI components—perfect for gaming, work, editing, and multitasking. Built with reliable cooling and stable power delivery for long-term use. 💪💻
⭐ HIGHLIGHTS
⚡ Ryzen 7 5700G with Radeon Graphics
⚙️ MSI B550M PRO-VDH WIFI motherboard
🚀 32GB 3200MHz DDR4 high-performance RAM
⚡ 500GB NVMe Gen4 SSD (fast boot & load times)
🔋 MSI 650W 80+ Bronze PSU for stable power
🖥️ MSI M100A ARGB Case with airflow-ready design
❄️ Ocypus Delta 240mm AIO with digital display
🧩 FULL COMPONENT LIST & SPECIFICATIONS
🔥 Processor: AMD Ryzen 7 5700G (Tray Type)
8 Cores / 16 Threads
Base Clock: 3.8GHz
Boost Clock: Up to 4.6GHz
Cache: 4MB L2 / 16MB L3
TDP: 65W (45–65W cTDP)
Integrated Graphics: Radeon Vega 8 @ 2000MHz
Unlocked for Overclocking
Manufacturing: 7nm
Socket: AM4
Includes Cooler: Wraith Stealth
Memory Support: DDR4 3200MT/s
PCIe: 3.0
🏆 Motherboard: MSI B550M PRO-VDH WIFI (mATX)
Chipset: AMD B550
Socket: AM4
Memory: 4 DIMM slots, up to 128GB DDR4
PCIe Slots: 1× PCIe x16 (Gen4/Gen3), 2× PCIe x1
Storage: 4× SATA III, 2× M.2
RAID 0/1/10
Network: WiFi AC + Bluetooth 4.2
Rear USB: 4× USB 3.2 Gen1, 2× USB 2.0
Display Output: HDMI, VGA, DisplayPort
Audio: Realtek ALC892/897
Form Factor: mATX
⚡ RAM: G.Skill Ripjaws V 32GB (2x16GB) DDR4-3200 CL16
Capacity: 32GB
Speed: 3200 MT/s
CAS Latency: 16-18-18-38
Voltage: 1.35V
Type: DDR4, Dual Channel
Non-ECC, Unbuffered
🚀 SSD: Kingston NV3 NVMe SSD 500GB (PCIe Gen4)
Form Factor: M.2 2280
Interface: PCIe 4.0 x4 NVMe
Speed: Up to 5,000 / 3,000 MB/s (Read/Write)
Endurance: 160 TBW
Operating Temp: 0°C to 70°C
🔋 Power Supply: MSI MAG A650BN 650W 80+ Bronze
Wattage: 650W
Efficiency: 80 Plus Bronze
Fan: 120mm (Sleeve Bearing)
Protection: OCP/OVP/OPP/OTP/SCP
Non-modular
Connectors:
24-pin ATX
8-pin EPS
2× PCIe 6+2
5× SATA
2× Molex
🖥️ Case: MSI MAG Forge M100A (Micro ATX Tower)
Form Factor: Micro ATX
Pre-installed Fans: 3× 120mm Auto-RGB (Front), 1× 120mm Auto-RGB (Rear)
GPU Support: Up to 300mm
CPU Cooler Clearance: 160mm
Front I/O:
USB 3.2 Gen1 Type-A
2× USB 2.0
Audio & Mic
Dimensions: 388 × 200 × 423 mm
Weight: 3.36 kg (Net)
❄️ CPU Cooler: Ocypus Delta L24 240mm AIO (Digital Display)
Radiator: 277 × 120 × 27 mm
Fans: 2× 120mm ARGB (500–2000 RPM, 77 CFM)
Pump: 2650 RPM, ≤27 dBA
Tube Length: 400mm Nylon-Braided
Supports Intel LGA115X/1200/1700/1851
Supports AMD AM4/AM5
Includes Ocypus Thermal Paste (14.8W/m·K)
🎁 PACKAGE CONTENTS
Complete Breakout Build Desktop PC
Power cable
Motherboard & case accessories
AIO mounting kits
Documentation & user guides
⚠️ Reminders:
1️⃣ Please record a full unboxing video as proof in case of issues.
2️⃣ Verify the delivery rider’s ID or take a photo with your payment for security.
