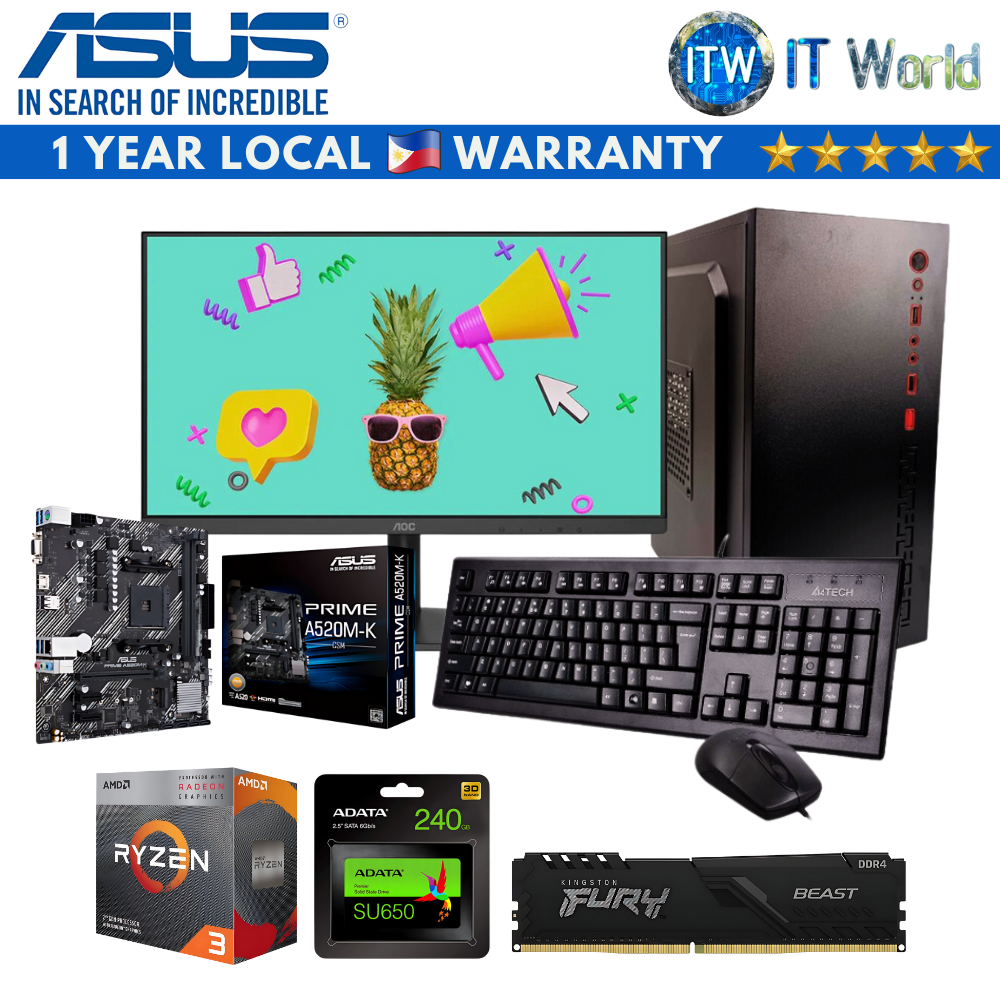

Product Name: ASUS Home and Office Use Desktop Computer Set Bot Build 3 3200G Prime A520M-K/CSM 8GB RAM
Processor
*** AMD Ryzen 3 3200G 4-Core Unlocked Desktop Processor with AMD Radeon Vega 8 Graphics ***
Specification
• Platform: Boxed Processor
• Product Family: AMD Ryzen™ Processors
• Product Line: AMD Ryzen™ 3 Desktop Processors with Radeon™ Vega Graphics
• # of CPU Cores: 4
• # of Threads: 4
• Max. Boost Clock: Up to 4.0GHz
• Base Clock: 3.6GHz
• L1 Cache: 384KB
• L2 Cache: 2MB
• L3 Cache: 4MB
• Default TDP: 65W
• AMD Configurable TDP (cTDP): 45-65W
• Processor Technology for CPU Cores: 12nm FinFET
• Unlocked for Overclocking: Yes
• CPU Socket: AM4
• Thermal Solution (PIB): Wraith Stealth
• Thermal Solution (MPK): Wraith Stealth
---
Motherboard
*** Asus Prime A520M-K/CSM microATX AM4 DDR4 Motherboard ***
CPU
- AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors *
Chipset
- AMD A520
Memory
- 2 x DIMM, Max. 64GB, DDR4 4866(O.C)/4600(O.C)/4466(O.C.)/4400(O.C)/4333(O.C.)/4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory *
- Dual Channel Memory Architecture
- ECC Memory (ECC mode) support varies by CPU.
Form Factor
- mATX: 8.9-inch x 8.7-inch (22.6cm x 22.1cm)
---
RAM
*** Kingston Fury Beast Memory | 8GB | 3200MHz | DDR4 | CL16 | Black (KF432C16BB/8) ***
Specification
• CL(IDD): 17 cycles
• Row Cycle Time (tRCmin): 45.75ns(min.)
• Refresh to Active/Refresh Command Time (tRFCmin): 350ns(min.)
• Row Active Time (tRASmin): 32ns(min.)
• UL Rating: 94 V - 0
• Operating Temperature: 0 Celsius + 85 Celsius
• Storage Temperature: -55 Celsius to +100 Celsius
---
Solid State Drive
*** Adata Ultimate SU650 240GB 2.5 3D NAND Internal SSD (ASU650SS-240GT-R) ***
Specification
• Capacity: 240GB
• Form Factor: 2.5"
• NAND Flash: 3D NAND
• Dimensions (L x W x H): 100.45 x 69.85 x 7mm / 3.95 x 2.75 x 0.27inch
• Weight: 59.5g / 2.1oz
• Interface: SATA 6Gb/s
• Sequential Read (Max*): Up to 520MB/s
• Sequential Write (Max*): Up to 450MB/s
• 4KB Random Read IOPS(Max*): Up to 40K
• 4KB Random Write IOPS(Max*): Up to 75K
• Operating Temperature: 0°C - 70°C
• Storage Temperature: -40°C - 85°C
• Shock Resistance: 1500G / 0.5ms
• MTBF: 2,000,000 hours
• Terabytes Written (TBW) (Max Capacity*): 600TB
---
Monitor
*** AOC 22B2HM2 - 22" FHD(1920x1080) / 100Hz / VA / 4ms (GtG(BW)) / Monitor ***
Specification
• Panel: 21.45" (VA)
• Pixel Pitch (mm): 0.2493 (H) × 0.241 (V)
• Effective Viewing Area (mm): 478.66 (H) × 260.28 (V)
• Brightness (typical): 250 cd/m2
• Contrast Ratio: 3000 : 1 (Typical) 20 Million : 1 (DCR)
• Response Time: 4ms (GtG(BW))
• Viewing Angle: 178° (H) / 178° (V) (CR > 10)
• Color Gamut: NTSC 96% (CIE1976) / sRGB 116% (CIE1931)
• Optimum Resolution: 1920 × 1080 @ 100Hz
• Display Colors: 16.7 Million
• Signal Input: VGA × 1, HDMI 1.4 × 1
• USB Hub: no
• Power Supply: 19VDC, 1.31A
• Power Consumption (typical): 13W
• Speakers: no
• Wall-Mount: 100mm × 100mm
• Adjustable Stand Tilt: -5° ~ 20°
• Product without Stand (mm): 284.9 (H) × 492.2 (W) × 37.6 (D)
• Product with Stand (mm): 380 (H) × 492.2 (W) × 162.9 (D)
• Product without Stand (kg): 1.95
• Product with Stand (kg): 2.29
• Cabinet Color: Black
---
PC Case
*** CVS 1722 Computer Case with 750W PSU - 120mm Fan/Flat Cables/Black (M-ATX) ***
Specification
• Brand: CVS
• Case Type: Hard Case
• Model: CAS-CVS-1722-BK
• Size: 325x195x368 MM
• Form Factor: M-ATX
---
Mouse & Keyboard
*** A4Tech Krs-8572 Natural A Fn Desktop Keyboard And Mouse ***
Specification
• Keyboard: KRS-85
• Keycaps: A-Shape, Round Edge
• Hotkeys: 12 FN Multimedia Hotkeys
• Character: Laser Engraving
• Adjustable Keyboard Legs: Yes
• Rating: 5 V / 30 mA
• Dimension: 454 × 153 × 32 mm
• Weight: 585 g
• Cable Length: 150 cm
• Port: USB
• Mouse: OP-720
• Report Rate: 125 Hz
• Sensor: Optical
• Resolution: 1000 DPI
• Rating: 5 V / 100 mA
• Buttons No.: 3
• Ergonomic Design: Symmetric
• Size: Middle / Big Hands
• Dimension: 119 × 62 × 37 mm
• Weight: 86g
• Cable Length: 150 cm
• Port: USB or PS2
• System Requirements：Windows XP / Vista / 7 / 8 / 8.1 / 10
*** Reminders:
1. Take a video of yourself while unboxing the parcel. This would serve as proof if you have concerns with the parcel.
2. Ask the delivery rider to present a valid ID (e.g., driver’s license, UMID) and/or take a picture of the delivery rider with your payment.
