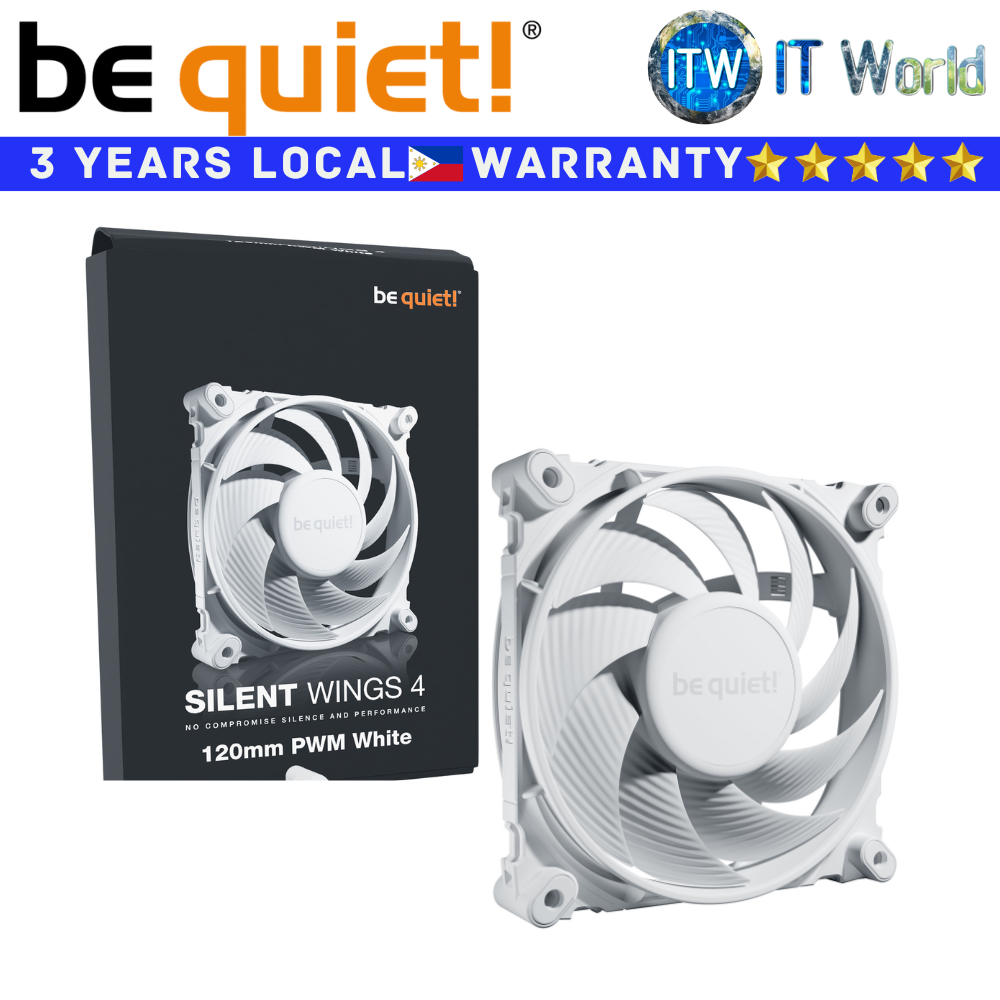

Product Name: Itw | Be Quiet! PC Fan Silent Wings 4 120mm PWM Fluid Dynamic Bearing (Black | White)
Silent Wings 4 120mm PWM combines all features of a virtually inaudible with an extremely performant fan for the most demanding applications.
> Optimized fan blades for the highest performance on heat sinks
> Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure
> Virtually inaudible operation at regular speed
> 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations
> Anti-vibration mounting with push pins and screwed installation option
> Super-long lifespan of up to 300,000h
> Elegant look with high-grade fan sticker in an all-black design
Specification
General
* Model: Silent Wings 4 120mm PWM
* Color: Black | White
* Dimensions (mm): 120
* Color option: Black
* Lighting: -
* Fan speed at 100% PWM / 12V (rpm): 1600
* Noise level at 100% PWM / 12V (dB(A)): 18.9
* Airflow at 100% PWM / 12V (CFM / m3/h): 48.7 / 82.7
* Air Pressure at 100% PWM / 12V (mm H2O): 1.79
Mechanical specifications
* Dimensions (L x W x H), (mm) : 120 x 120 x 25
* Weight incl. fixed cables (g): 190
* Bearing technology: FDB
* Motor technology: 6-pole fan motor
* Push pin fixing: ✓
* Screw fixing: ✓
Cables / Connectors
* Daisy-chain compatible: -
* Lighting connector: -
* Connector: 4-pin PWM
* Cable length (mm): 500
* Cable sleeve: ✓
Performance / Noise
* Airflow at 100% PWM / 12V (CFM / m3/h): 48.7 / 82.7
* Air Pressure at 100% PWM / 12V (mm H2O): 1.79
* Noise level at 100% PWM / 12V (dB(A): 18.9
* Lifespan (h / 25°C): 300,000
* Zero RPM mode: ✓
Electrical specifications
* Rated Voltage DC (V): 12
* Operating Voltage DC (V): 5 - 13.2
* Current consumption (A): 0.12
* Input current (A): 0.12
* Safety current (A): 0.12
* Input power (W): 1.4
* Rated Current LED (A): -
Accessories
* 3-pin to 4-pin 12V-connector: -
* 12V to 7V adapter: -
* 12V to 5V adapter: -
* Screws: 4
* Push pins: 4
* hard plastic washer: 4
* Others: Rubber & hard plastic mountings
Safety certification
* Approvals: CE / UL / UKCA / TÜV
Environmental directives
* RoHS: ✓
* WEEE: ✓
* Triman: ✓
Service
* Warranty (Years): 3
* International hotline / free of charge: ✓ / DE, FR, US
Logistics data and RRP
* Article number
> Black: BL093
> White: BL114
* Dimensions, package (L x W x H), (mm): 192 x 141 x 31
* Gross weight, package (kg): 0.34
* Pieces per packaging unit: 40
* Dimensions, shipping box (L x W x H), (mm): 32 x 387 x 375
* Gross weight, shipping box (kg): 14.92
