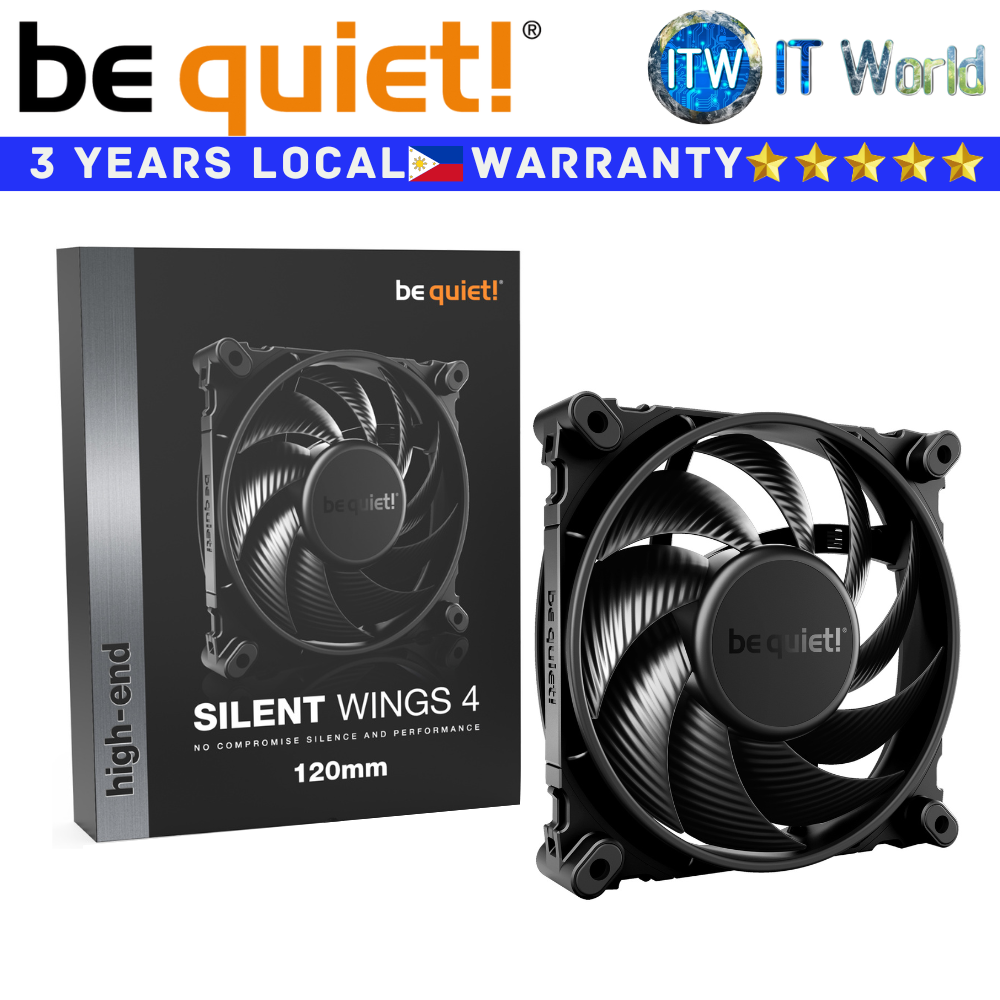

Be Quiet! PC Fan Silent Wings 4 Black 120mm Fluid Dynamic Bearing Noise Level (BL092)

Product Name: Itw | Be Quiet! PC Fan Silent Wings 4 Black 120mm Fluid Dynamic Bearing Noise Level (BL092)

Silent Wings 4 120mm combines all features of a virtually inaudible with an extremely performant fan for the most demanding applications.

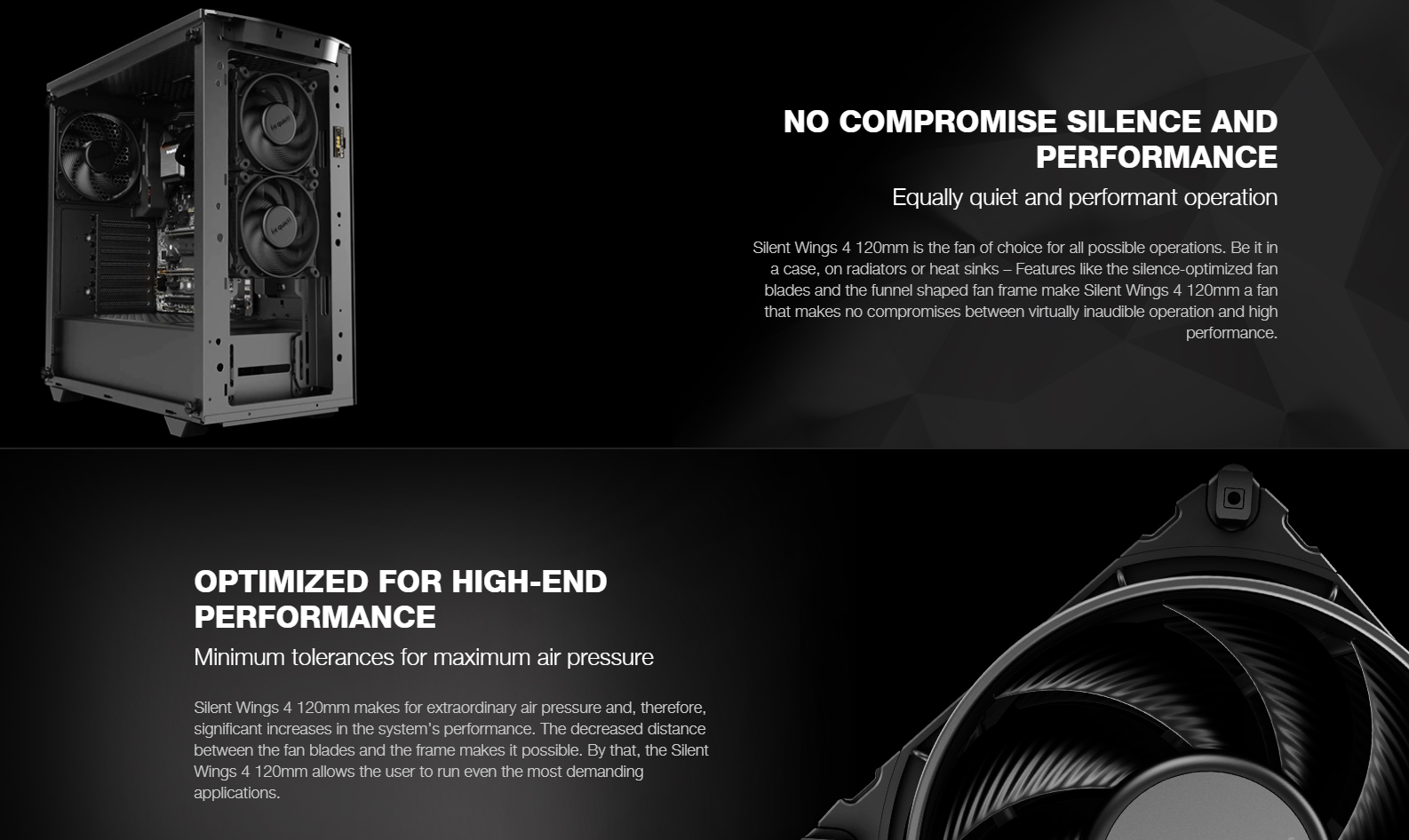

> Optimized fan blades for the highest performance

> Small tip clearance and a fan frame with funnel-shaped air outlets for extremely high air pressure

> Virtually inaudible operation at regular speed

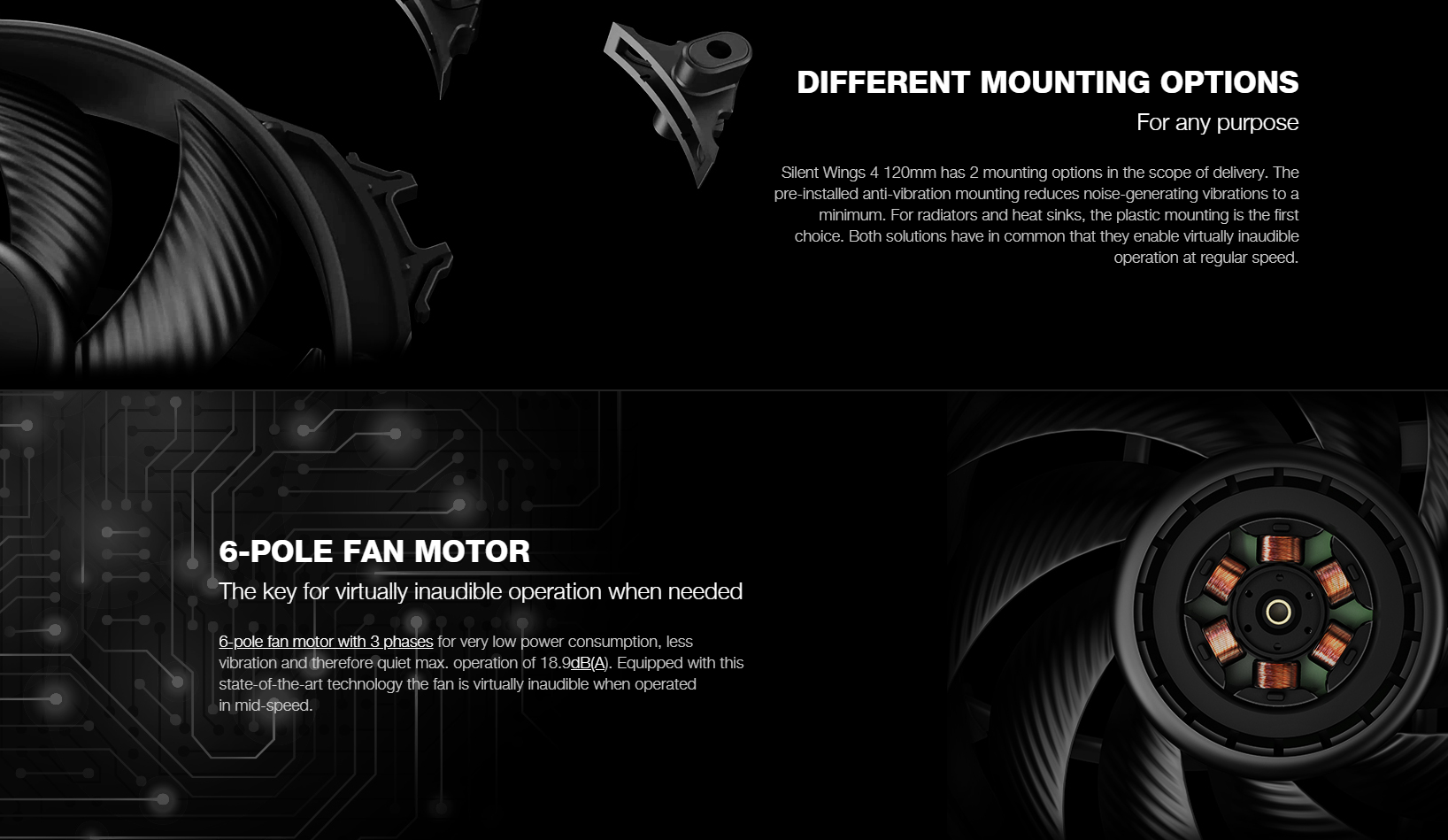

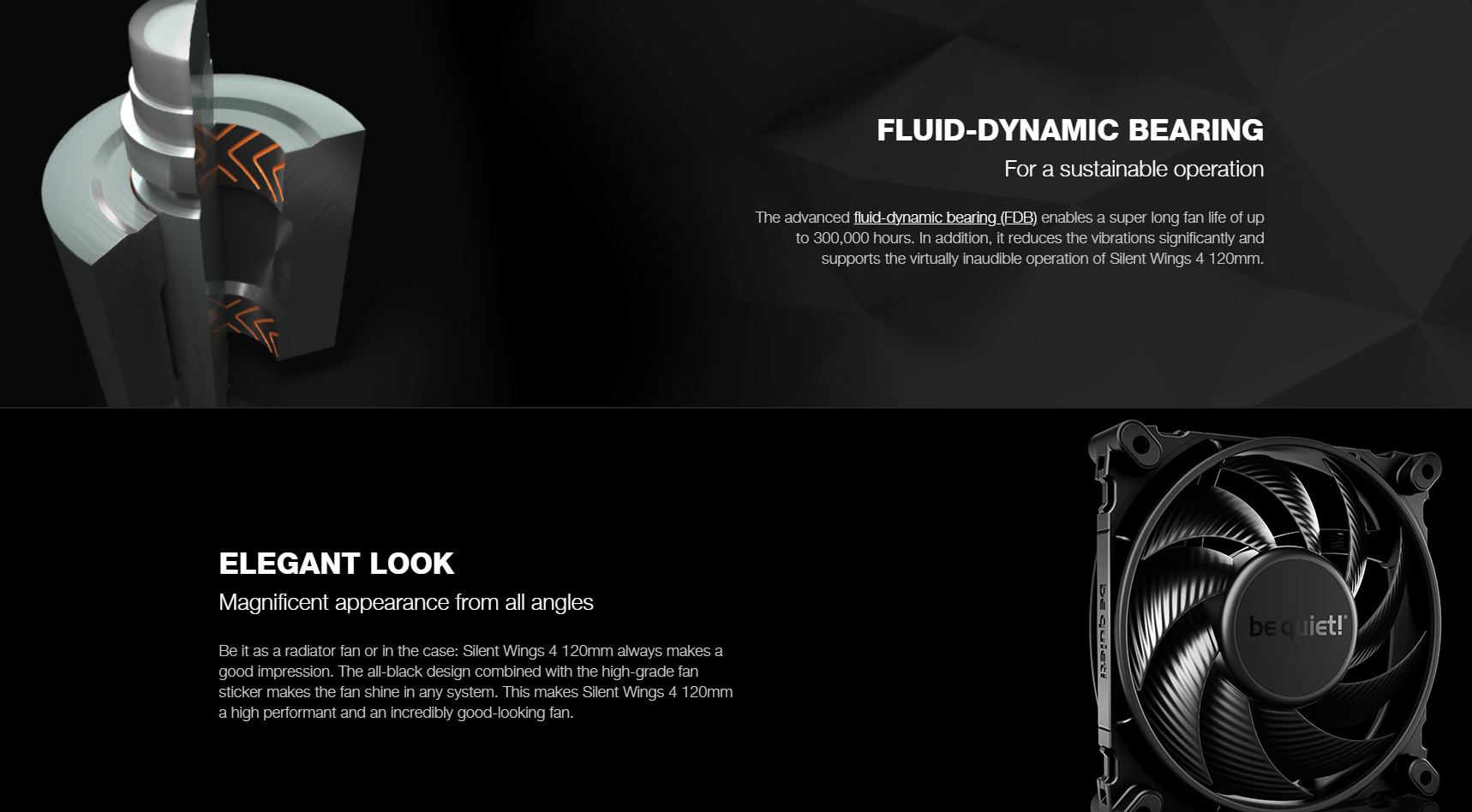

> 6-pole fan motor and fluid-dynamic bearing for less vibration and very smooth operations

> Anti-vibration mounting with push pins and screwed installation option

> Super-long lifespan of up to 300,000h

> Elegant look with high-grade fan sticker in an all-black design

Specification

General

* Model: Silent Wings 4 120mm

* Dimensions (mm): 120

* Color option: Black

* Lighting: -

* Fan speed at 100% PWM / 12V (rpm): 1600

* Noise level at 100% PWM / 12V (dB(A)): 18.9

* Airflow at 100% PWM / 12V (CFM / m3/h): 48.7 / 82.7

* Air Pressure at 100% PWM / 12V (mm H2O): 1.79

Mechanical specifications

* Dimensions (L x W x H), (mm): 120 x 120 x 25

* Weight incl. fixed cables (g): 190

* Bearing technology: FDB

* Motor technology: 6-pole fan motor

* Push pin fixing: ✓

* Screw fixing: ✓

Cables / Connectors

* Daisy-chain compatible: -

* Lighting connector: -

* Connector: 3-pin

* Cable length (mm): 500

* Cable sleeve: ✓

Performance / Noise

* Airflow at 100% PWM / 12V (CFM / m3/h): 48.7 / 82.7

* Air Pressure at 100% PWM / 12V (mm H2O): 1.79

* Noise level at 100% PWM / 12V (dB(A)): 18.9

* Lifespan (h / 25°C): 300,000

* Zero RPM mode: ✓

Electrical specifications

* Rated Voltage DC (V): 12

* Operating Voltage DC (V): 5 - 13.2

* Current consumption (A): 0.12

* Input current (A): 0.12

* Safety current (A): 0.12

* Input power (W): 1.4

* Rated Current LED (A): -

Accessories

* 3-pin to 4-pin 12V-connector : -

* 12V to 7V adapter: ✓

* 12V to 5V adapter: ✓

* Screws: 4

* Push pins: 4

* hard plastic washer: 4

* Others: Rubber & hard plastic mountings

Safety certification

* Approvals: CE / UL / UKCA / TÜV

Environmental directives

* RoHS: ✓

* WEEE: ✓

* Triman: ✓

Service

* International hotline / free of charge: ✓ / DE, FR, US

Logistics data and RRP

* Article number: BL092

* EAN code: 4260052188842

* Dimensions, package (L x W x H), (mm): 192 x 141 x 31

* Gross weight, package (kg): 0.35

* Pieces per packaging unit: 40

* Dimensions, shipping box (L x W x H), (mm): 432 x 387 x 375

* Gross weight, shipping box (kg): 15.16

* RRP (€): 23.90
