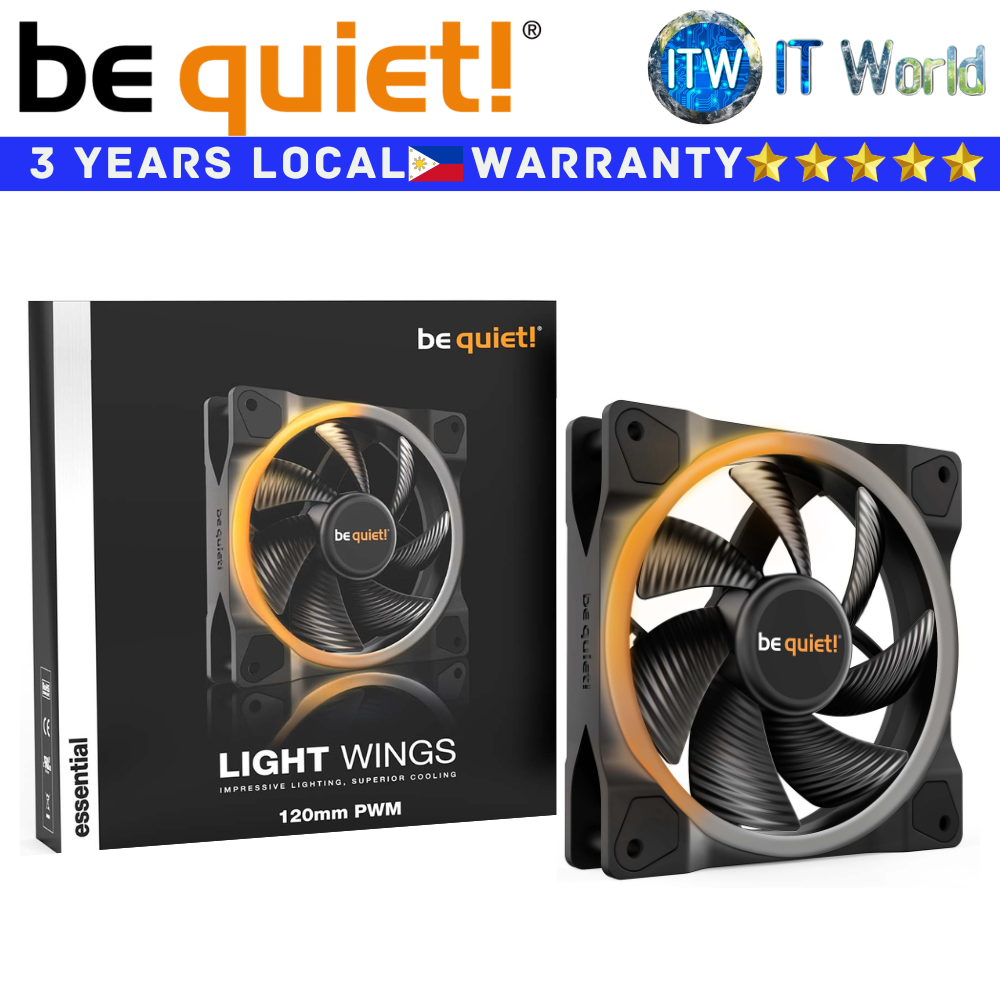

Product Name: Itw | Be Quiet! PC Fan Light Wings Black 120PWM ARGB LED Rifle Bearing Tech (Single | Triple Fan)
*** Single Fan ***
Light Wings 120mm PWM offers impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
> ARGB lighting on front and rear
> Multiple colors and modes for an individual look thanks to 18 LEDs
> 7 silence-optimized fan blades for high airflow and low noise-generating turbulences
> Very quiet operation with max. 20.6dB(A)
> Long life rifle-bearing gives an operating lifetime of 60,000 hours
> If you are looking for a quiet case fan with an impressive look from every angle, Light Wings 120mm PWM is your fan of choice.
Specification
General
* Model: Light Wings 120mm PWM
* Dimensions (mm): 120
* Color option: Black
* Lighting: ARGB LED
* Fan speed at 100% PWM / 12V (rpm): 1700
* Noise level at 100% PWM / 12V (dB(A)): 20.6
* Airflow at 100% PWM / 12V (CFM / m3/h): 41.5 / 70.5
* Air Pressure at 100% PWM / 12V (mm H2O): 1.66
Mechanical specifications
* Dimensions (L x W x H), (mm) : 120 x 120 x 25
* Weight incl. fixed cables (g): 200
* Bearing technology: Rifle
* Motor technology: 4-pole fan motor
* Push pin fixing: -
* Screw fixing: ✓
Cables / Connectors
* Daisy-chain compatible: ✓
* Lighting connector: 5V 3-pin ARGB
* Connector: 4-pin PWM
* Cable length (mm): 500
* Cable sleeve: -
Performance / Noise
* Airflow at 100% PWM / 12V (CFM / m3/h): 41.5 / 70.5
* Air Pressure at 100% PWM / 12V (mm H2O): 1.66
* Noise level at 100% PWM / 12V (dB(A)): 20.6
* Lifespan (h / 25°C): 60,000
* Zero RPM mode: -
Electrical specifications
* Rated Voltage DC (V): 12
* Operating Voltage DC (V): 5 - 13.2
* Current consumption (A): 0.07
* Input current (A): 0.07
* Safety current (A): 0.38
* Input power (W): 4.6
* Rated Current LED (A): 0.60
Accessories
* 3-pin to 4-pin 12V-connector: -
* 12V to 7V adapter: -
* 12V to 5V adapter: -
* Screws: 4
* Push pins: -
* hard plastic washer: -
* Others: -
Safety certification
* Approvals: CE / UL
Environmental directives
* RoHS: ✓
* WEEE: ✓
* Triman: ✓
Logistics data and RRP
* Article number: BL072
* Dimensions, package (L x W x H), (mm): 153 x 133 x 29.5
* Gross weight, package (kg): 0.27
* Pieces per packaging unit: 30
* Dimensions, shipping box (L x W x H), (mm: 418 x 325 x 182
* Gross weight, shipping box (kg): 8.64
*** Triple Fan ***
3 Light Wings 120mm PWM offer impressive illumination for a vibrant unique look, strong performance and quiet operation with efficient cooling.
> 3 fans included
> ARGB lighting on front and rear
> Multiple colors and modes for an individual look thanks to 18 LEDs
> ARGB Hub allows synchronization of up to 6 ARGB components
> 7 silence-optimized fan blades for high airflow and low noise-generating turbulences
> Very quiet operation with max. 20.6dB(A)
> If you are looking for quiet case fans with an impressive look from every angle, these 3 Light Wings 120mm PWM are your fans of choice.
Specification
General
* Model: Light Wings 120mm PWM Triple Pack
* Dimensions (mm): 120
* Color option: Black
* Lighting: ARGB LED
* Fan speed at 100% PWM / 12V (rpm): 1700
* Noise level at 100% PWM / 12V (dB(A)): 20.6
* Airflow at 100% PWM / 12V (CFM / m3/h): 41.51 / 70.53
* Air Pressure at 100% PWM / 12V (mm H2O): 1.66
Mechanical specifications
* Dimensions (L x W x H), (mm): 120 x 120 x 25
* Weight incl. fixed cables (g): 200
* Bearing technology: Rifle
* Motor technology: 4-pole fan motor
* Push pin fixing: -
* Screw fixing: ✓
Cables / Connectors
* Daisy-chain compatible: ✓
* Lighting connector: 5V 3-pin ARGB
* Connector: 4-pin PWM
* Cable length (mm): 500
* Cable sleeve: -
Performance / Noise
* Airflow at 100% PWM / 12V (CFM / m3/h): 41.51 / 70.53
* Air Pressure at 100% PWM / 12V (mm H2O): 1.66
* Noise level at 100% PWM / 12V (dB(A)): 20.6
* Lifespan (h / 25°C): 60,000
* Zero RPM mode: -
Electrical specifications
* Rated Voltage DC (V): 12
* Operating Voltage DC (V): 5 - 13.2
* Current consumption (A): 0.07
* Input current (A): 0.07
* Safety current (A): 0.38
* Input power (W): 4.56
* Rated Current LED (A): 0.6
Accessories
* 3-pin to 4-pin 12V-connector: -
* 12V to 7V adapter: -
* 12V to 5V adapter: -
* Screws: 16
* Push pins: -
* hard plastic washer: -
* Others: ARGB Hub
Safety certification
* Approvals: CE / UL
Environmental directives
* RoHS: ✓
* WEEE: ✓
* Triman: ✓
Logistics data and RRP
* Article number: BL076
* Dimensions, package (L x W x H), (mm): 172 x 133 x 86.5
* Gross weight, package (kg): 0.83
* Pieces per packaging unit: 10
* Dimensions, shipping box (L x W x H), (mm): 454 x 283 x 200
* Gross weight, shipping box (kg): 8.91
