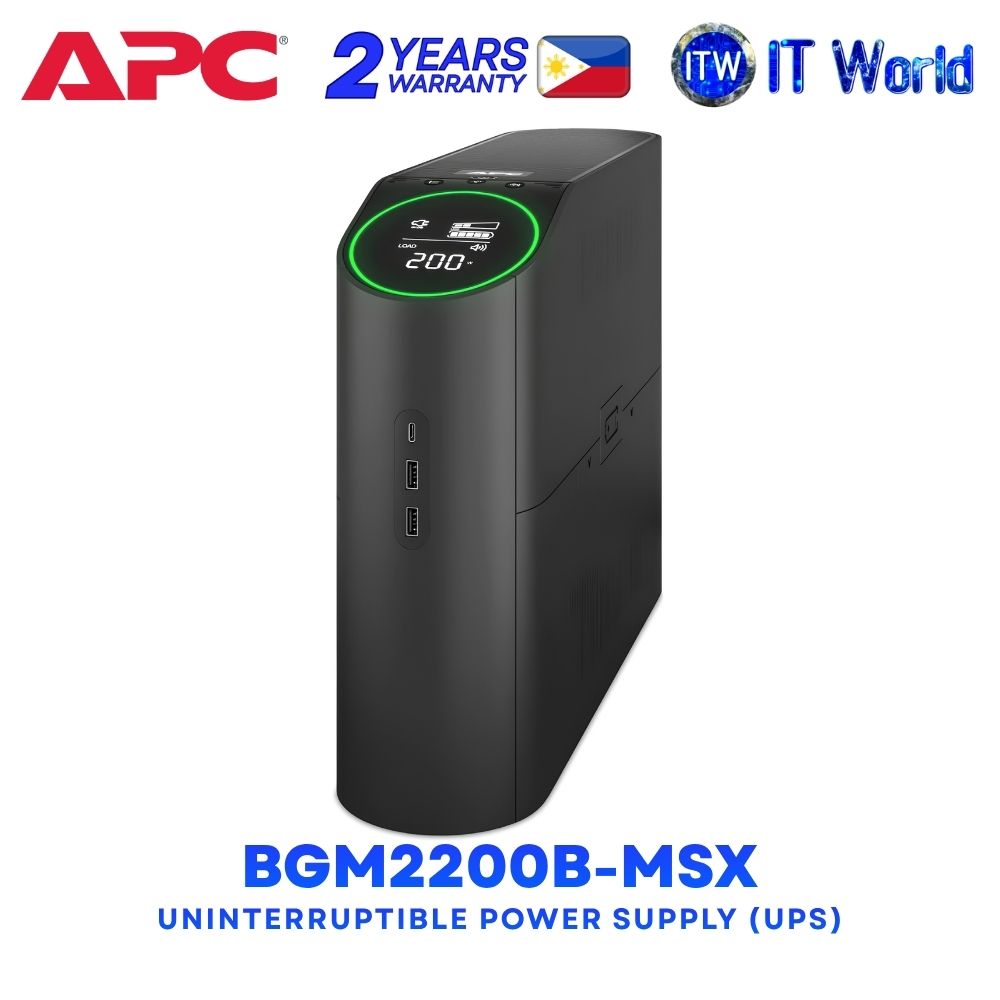

APC BGM2200B-MSX 2200VA / 1320W Line Interactive Back-UPS Uninterruptible Power Supply - Black
⚡ APC BGM2200B-MSX Back-UPS Pro Gaming Performance UPS delivers reliable backup power and advanced power protection for gaming equipment, servers, and sensitive electronics. Designed with pure sine wave output and Automatic Voltage Regulation (AVR), it helps maintain stable power delivery and correct voltage variations.
Key Features & Highlights
Gaming Performance: Designed to provide reliable backup power for gaming equipment and electronics.
2200VA / 1320W Capacity: Rated power of 2200VA and 1320W.
⚡ Pure Sine Wave Output: Provides clean power output for active PFC servers and electronics.
Automatic Voltage Regulation (AVR): Corrects voltage variations for reliable power delivery.
Reactor Circle Indicator: Visually alerts users to remaining power, surges, voltage dips, power outages, and building wiring faults.
3 USB Smart Charging Ports: Includes Type-A and Type-C charging connections for wireless gaming devices and mobile phones.
Rear LED Illumination: Illuminated outlets make it easier to identify where to connect gaming equipment.
️ Surge Protection: 1080 Joules surge energy rating with full-time multi-pole noise filtering.
Multifunction LCD Console: Provides status monitoring and control.
Audible Alarms: Features distinctive low-battery alerts and continuous-tone overload alarms.
Technical Specifications
⚡ Brand: APC
⚡ Model: BGM2200B-MSX
⚡ Product Type: Uninterruptible Power Supply (UPS)
⚡ UPS Topology: Line Interactive
⚡ Rated Power: 2200VA / 1320W
⚡ Input Voltage: 230V AC, Single Phase
⚡ Output Voltage: 230V AC, Single Phase
⚡ Output Waveform: Pure Sine Wave
⚡ Output Frequency: 50/60Hz ±3Hz, synchronized to mains
⚡ Input Frequency: 50/60Hz ±3Hz
⚡ Input Voltage Range: 168–302V
⚡ Transfer Time: 8ms typical / 10ms maximum
⚡ Input Connection: C19/C21
⚡ Battery Type: Lead-Acid
⚡ Battery Voltage: 24V
⚡ Battery Recharge Time: 16 Hours
⚡ Battery Life: 3–5 Years
⚡ Overcurrent Protection: 15A
⚡ Full Load Runtime: 30 Minutes
⚡ Half Load Runtime: 5 Minutes 30 Seconds
⚡ Surge Energy Rating: 1080 Joules
⚡ Noise Suppression: Full-time multi-pole noise filtering
⚡ USB Compatible: Yes
⚡ Cable Length: 1.5m
⚡ Acoustic Level: 45dBA
⚡ Protection Rating: IP20
Output Connections
2 × IEC 60320 C13 Surge
1 × IEC 60320 C13 Surge
2 × Universal C13 Surge
1 × Universal C13 Surge
Included Accessories
USB Cable
Safety Guide
2 × Power Cables
1 × Power Adapter
Physical Specifications
Color: Black
Height: 292.1mm
Width: 104.1mm
Depth: 408.9mm
Net Weight: 12.24kg
Mounting: Floor Standing
Mounting Position: Vertical
Rack-Mountable: No
