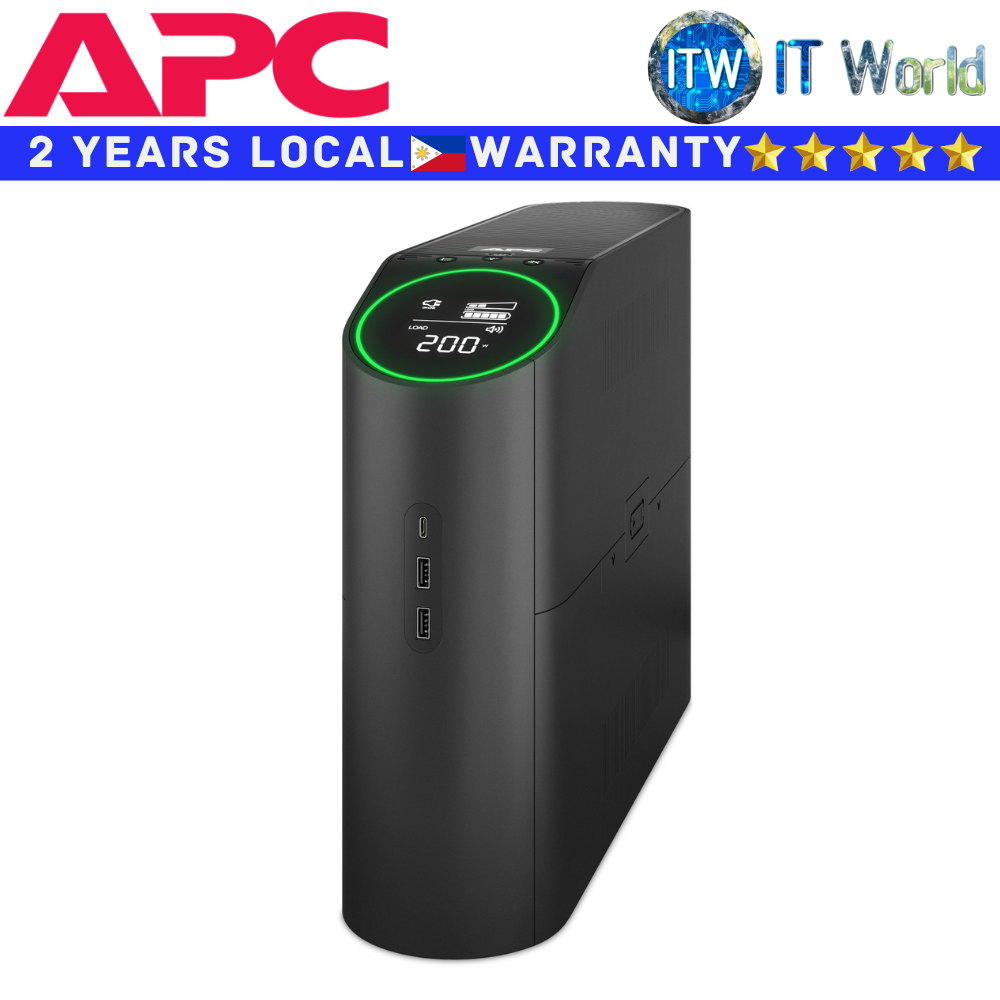

Product Name: Itw | APC Back-UPS Power Supply Unit BGM2200B-MSX Black Pro for Gaming 2200VA/1320W 230V
Details
> Pure sine wave ouptut provides cleanest signal for active PFC servers and electronics
> AVR corrects voltage variations to provide reliable power
> Reactor circle visually alerts of remaining power, surges, dips, power outages, and building wiring faults
> 3 USB smart charging ports (Type A + C) to plug in your wireless gaming devices and mobile phone
> Rear LEDs illuminate outlets so you see exactly where you're plugging in your gaming gear
> Environmental performance of the product
Specification
Main
> Main Input Voltage: 230 V AC 1 phase
> Other Input Voltage: 230 V
> Main Output Voltage: 230 V 1 phase
> Rated power in W: 1320 W
> Rated power in VA: 2200 VA
> Product or component type: Uninterruptible power supply (UPS)
> Input Connection Type: C19/C21
> Output connection type
- 2 IEC 60320 C13 surge
- 1 IEC 60320 C13 surge
- 2 universal C13 surge
- 1 universal C13 surge
> Cable length: 1.5 m
> Number of cables: 1
> Battery type: Lead-acid battery
Batteries & Runtime
> Number of battery filled slots: 1
> Number of battery free slots: 0
> Battery recharge time: 16 h
> Number of battery replacement quantity: 1
> Battery voltage: 24 V
> Overcurrent protection: 15 A
> Battery charger power: 12 W rated
> Battery life: 3…5 year(s)
General
> Provided equipment
- USB cable
- safety guide
- 2, power cable
- 1, power adapter
> product web sub-family: Gaming performance
> Number preinstalled power module: 0
> Number of power module free slots: 0
> Redundant: No
Physical
> Colour: Black
> Height: 292.1 mm
> Width: 104.1 mm
> Depth: 408.9 mm
> Net weight: 12.24 kg
> Mounting support: Floor
> Mounting preference: No preference
> mounting mode: Not rack-mountable
> Two post mountable: 0
> USB compatible: Yes
> Mounting position: Vertical
Input
> Network frequency: 50/60 Hz +/- 3 Hz
> Plug standard: C19/C21
> Input voltage limits: 168...302 V
> Maximum input current: 12 A
> Switching current capacity: 15 A
> Input harmonic distortion: Less than 3 % for full load
> Input protection type: Circuit breaker
Output
> Maximum configurable power in W: 1320 W
> Output frequency: 50/60 Hz +/- 3 Hz sync to mains
> UPS type: Line interactive
> Wave type: Sine wave
> Full load runtime: 00:30:00
> Half load runtime: 00:05:30
> Maximum configurable power in VA: 2200 VA
> Transfer time: 8 ms typical : 10 ms maximum
Environmental
> Ambient air temperature for operation: 0…40 °C
> Relative humidity: 0…95 %
> Operating altitude: 0...10000 ft
> Ambient air temperature for storage: -15…40 °C
> Storage Relative Humidity: 0…95 %
> Storage altitude: 0.0000000000…3048.0000000000 m
> Acoustic level: 45 dBA
> IP degree of protection: IP20
Communications & Management
> Free slots: 0
> Control panel: Multifunction LCD status and control console
Alarm: Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Surge Protection and Filtering
> Surge energy rate: 1080 J
> Noise suppression: Full time multi-pole noise filtering: 5% of IEEE surge let-through: zero clamping response time: instantaneous
Packing Units
> Unit Type of Package 1: PCE
> Number of Units in Package 1: 1
> Package 1 Height: 15.5 cm
> Package 1 Width: 35.5 cm
> Package 1 Length: 48 cm
> Package 1 Weight: 14.82 kg
