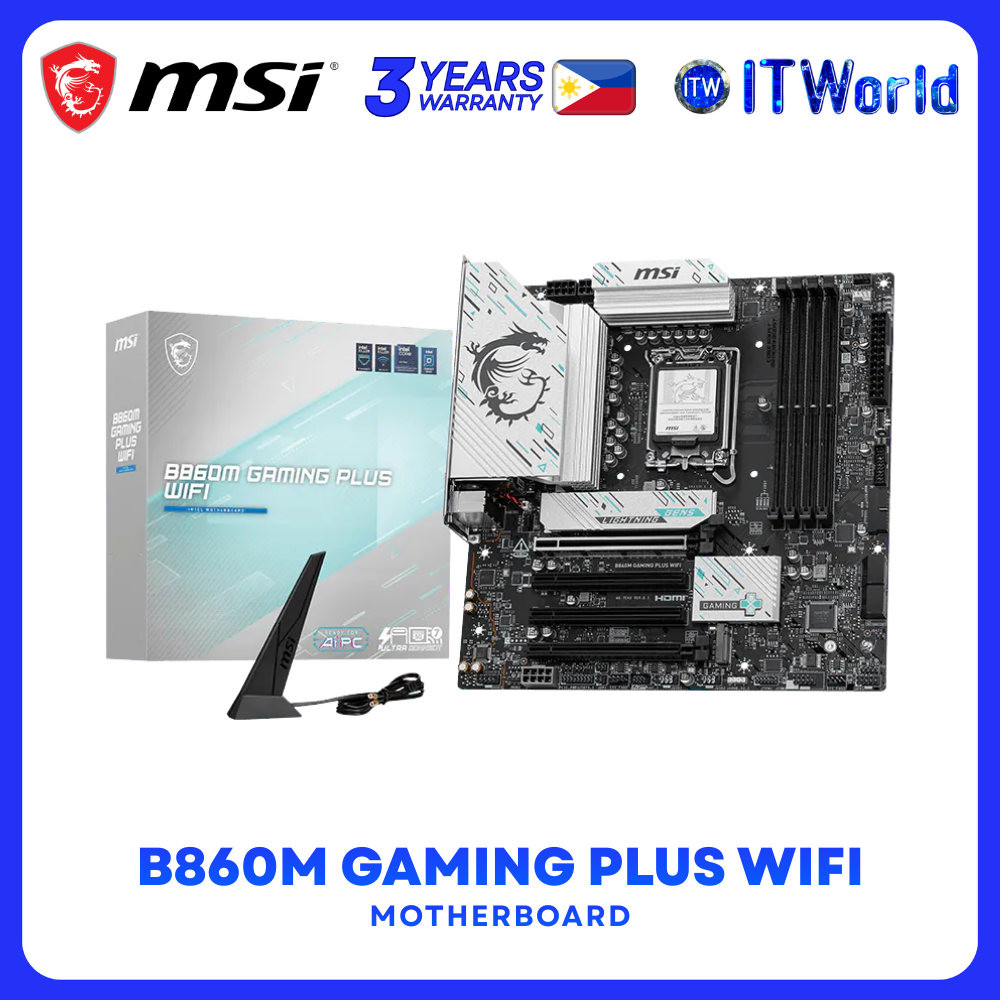

Built for 24/7 non-stop gaming, the B860M GAMING PLUS WIFI delivers extensive connectivity, next-gen PCIe 5.0 performance, full-speed Wi-Fi 7, and Thunderbolt™ 4—perfect for Intel® Core™ Ultra processor builds. 🎮⚡
🔹 Chipset & CPU Support
🧠 Intel® B860 Chipset
🔌 LGA 1851 socket
🚀 Supports Intel® Core™ Ultra Processors (Series 2)
🔹 Memory Performance
💾 4× DDR5 UDIMM (Max 256GB)
⚡ 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
🔥 Intel® XMP 3.0 & Memory Overclocking
🧩 Dual-Controller Dual-Channel mode
📌 Supports Non-ECC, Un-buffered & CUDIMM
📍 Single-sided latch DIMM slots
🔹 Graphics & Display Output (Requires CPU with integrated graphics)
🖥️ HDMI™ 2.1 – Up to 4K 60Hz
🎮 DisplayPort 1.4 – Up to 4K 60Hz
⚡ Type-C DisplayPort
🚀 Thunderbolt™ 4 Type-C – Up to 4K 120Hz / 8K 60Hz
🔹 Expansion Slots
🛡️ 1× PCIe 5.0 x16 (From CPU)
⚙️ 3× PCIe 4.0 slots (x1 / x1 / x4 from Chipset)
🔹 Storage Options
🚀 3× M.2 (PCIe 5.0 & PCIe 4.0 support)
💽 4× SATA 6G
🔄 RAID 0 / 1 / 5 / 10 for SATA
🔹 Audio
🎧 Realtek® ALC897 Codec
🔊 7.1-Channel High Definition Audio
🔹 Networking & Wireless
🌐 Intel® Killer™ E5000 5Gbps LAN
📡 Intel® Killer™ BE1750x Wi-Fi 7 (Up to 5.8Gbps)
🔵 Bluetooth® 5.4
📶 MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz
🔹 Thunderbolt™ 4 Connectivity
⚡ 40Gbps transfer rate
🔌 USB4 up to 20Gbps
🔋 5V/3A, 15W charging
🖥️ Up to 8K display
🔗 Daisy-chain multiple devices
🔹 USB Ports
🔌 USB 10Gbps Type-C (Front)
🔌 USB 10Gbps Type-A (Rear)
🔌 USB 5Gbps Type-A (Front & Rear)
🔌 USB 5Gbps Type-C (Rear)
🔌 USB 2.0 (Front & Rear)
🔹 Internal I/O & Cooling
🧊 CPU fan + Pump/System fan combo
🌪️ 3× System fan headers
🌈 2× Addressable RGB Gen2 + 1× RGB header
🔐 TPM 2.0 support
⚡ Supplemental PCIe 8-pin power
🧩 Thunderbolt5 card connector
🖧 COM port header
🔹 Back Panel Highlights
🔘 Clear CMOS Button
🌐 5G LAN & Wi-Fi/Bluetooth
🎧 HD Audio
⚡ Thunderbolt™ 4 Type-C
🔌 USB 10Gbps / 5Gbps / USB 2.0
🖥️ HDMI™ & DisplayPort
🔹 EZ DIY & Debug Features
💡 4× EZ Debug LED
🔹 Form Factor & OS
📏 mATX – 243.84mm × 243.84mm
🪟 Supports Windows® 11 64-bit
