Product Name:

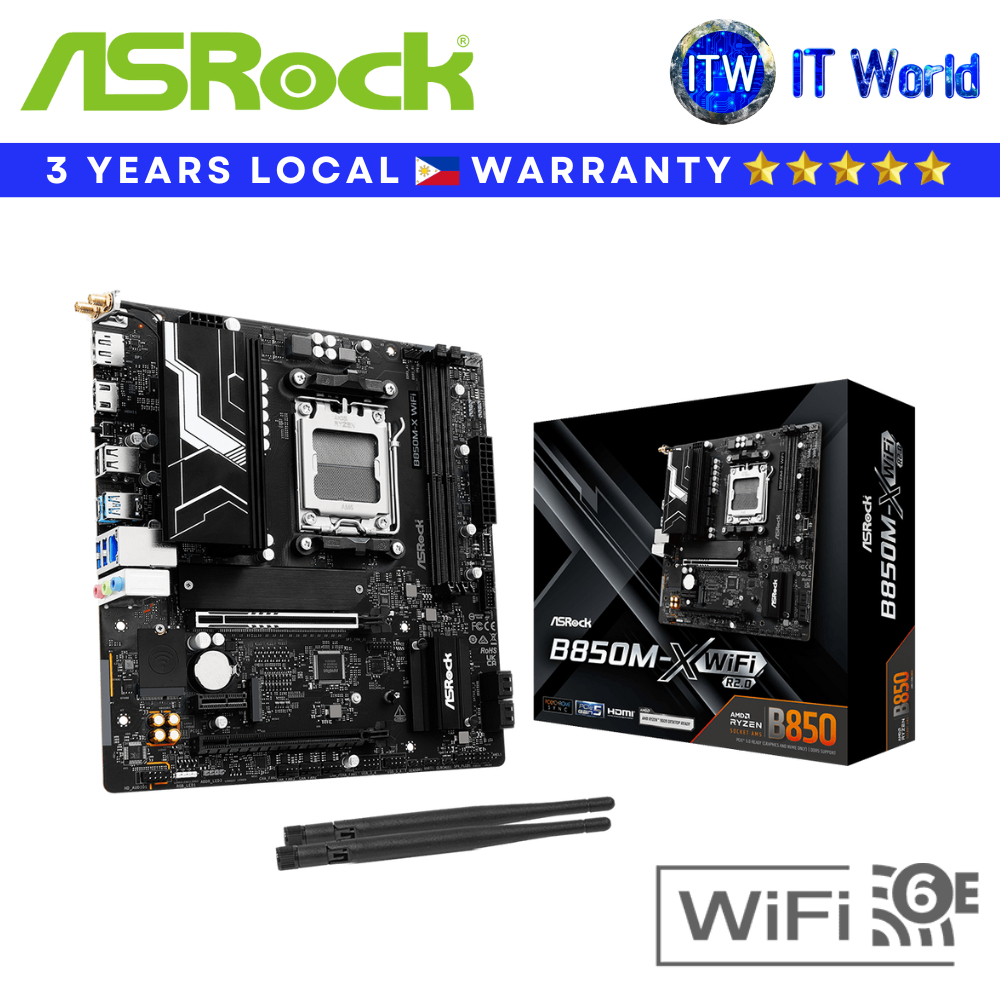

Itw | ASRock Motherboard B850M-X WiFi R2.0 - DDR5, AM5, PCIe, Gen5, Micro ATX, WiFi 6E 2.5G LAN
Form Factor: Micro ATX (24.4 x 22.6 cm)
Chipset: AMD B850
Socket: AM5
Processor Support: AMD Ryzen™ 7000 / 8000 / 9000 Series
Memory Support:
2x DDR5 DIMM slots (Dual Channel)
Supports up to DDR5 8200+ (OC), max 128GB
ECC & non-ECC un-buffered memory
Supports XMP & EXPO profiles
Expansion Slots:
1x PCIe 5.0 x16
1x PCIe 4.0 x16 (x4 mode)
1x PCIe 4.0 x1
1x M.2 (Key E) for WiFi/BT module
Storage Options:
1x M.2 Gen5 x4 (2280)
1x M.2 Gen4 x4 (2280)
4x SATA3 (6Gb/s)
RAID 0/1/10 support (SATA & NVMe)
Graphics Output (via supported CPUs):
1x HDMI 2.1 (up to 4K 120Hz)
1x DisplayPort 1.4 (up to 4K 120Hz)
Audio:
Realtek ALC897 7.1 HD Audio
Nahimic Audio
Networking:
Dragon 2.5G LAN (RTL8125BG)
Wi-Fi 6E (802.11axe) with 2x antennas
Bluetooth 5.2
MU-MIMO support
Rear I/O Ports:
1x HDMI
1x DisplayPort 1.4
1x USB 3.2 Gen1 Type-C
3x USB 3.2 Gen1 Type-A
2x USB 2.0
1x RJ-45 LAN (2.5G)
2x Antenna Ports
1x BIOS Flashback Button
3x Audio Jacks (Line In / Front / Mic)
USB Ports:
Rear:
1x USB-C Gen1
3x USB 3.2 Gen1 Type-A
2x USB 2.0
Front (via headers):
1x USB-C Gen1
2x USB 3.2 Gen1 Type-A
4x USB 2.0
Cooling & Fan Headers:
2x CPU Fan (1A & 3A support)
3x Chassis/Water Pump Fan
1x AIO Pump Fan
Smart Fan Speed Control + Auto Detection
RGB/LED Support:
1x RGB Header (12V)
3x Addressable RGB Headers (5V)
Supports Polychrome SYNC
Special Features:
BIOS Flashback Button
ASRock Post Status Checker
Auto Driver Installer
A-Tuning Utility
Dragon LAN Control Software
Accessories Included:
1x I/O Shield
2x SATA Cables
2x WiFi Antennas
Operating System Support:
Windows 10 64-bit / Windows 11 64-bit
