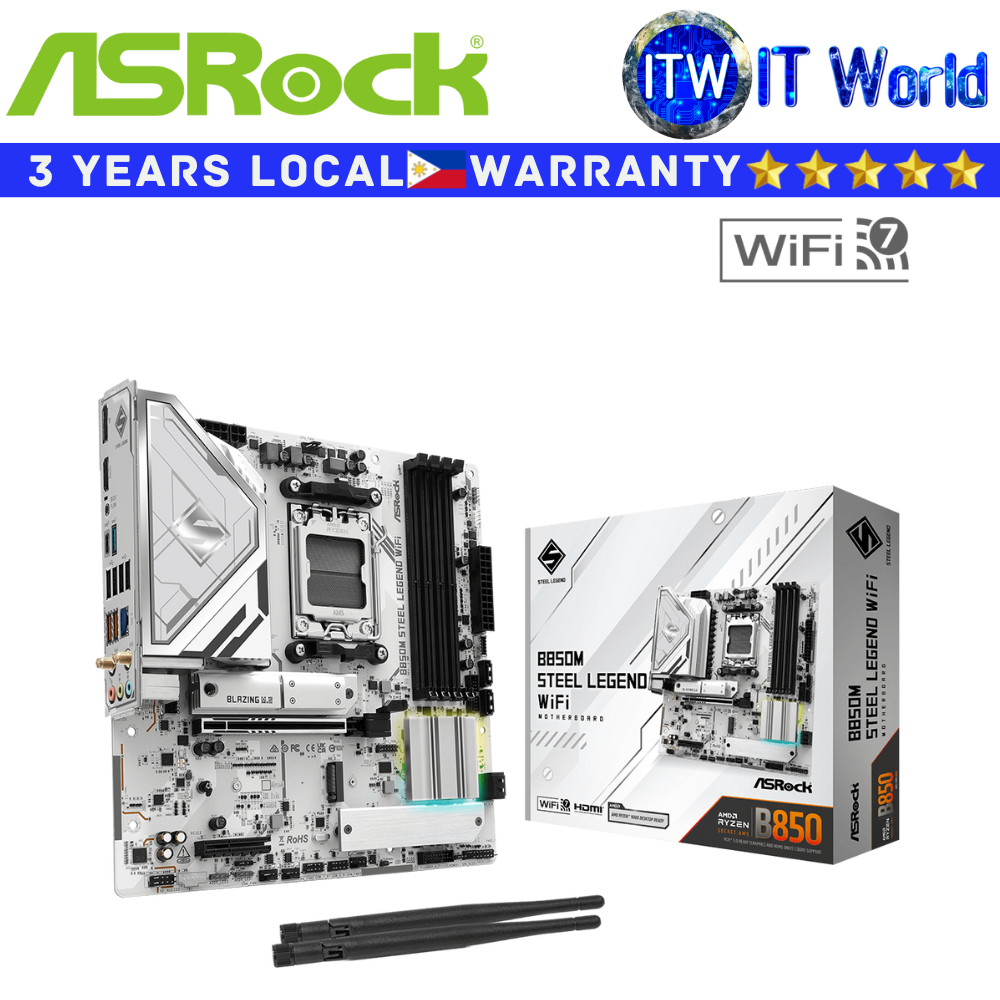

Product Name: Itw |AsRock Motherboard B850M Steel legend WIFI Micro-ATX AM5 DDR5
> B850M Steel Legend WiFi
> Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
> 12+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
> 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8000+ (OC)
> 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
> Graphics Output Options: 1 HDMI, 1 DisplayPort
> Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
> 1 Blazing M.2 (PCIe Gen5x4)
- 1 Hyper M.2 (PCIe Gen4x4)
- 1 M.2 (PCIe Gen4x2)
- 4 SATA3
> 2 USB 3.2 Gen2 Type-A+C (Rear)
- 1 USB 3.2 Gen1 Type-C (Front)
- 6 USB 3.2 Gen1 (2 Rear, 4 Front)
- 8 USB 2.0 (4 Rear, 4 Front)
> Realtek 2.5G LAN
> 802.11be WiFi 7 +Bluetooth
> Supports M.2 Bottom Heatsink, BIOS Flashback
Specifications
> CPU
> Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
> Chipset
> AMD B850
> Memory
> Dual Channel DDR5 Memory Technology
> 4 x DDR5 DIMM Slots
> Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
> Max. capacity of system memory: 256GB
> Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
> BIOS
> 256Mb AMI UEFI Legal BIOS with GUI support
> Graphics
> Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
> 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
> 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
> Audio
> 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
> Impedance Sensing on Rear Out port
> Individual PCB Layers for R/L Audio Channel
> Nahimic Audio
> Rear Panel I/O
> 2 x Antenna Ports
> 1 x HDMI Port
> 1 x DisplayPort 1.4
> 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
> 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
> 2 x USB 3.2 Gen1 Ports
> 4 x USB 2.0 Ports
> 1 x RJ-45 LAN Port
> 1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone
> Form Factor
> Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
> 2oz Copper PCB
