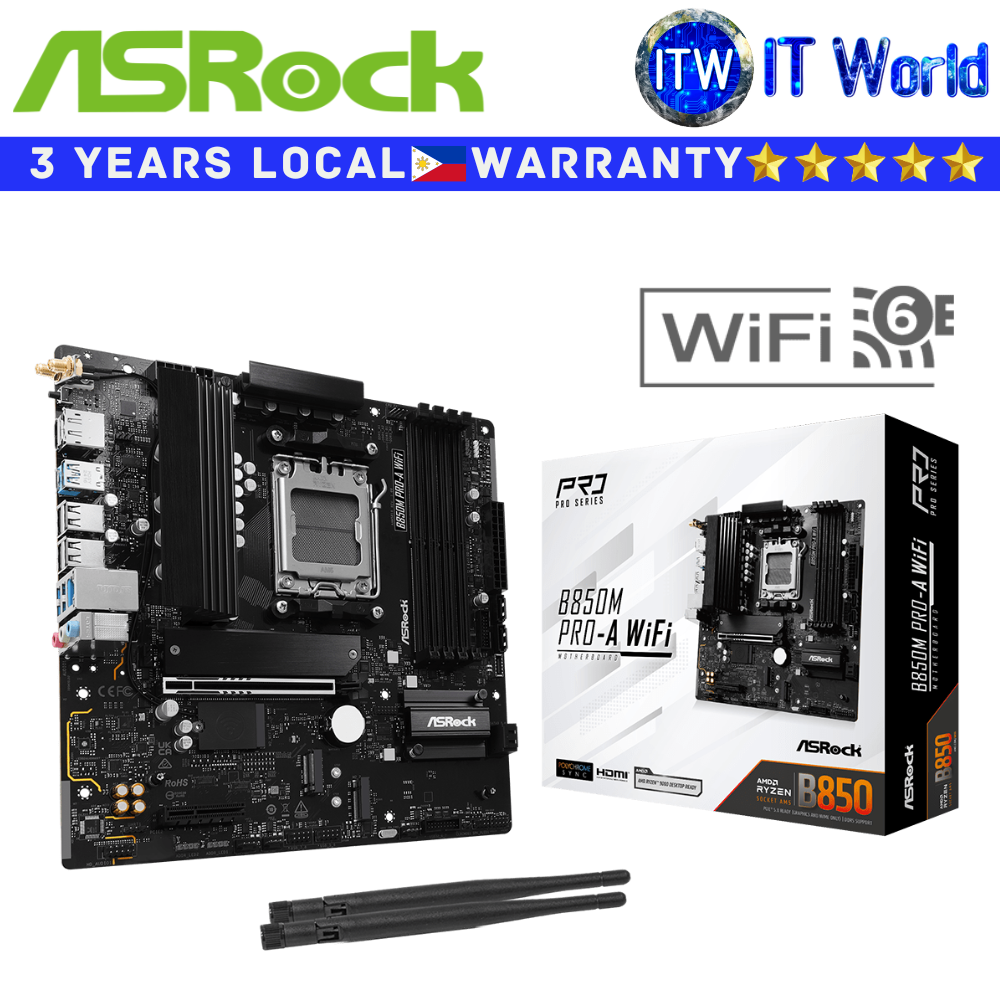

Product Name: Itw | ASRock Motherboard B850M Pro-A Wifi microATX AM5 DDR5

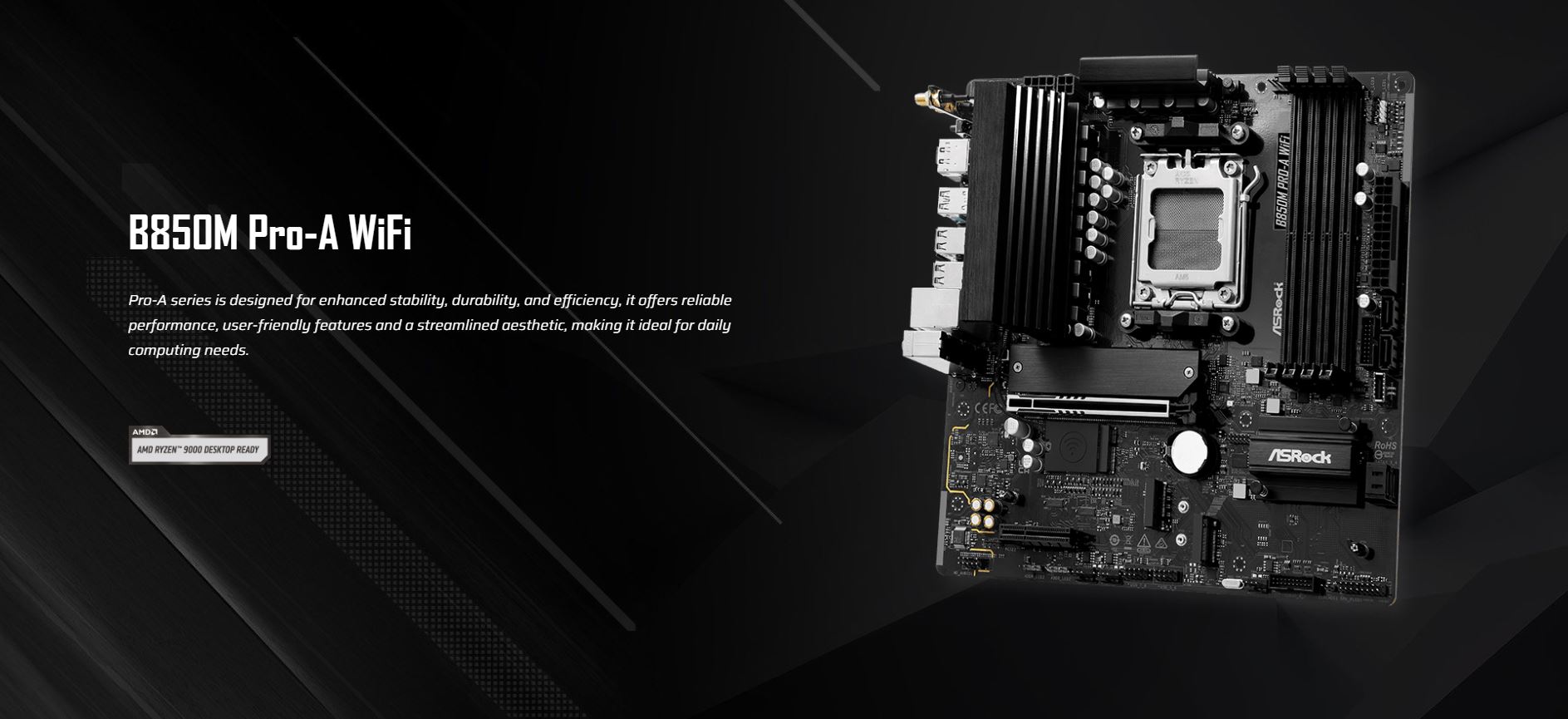

B850M Pro-A WiFi
> Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

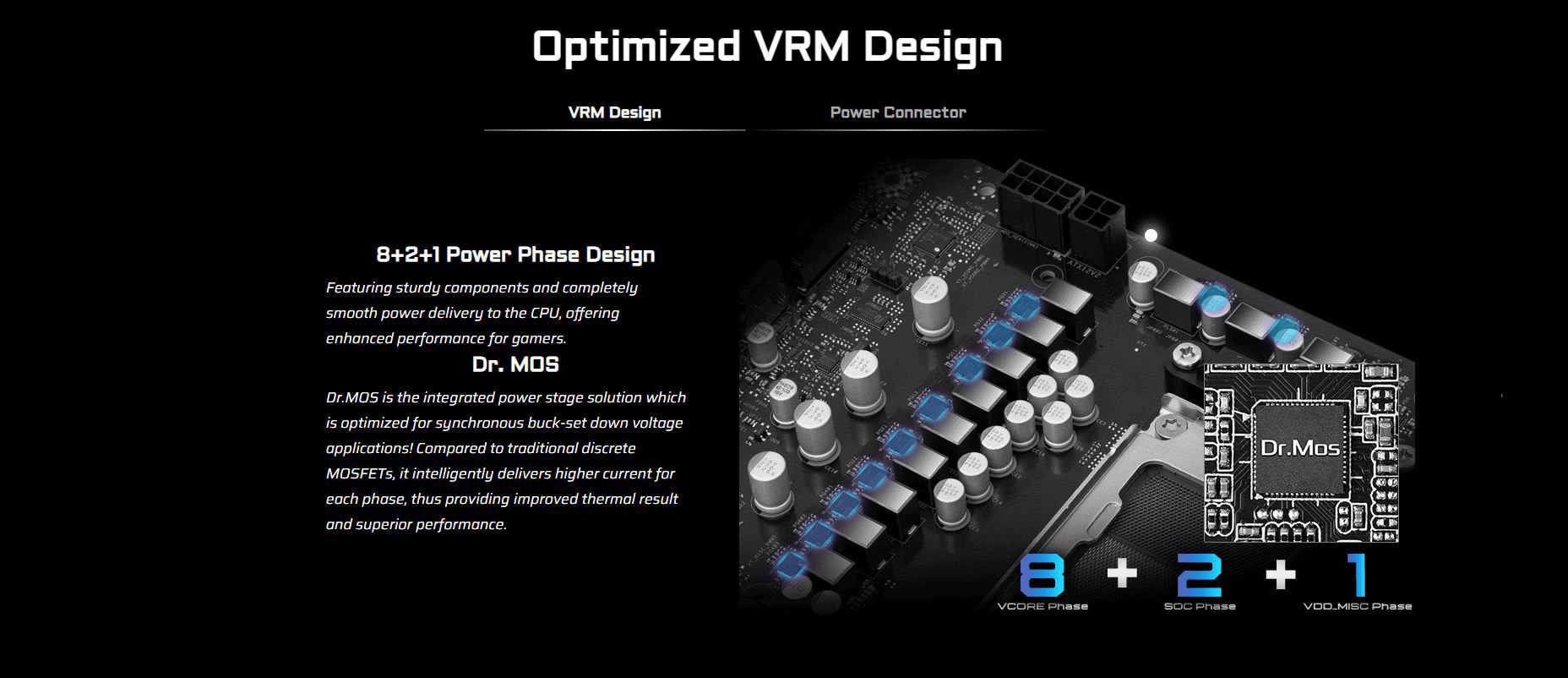

> 8+2+1 Phase Power Design, Dr.MOS for VCore+SOC+MISC
> 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8000+ (OC)
> 1 PCIe 5.0 x16, 1 PCIe 4.0 x4
> Graphics Output Options: 1 HDMI, 1 DisplayPort
> Realtek ALC897 7.1 CH HD Audio Codec

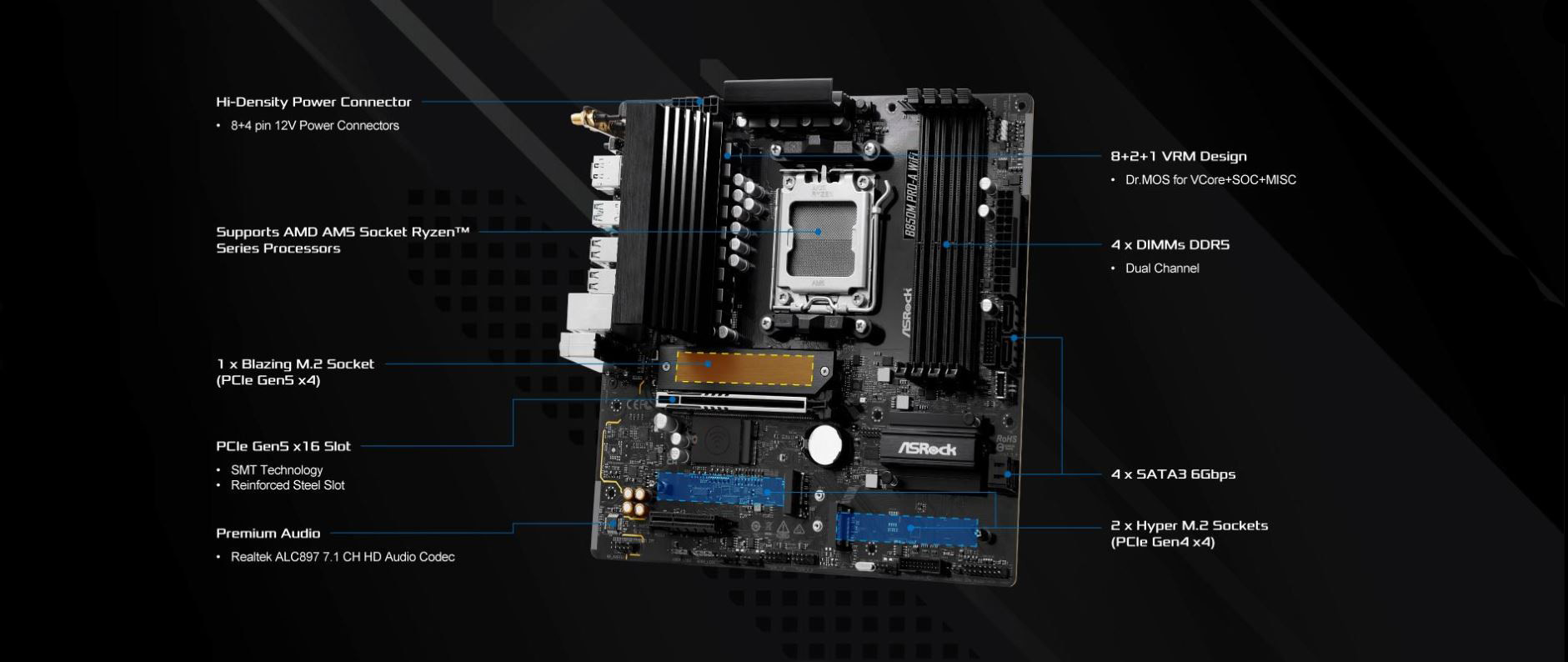

> 1 Blazing M.2 (PCIe Gen5x4)
- 2 Hyper M.2 (PCIe Gen4x4)
- 4 SATA3
> 1 USB 3.2 Gen2 Type-C (Rear)
- 1 USB 3.2 Gen2 Type-A (Rear)
- 1 USB 3.2 Gen1 Type-C (Front)
- 6 USB 3.2 Gen1 (2 Rear, 4 Front)
- 8 USB 2.0 (4 Rear, 4 Front)
> Realtek 2.5G LAN
> 802.11axe WiFi 6E +Bluetooth
> Supports BIOS Flashback
Specification
CPU
> Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*
Chipset
> AMD B850
Memory
> Dual Channel DDR5 Memory Technology
> 4 x DDR5 DIMM Slots
> Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
> Max. capacity of system memory: 256GB
> Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS
> 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
> Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
> 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
> 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
> Dragon RTL8125BG
> Supports Dragon 2.5G LAN Software
> Smart Auto Adjust Bandwidth Control
> Visual User Friendly UI
> Visual Network Usage Statistics
> Optimized Default Setting for Game, Browser, and Streaming Modes
> User Customized Priority Control
Wireless LAN
> 802.11axe Wi-Fi 6E Module
> Supports IEEE 802.11a/b/g/n/ac/ax/axe
> Supports Dual-Band 2x2 with extended 6GHz band* support
> 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
> Supports Bluetooth 5.2
> Supports MU-MIMO
Slots
> CPU
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 4.0 x4 Slot (PCIE2), supports x4 mode*
> Chipset
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
> CPU

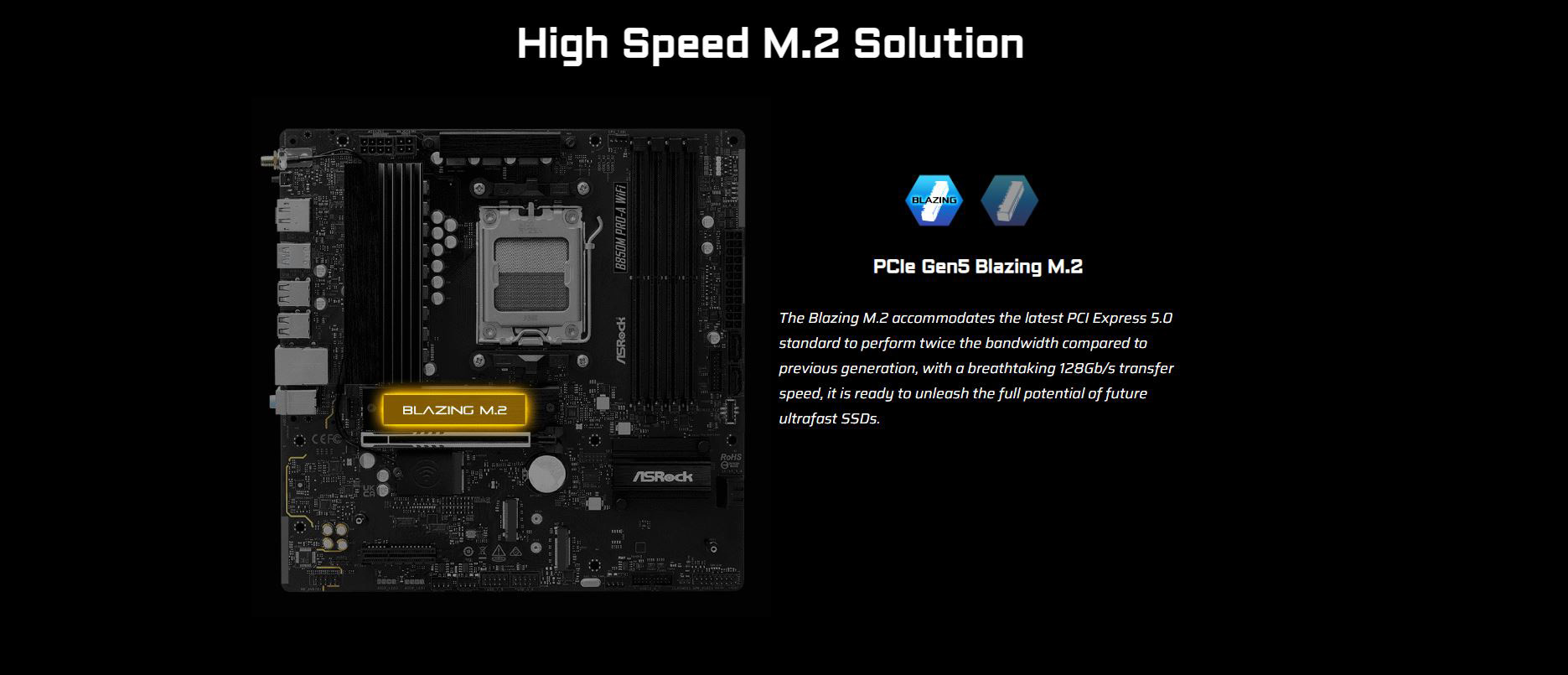

- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
> Chipset
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
RAID
> Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
> Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
USB
> CPU
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
> Chipset
- 1 x USB 3.2 Gen1 Type-C (Front)
- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Connector
> 1 x SPI TPM Header
> 1 x Power LED and Speaker Header
> 1 x RGB LED Header*
> 3 x Addressable LED Headers**

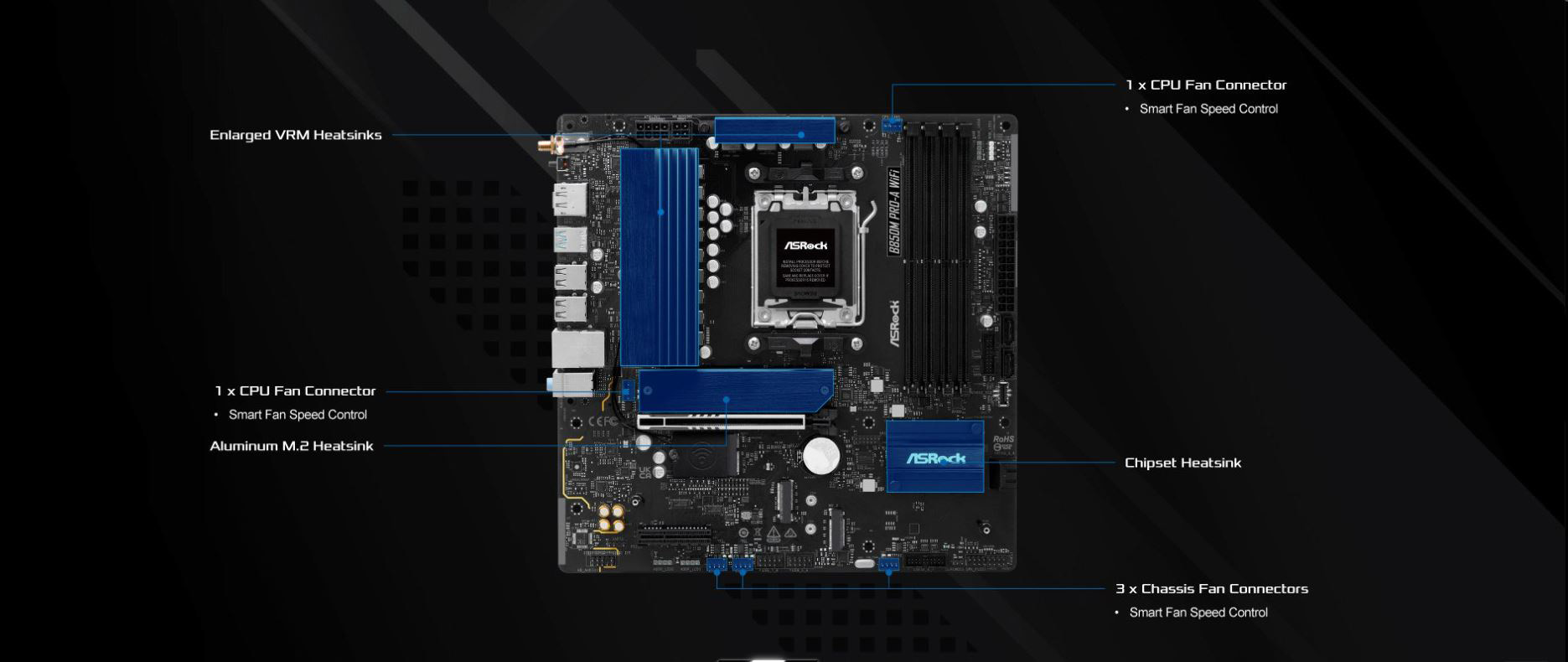

> 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
> 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
> 1 x 24 pin ATX Power Connector
> 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
> 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
> 1 x Front Panel Audio Connector
> 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
> 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
> 1 x Front Panel Type C USB 3.2 Gen1 Header

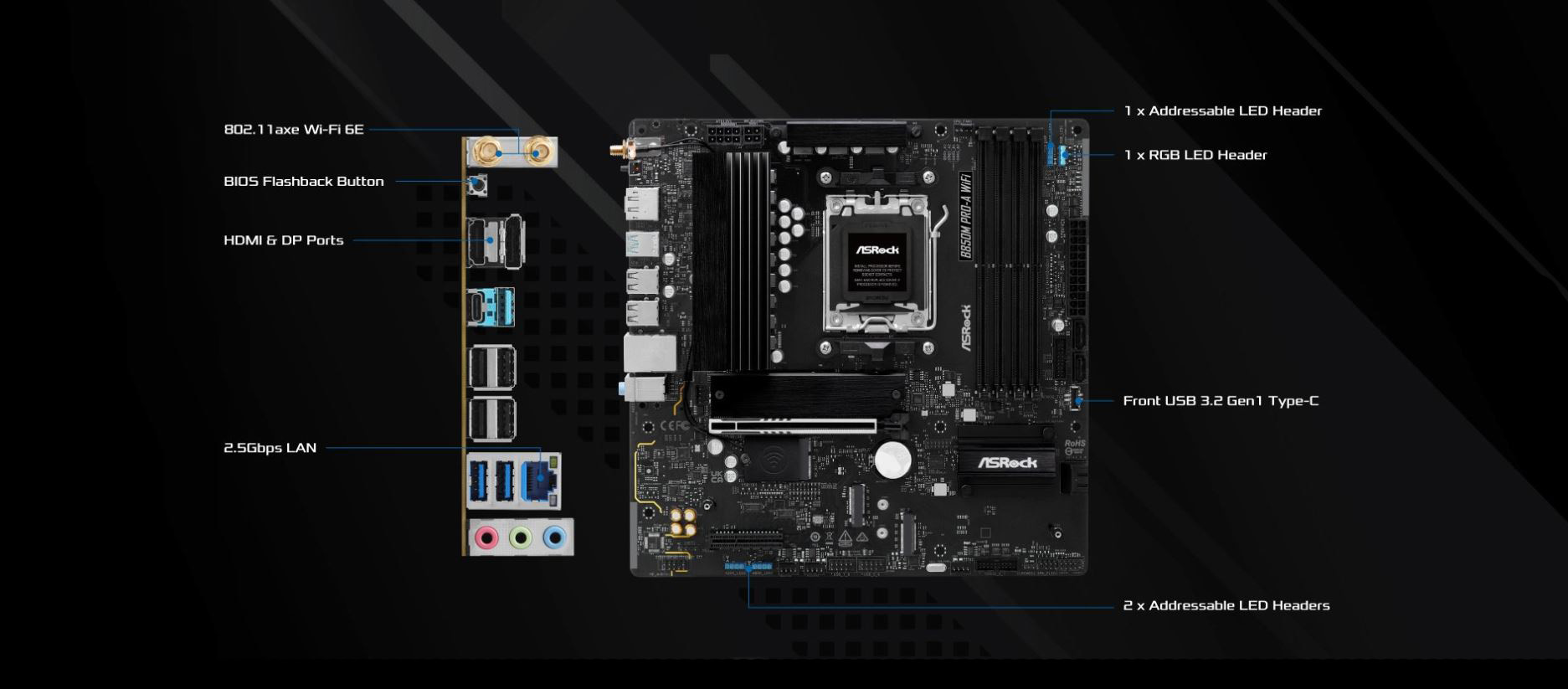

Rear Panel I/O
> 2 x Antenna Ports
> 1 x HDMI Port
> 1 x DisplayPort 1.4
> 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
> 1 x USB 3.2 Gen2 Type-C Port
> 2 x USB 3.2 Gen1 Ports
> 4 x USB 2.0 Ports
> 1 x RJ-45 LAN Port
> 1 x BIOS Flashback Button
> HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor
> Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
