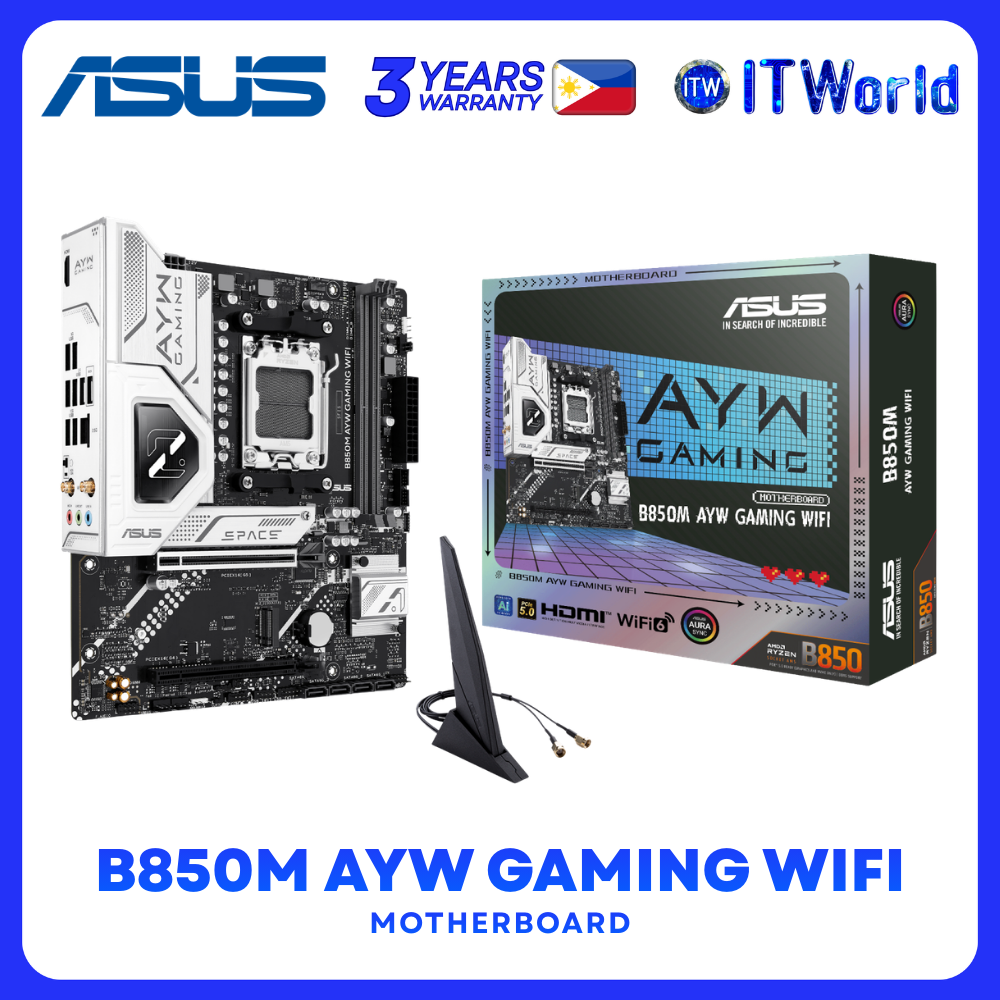

The ASUS B850M AYW GAMING WIFI motherboard is expertly engineered to unlock the full potential of AMD Ryzen™ 9000, 8000, and 7000 Series processors. Designed for PC builders and enthusiasts, it offers powerful performance optimizations, advanced connectivity, and Advanced AI PC-ready capabilities through intuitive software and firmware features.
⚡ CPU & Chipset
🧠 Socket: AMD Socket AM5
🔥 Processor Support: AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
🧩 Chipset: AMD B850
💾 Memory Support
📦 2 × DDR5 DIMM Slots (Max 128GB)
⚡ Memory Speeds Supported:
• Up to 8200+ MT/s (OC) – Ryzen™ 9000 Series
• Up to 9600+ MT/s (OC) – Ryzen™ 8000 Series
• Up to 8000+ MT/s (OC) – Ryzen™ 7000 Series
🧠 Memory Features:
• Dual Channel Memory Architecture
• ECC & Non-ECC Un-buffered DIMM
• AMD EXPO™ Support
• ASUS Enhanced Memory Profile (AEMP)
• DDR5 On-Die ECC Support
🎮 Graphics & Display
🖥 1 × HDMI™ Port
📺 Supports 4K @ 60Hz (HDMI 2.1)
Graphics specifications may vary depending on CPU.
🔌 Expansion Slots
⚡ 1 × PCIe 5.0 x16 Slot (Ryzen™ 9000 / 7000 Series)
⚡ 1 × PCIe 4.0 x16 Slot (Ryzen™ 8000 Series supports x8/x4 mode)
⚡ 1 × PCIe 4.0 x16 Slot (Chipset – supports x4 mode)
💽 Storage Options
💾 2 × M.2 Slots
💾 4 × SATA 6Gb/s Ports
M.2 Support:
• M.2_1 – PCIe 5.0 x4 (Ryzen™ 9000 / 7000)
• M.2_2 – PCIe 4.0 x4
🔧 AMD RAIDXpert2 Technology:
• Ryzen™ 9000: RAID 0 / 1 / 5 / 10
• Ryzen™ 8000: RAID 0 / 1
• Ryzen™ 7000: RAID 0 / 1 / 10
🌐 Networking
🌐 Realtek 2.5Gb Ethernet with ASUS LANGuard
📶 Wi-Fi 6 (802.11ax) – Supports 2.4GHz / 5GHz
🔵 Bluetooth® 5.3
🔗 USB Connectivity
Rear USB (8 Ports)
⚡ 2 × USB 10Gbps (Type-A)
⚡ 2 × USB 5Gbps (Type-A)
🔌 4 × USB 2.0
Front USB (7 Ports)
⚡ 1 × USB 5Gbps Connector (USB Type-C®)
⚡ 1 × USB 5Gbps Header (adds 2 ports)
🔌 2 × USB 2.0 Headers (adds 4 ports)
🔊 Audio
🎧 Realtek 7.1 Surround Sound HD Audio CODEC
🎵 Supports 24-bit / 192kHz playback
Audio Features:
• Audio Shielding
• Premium Audio Capacitors
• Dedicated Audio PCB Layers
🔧 Back Panel I/O
🔌 2 × USB 10Gbps Type-A
🔌 2 × USB 5Gbps Type-A
🔌 4 × USB 2.0
🖥 1 × HDMI™
📶 1 × Wi-Fi Module
🌐 1 × Realtek 2.5Gb Ethernet
🎧 3 × Audio Jacks
⚙ 1 × BIOS FlashBack™ Button
🛠 Internal Connectors
🌀 Cooling:
• 1 × CPU Fan Header
• 3 × Chassis Fan Headers
⚡ Power:
• 24-pin Main Power Connector
• 8-pin CPU Power Connector
💾 Storage:
• 2 × M.2 Slots
• 4 × SATA 6Gb/s
🌈 RGB:
• 3 × Addressable RGB Gen 2 Headers
🧠 ASUS Special Features
🛡 ASUS 5X Protection III
• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot
• Stainless-Steel Back I/O
⚙ ASUS Q-Design:
• M.2 Q-Latch
• Q-DIMM
• Q-LED Indicators
• Q-Slot
• Q-Dashboard
❄ Thermal Solution:
• M.2 Heatsink
• VRM Heatsink Design
🛠 EZ DIY Features:
• Pre-Mounted I/O Shield
• BIOS FlashBack™ Button & LED
🌈 Aura Sync RGB Support
💻 Software Features
🧩 ASUS Exclusive Software:
• Armoury Crate
• Aura Creator & Aura Sync
• Fan Xpert 2+
• ASUS AI Advisor
• ASUS DriverHub
• TurboV Core
• ASUS GlideX
• ASUS CPU-Z
📦 Included Trials:
• Norton 360 Deluxe (60 Days)
• WinRAR (40 Days)
📀 BIOS & OS
🔧 BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
BIOS Features:
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• ASUS MyHotkey
💻 Operating System Support:
• Windows® 11
• Windows® 10 64-bit
📦 Accessories Included
📦 2 × SATA 6Gb/s Cables
📶 1 × ASUS Wi-Fi Moving Antenna
🔧 1 × M.2 Rubber Package
🔩 1 × Screw Package for M.2 SSD
📘 1 × Quick Start Guide
📏 Physical Specifications
📐 Form Factor: Micro-ATX
📐 Dimensions: 24.4 × 22.1 cm
