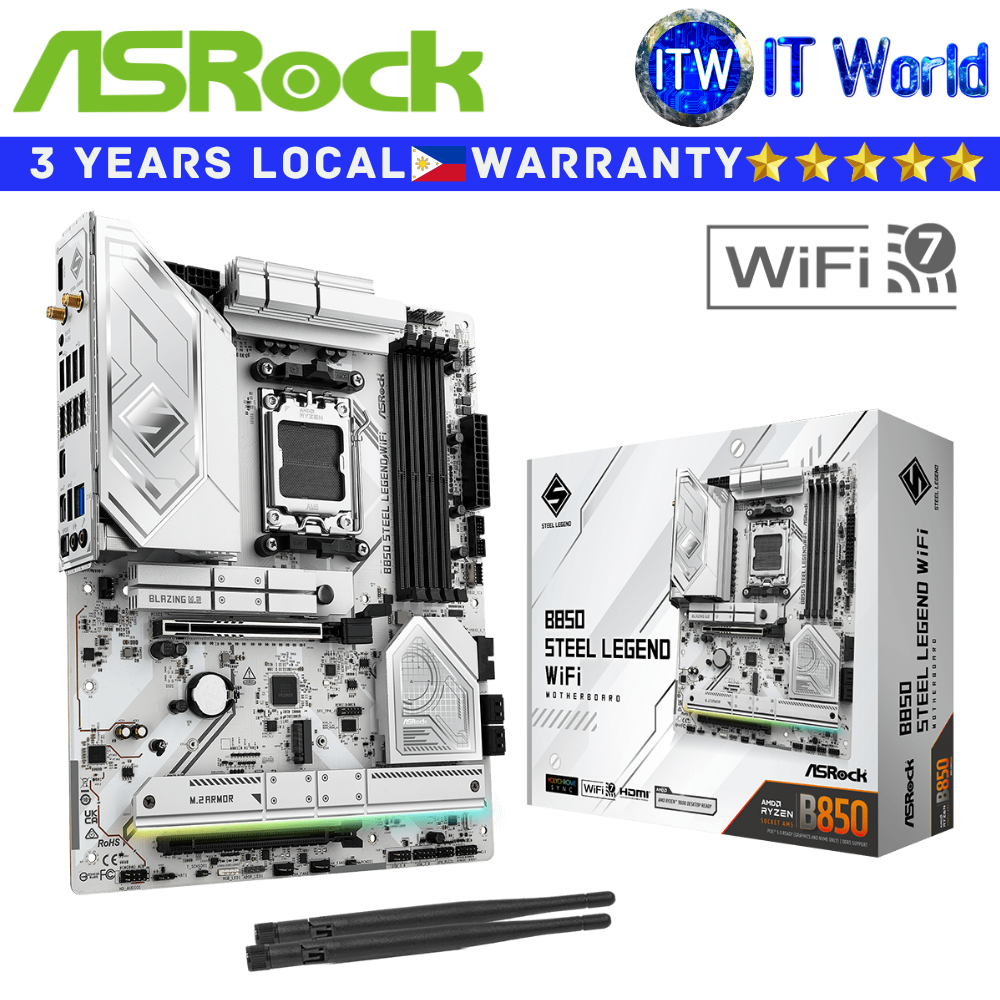

Product Name: Itw | ASRock Motherboard B850 Steel Legend Wifi ATX AM5 DDR5
B850 Steel Legend WiFi
> Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
> 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
> 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8000+ (OC)
> 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
> Graphics Output Options: 1 HDMI
> Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
> 1 Blazing M.2 (PCIe Gen5x4)
- 3 Hyper M.2 (PCIe Gen4x4)
- 4 SATA3
> 1 USB 3.2 Gen2x2 Type-C (Front)
- 4 USB 3.2 Gen2 (2 Rear, 2 Rear Type-C)
- 7 USB 3.2 Gen1 (3 Rear, 4 Front)
- 8 USB 2.0 (4 Rear, 4 Front)
> Realtek 2.5G LAN
> 802.11be Wi-Fi 7 + Bluetooth
> Supports Lite Release Design,
- Toolless Multi-Layer M.2 Heatsink,
- M.2 Bottom Heatsink
Specification
CPU
> Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors
Chipset
> AMD B850
Memory
> Dual Channel DDR5 Memory Technology
> 4 x DDR5 DIMM Slots
> Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
> Max. capacity of system memory: 256GB
> Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
Graphics
> Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
> 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
> Individual PCB Layers for R/L Audio Channel
> Direct Drive Technology on Front headphone port (Supports up to 600 Ohm headsets)
> Nahimic Audio
LAN
> 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
> Dragon RTL8125BG
> Supports Dragon 2.5G LAN Software
> Smart Auto Adjust Bandwidth Control
> Visual User Friendly UI
> Visual Network Usage Statistics
> Optimized Default Setting for Game, Browser, and Streaming Modes
> User Customized Priority Control
Wireless LAN
> 802.11be 2x2 Wi-Fi 7 Module
> Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
> Supports 2.4GHz/5GHz/6GHz* frequency band
> Supports 160MHz channel bandwidth with 6GHz* frequency band
> 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
> Supports Bluetooth 5.4
> Supports MU-MIMO
Slots
> CPU: 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
> Chipset
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
> CPU
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
> Chipset
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2230/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
> ASMedia ASM1061: 4 x SATA3 6.0 Gb/s Connectors
USB
> CPU
- 2 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_3))
- 1 x USB 3.2 Gen1 Type-A (Rear (USB32_1)) Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 1 x USB 3.2 Gen2 Type-A (Rear (USB32_4))
- 6 x USB 3.2 Gen1 Type-A (2 Rear (USB32_2 and USB32_5), 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Connector
> 1 x SPI TPM Header
> 1 x Thermistor Cable Header
> 1 x Power LED and Speaker Header
> > 1 x RGB LED Header*
> 3 x Addressable LED Headers**
> 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
> 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
> 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
> 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
> 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
> 1 x Front Panel Audio Connector
> 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
> 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
> 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Rear Panel I/O
> 2 x Antenna Ports
> 1 x HDMI Port
> 1 x Optical SPDIF Out Port
> 2 x USB 3.2 Gen2 Type-C Ports (10 Gb/s)
> 3 x USB 3.2 Gen1 Type-A Ports*
> 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)**
> 4 x USB 2.0 Ports
> 1 x RJ-45 LAN Port
> 1 x BIOS Flashback Button
> 1 x Line Out Jack (Gold Audio Jack)
> 1 x Microphone Input Jack (Gold Audio Jack)
Form Factor
> ATX: 12.0-in x 9.6-in, 30.5cm x 24.4cm
> 8 Layer PCB
