Product Name:

Itw | Asus Motherboard B850 Max Gaming WIFI W (AM5 / DDR5 / WiFi 6E / PCIe 5.0 / USB-C / ATX)

Key Features:

Chipset: AMD B850

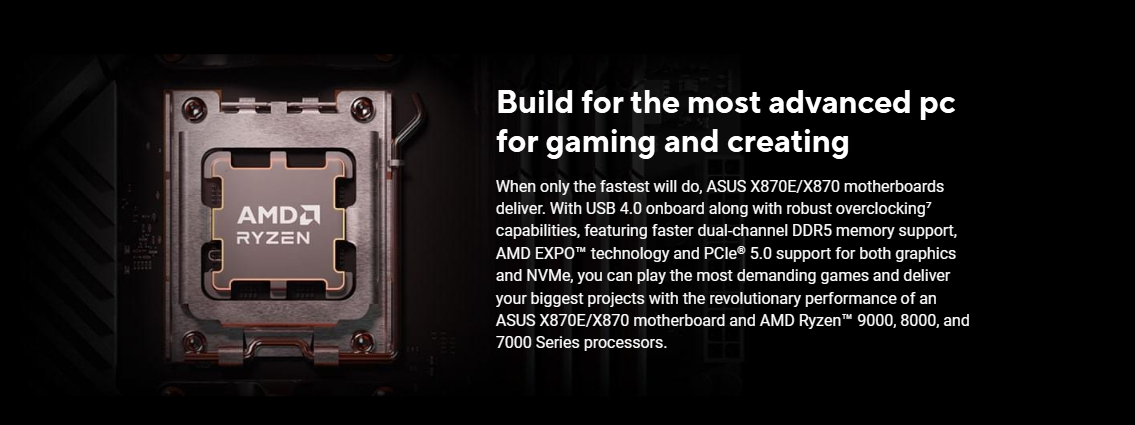

Socket: AM5, supports AMD Ryzen™ 9000 / 8000 / 7000 Series

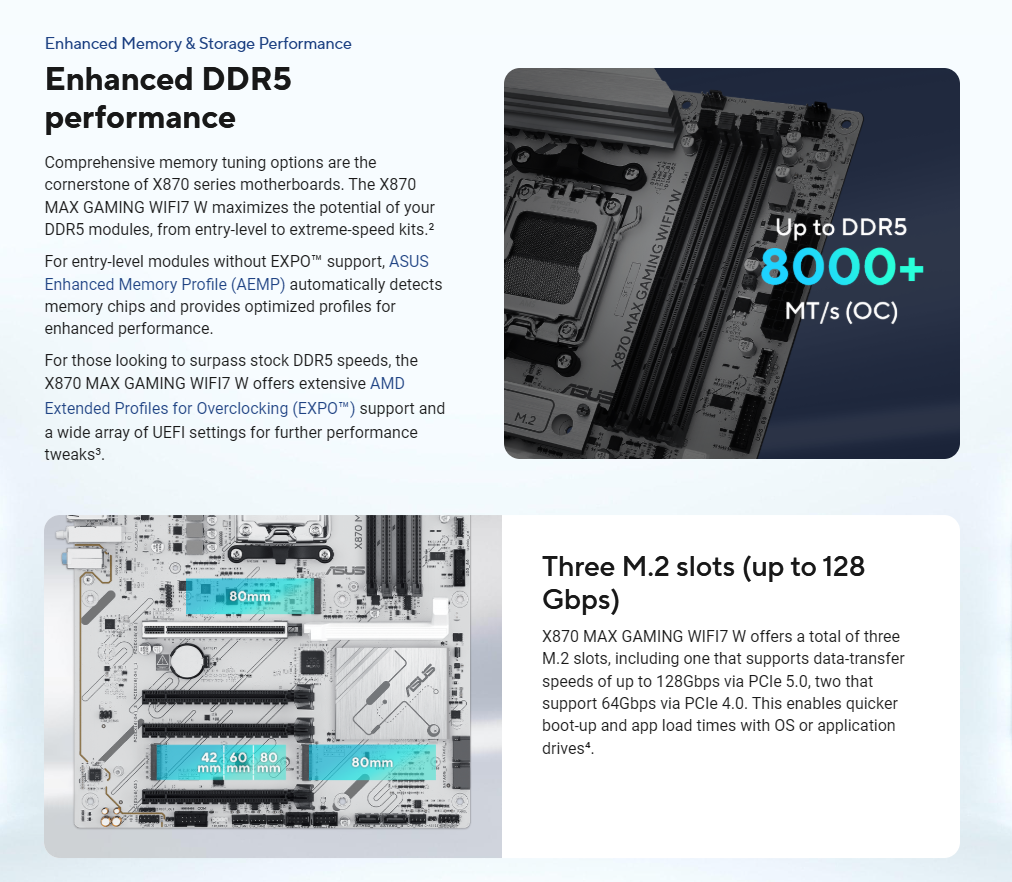

Memory: 4 x DDR5 DIMM slots, up to 256GB, 8000+ MT/s (OC)

Memory Features: Dual-channel, AMD EXPO™, ASUS AEMP, ECC/Non-ECC (Un-buffered)

Display Output:

1 x HDMI™ 2.1 (4K@60Hz)

1 x DisplayPort 1.4 (8K@30Hz)

(*Depends on CPU graphics support)

Expansion Slots:

1 x PCIe 5.0 x16 (Ryzen 9000/7000)

1 x PCIe 4.0 x16 (Ryzen 8000)

1 x PCIe 4.0 x16 (x4 mode)

2 x PCIe 3.0 x16 (x1 mode)

Storage:

3 x M.2 slots (PCIe 5.0/4.0)

4 x SATA 6Gb/s ports

RAID Support (RAIDXpert2): 0/1/5/10 (9000), 0/1 (8000), 0/1/10 (7000)

Networking:

LAN: Realtek 2.5Gb Ethernet with ASUS LANGuard

Wireless: WiFi 6E (802.11ax, 2x2), supports 2.4/5/6GHz

Bluetooth: v5.3

USB Ports:

Rear I/O:

• 1 x USB-C 10Gbps

• 3 x USB-A 10Gbps

• 2 x USB-A 5Gbps

• 2 x USB 2.0

Front Panel:

• 1 x USB-C 5Gbps

• 1 x USB-A 5Gbps header (2 ports)

• 3 x USB 2.0 headers (6 ports)

Audio:

Realtek 7.1 Surround Sound High Definition Audio CODEC

Features: Jack-detection, Multi-streaming, Premium capacitors, Audio shielding, S/PDIF out header

Cooling & Fan Headers:

1 x CPU Fan, 1 x CPU OPT

1 x AIO Pump, 4 x Chassis Fan

Flexible M.2 heatsink, VRM heatsink

RGB Headers:

3 x Addressable Gen 2 RGB headers

Aura Sync RGB lighting support

Special Features:

BIOS FlashBack™ button & LED

Pre-mounted I/O shield

ASUS Q-Design (Q-Antenna, Q-DIMM, Q-LED Core, Q-Slot)

ASUS Armoury Crate, AI Advisor, Driver Hub, Fan Xpert 2+

TurboV Core, ASUS CPU-Z, Norton 360 (Trial), WinRAR (Trial)

Rear I/O:

1 x USB-C 10Gbps, 3 x USB-A 10Gbps, 2 x USB-A 5Gbps, 2 x USB 2.0

1 x HDMI™, 1 x DisplayPort

1 x RJ45 LAN port

3 x Audio jacks

1 x BIOS FlashBack™ button

1 x WiFi Antenna Module

Form Factor: ATX (30.5 x 24.4 cm)
