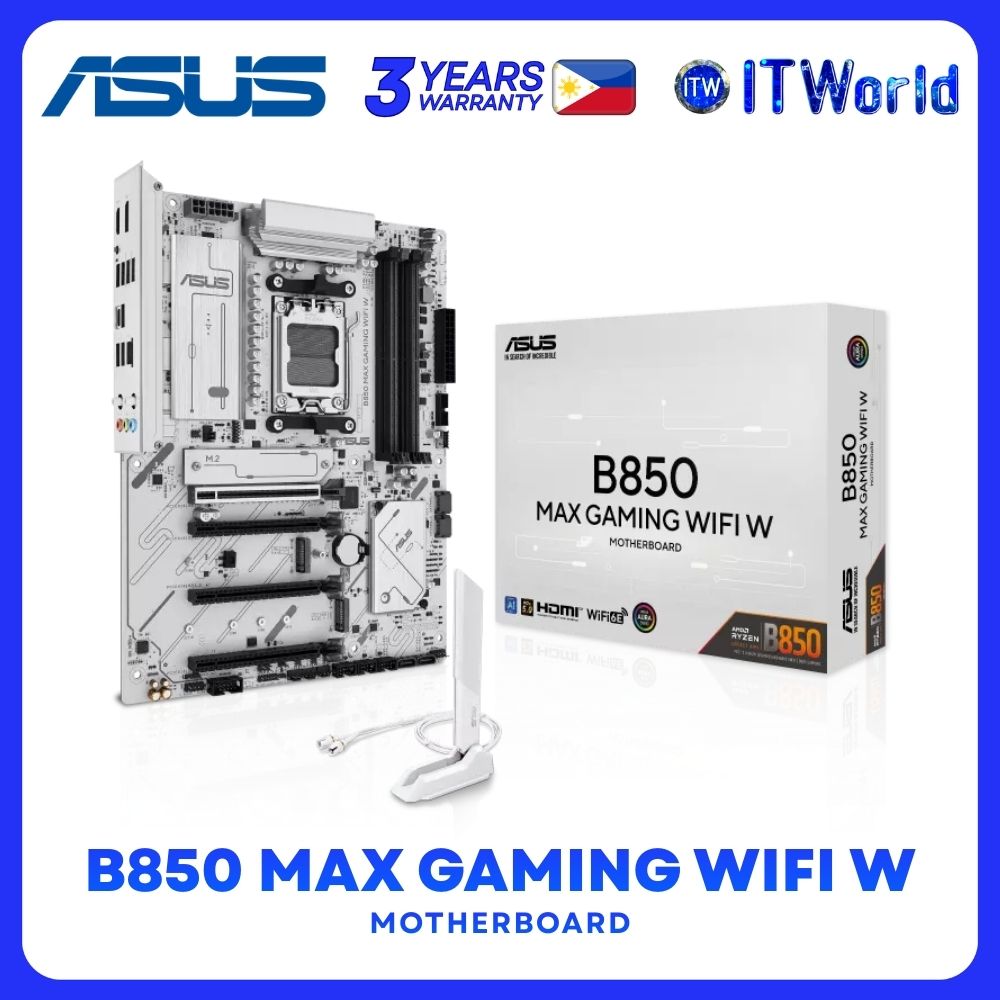

Unleash next-gen performance with the ASUS B850 MAX GAMING WIFI W — engineered to maximize the power of AMD Ryzen™ 9000/8000/7000 Series processors and built to be Advanced AI PC-ready for demanding workloads and gaming builds.
🖥️ CPU & Chipset
🔳 AMD Socket AM5
⚙️ Supports Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
🧠 AMD B850 Chipset
🔄 PCIe 5.0 Ready (CPU dependent)
💾 Memory Performance
🧩 4 × DDR5 DIMM Slots (Up to 256GB)
⚡ Supports up to 8000+ MT/s (OC)*
🔁 Dual Channel Architecture
🚀 AMD EXPO™ Support
🛠️ ASUS AEMP
✔️ ECC & Non-ECC Unbuffered DIMM (CPU dependent)
(*Memory speed varies by CPU & configuration.)
🎮 Graphics Output
🖥️ 1 × DisplayPort (Up to 8K@30Hz)
📺 1 × HDMI™ (Up to 4K@60Hz)
(Graphics specs vary by CPU.)
🚀 Expansion Slots
🎯 1 × PCIe 5.0 x16 (Ryzen™ 9000/7000)
🎯 1 × PCIe 4.0 x16 (CPU dependent)
🎯 1 × PCIe 4.0 x16 (x4 mode via chipset)
🎯 2 × PCIe 3.0 x16 (x1 mode)
💽 Storage & RAID
🔹 3 × M.2 Slots (PCIe 5.0/4.0 support depending on CPU)
🔹 4 × SATA 6Gb/s Ports
🔐 AMD RAIDXpert2 Technology
RAID 0/1/5/10 (Ryzen™ 9000*)
RAID 0/1 (Ryzen™ 8000)
RAID 0/1/10 (Ryzen™ 7000)
🌐 Networking
⚡ Realtek 2.5Gb Ethernet
🛡️ ASUS LANGuard Protection
📡 Wi-Fi 6E (2x2, 2.4/5/6GHz)
🔵 Bluetooth® 5.3
🔌 USB Connectivity
Rear (8 Ports)
⚡ 4 × USB 10Gbps (3 × Type-A + 1 × Type-C®)
🚀 2 × USB 5Gbps
🔹 2 × USB 2.0
Front (Up to 9 Ports)
⚡ USB Type-C® (5Gbps, 5V/3A max)
🔹 USB 5Gbps header (adds 2 ports)
🔹 USB 2.0 headers (adds 6 ports)
🎧 Audio
🎵 Realtek 7.1 Surround HD Audio CODEC
🎚️ 24-Bit/192kHz Playback
🛡️ Audio Shielding
🔊 Premium Audio Capacitors
🎛️ Dedicated Audio PCB Layers
❄️ Cooling & Power
🔌 24-Pin Main Power
🔋 8-Pin + 4-Pin CPU Power
🌀 CPU Fan / AIO Pump / 4 × Chassis Fan Headers
🌡️ VRM Heatsink Design
🧊 Flexible M.2 Heatsink
✨ Special ASUS Features
🛡️ ASUS 5X PROTECTION III (DIGI+ VRM, SafeSlot, Overvoltage Protection)
🧰 Q-Design (Q-LED Core, Q-DIMM, Q-Slot, Q-Antenna)
🔄 BIOS FlashBack™ Button
🌈 Aura Sync (Addressable RGB Gen 2)
🧠 ASUS AI Advisor
⚙️ Armoury Crate & Aura Creator
📐 Form Factor & Dimensions
📏 ATX Form Factor
📏 30.5 cm × 24.4 cm (12" × 9.6")
📦 Package Includes
2 × SATA 6Gb/s Cables
ASUS WiFi Q-Antenna
M.2 Rubber Package
3 × M.2 Screw Packages
Quick Start Guide
