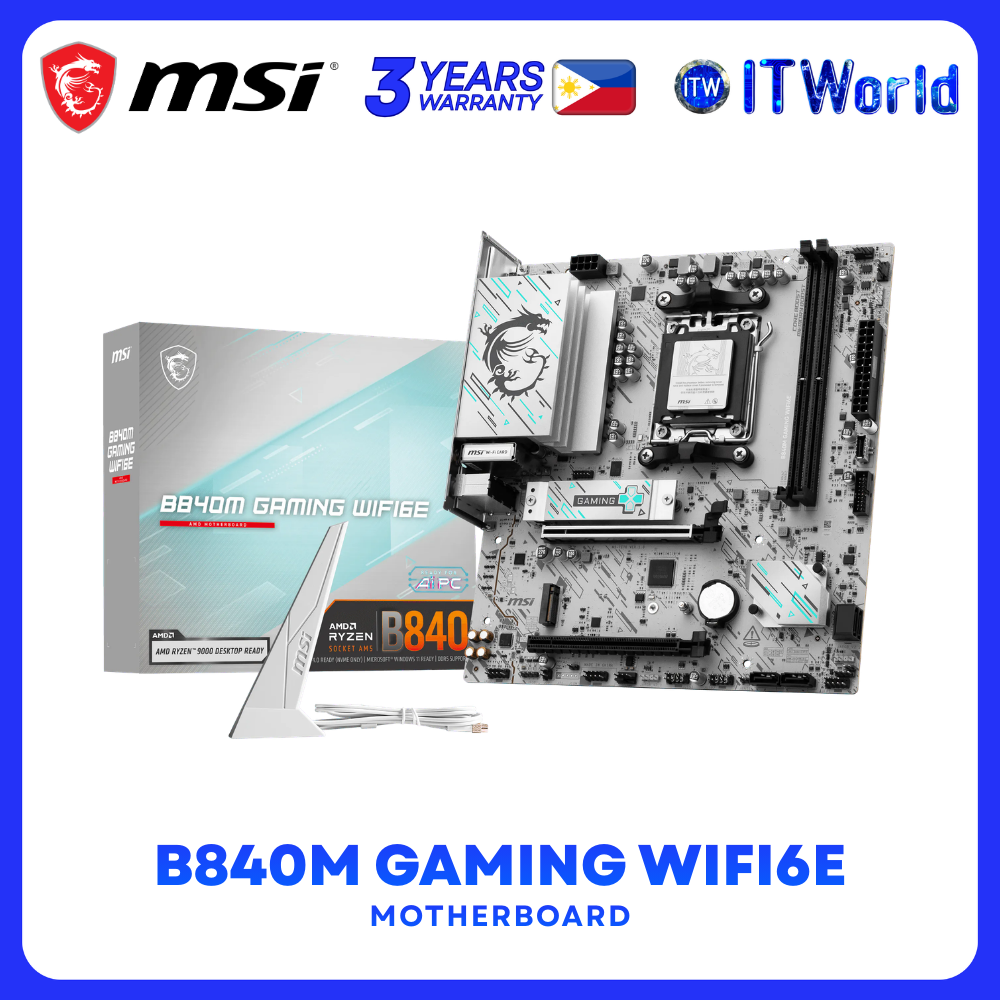

The B840M GAMING WIFI6E is crafted for gamers who demand extensive connectivity, versatile tools, and a premium wireless experience. Built for AMD Ryzen™ 9000 / 8000 / 7000 series processors, it delivers reliable performance for 24/7 non-stop gaming with EZ DIY features and high-speed networking. 🎮⚡
🔥 POWERFUL PERFORMANCE
• Chipset: AMD B840
• Socket: AM5
• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
🧠 DDR5 MEMORY READY
• 2× DDR5 UDIMM, up to 128GB
• Memory Speed: DDR5 8000 – 5600 (OC) / 5600 – 4800 (JEDEC)
• Dual-Channel, AMD EXPO™ & Memory Overclocking support
• Supports Non-ECC, Un-buffered memory
🎥 DISPLAY SUPPORT
• 1× HDMI™ 2.1 – up to 4K 60Hz
• 1× DisplayPort 1.4 – up to 4K 60Hz
(Requires processor with integrated graphics)
⚙️ EXPANSION SLOTS
• 2× PCI-E x16
PCIe 4.0 x16 (From CPU)
PCIe 3.0 x4 (From Chipset)
🔊 IMMERSIVE AUDIO
• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio
💾 STORAGE OPTIONS
• 2× M.2 (PCIe 4.0 x4)
• 4× SATA 6G
• RAID 0 / 1 / 10 support for SATA
🌐 HIGH-SPEED NETWORK & WIRELESS
• Realtek® 8125D 2.5G LAN
• Wi-Fi 6E + Bluetooth® 5.3
• MU-MIMO, up to 2.4Gbps, 2.4GHz / 5GHz / 6GHz
🔌 USB CONNECTIVITY
• Rear: 2× USB 2.0, 4× USB 5Gbps Type-A
• Front: 4× USB 2.0, 2× USB 5Gbps Type-A, 1× USB 5Gbps Type-C
🛠 INTERNAL I/O & DIY FEATURES
• ATX_PWR & CPU_PWR connectors
• CPU Fan + 2× System Fan
• 3× Addressable RGB Gen2 + 1× RGB LED
• TPM 2.0 header
• EZ Debug LED + EZ Memory Detection LED
🖥 BACK PANEL PORTS
• Clear CMOS Button
• Flash BIOS Button
• HDMI™ & DisplayPort
• USB 5G & USB 2.0
• 2.5G LAN
• Wi-Fi / Bluetooth
• Audio connectors
💻 OPERATING SYSTEM SUPPORT
• Windows® 11 64-bit
📐 FORM FACTOR
• mATX – 226mm × 243.84mm
