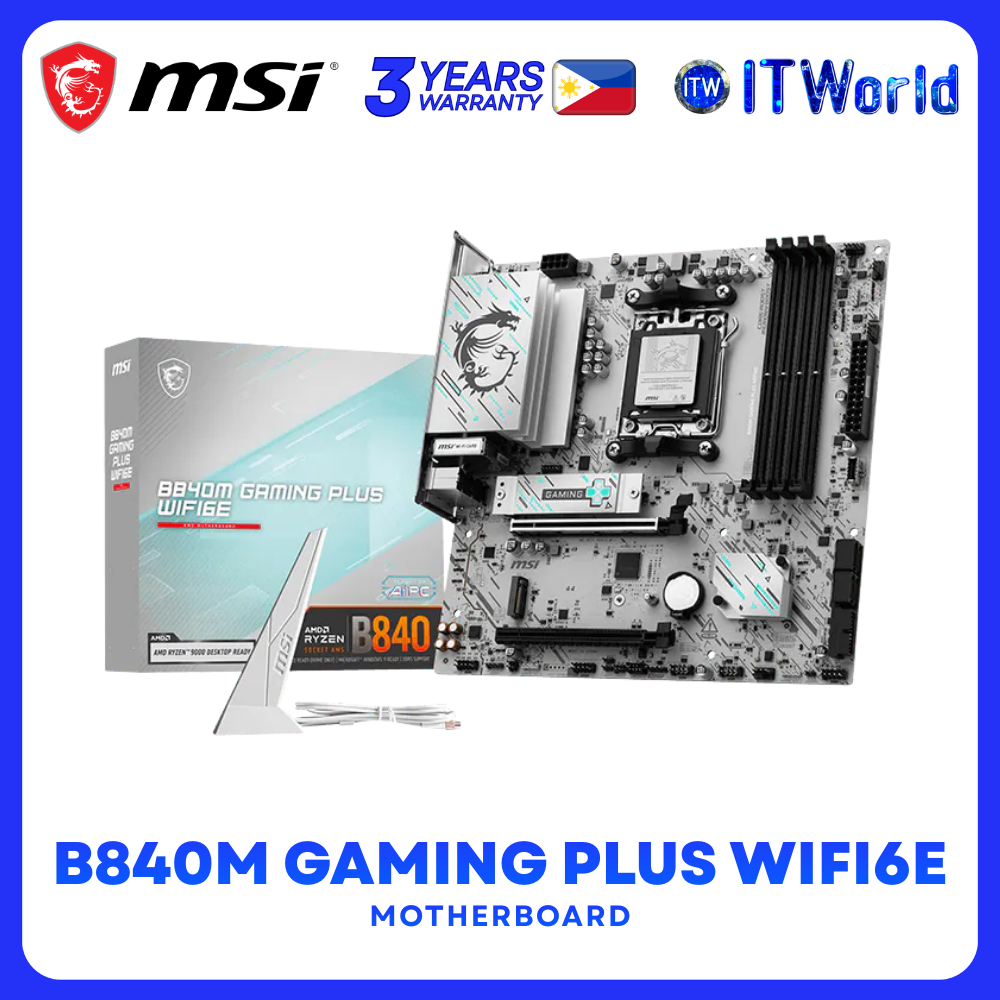

The B840M GAMING PLUS WIFI6E is designed for gamers who demand reliable performance, fast connectivity, and EZ DIY convenience. Built for AMD Ryzen™ 9000 / 8000 / 7000 series, it delivers Wi-Fi 6E, 2.5G LAN, PCIe 4.0, dual M.2, and stable 24/7 gaming performance. 🎮⚡
🔥 CPU & CHIPSET
• AMD B840 Chipset
• Socket AM5
• Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
🧠 MEMORY PERFORMANCE
• 4× DDR5 UDIMM slots
• Max capacity: 256GB
• DDR5 8000 – 5600 (OC) / 5600 – 4800 (JEDEC)
• Dual-Channel memory
• Supports AMD EXPO™ & memory overclocking
• Non-ECC, un-buffered memory
• CUDIMM support (Clock Driver bypass mode*)
🎮 GRAPHICS OUTPUT (for CPUs with integrated graphics)
• 1× HDMI™ 2.1 – up to 4K 60Hz
⚡ EXPANSION SLOTS
• 2× PCIe x16 slots
PCI_E1 PCIe 4.0 x16 (from CPU)
PCI_E2 PCIe 3.0 x4 (from Chipset)
🔊 AUDIO
• Realtek® ALC897 Codec
• 7.1-Channel High Definition Audio 🎧
💾 STORAGE OPTIONS
• 2× M.2 PCIe 4.0 x4 (2280/2260)
• 4× SATA 6G
• RAID 0 / 1 / 10 for SATA
🌐 NETWORK & CONNECTIVITY
• Realtek® 2.5G LAN ⚡
• Wi-Fi 6E solution 📡
• Bluetooth® 5.3
• MU-MIMO, 2.4GHz / 5GHz / 6GHz up to 2.4Gbps
🔌 USB CONNECTIVITY
Rear:
• 4× USB 2.0
• 2× USB 5Gbps Type-A
• 1× USB 10Gbps Type-A
• 1× USB 10Gbps Type-C
Front:
• 4× USB 2.0
• 2× USB 5Gbps Type-A
• 1× USB 5Gbps Type-C
🌈 INTERNAL CONNECTORS & EZ DIY FEATURES
• ATX Power / CPU Power
• CPU Fan / Pump & System Fan headers
• EZ Conn-header
• 3× Addressable RGB Gen2 + 1× RGB LED ✨
• TPM 2.0 header
• Front Audio / Chassis Intrusion / COM Port
• JDASH tuning controller connector
• EZ Debug LED + EZ Memory Detection LED
🖥 BACK PANEL PORTS
• Clear CMOS Button
• Flash BIOS Button
• HDMI™
• USB 10Gbps Type-A & Type-C
• USB 5G
• USB 2.0
• 2.5G LAN
• Wi-Fi / Bluetooth
• Audio connectors
💻 OPERATING SYSTEM SUPPORT
• Windows® 11 64-bit
📏 FORM FACTOR & PCB SIZE
• mATX
• 243.84mm × 243.84mm
