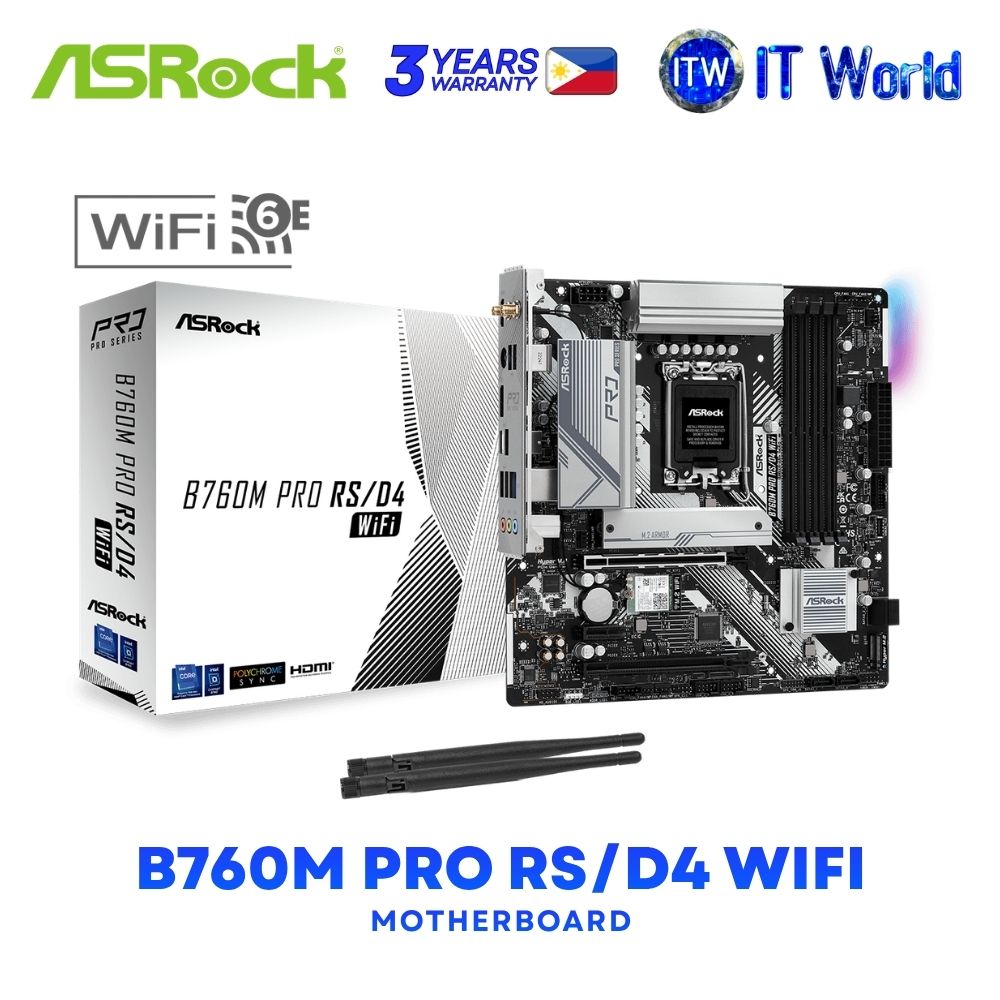

ASRock B760M PRO RS/D4 WIFI microATX LGA1700 DDR4 Intel B760 Chipset Motherboard

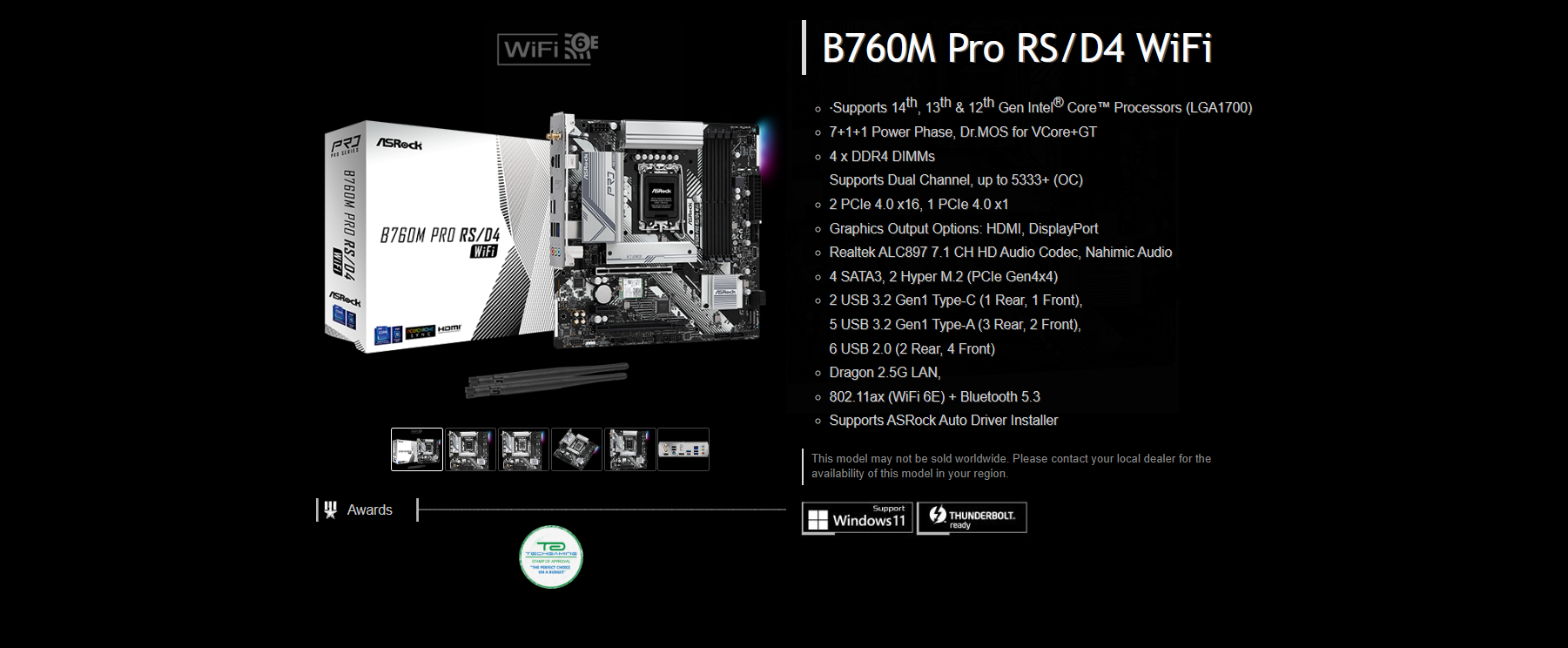

Product Highlights & Specifications
🔹 Brand: ASRock
🔹 Model: B760M PRO RS/D4 WIFI
🔹 Product Type: microATX Motherboard
🔹 Chipset: Intel® B760
🔹 CPU Support: Supports 14th, 13th & 12th Gen Intel® Core™ Processors with LGA1700 socket
🔹 Power Design: 7+1+1 Power Phase with Dr.MOS for VCore+GT
🔹 Memory: 4 × DDR4 DIMM slots | Dual Channel | Up to 5333+ MHz (OC) | Max. 128GB | Intel® XMP 2.0
🔹 Expansion: 2 × PCIe 4.0 x16 + 1 × PCIe 4.0 x1
🔹 Storage: 2 × Hyper M.2 PCIe Gen4x4 + 4 × SATA3 6.0 Gb/s
🔹 Graphics Outputs: HDMI 2.1 + DisplayPort 1.4
🔹 Audio: Realtek ALC897 7.1 CH HD Audio + Nahimic Audio
🔹 Wired Network: Dragon 2.5G LAN
🔹 Wireless: 802.11ax Wi-Fi 6E + Bluetooth 5.3
🔹 USB Connectivity: 2 × USB 3.2 Gen1 Type-C, 5 × USB 3.2 Gen1 Type-A, 6 × USB 2.0
🔹 Wi-Fi Features: Dual-Band 2x2, extended 6GHz support, MU-MIMO
🔹 Form Factor: Micro ATX | 24.4 × 24.4 cm
🔹 Operating System: Microsoft Windows® 10 64-bit / 11 64-bit
🔹 Features: ASRock Auto Driver Installer, ASRock Instant Flash, Easy RAID Installer, Polychrome SYNC and A-Tuning
🔹 Included Accessories: User Manual, 2 × SATA Data Cables, 2 × WiFi Antennas, 2 × M.2 Screws, 1 × M.2 Standoff
