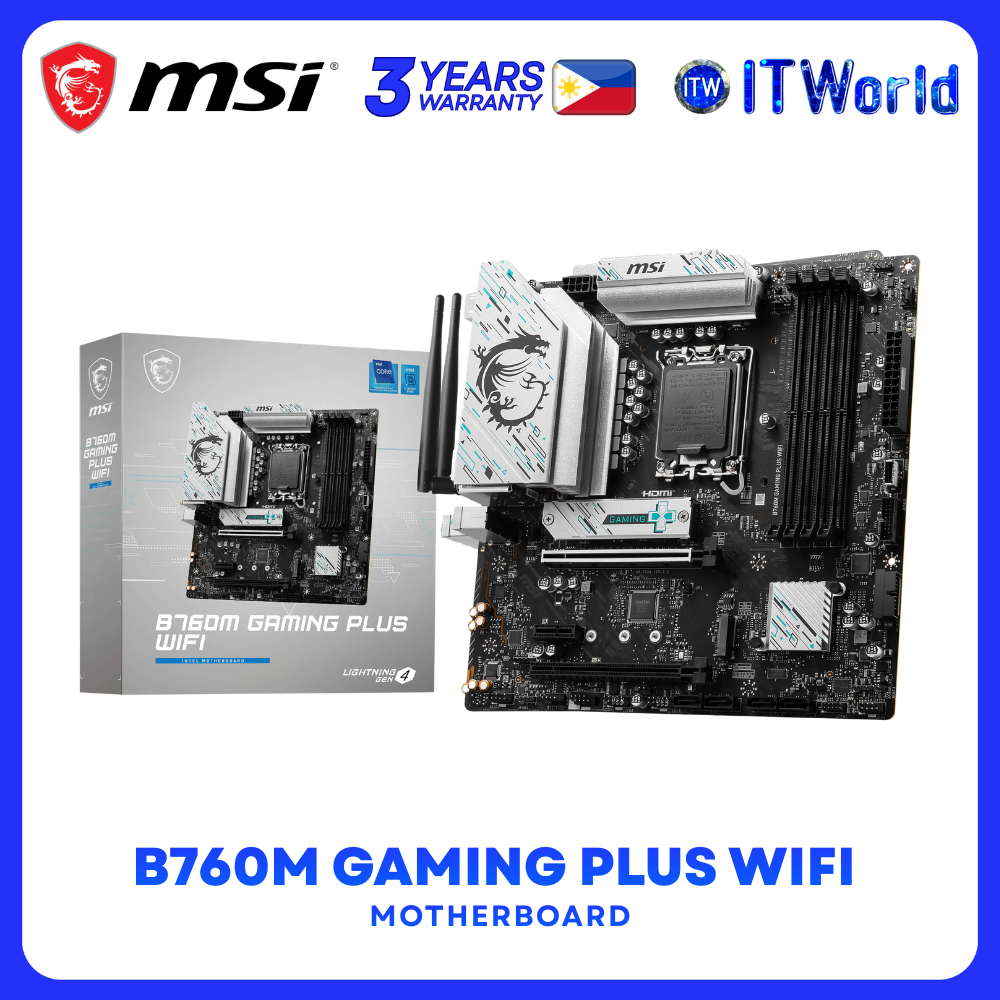

The B760M GAMING PLUS WIFI is built for gamers who want powerful performance, massive connectivity, and ultra-fast DDR5 memory in a compact mATX form factor. 🎮⚡
🔹 Chipset & CPU Support
🧠 Intel® B760 Chipset
🔌 LGA 1700 Socket
🚀 Supports Intel® Core™ 14th / 13th / 12th Gen, Pentium® Gold & Celeron® processors
🔹 DDR5 Memory Performance
💾 4× DDR5 DIMM – Up to 256GB Max
⚡ Up to 6800+ MHz (OC)
📌 Intel® XMP 3.0 OC ready
📌 Dual-Controller Dual-Channel
📌 Non-ECC, un-buffered memory
🔹 Onboard Graphics Output (Requires CPU with integrated graphics)
🖥️ 2× HDMI™ 2.1 – Up to 4K 60Hz
🖥️ 2× DisplayPort 1.4 – Up to 4K 60Hz
🔹 Expansion Slots
🛡️ 2× PCIe x16 slots
➕ 1× PCIe x1 slot
⚙️ PCIe 4.0 x16 (From CPU) & PCIe 4.0 x4 / PCIe 3.0 x1 (From Chipset)
🔹 Storage Options
🚀 2× M.2 PCIe 4.0 x4 (M.2_2 supports SATA mode)
💽 4× SATA 6G
🔄 RAID 0 / 1 / 5 / 10 support
⚠️ SATA8 unavailable when installing M.2 SATA SSD in M.2_2 slot
🔹 Audio
🎧 Realtek® ALC897 Codec
🔊 7.1-Channel High Definition Audio
🔹 LAN & Wireless Connectivity
🌐 Realtek® RTL8125BG 2.5G LAN
📡 Intel® Wi-Fi 6E (Up to 2.4Gbps, MU-MIMO, 6GHz support)
🔵 Bluetooth® 5.3
🔹 USB Connectivity
🔌 USB 10Gbps Type-A (Rear)
🔌 USB 5Gbps Type-A (Rear & Front)
🔌 USB 5Gbps Type-C (Front)
🔌 USB 2.0 (Front & Rear)
🔹 Internal I/O & Cooling
🧊 CPU Fan + Pump Fan + 2× System Fan headers
🌈 Addressable RGB Gen2 + RGB headers
🔐 TPM 2.0 support
🧩 Chassis Intrusion, Front Panel, Front Audio & COM Port
🔹 LED Feature
💡 4× EZ Debug LED
🔹 Back Panel Ports
🖥️ DisplayPort & HDMI™
🌐 2.5G LAN
📡 Wi-Fi / Bluetooth Antenna
🔌 USB 3.2 Gen1 5Gbps Type-A
🔌 USB 3.2 Gen2 10Gbps Type-A
🔌 USB 2.0
🎧 Audio Connectors
🔹 Form Factor & OS Support
📏 mATX – 243.84mm × 243.84mm
🪟 Windows® 11 64-bit, Windows® 10 64-bit
