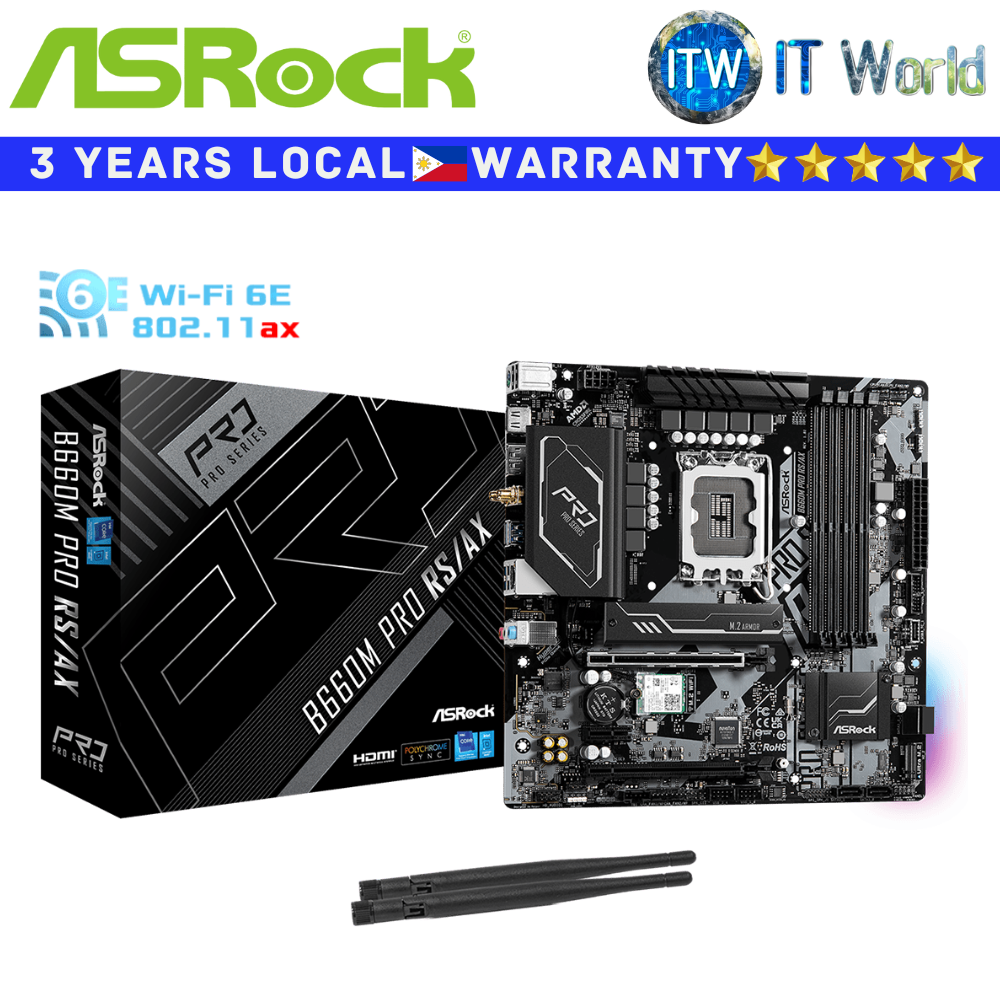

Product Name: Itw | ASRock Motherboard B660M Pro RS/AX microATX LGA1700 DDR4
Specification
CPU
> Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
> Digi Power design
> 8 Power Phase design
> Supports Intel® Hybrid Technology
> Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
> Intel® B660
Memory
> Dual Channel DDR4 Memory Technology
> 4 x DDR4 DIMM Slots
> Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
> Supports ECC UDIMM memory modules (operate in non-ECC mode)
> Max. capacity of system memory: 128GB
> Supports Intel® Extreme Memory Profile (XMP) 2.0
*Supports DDR4 3200 natively.
Graphics
> Intel® Xe Graphics Architecture (Gen 12)
> Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
> Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
> Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680 x 4320) @ 60Hz / 5K (5120 x 3200) @ 120Hz
> Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
*Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
Audio
> 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
> Supports Surge Protection
> Nahimic Audio
LAN
> Gigabit LAN 10/100/1000 Mb/s
> Giga PHY Intel® I219V
> Supports Wake-On-LAN
> Supports Lightning/ESD Protection
> Supports Energy Efficient Ethernet 802.3az
> Supports UEFI PXE
Wireless LAN
> 802.11ax Wi-Fi 6E Module
> Supports IEEE 802.11a/b/g/n/ax
> Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
> 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
> Supports Bluetooth 5.3 + High speed class II
> Supports MU-MIMO
*Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality.
Slots
> Chipset
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
- 1 x PCIe 3.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
- Supports AMD CrossFire™
*Supports NVMe SSD as boot disks
Storage
> CPU
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
> Chipset
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 4 x SATA3 6.0 Gb/s Connectors
*Supports Intel® Optane™ Memory H Series (M2_2 only)
> Supports Intel® Volume Management Device (VMD)
> Supports NVMe SSD as boot disks
> Supports ASRock U.2 Kit
> If M2_2 is occupied by a SATA-type M.2 device, SATA3_0 will be disabled.
Connector
> 1 x SPI TPM Header
> 1 x Chassis Intrusion and Speaker Header
> 1 x RGB LED Header*
> 3 x Addressable LED Headers**
> 1 x CPU Fan Connector (4-pin)***
> 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
> 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
> 1 x 24 pin ATX Power Connector
> 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
> 1 x Front Panel Audio Connector
> 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
> 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
> 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
> 1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)
*Supports in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.
Rear Panel I/O
> 2 x Antenna Ports
> 1 x PS/2 Mouse/Keyboard Port
> 1 x HDMI Port
> 1 x DisplayPort 1.4
> 4 x USB 3.2 Gen1 Ports (ASMedia ASM1074 hub) (Supports ESD Protection)
> 2 x USB 2.0 Ports (Supports ESD Protection)
> 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
> HD Audio Jacks: Line in / Front Speaker / Microphone
Form Factor
> Micro ATX: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
> Solid Capacitor design
