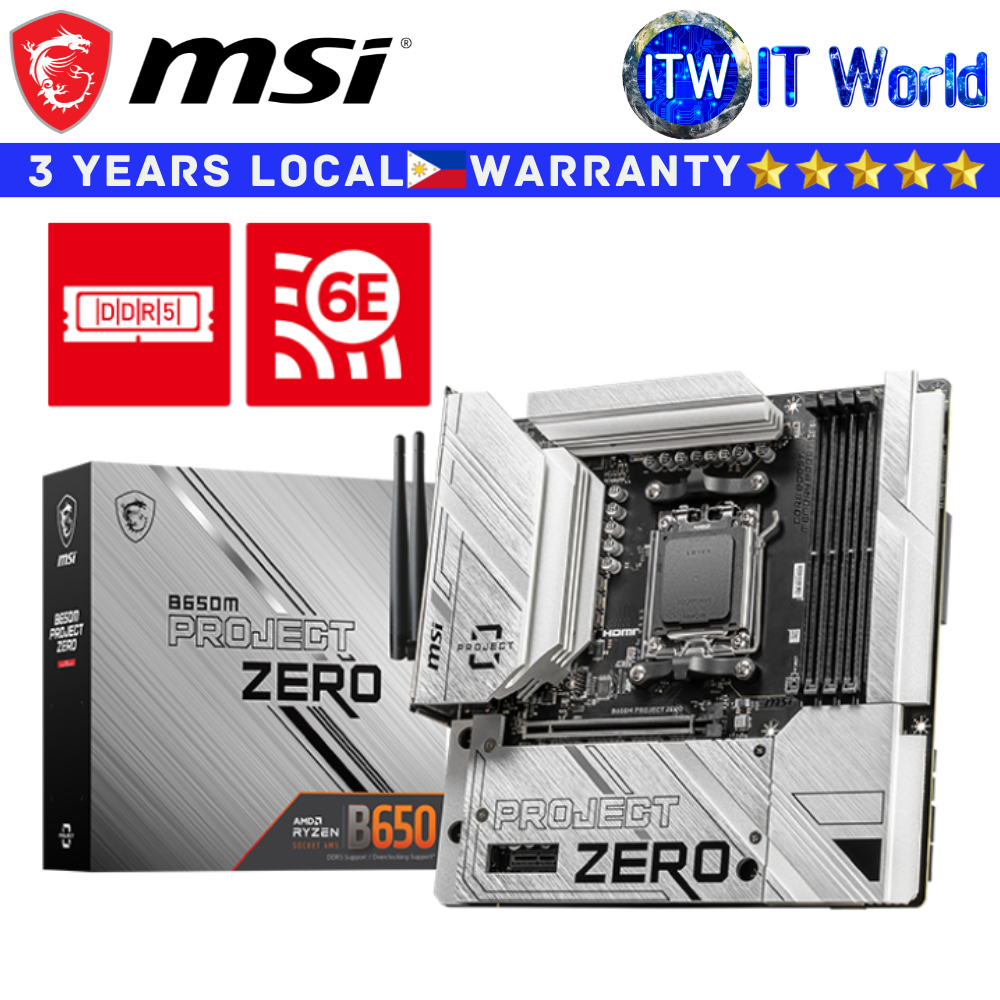

Product Name: MSI B650M Project Zero mATX AMD Ryzen DDR5 Motherboard
Key Feature
* Supports AMD Ryzen™ 7000 Series Desktop Processors
* Supports DDR5 Memory, up to 7600+(OC) MHz
* Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
* 2.5G LAN and AMD Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
* Lightning M.2: Running at PCIe Gen 4 maximizes performance for NVMe based SSDs
* Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1
* Audio Boost: Reward your ears with studio grade sound
Specification
CPU: Supports AMD Ryzen™ 7000 Series Desktop Processors
Socket AM5
Memory:
4x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 7600+(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7600+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics:
1x HDMI™
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
SLOT:
* 1x PCI-E x16 slot
* 1x PCI-E x1 slot
* PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
* PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
Storage:
* 2x M.2
* M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
* M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
* 4x SATA 6G
Raid:
* Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices*
* Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB: 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN: Realtek® RTL8125BG 2.5Gbps LAN
WIRELESS LAN & BLUETOOTH:
AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX
Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3**
AUDIO:
Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL IO: 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
3x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
Led Feature: 4x EZ Debug LED
Operating System: Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info:
mATX
243.84mmx243.84mm
