Product Name:

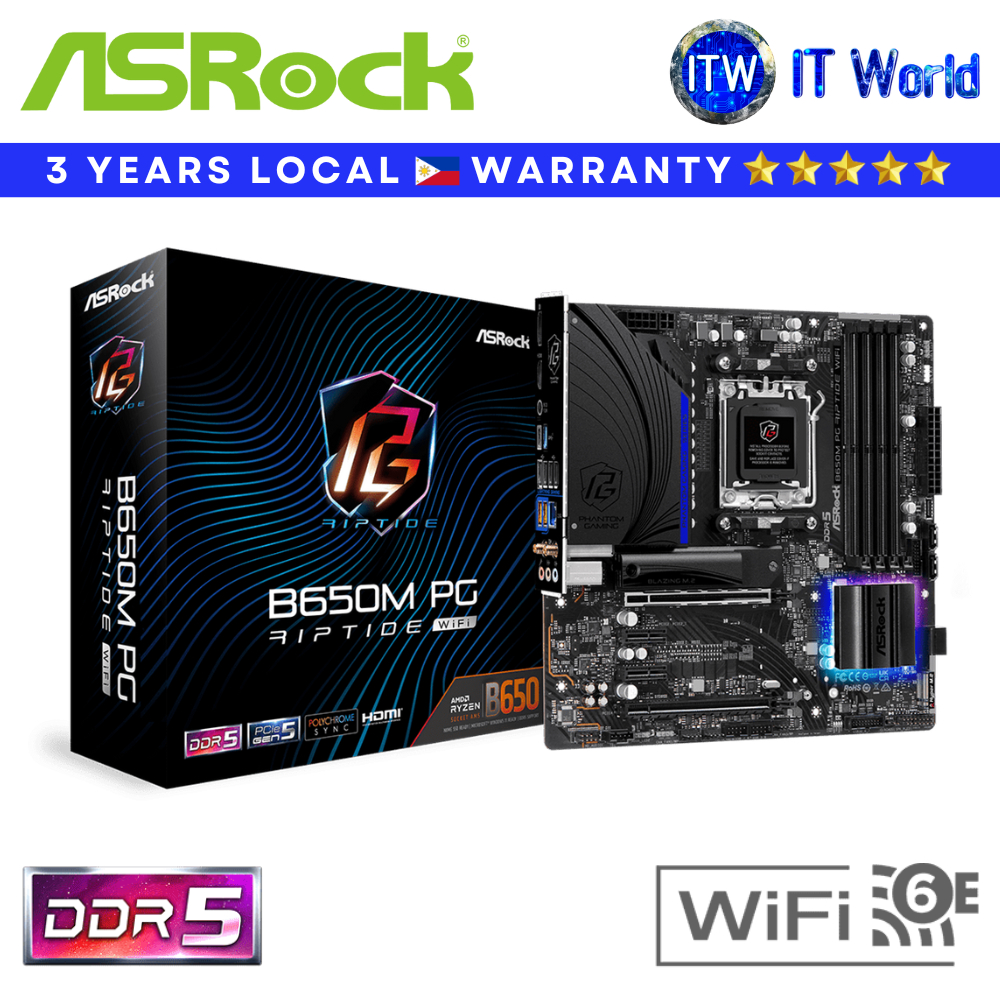

Itw | ASRock Motherboard B650M PG Riptide WiFi mATX - DDR5 | AM5 | PCIe Gen5 | WiFi 6E | 2.5G LAN
Form Factor: Micro-ATX (9.6" x 9.6", 24.4 cm x 24.4 cm)
Chipset: AMD B650
Socket: AM5
CPU Support: AMD Ryzen 7000 / 8000 / 9000 Series
Memory Support:
4x DDR5 DIMM Slots
Dual Channel, up to DDR5 7200+ (OC), max 256GB
ECC/non-ECC, un-buffered
Supports XMP & EXPO profiles
Graphics Output:
1x HDMI 2.1 (up to 4K 120Hz, HDR, HDCP 2.3)
1x DisplayPort 1.4 (up to 4K 120Hz, HDCP 2.3)
Integrated AMD RDNA graphics (depends on CPU)
Audio:
Realtek ALC897 7.1 CH HD Audio Codec
Nahimic Audio
Storage Options:
1x Blazing M.2 PCIe Gen5x4 (2260/2280)
1x Hyper M.2 PCIe Gen4x4 (2260/2280)
4x SATA3 6.0Gb/s
Supports RAID 0/1/10 (SATA & NVMe*)
Expansion Slots:
1x PCIe 4.0 x16 (x16 mode)
1x PCIe 4.0 x16 (x4 mode)
2x PCIe 3.0 x1
15μ Gold Contact VGA PCIe Slot
Supports AMD CrossFire
Network:
2.5G LAN (Dragon RTL8125BG)
802.11axe WiFi 6E + Bluetooth 5.2
Dual-band 2x2, MU-MIMO
2x Antenna Ports included

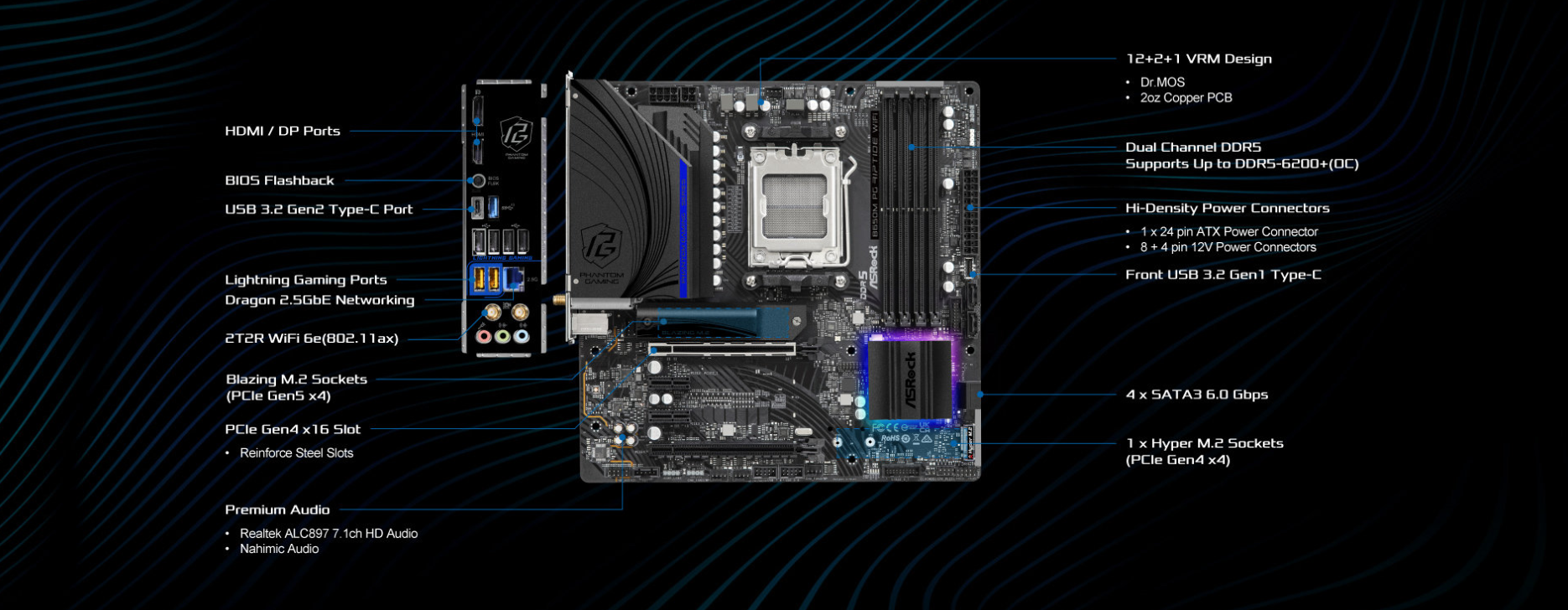

Rear I/O Ports:
1x HDMI Port
1x DisplayPort 1.4
1x USB 3.2 Gen2 Type-A (10Gbps)
1x USB 3.2 Gen2 Type-C (10Gbps)
2x USB 3.2 Gen1 Type-A
4x USB 2.0
1x RJ-45 LAN Port
1x BIOS Flashback Button
HD Audio Jacks (Line In / Front Speaker / Mic)
Internal I/O Connectors:
1x Front USB 3.2 Gen1 Type-C Header
2x USB 3.2 Gen1 Headers (4 ports)
2x USB 2.0 Headers (4 ports)
3x Addressable RGB Headers (5V/3A, 15W total)
1x RGB Header (12V/3A, 36W total)
1x Thunderbolt AIC Header
1x CPU Fan Header (1A)
1x CPU/Water Pump Fan Header (2A)
3x Chassis/Water Pump Fan Headers (2A each)
1x 24-pin ATX Power Connector
1x 8-pin + 1x 4-pin 12V Power Connectors
1x SPI TPM Header
1x Front Panel Audio Header
1x Power LED + Speaker Header
Software & Features:
ASRock Phantom Gaming Tuning Utility
ASRock Phantom Gaming LAN Utility

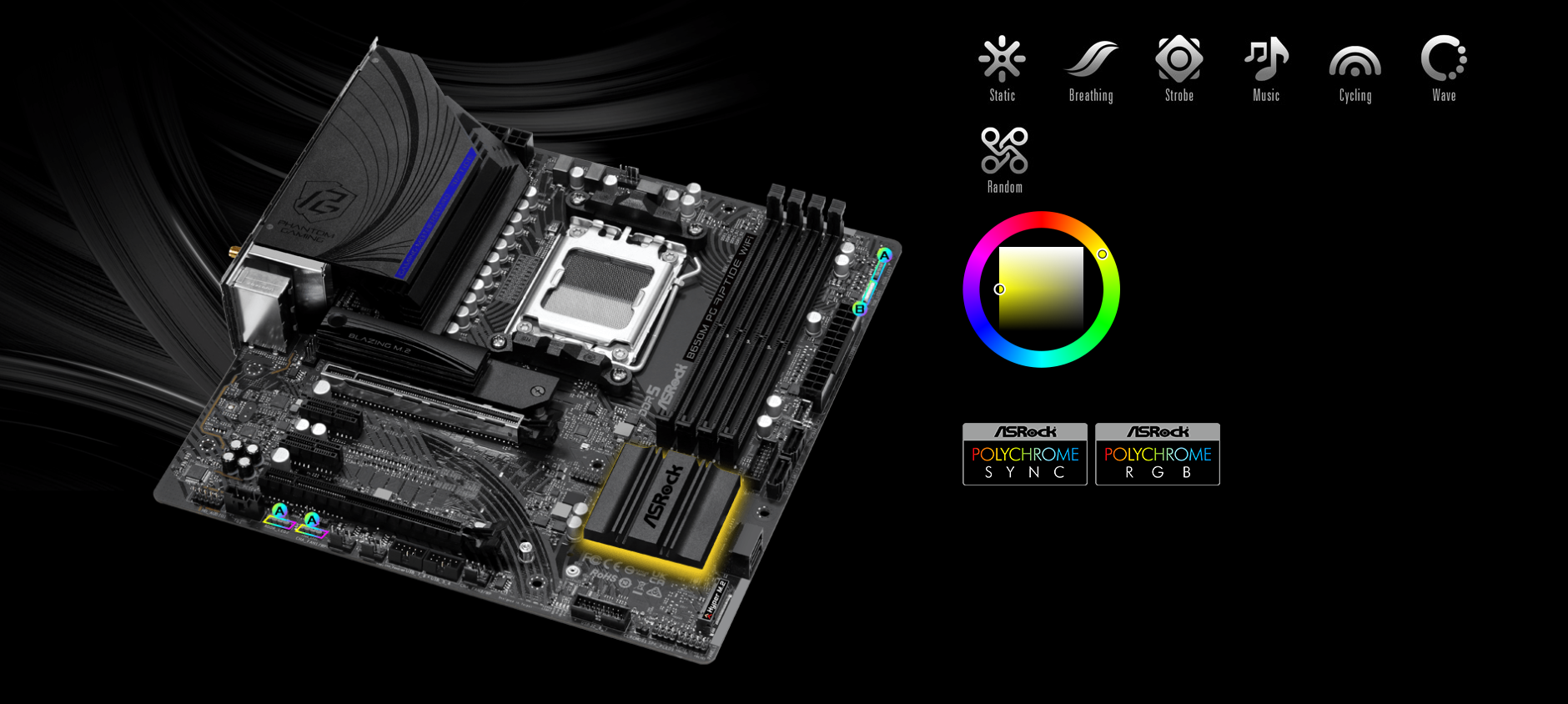

ASRock Polychrome SYNC (RGB)
ASRock EZ Mode UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
BIOS Flashback Support
Post Status Checker
Accessories Included:
2x SATA Data Cables
2x WiFi Antennas
2x M.2 Screws
1x M.2 Standoff
1x User Manual
Operating System Support:
Windows 10 64-bit / Windows 11 64-bit
