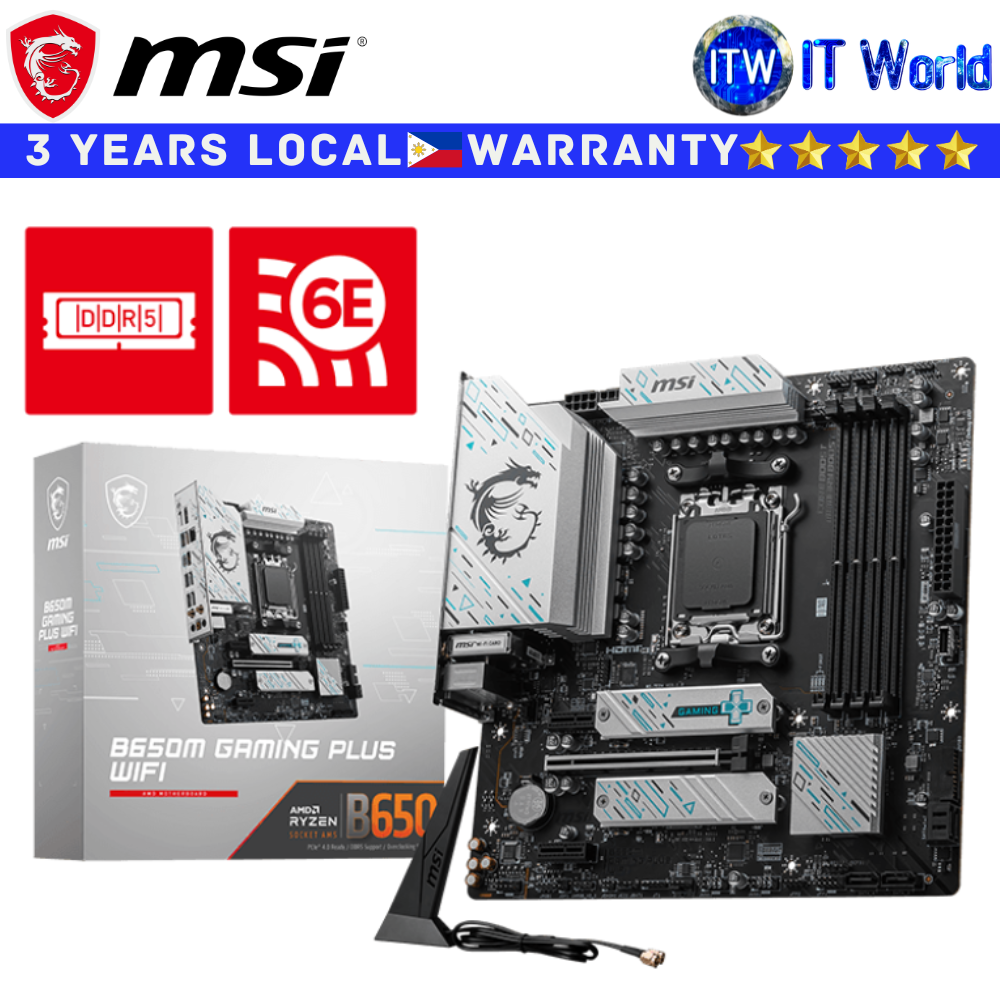

Product Name: Itw | MSI Motherboard B650M Gaming Plus Wifi mATX AM5 DDR5
B650M GAMING PLUS WIFI
> Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
> Supports DDR5 Memory, up to 7200+(OC) MHz
> Enhanced Power Design: 10+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
> Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen4 M.2, USB 3.2 Gen 2
> Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works
> AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
> High Quality PCB: 6-layer PCB made by 2oz thickened copper
Specification
Chipset
> AMD B650
CPU
> Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Memory
> 4x DDR5 UDIMM, Maximum Memory Capacity 256GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
> Supports Dual-Channel mode
> Supports non-ECC, un-buffered memory
> Supports AMD EXPO™
> Max. overclocking frequency:
- 1DPC 1R Max speed up to 7200+ MHz
- 1DPC 2R Max speed up to 6000+ MHz
- 2DPC 1R Max speed up to 6000+ MHz
- 2DPC 2R Max speed up to 5400+ MHz
Onboard Graphics
> 1x HDMI™
- Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
> 1x DisplayPort
- Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
> 1x PCI-E x16 slot
- Supports x16/x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports x8/x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports x4/x4 (For Ryzen™ 8500/ 8300 Series processors)
> 2x PCI-E x1 slot
> PCI_E1 Gen PCIe 3.0 supports up to x1 (From Chipset)
> PCI_E2 Gen PCIe 4.0 supports up to x16 (From CPU)
> PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Audio
> Realtek® ALC897 Codec
> 7.1-Channel High Definition Audio
Storage
> 2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
> 4x SATA 6G
- M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 8500/ 8300 Series processor is installed
RAID
> Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
> Supports RAID 0, RAID 1 for M.2 NVMe storage devices
USB
> 4x USB 2.0 (Front)
> 4x USB 5Gbps Type A (Rear)
> 2x USB 5Gbps Type A (Front)
> 3x USB 10Gbps Type A (Rear)
> 1x USB 10Gbps Type C (Rear)
> 1x USB 10Gbps Type C (Front)
LAN
> Realtek® RTL8125BG 2.5Gbps LAN
Internal IO
> 1x Power Connector(ATX_PWR)
> 2x Power Connector(CPU_PWR)
> 1x CPU Fan
> 1x Pump Fan
> 3x System Fan
> 2x Front Panel (JFP)
> 1x Chassis Intrusion (JCI)
> 1x Front Audio (JAUD)
> 1x Tuning Controller connector(JDASH)
> 2x Addressable V2 RGB LED connector (JARGB_V2)
> 2x RGB LED connector(JRGB)
> 1x TPM pin header(Support TPM 2.0)
> 4x USB 2.0 ports
> 2x USB 5Gbps Type A ports
> 1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
> Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX
- Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3**
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LED FEATURE
> 4x EZ Debug LED
BACK PANEL PORTS
> DisplayPort
> 2.5G LAN
> USB 3.2 Gen 2 10Gbps (Type-A)
> USB 3.2 Gen 1 5Gbps (Type-A)
> Wi-Fi / Bluetooth
> Flash BIOS Button
> HDMI™
> USB 3.2 Gen 2 10Gbps (Type-A)
> USB 3.2 Gen 2 10Gbps (Type-C)
> Audio connectors
PCB Info
> mATX / 243.84mm x 243.84mm
