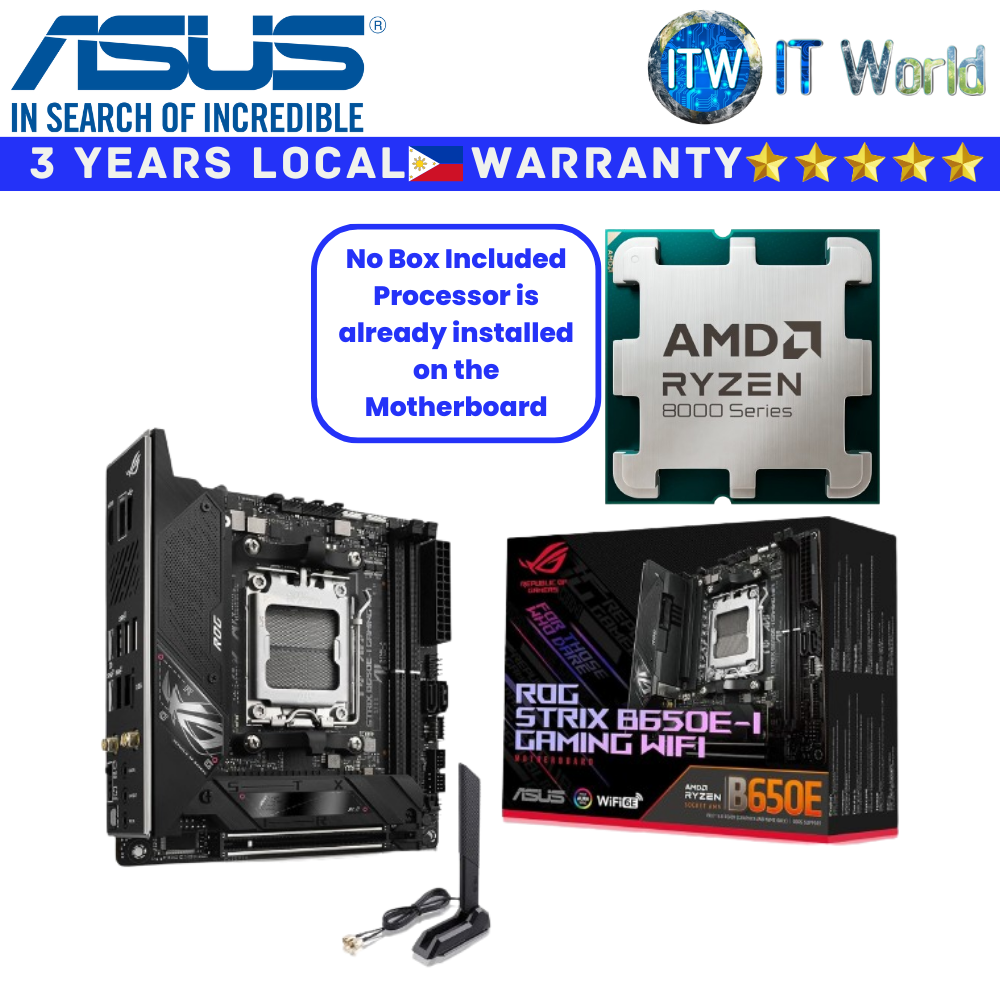

Product Name: Itw | ASUS Bundle Ryzen Motherboard AMD 5 8400F Tray Type with B650E-I Gaming Wifi
*** AMD Ryzen 5 8400F 6-Cores 12-Threads Desktop Processor ***
General
> Name: AMD Ryzen™ 5 8400F
> Family: Ryzen
> Series: Ryzen 8000 Series
> Form Factor: Desktops
> AMD PRO Technologies: No
> Former Codename: Phoenix
> Architecture: Zen 4
> # of CPU Cores: 6
> Multithreading (SMT): Yes
> # of Threads: 12
> Max. Boost Clock: Up to 4.7 GHz
> Base Clock : 4.2 GHz
> L2 Cache: 6 MB
> L3 Cache: 16 MB
> Default TDP: 65W
> AMD Configurable TDP (cTDP): 45-65W
> Processor Technology for CPU Cores: TSMC 4nm FinFET
> CPU Compute Die (CCD) Size: 178mm²
> Package Die Count: 1
> Unlocked for Overclocking: Yes
> AMD EXPO™ Memory Overclocking Technology: Yes
> Precision Boost Overdrive: Yes
> Curve Optimizer Voltage Offsets: Yes
> AMD Ryzen™ Master Support: Yes
> CPU Socket: AM5
> CPU Boost Technology: Precision Boost 2
> Instruction Set: x86-64
> Supported Extensions: AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSSE3 , SSE4.1 , SSE4.2 , SSE4A , x86-64
> Max. Operating Temperature (Tjmax): 95°C
> *OS Support: Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Connectivity
> Native USB 4 (40Gbps) Ports: 2
> Native USB 3.2 Gen 2 (10Gbps) Ports: 2
> Native USB 2.0 (480Mbps) Ports: 1
> PCI Express® Version: PCIe® 4.0
> Native PCIe® Lanes (Total/Usable): 20 , 16
> NVMe Support: Boot , RAID0 , RAID1
> System Memory Type: DDR5
> Memory Channels: 2
> Max. Memory: 256 GB
> System Memory Subtype: UDIMM
> Max Memory Speed
- 2x1R DDR5-5200
- 2x2R DDR5-5200
- 4x1R DDR5-3600
- 4x2R DDR5-3600
*** ASUS B650E-I Gaming Wifi mini-ITX AM5 DDR5 Motherboard ***
CPU
> AMD Socket AM5 for AMD Ryzen™ Desktop Processors*
Chipset
> AMD B650
Memory
> 2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
> Dual Channel Memory Architecture
> Supports AMD EXTended Profiles for Overclocking (EXPO™)
> OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration.
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
> 1 x HDMI® port***
> 1 x USB3.2 Gen2 port supports USB Type-C® display outputs****
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
** Supports max. 8K@60Hz as specified in display outputs
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Storage
> Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
> AMD Ryzen™ 7000 Series Desktop Processors
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
- 2 x SATA 6Gb/s ports
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1.
Wireless & Bluetooth
> Wi-Fi 6E
> 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
> Supports 2.4/5/6GHz frequency band*
> Bluetooth® v5.2**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
> Rear USB (Total 8 ports)
- 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
- 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C®)
- 2 x USB 2.0 ports (2 x Type-A)
> Front USB (Total 5 ports)
- 1 x USB 3.2 Gen 2 connector
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
> ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback
> Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
Back Panel I/O Ports
> 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
> 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C® with DP Alt mode)
> 2 x USB 2.0 ports (2 x Type-A)
> 1 x HDMI® port
> 1 x Wi-Fi Module
> 1 x Intel® 2.5Gb Ethernet port
> 3 x LED-illuminated audio jacks
> 1 x Optical S/PDIF out port
> 1 x BIOS FlashBack™ button
> 1 x FlexKey button
Form Factor
> Mini-ITX; 6.7 inch x 6.7 inch (17cm x 17cm)
