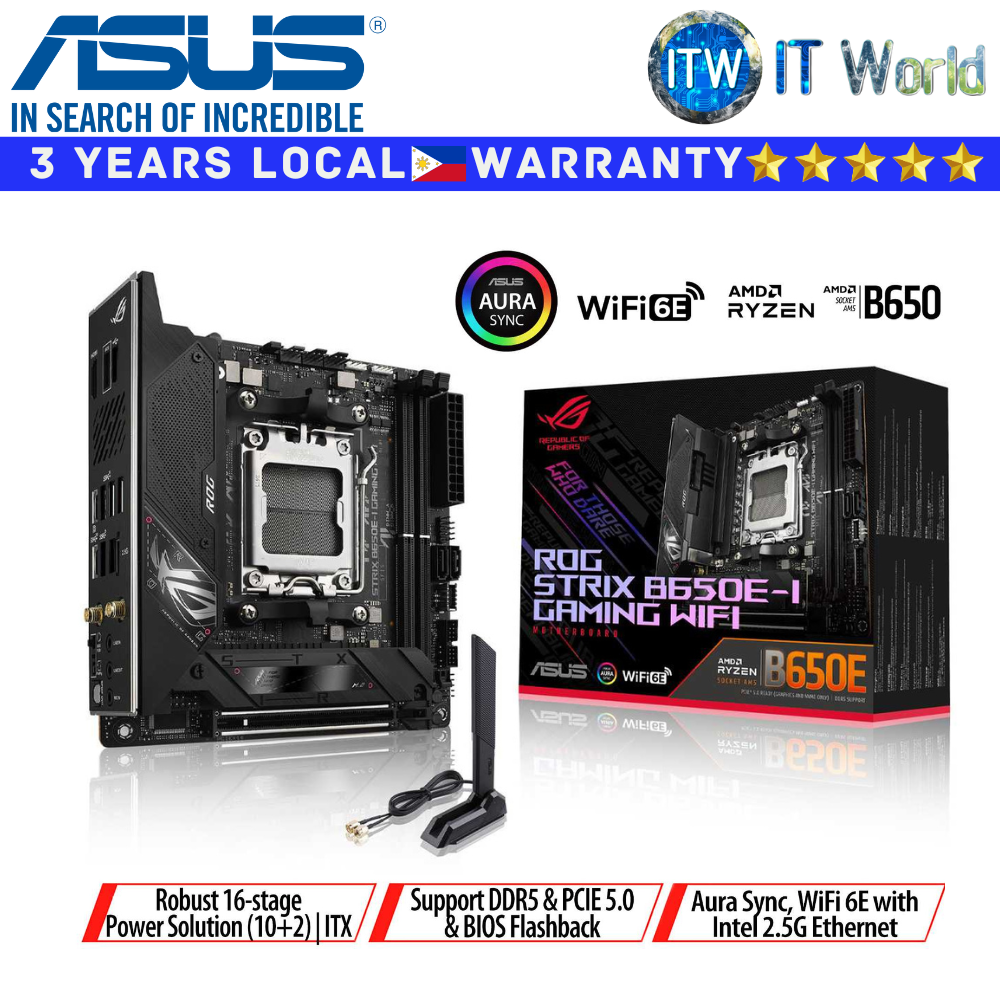

Product Name: ITW | ASUS B650E-I Gaming Wifi Mini-ITX AM5 DDR5 Motherboard
AMD B650 mini-ITX motherboard with 10 + 2 power stages, DDR5 support, PCIe® 5.0 NVMe® SSD support, one PCIe 5.0 x16 Safeslot, USB 3.2 Gen 2 Type-C® connector, Onboard WiFi 6E, and Aura Sync RGB lighting
■ AMD Socket AM5: Ready for AMD Ryzen™ 7000 Series desktop processors
■ Robust Power Solution:10 + 2 power stages with an 8-pin ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors
■ Optimized VRM Thermals:Thick heatsinks bolster a quiet cooling system that is bonded to the power stages with high conductivity thermal pads
■ Next-Gen M.2 Support: PCIe® 5.0 M.2 slot cooled by a large heatsink to maximize performance and an additional PCIe 4.0 M.2 slot for more storage
■ Abundant Connectivity:USB 3.2 Gen 2x2 Type-C® port and seven additional USB ports, PCIe 5.0 x16 SafeSlot, and HDMI® 2.1
■ High-Performance Networking:On-board WiFi 6E (802.11ax), Bluetooth® 5.2, and Intel® 2.5G Ethernet with ASUS LANGuard
■ Intelligent Control:ASUS-exclusive, AI Networking, and Two-Way AI Noise Cancelation to simplify setup and improve performance
■ Immersive Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS® Sound Unbound and Sonic Studio III
■ Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including one RGB header and one addressable Gen 2 header
■ DIY Friendly Design:2 Q-Latch, Pre-mounted I/O shield and BIOS FlashBack™ button, and FlexKey button
■ Intuitive Software: Easy-to-use UEFI BIOS dashboard, Armoury Crate to manage all ASUS devices from one place, and bundled 60-day AIDA64 Extreme trial subscription
Specification
CPU
✎ AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
Chipset
✎ AMD B650
Memory
✎ 2 x DIMM, Max. 64GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800MHz ECC and Non-ECC, Un-buffered Memory*
✎ Dual Channel Memory Architecture
✎ Supports AMD EXTended Profiles for Overclocking (EXPO™)
✎ OptiMem II
Graphics
✎ 1 x HDMI® port***
✎ 1 x USB3.2 Gen2 port supports USB Type-C® display outputs****
Expansion Slots
✎ AMD Ryzen™ 7000 Series Desktop Processors*
■ 1 x PCIe 5.0 x16 slot*
Storage
Total supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*
✎ AMD Ryzen™ 7000 Series Desktop Processors
■ M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
■ M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
■ 2 x SATA 6Gb/s ports
Ethernet
✎ 1 x Intel® 2.5Gb Ethernet
✎ ASUS LANGuard
Wireless & Bluetooth
✎ Wi-Fi 6E
✎ 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
✎ Supports 2.4/5/6GHz frequency band*
✎ Bluetooth® v5.2**
USB
✎ Rear USB (Total 8 ports)
■ 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
■ 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C®)
■ 2 x USB 2.0 ports (2 x Type-A)
✎ Front USB (Total 5 ports)
■ 1 x USB 3.2 Gen 2 connector
■ 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
■ 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
✎ ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
■ Impedance sense for front and rear headphone outputs
■ Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
■ High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
■ Supports up to 32-Bit/384 kHz playback
✎ Audio Features
■ Audio Shielding
■ Savitech SV3H712 AMP
■ LED-illuminated audio jacks
■ Rear optical S/PDIF out port
■ Premium audio capacitors
Back Panel I/O Ports
✎ 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
✎ 5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C® with DP Alt mode)
✎ 2 x USB 2.0 ports (2 x Type-A)
✎ 1 x HDMI® port
✎ 1 x Wi-Fi Module
✎ 1 x Intel® 2.5Gb Ethernet port
✎ 3 x LED-illuminated audio jacks
✎ 1 x Optical S/PDIF out port
✎ 1 x BIOS FlashBack™ button
✎ 1 x FlexKey button
Form Factor
✎ Mini-ITX / 6.7 inch x 6.7 inch (17 cm x 17 cm)
