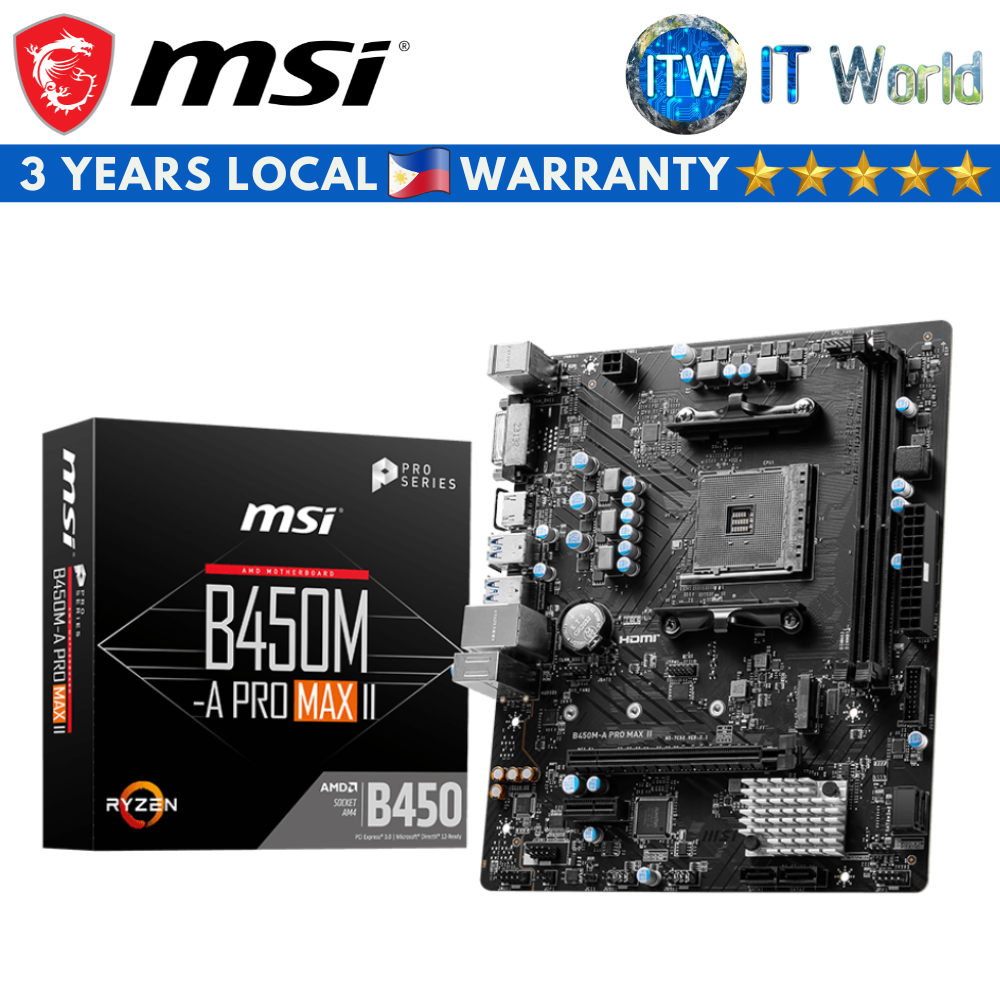

Product Name: Itw | MSI Motherboard B450M-A Pro Max II mATX AM4 DDR4
AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost, Turbo M.2, USB 3.2 Gen1
> Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series desktop processors and Athlon™ with Radeon™ Vega Graphics desktop processors
> Supports DDR4 Memory, up to 4133 (OC) MHz
> Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs.
> Audio Boost: Reward your ears with studio grade sound quality.
> 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
> X-Boost: Software that auto-detects and allows you to boost the performance of any storage or USB device.
> Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.
Specification
Chipset
> AMD B450
CPU
> Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors
> Socket AM4
Memory
> 2x DDR4, Maximum Memory Capacity 64GB
> Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
> Supports Dual-Channel mode
> Supports non-ECC, UDIMM memory
> Supports ECC UDIMM memory (non-ECC mode)
> Supports un-buffered memory
Onboard Graphics
> 1x HDMI™
- Support HDMITM 2.0b, maximum resolution of 4K 60Hz*
> 1x DVI
- Support DVI-D, maximum resolution of 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
> 1x PCI-E x16 slot
> 1x PCI-E x1 slot
> PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
> PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
Audio
> Realtek® ALC897 Codec
> 7.1-Channel High Definition Audio
Storage
> 1x M.2
- M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
> 4x SATA 6G
USB
> 2x USB 2.0 (Rear)
> 4x USB 2.0 (Front)
> 4x USB 5Gbps Type A (Rear)
> 2x USB 5Gbps Type A (Front)
LAN
> Realtek® 8125 2.5Gbps LAN controller
Internal IO
> 1x Power Connector (ATX_PWR)
> 1x Power Connector (CPU_PWR)
> 1x CPU Fan
> 1x System Fan
> 2x Front Panel (JFP)
> 1x Chassis Intrusion (JCI)
> 1x Front Audio (JAUD)
> 1x Com Port (JCOM)
> 1x TPM pin header (Support TPM 2.0)
> 4x USB 2.0 ports
> 2x USB 5Gbps Type A ports
BACK PANEL PORTS
> Keyboard/Mouse
> DVI-D
> HDMI™
> USB 3.2 Gen 1 5Gbps (Type-A)
> 2.5G LAN
> Audio connectors
> USB 2.0
PCB Info
> mATX / 200mm x 236mm
