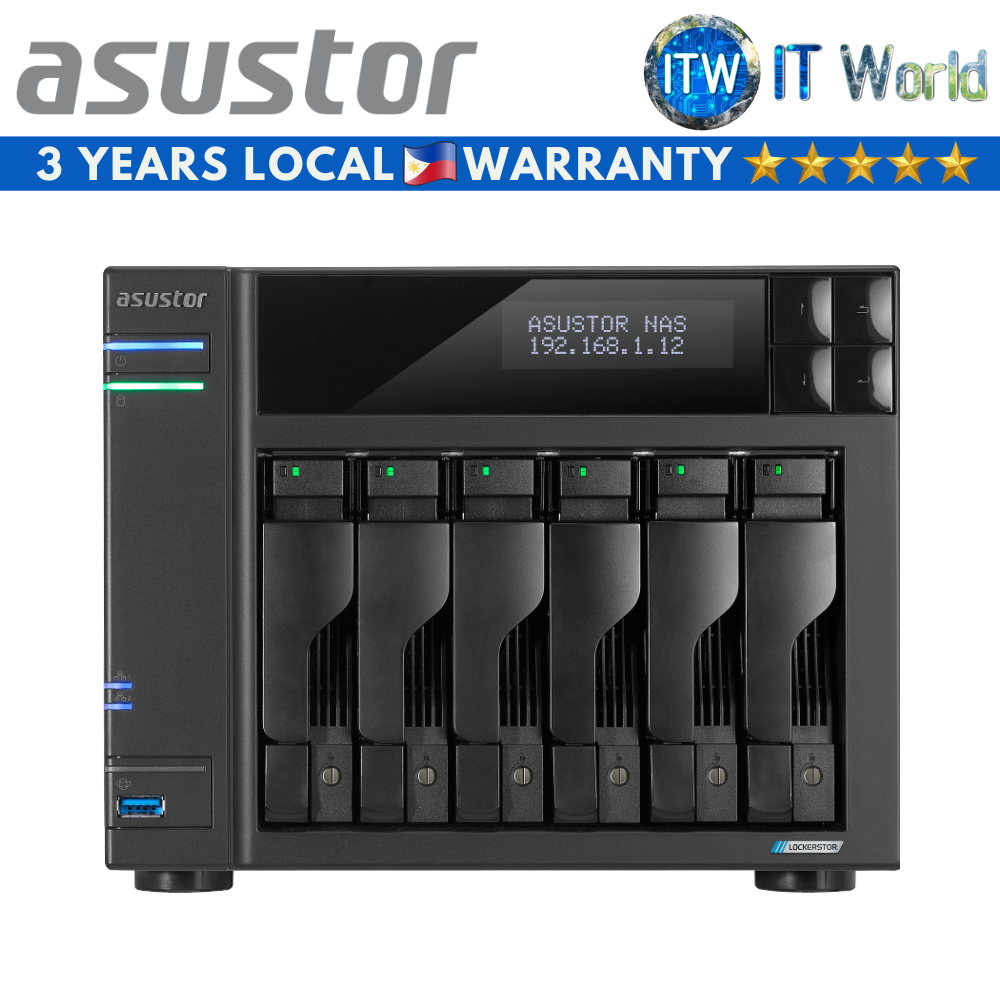

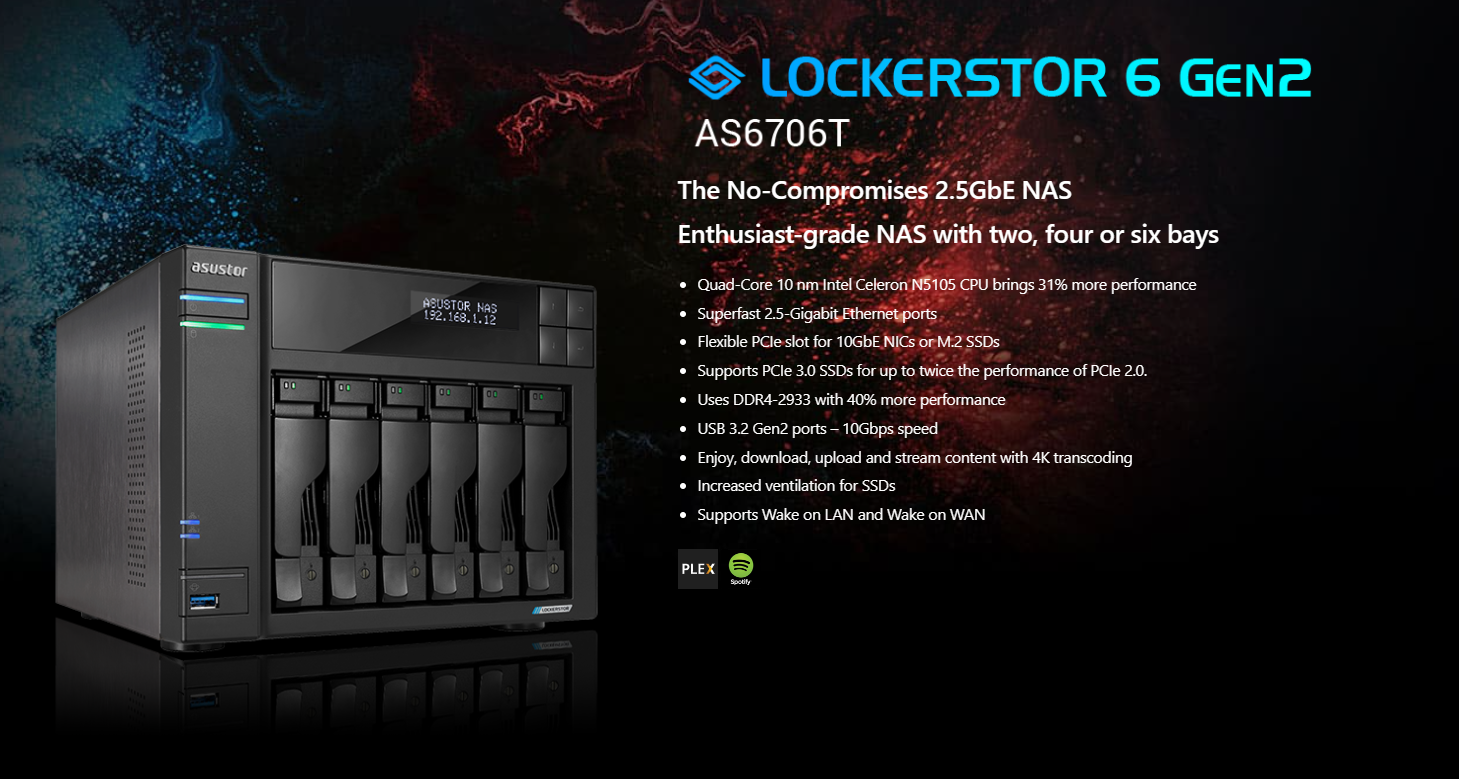

Product Name: Itw | Asustor Lockerstor 6 Gen 2 AS6706T 6-Bays Diskless Network Attached Storage (NAS)
Specification
*** Hardware Specs ***
CPU

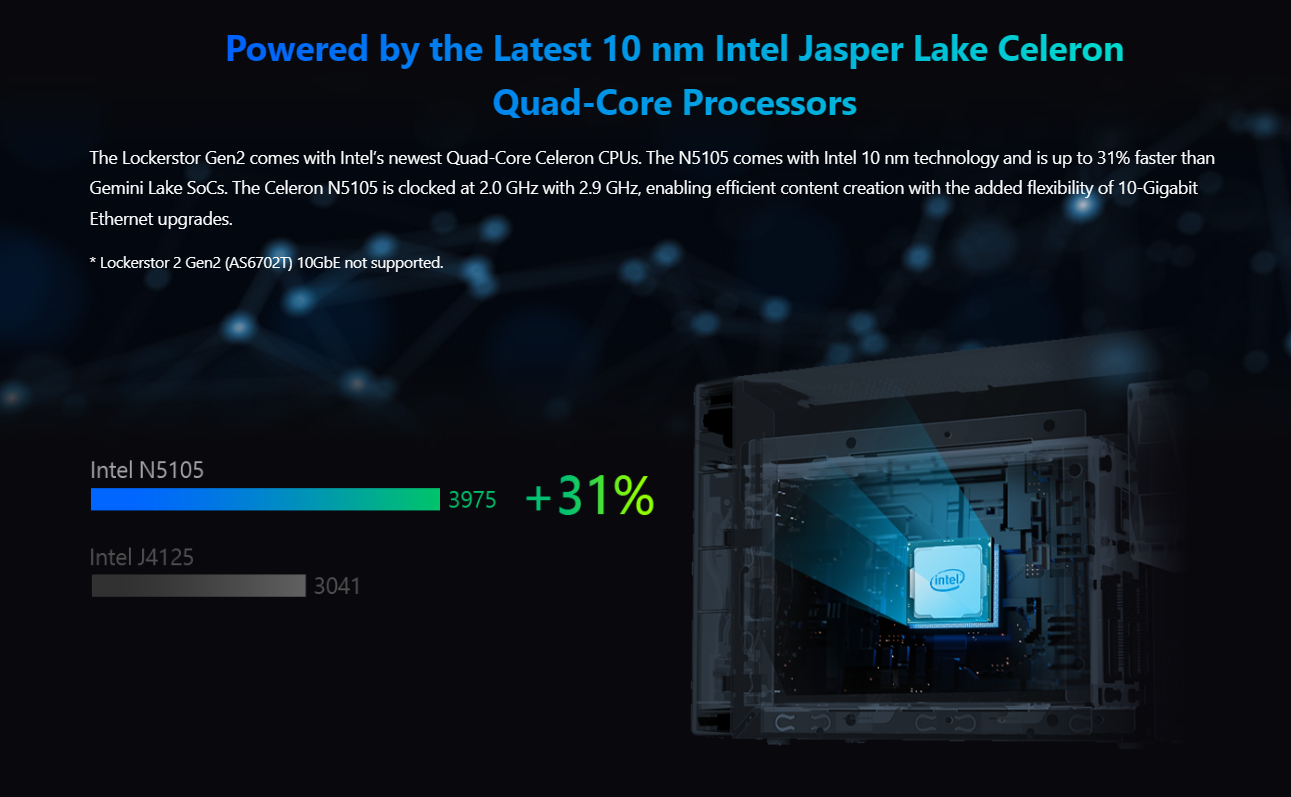

* CPU Model: Intel Celeron N5105
* CPU Architecture: x64 64-bit
* CPU Frequency: Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory
* Memory: 8GB SO-DIMM DDR4
* Memory Module Pre-installed: 8GB (1x 8GB)
* Total Memory Slots: 2
* Memory Expandable up to
- 16GB (2x 8GB)
> Support mixed capacity
* Flash Memory: 8GB eMMC
Storage

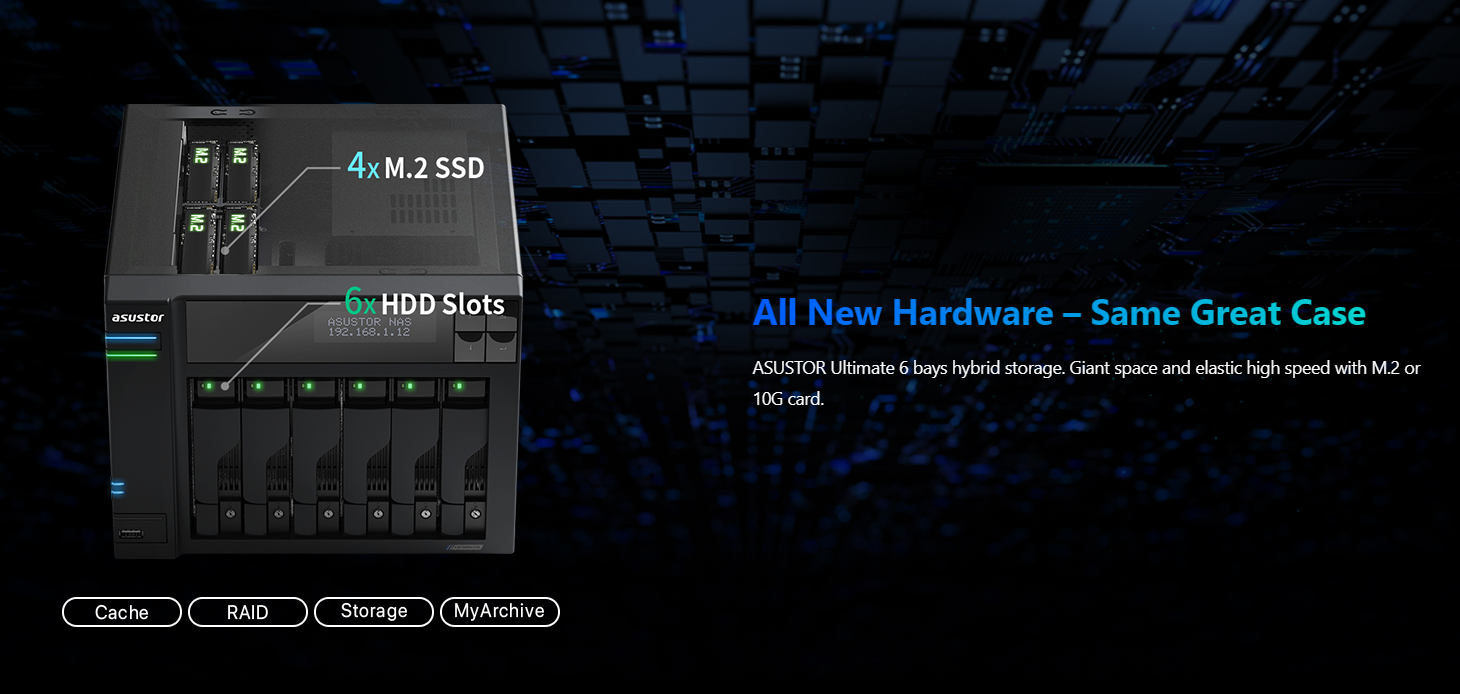

* Drive Bays: 6

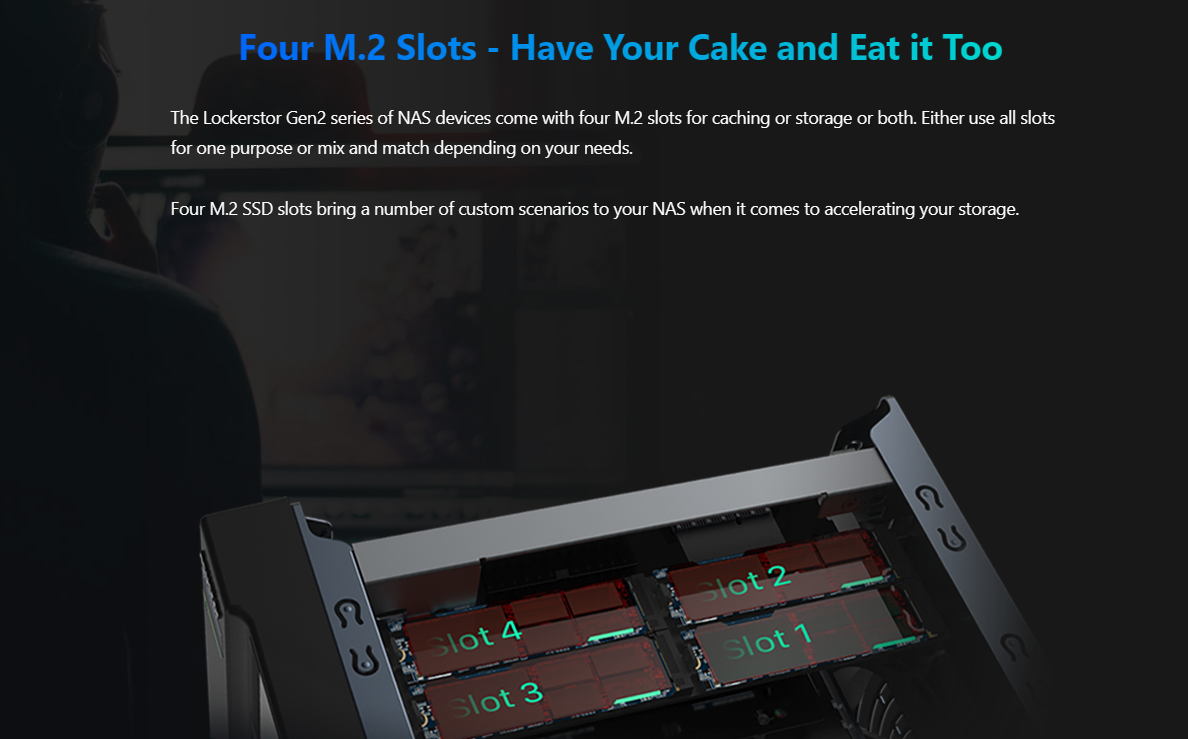

* M.2 Drive Slots: 4
* Compatible Drive Type
- 3.5" SATA HDD
- 2.5" SATA HDD
- 2.5" SATA SSD
- M.2 2280 NVMe
* Maximum Drive Bays with Expansion Unit: 14
* Supports Hot Swappable Drives: Yes
External Ports

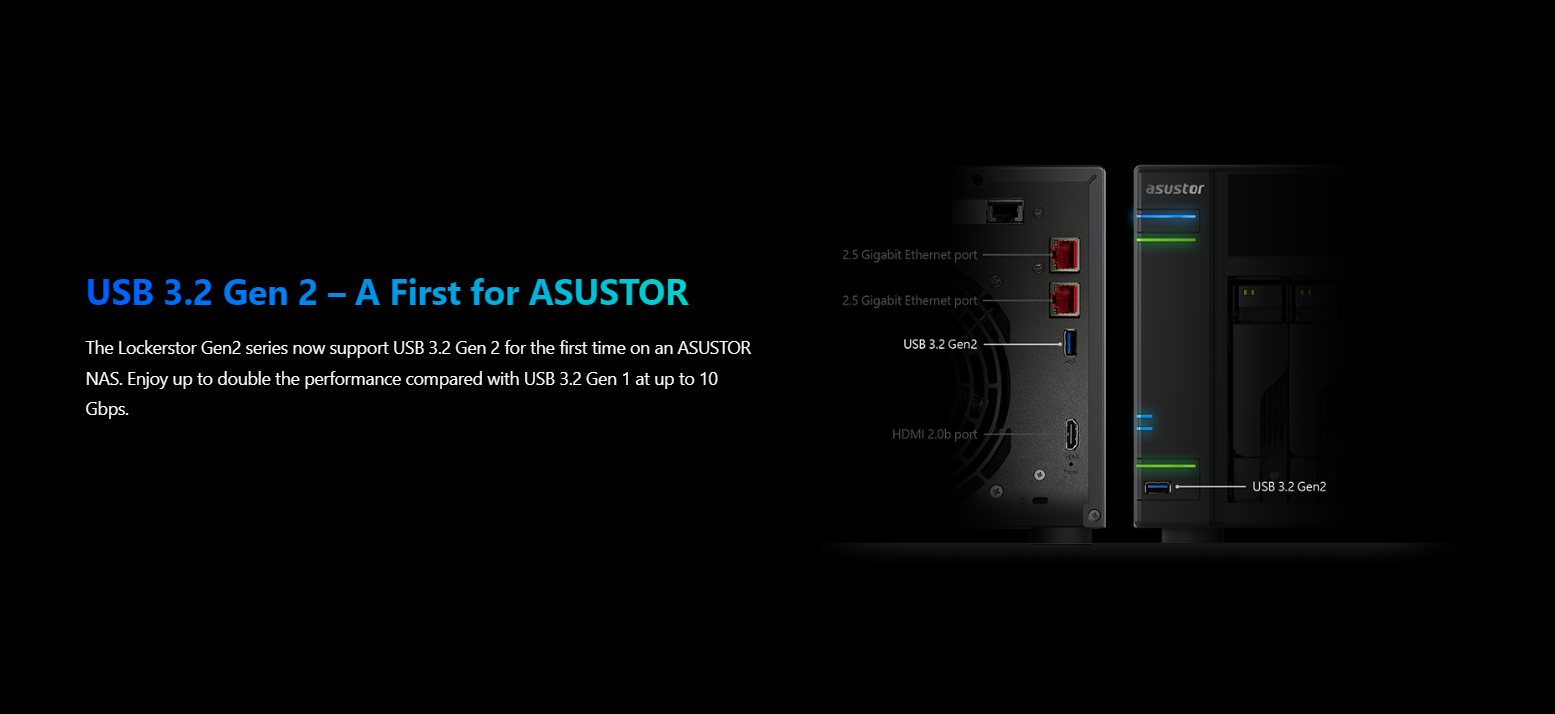

* Expansion: 2x USB 3.2 Gen 2x1

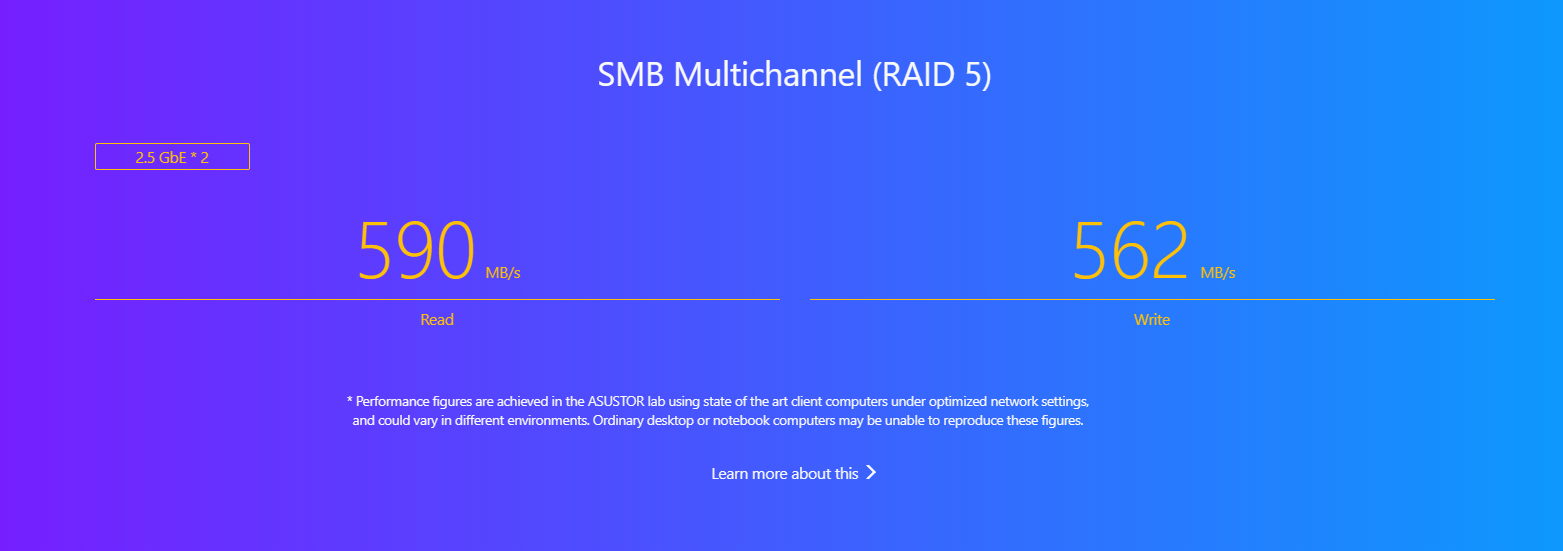

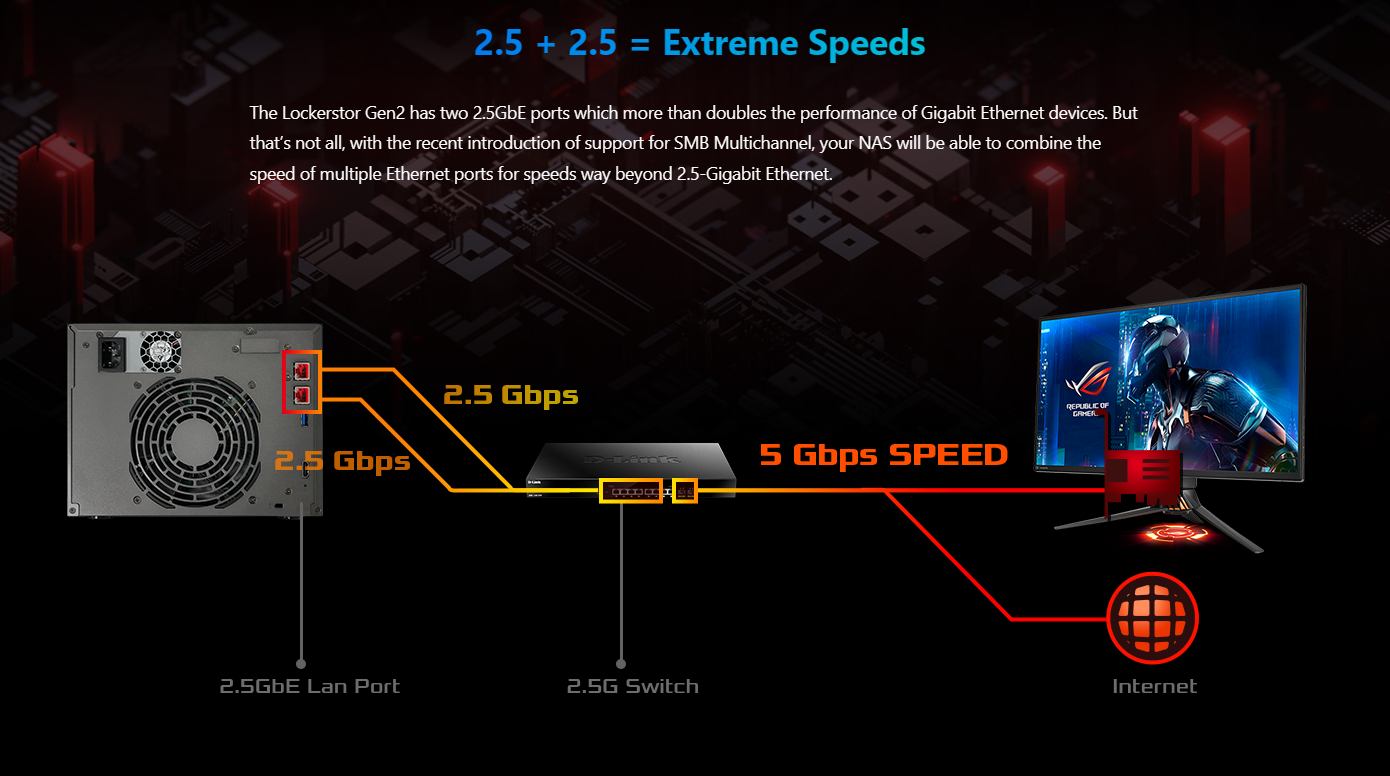

* Network: 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
* PCIe Expansion Slots: 1x for optional expansion 10 GbE card
* Multimedia Output: 1x HDMI 2.0b
Others

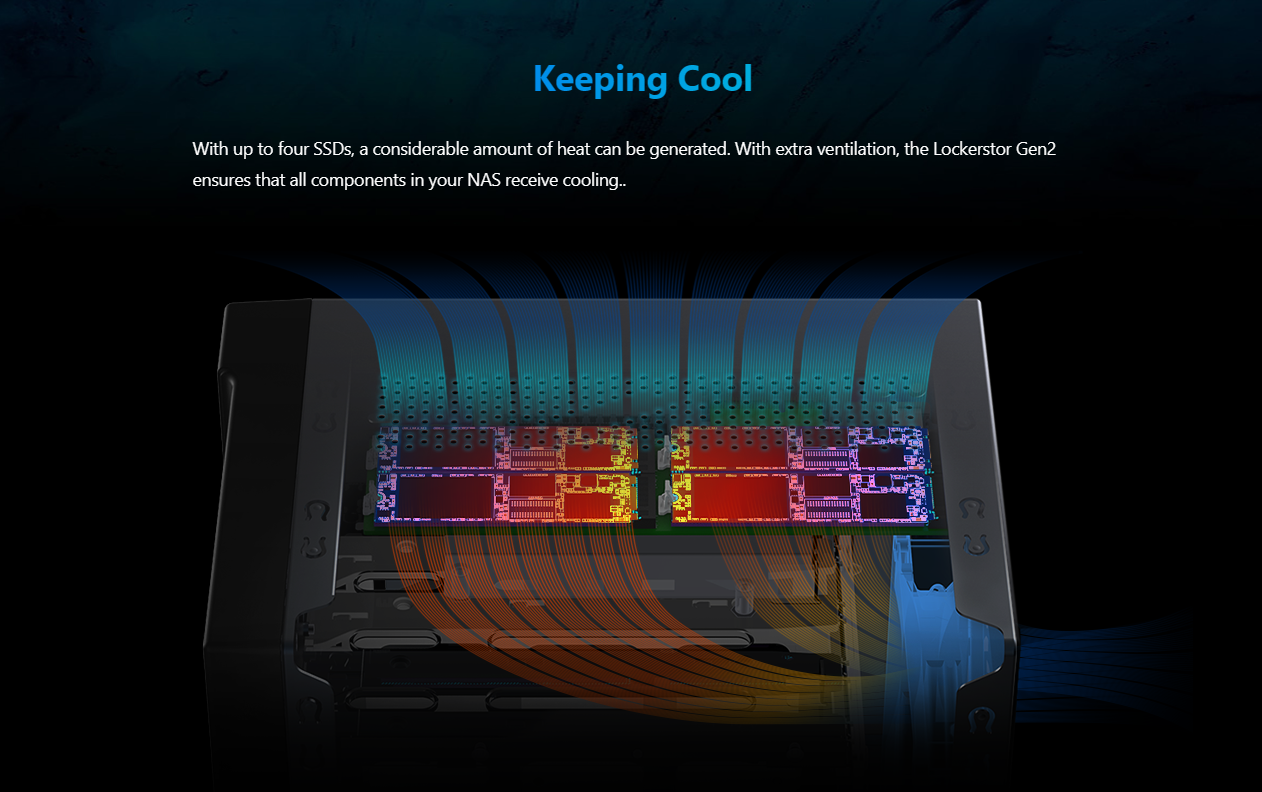

* System Fan: 1x 120mm
* LCD Panel: Yes
* Infrared Receiver: Yes
* Power Supply Unit / Adapter: 250W x1
* Input Power Voltage: 100V to 240V AC
* Certification: FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
Operation
* Power Consumption: 48.5 W (Operation); 27.7 W (Disk Hibernation); 0.81 W (Sleep Mode)
* Noise Level: 18.1dB (HDD idle)
* Operation Temperature : 0°C~40°C (32°F~104°F)
* Humidity: 5% to 95% RH
Size and Weight
* Size: 185.5 (H) x 233 (W) x 230 (D) mm
* Weight: 4.4 kg / 9.7 lb
*** Software & Features ***
General
* Supported OS
- Windows 7, 8, 10, 11, Server 2008, Server 2012, Server 2016, Server 2019, Server 2022
- macOS
- UNIX, Linux, and BSD
* Supported Browsers
- Firefox
- Chrome
- Safari
- Microsoft Edge
Network
* Network Protocols: CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
* Connection and transmission
- TCP/IP (IPv4 & IPv6)
- Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover
- Jumbo Frame (MTU)
- VLAN
- EZ Connect
- Wireless Network
- DDNS and EZ-Router
- Supports Wake-on-LAN (WOL)
- Supports Wake-on-WAN (WOW)
File Management & Sharing
* File System
- Internal Disk: EXT4 ,Btrfs
- External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs
* File Explorer
- Web-based File Management
- ISO File Mounting
- Share Links
- Task Monitor
- Browse Files on Local PC
- Thumbnail Previews
- Data Access via External Optical Drive
- Supports video playback
* Network Recycle Bin
- Share folder-based
- Maintains original directory structure and file permission
- On-click restore
- Supports scheduled emptying
- Filtering rules
1. File size
2. File extension
- Deletion Settings
1. File size
2. File date
Storage management
* Volume
- Support Multiple Volumes with Spare Drives
- Volume Type: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- Support for Online RAID Level Migration
- Support for Online RAID Capacity Expansion
* M.2 Volume
- Support Multiple Volumes with Spare Drives
- M.2 Volume: Single, JBOD, RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
- Support for RAID Level Migration
- Support for RAID Capacity Expansion
* MyArchive
- Hot swappable design enables easy transfer or exchange of high amounts of data
- Works on any empty bay on an ASUSTOR NAS
- File system support: EXT4, NTFS, HFS+, Btrfs and exFAT
- Supports AES 256-bit encryption on EXT4 and Btrfs
- Supports Btrfs snapshots
- Supports decryption with a USB key
* iSCSI/IP-SAN
- Maximum Targets: 256
- Maximum LUNs: 256
- Maximum Snapshot Versions of a Single LUN: 256
- Target Masking
- LUN Mapping
- ISO File Mounting
- Supports MPIO
- Persistent (SCSI-3) Reservations
* Disk Management
- Scheduled Bad Block Scans
- Scheduled S.M.A.R.T Scans
