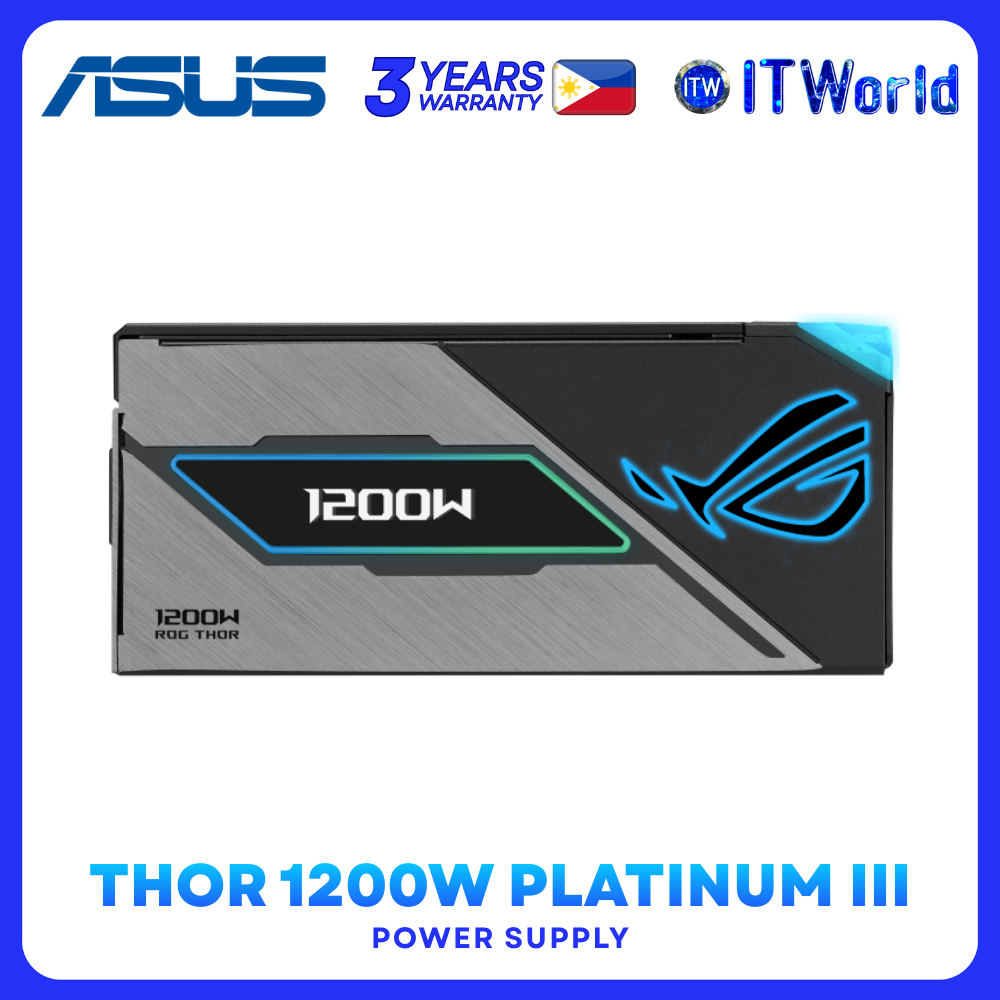

Power your ultimate gaming rig with the ASUS ROG Thor 1200P3 Gaming PSU, featuring 1200W total output, 80Plus Platinum efficiency, and ARGB lighting for a stunning aesthetic ⚡🌈. Designed for high-performance systems, it combines robust protection, modular cables, and whisper-quiet operation with 0dB technology.
🔧 Product Features & Specifications
⚡ Power & Efficiency
Total Output: 1200W
Efficiency: 80Plus Platinum
PFC Type: Active PFC
ATX Standard: ATX 3.1
MTBF: >120,000 hrs @ 25°C
AC Input Range: 100–240V AC
🔌 Protection Features
OPP / OVP / UVP / SCP / OCP / OTP ✅
🔋 DC Output & Maximum Load
Voltage Max Load Combined Load
+3.3V 30A 125W
+5V 25A 125W
+12V 100A 1200W
-12V 0.3A 3.6W
+5Vsb 3A 15W
🖇️ Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1
PCI-E 6+2-pin x 4
SATA x 7
Peripheral x 6
📦 Package Contents
Power Cord x1
Motherboard Power Cable x1 (610mm)
CPU Cable x2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x1 (750mm)
PCI-E Cable 1-to-1 x4 (750mm)
SATA Cable 1-to-4 x1 (400+120+120+120mm)
SATA Cable 1-to-3 x1 (400+120+120mm)
Peripheral 1-to-3 x2 (400+150+150mm)
Addressable RGB Cable x1 (800mm)
ROG Sticker x1
ROG Cable Tie x6
Chassis Screws Package x1
Cable Tie x12
User Manual x1
🌈 ARGB & 0dB Technology
AURA SYNC compatible for full ARGB lighting 🎨
0dB Fan Button: Fan spins only under load for silent operation 💤
