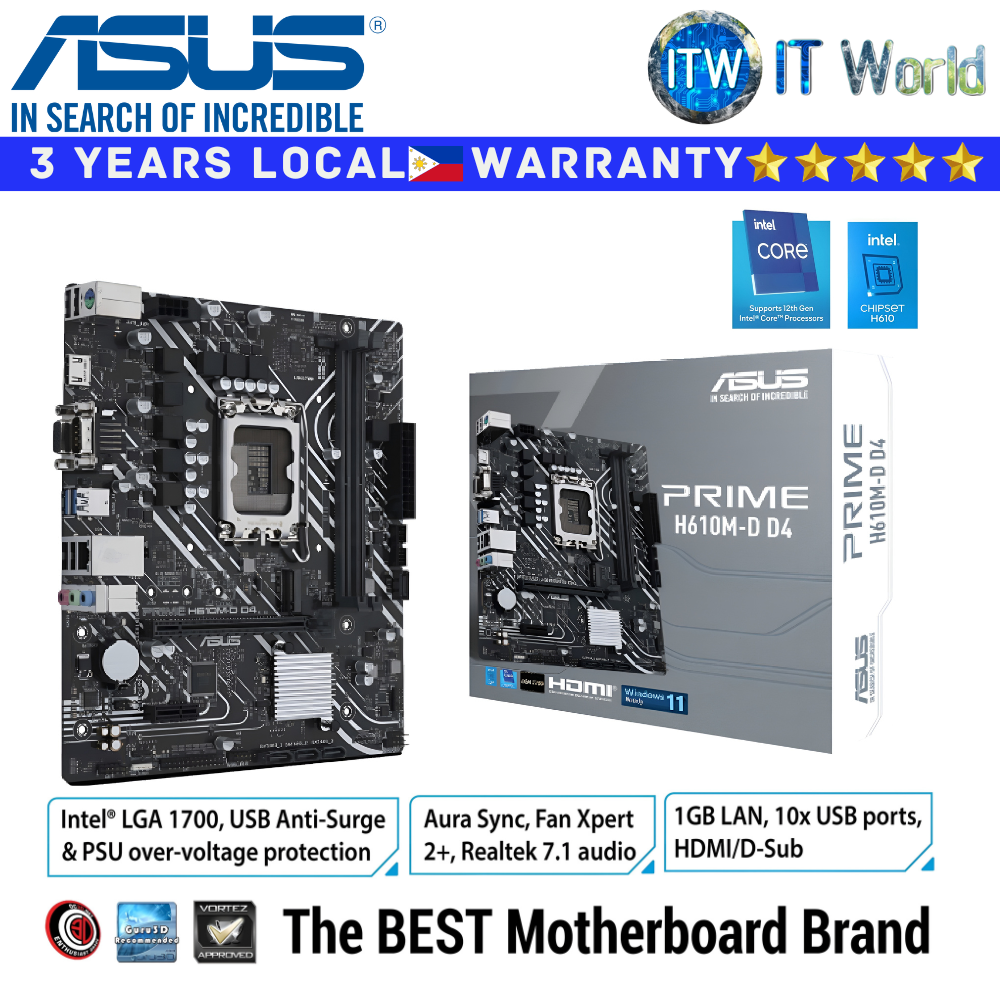

Product Name: Itw | ASUS Motherboard Prime H610M-D D4 mATX LGA1700 DDR4
Intel® H610 (LGA 1700) mic-ATX motherboard with DDR4, PCIe 4.0, M.2 slot, Realtek 1 Gb Ethernet, HDMI®, D-Sub, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM port, LPT header, RGB header
> Intel® LGA 1700 socket: Ready for 14th, 13th & 12th Gen Intel® processors
> Comprehensive cooling: PCH heatsink and Fan Xpert
> Ultrafast connectivity: 32Gbps M.2 slot, Realtek 1 Gb Ethernet and USB 3.2 Gen 1 support
> 5X Protection III: Multiple hardware safeguards for all-round protection
Specification
Model
> PRIME H610M-D D4
CPU
> Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
> Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
> Intel® H610 Chipset
Memory
> 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
> Dual Channel Memory Architecture
> Supports Intel® Extreme Memory Profile (XMP)
Graphics
> 1 x D-Sub port
> 1 x HDMI® port**
* Graphics specifications may vary between CPU types.
** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
> Intel® Core™ Processors (14th & 13th & 12th Gen)
- 1 x PCIe 4.0 x16 slot
> Intel® H610 Chipset
- 1 x PCIe 3.0 x1 slot
Storage
> Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
> Intel® H610 Chipset
- M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
- 4 x SATA 6Gb/s ports
* The M.2 slot shares bandwidth with the SATA6G_4 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_4 port cannot be used.
Ethernet
> 1 x Realtek 1Gb Ethernet
USB
> Rear USB (Total 6 ports)
- 2 x USB 3.2 Gen 1 ports (2 x Type-A)
- 4 x USB 2.0 ports (4 x Type-A)
> Front USB (Total 4 ports)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
> Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
> Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
> 2 x USB 3.2 Gen 1 ports (2 x Type-A)
> 4 x USB 2.0 ports (4 x Type-A)
> 1 x D-Sub port
> 1 x HDMI® port
> 1 x Realtek 1Gb Ethernet port
> 3 x Audio jacks
> 1 x COM port
> 1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
> Fan and Cooling related
- 1 x 4-pin CPU Fan header
- 1 x 4-pin Chassis Fan header
> Power related
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
> Storage related
- 1 x M.2 slot (Key M)
- 4 x SATA 6Gb/s ports
> USB
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 1 x USB 2.0 header supports additional 2 USB 2.0 ports
> Miscellaneous
- 1 x RGB header
- 1 x Clear CMOS header
- 1 x Front Panel Audio header (AAFP)
- 1 x LPT header
- 1 x S/PDIF Out header
- 1 x Speaker header
- 1 x SPI TPM header (14-1pin)
- 1 x 10-1 pin System Panel header
Special Features
> ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
> ASUS Q-Design
- Q-DIMM
- Q-Slot
> ASUS Thermal Solution
- Aluminum heatsink design
> ASUS Lighting Control
- RGB header
Form Factor
> mATX / 9.2 inch x 8.0 inch (23.4cm x 20.3cm)
