ASUS Prime B760M-K D4 / D5 micro-ATX LGA1700 Intel B760 Chipset Motherboard

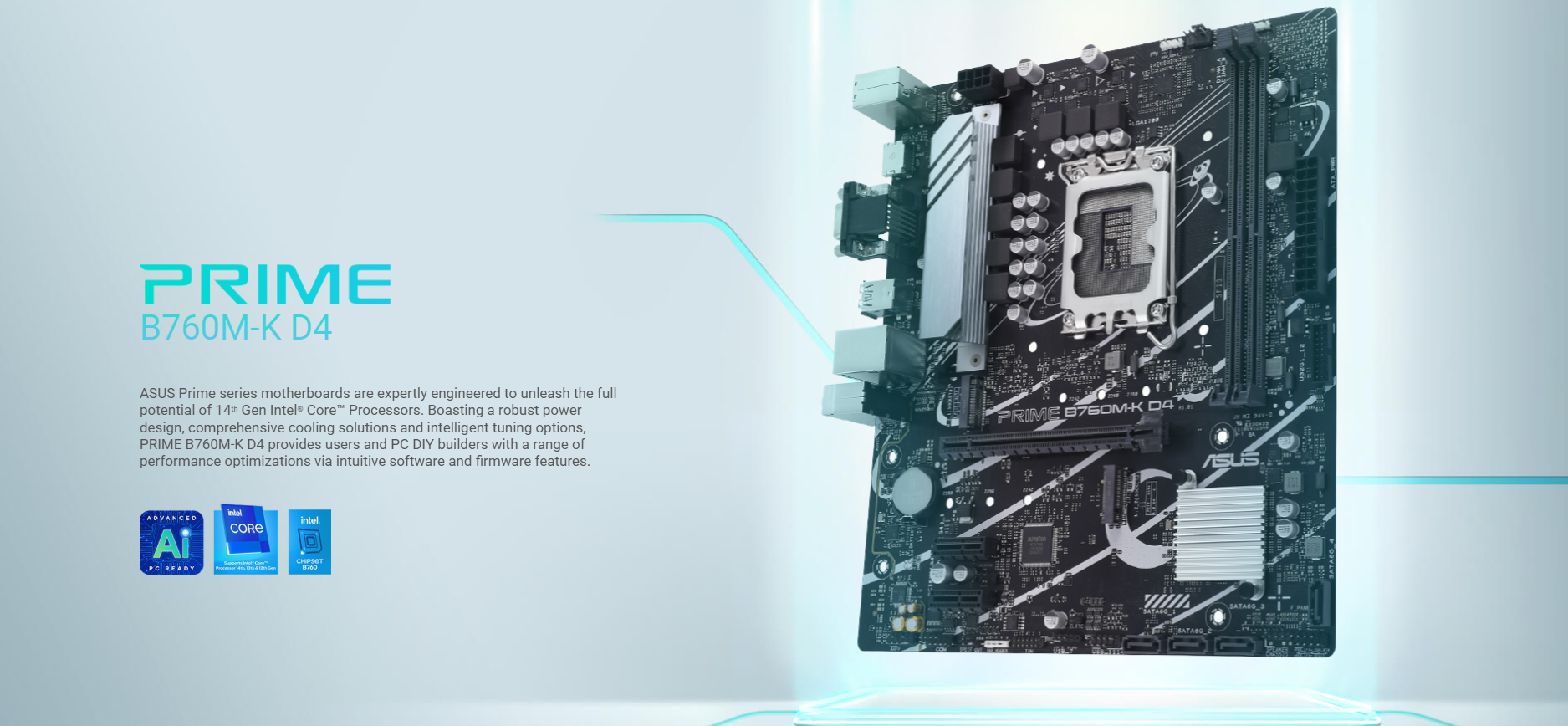

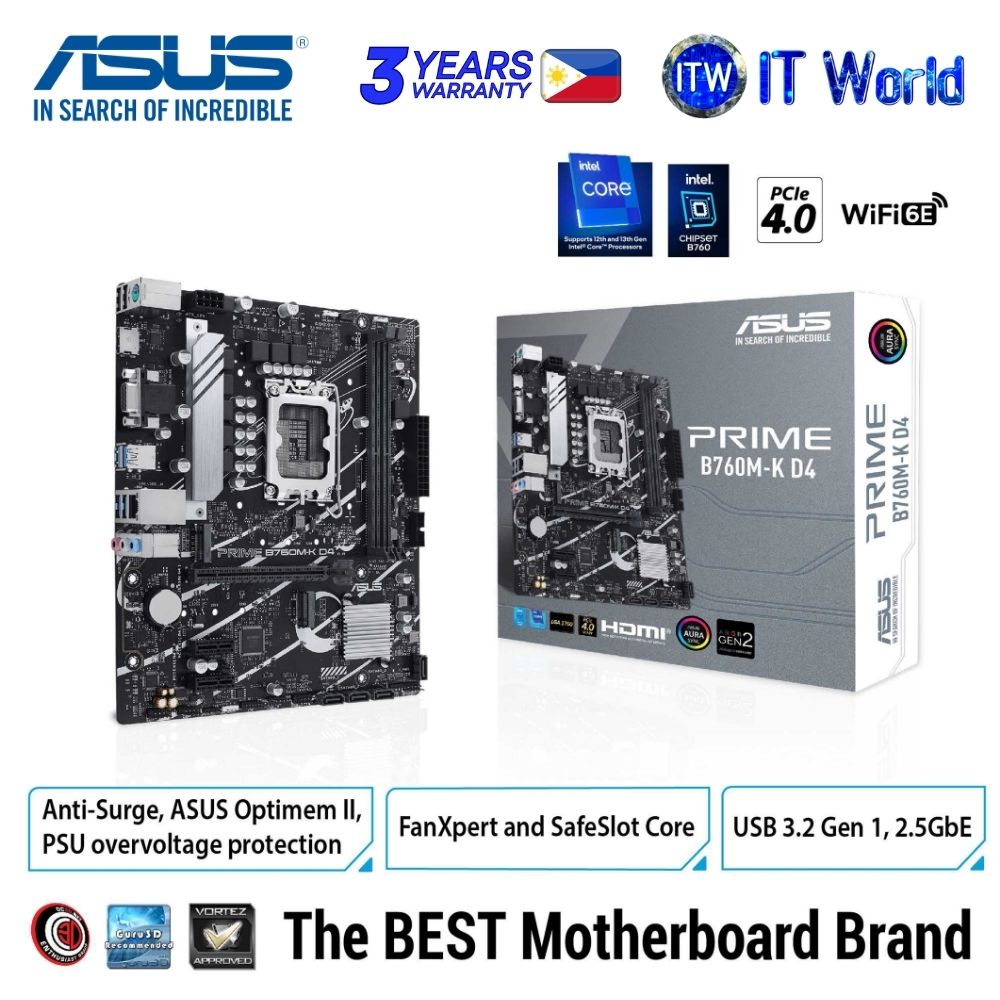

*** ASUS Prime B760M-K D4 micro-ATX LGA1700 Intel B760 Chipset Motherboard ***
Key Features & Highlights
🖥️ Intel® LGA 1700 Socket – Supports Intel® Core™ 14th, 13th, and 12th Gen processors, as well as compatible Pentium® Gold and Celeron® processors.
⚡ Intel® B760 Chipset – Provides a platform for compatible Intel® processor-based PC builds.
🧠 DDR4 Memory Support – Features 2 DIMM slots with up to 64GB memory capacity, dual-channel architecture, and Intel® Extreme Memory Profile (XMP) support. Supports compatible DDR4 memory speeds up to 5333MHz (OC).
🚀 PCIe 4.0 Expansion – Includes 1 PCIe 4.0 x16 slot and 2 PCIe 4.0 x1 slots for compatible expansion cards.
💾 Dual M.2 Storage Slots – Equipped with 2 PCIe 4.0 x4 M.2 slots supporting 2242, 2260, and 2280 storage devices.
🔌 SATA Storage Connectivity – Provides 4 SATA 6Gb/s ports for compatible storage drives.
🌐 Realtek 2.5Gb Ethernet – Features 2.5Gb Ethernet connectivity for compatible wired network connections.
🔗 USB Connectivity – Rear I/O includes 4 USB 3.2 Gen 1 Type-A ports and 2 USB 2.0 Type-A ports. Internal headers support additional front USB connections.
🖥️ Display Outputs – Includes 1 VGA port and 1 HDMI® port, with HDMI® supporting 4K resolution at 60Hz when supported by the processor's graphics.
🎧 Realtek 7.1 Surround Sound Audio – Features High Definition Audio CODEC, audio shielding, premium audio capacitors, and dedicated audio PCB layers.
❄️ Comprehensive Cooling Solutions – Includes VRM and PCH heatsinks, CPU and chassis fan headers, and Fan Xpert support for cooling management.
🌈 ASUS Aura Sync RGB Lighting – Features Addressable Gen 2 headers and an Aura RGB header for compatible RGB LED strips and Aura Sync-enabled hardware.
🛡️ ASUS 5X PROTECTION III – Incorporates DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, and Stainless-Steel Back I/O.
🧰 ASUS Q-Design & EZ DIY – Includes Q-DIMM, Q-LED Core, Q-Slot, ProCool, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, and UEFI BIOS EZ Mode.
💻 Software Support – Includes ASUS Armoury Crate, Aura Sync, Fan Xpert, AI Suite 3, ASUS CPU-Z, Norton 360 Deluxe (60-day free trial), and WinRAR.
🌐 Operating System Compatibility – Supports Windows® 11 and Windows® 10 64-bit.
Technical Specifications
🌟 Model: PRIME B760M-K D4
🌟 Chipset: Intel® B760
🌟 CPU Socket: Intel® LGA 1700
🌟 Processor Compatibility: Intel® Core™ 14th, 13th, and 12th Gen; compatible Pentium® Gold and Celeron® processors
🌟 Memory: 2 x DDR4 DIMM slots, maximum 64GB
🌟 Memory Architecture: Dual Channel
🌟 Maximum Supported Memory Speed: 5333MHz (OC), depending on configuration
🌟 Expansion Slots: 1 x PCIe 4.0 x16, 2 x PCIe 4.0 x1
🌟 M.2 Slots: 2 x PCIe 4.0 x4
🌟 SATA Ports: 4 x SATA 6Gb/s
🌟 Ethernet: Realtek 2.5Gb Ethernet
🌟 Display Outputs: 1 x VGA, 1 x HDMI®
🌟 Rear USB Ports: 4 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A
🌟 Audio: Realtek 7.1 Surround Sound High Definition Audio
🌟 Cooling Features: VRM heatsink, PCH heatsink, CPU fan header, chassis fan header
🌟 RGB Support: Aura Sync, Addressable Gen 2 headers, Aura RGB header
🌟 BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
🌟 Form Factor: Micro-ATX (mATX)

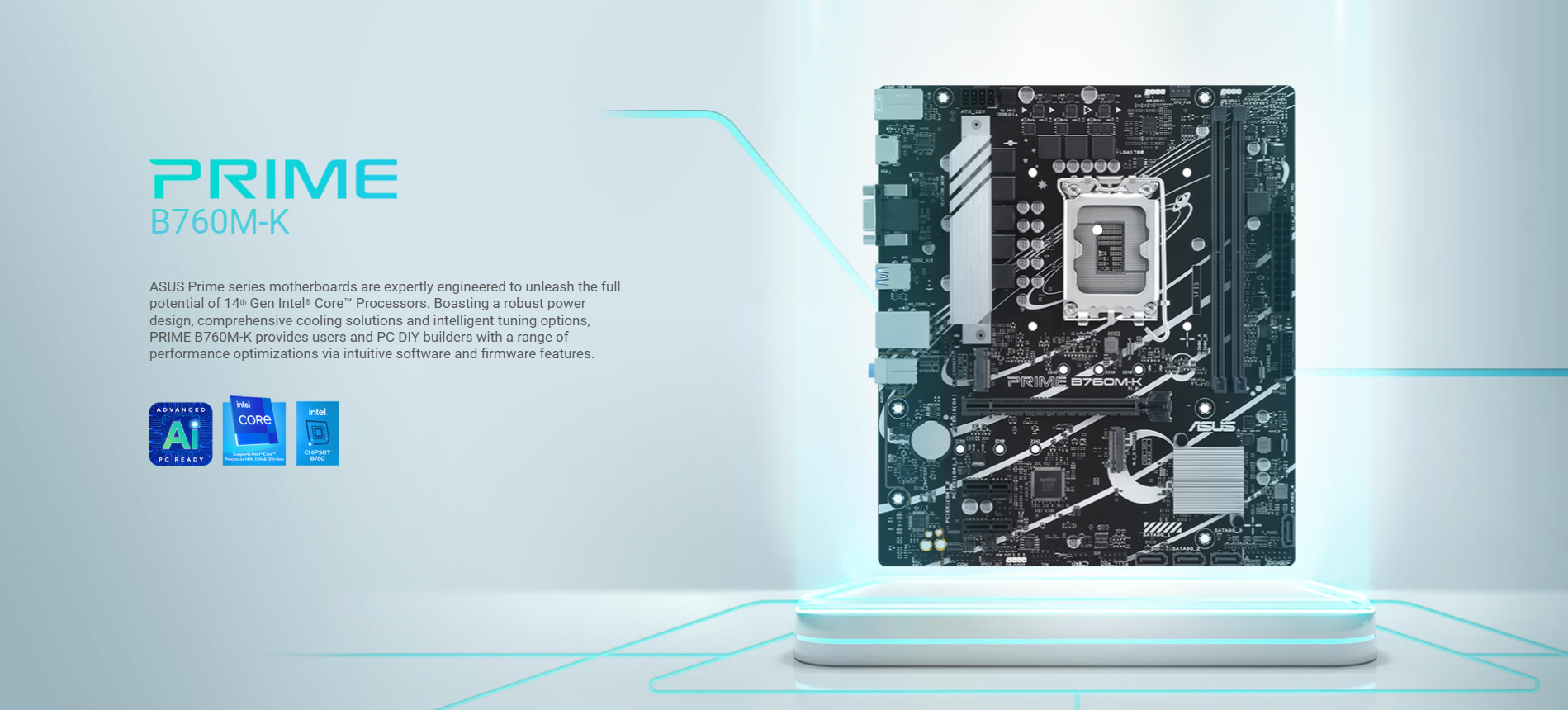

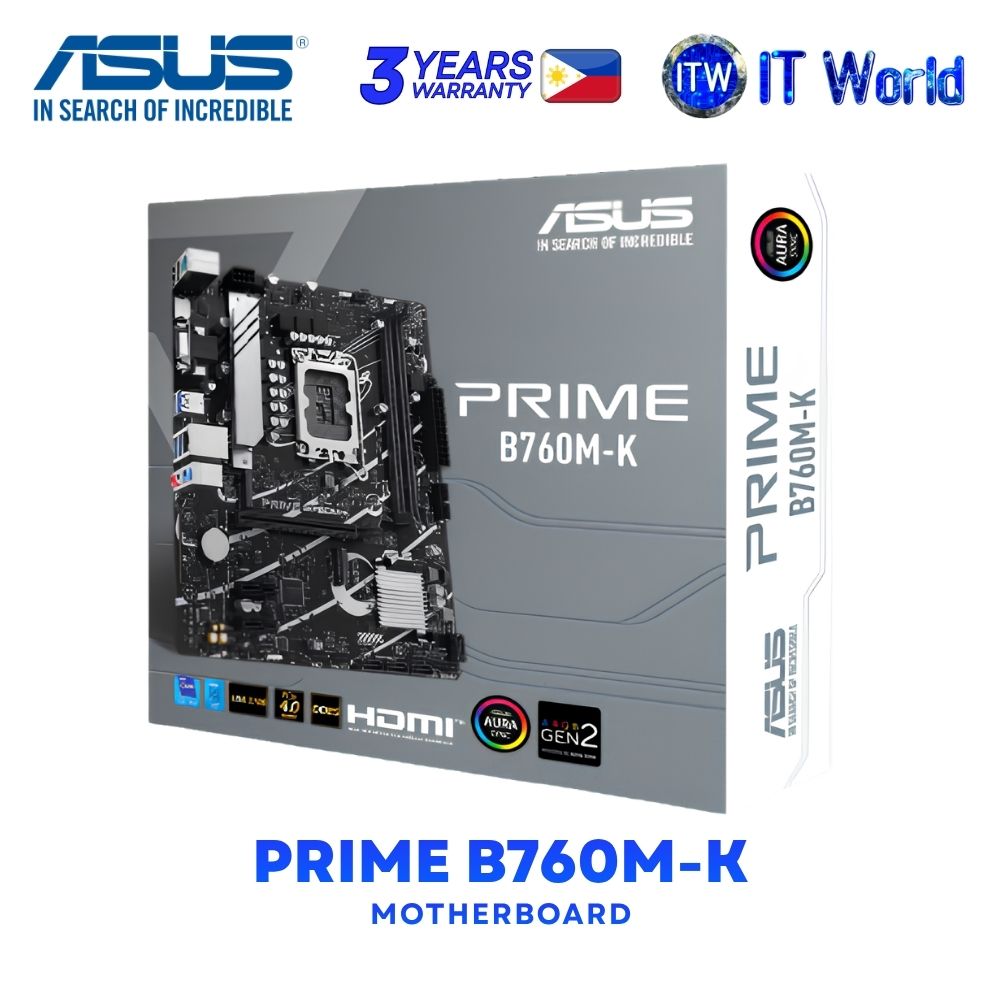

*** ASUS Prime B760M-K micro-ATX LGA1700 Intel B760 Chipset Motherboard ***
Key Features & Highlights
Intel® Processor Compatibility
🖥️ Intel® LGA 1700 socket
🖥️ Supports Intel® Core™ 14th, 13th, and 12th Gen processors, Pentium® Gold, and Celeron® processors
🖥️ Intel® B760 chipset
DDR5 Memory Performance
⚡ 2 x DDR5 DIMM slots
⚡ Supports up to 96GB memory
⚡ DDR5 speeds up to 8000 MT/s (OC)
⚡ Dual-channel memory architecture
⚡ Supports Intel® Extreme Memory Profile (XMP)
High-Speed Expansion & Storage
🚀 1 x PCIe 4.0 x16 slot
🚀 2 x PCIe 4.0 x1 slots
🚀 2 x PCIe 4.0 x4 M.2 slots (2242/2260/2280)
🚀 4 x SATA 6Gb/s ports
Fast & Versatile Connectivity
🌐 Realtek 2.5Gb Ethernet
🌐 Rear USB: 4 x USB 3.2 Gen 1 Type-A and 2 x USB 2.0 Type-A
🌐 Front USB headers support up to 2 additional USB 3.2 Gen 1 ports and 3 additional USB 2.0 ports
🌐 1 x VGA port and 1 x HDMI™ 2.1 port with support for 4K@60Hz
🌐 1 x PS/2 keyboard/mouse combo port
🌐 3 x audio jacks
High-Definition Audio
🎧 Realtek 7.1 Surround Sound HD Audio CODEC
🎧 Supports up to 24-bit/192 kHz playback
🎧 Audio shielding, premium audio capacitors, and dedicated audio PCB layers
Comprehensive Cooling
❄️ VRM heatsink and PCH heatsink
❄️ 1 x CPU fan header
❄️ 2 x chassis fan headers
❄️ Fan Xpert 2+ support
Customizable RGB Lighting
🌈 ASUS Aura Sync support
🌈 2 x Addressable Gen 2 headers
🌈 1 x Aura RGB header
🌈 Sync compatible RGB LED strips and Aura Sync-capable hardware
Motherboard Form Factor & Dimensions
📐 Form Factor: Micro-ATX (mATX)
📐 Operating System Support: Windows® 11 and Windows® 10 64-bit
