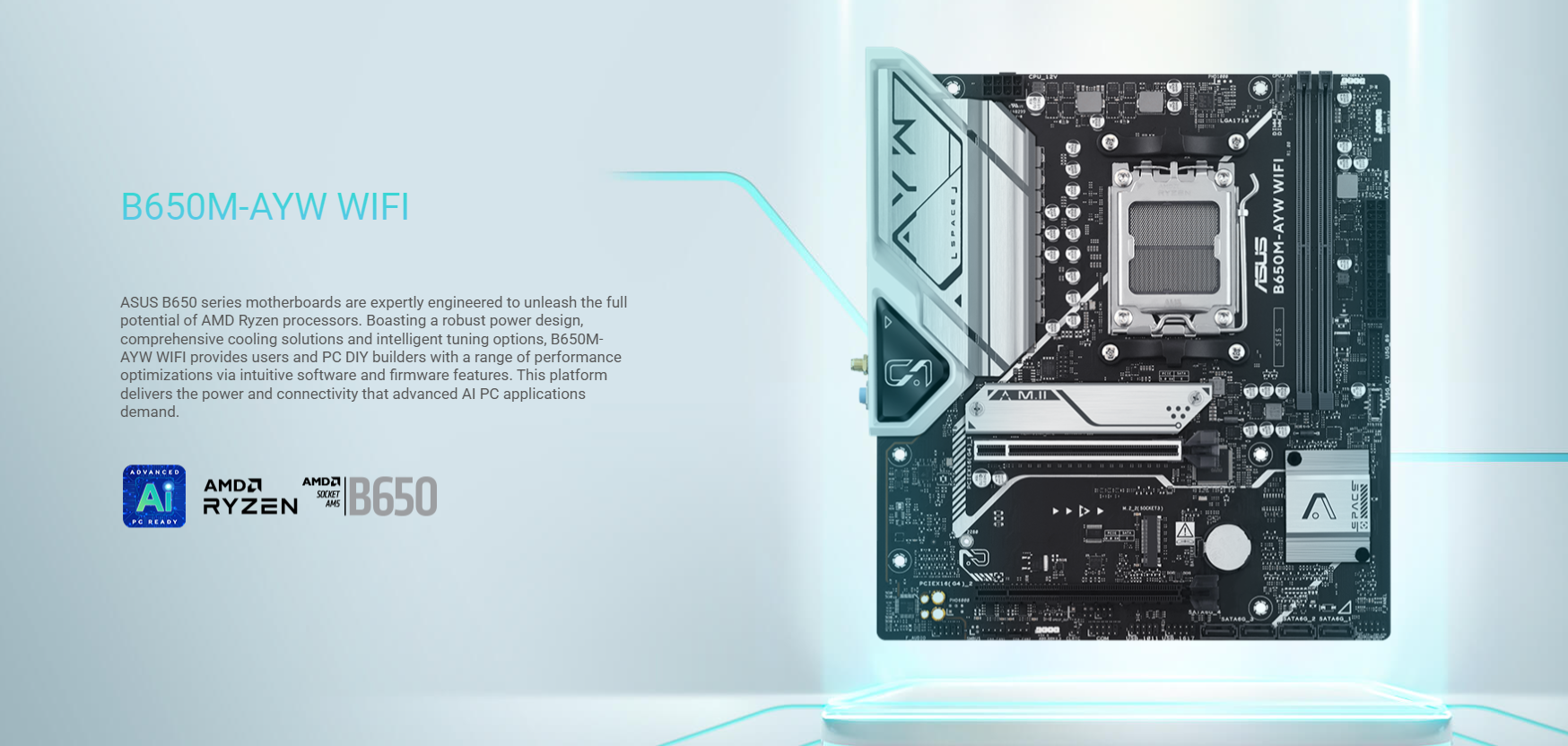

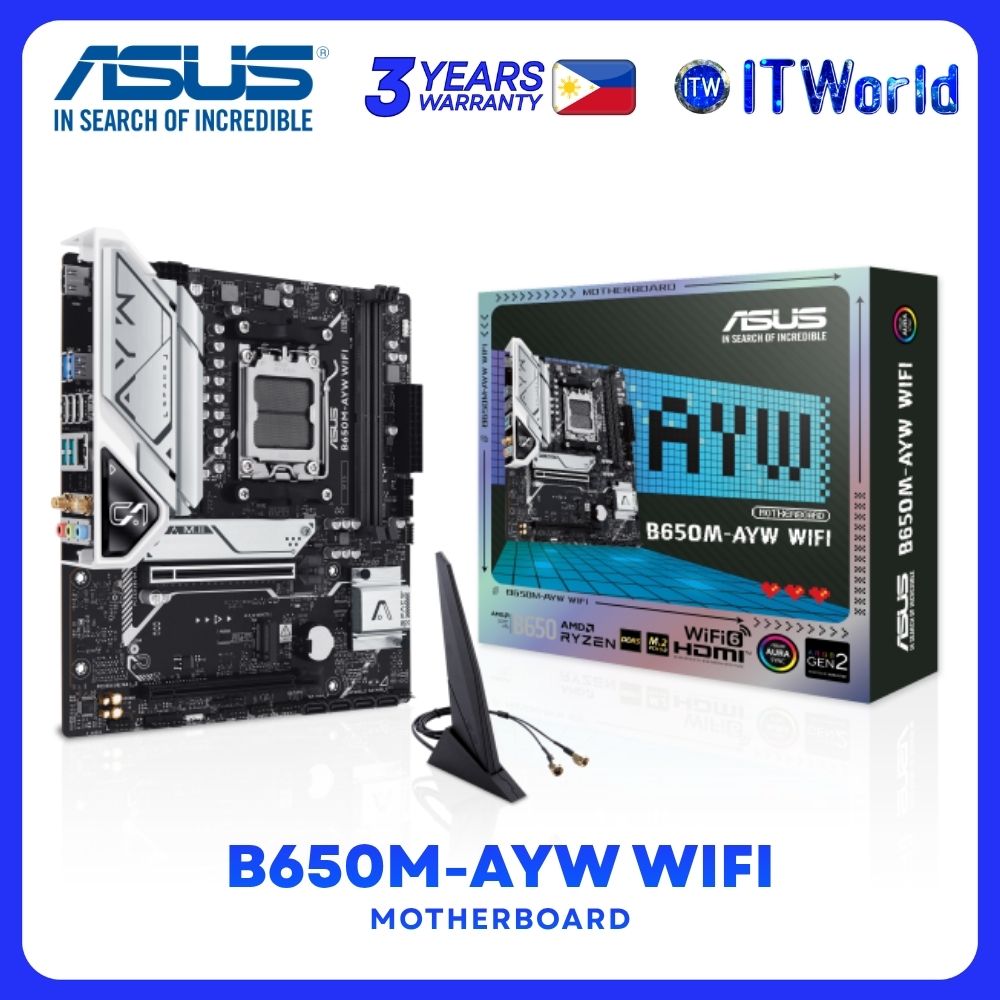

ASUS B650M-AYW WIFI micro-ATX AM5 DDR5 AMD B650 Chipset Motherboard
🌟 Build your next-generation AMD PC with the ASUS B650M-AYW WIFI, engineered for powerful performance, reliable connectivity, and future-ready AI computing. Designed to support the latest AMD Ryzen™ desktop processors, this motherboard delivers fast DDR5 memory, PCIe 5.0 storage, Wi-Fi 6, and premium ASUS technologies for an exceptional computing experience.
Product Highlights
🔹 AMD AM5 Socket – Supports AMD Ryzen™ 9000, 8000 & 7000 Series Desktop Processors (up to 170W CPU)
🔹 AMD B650 Chipset – Stable and high-performance platform for gaming and productivity
🔹 DDR5 Memory Support – 2 DIMM slots, up to 96GB DDR5, supporting speeds up to 8000+ MT/s (OC)
🔹 PCIe 5.0 M.2 Support – Lightning-fast storage support for compatible Ryzen™ processors
🔹 Dual M.2 + 4 SATA Ports – Flexible storage expansion for SSDs and HDDs
🔹 Wi-Fi 6 + Bluetooth® 5.3 – Fast wireless networking and reliable Bluetooth connectivity
🔹 Realtek 2.5Gb Ethernet – High-speed wired network performance
🔹 USB Connectivity – Rear USB 10Gbps, USB 5Gbps, front USB 5Gbps Type-C® support
🔹 HDMI™ Output – Supports up to 4K @ 60Hz (CPU graphics dependent)
🔹 Comprehensive Cooling – VRM heatsink, M.2 heatsink, PCH heatsink, Fan Xpert 2+, and hybrid fan headers
🔹 ASUS OptiMem II – Optimized memory signal integrity for improved DDR5 overclocking
🔹 Aura Sync RGB – Addressable Gen 2 RGB headers and Aura RGB support for synchronized lighting
🔹 Two-Way AI Noise Cancelation – Enhanced voice clarity for communication and streaming
🔹 ASUS 5X Protection III – DIGI+ VRM, LANGuard, SafeSlot Core+, Overvoltage Protection, and Stainless-Steel Back I/O for durability
Specifications
📋 Model: B650M-AYW WIFI
📋 Socket: AMD AM5
📋 Chipset: AMD B650
📋 Form Factor: micro-ATX (24.4 × 22.1 cm)
📋 Memory: 2× DDR5 DIMM, up to 96GB, Dual Channel, EXPO™ support
Expansion Slots
📌 1 × PCIe 4.0 x16
📌 1 × PCIe 4.0 x16 (Chipset)
Storage
📌 2 × M.2 Slots
📌 4 × SATA 6Gb/s Ports
Networking
📌 Realtek 2.5Gb Ethernet
📌 Wi-Fi 6
📌 Bluetooth® 5.3
Rear I/O
📌 2 × USB 10Gbps Type-A
📌 2 × USB 5Gbps Type-A
📌 4 × USB 2.0
📌 HDMI™
📌 2.5Gb LAN
📌 Wi-Fi Module
📌 3 × Audio Jacks
Audio
📌 Realtek 7.1 HD Audio CODEC with premium audio capacitors
Package Includes
📌 2× SATA 6Gb/s Cables
📌 ASUS Wi-Fi Moving Antenna
📌 I/O Shield
📌 M.2 Rubber Package
📌 M.2 SSD Screw Package
📌 Quick Start Guide
Operating System Support
💻 Windows® 11
💻 Windows® 10 64-bit
