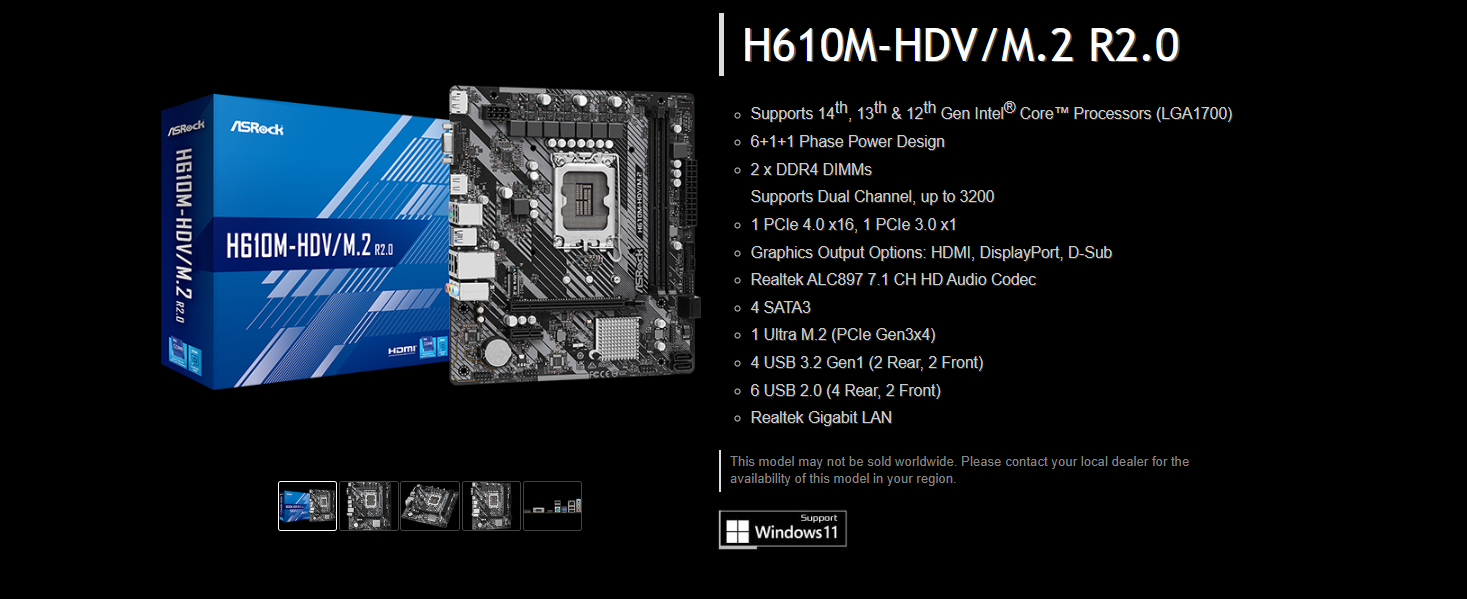

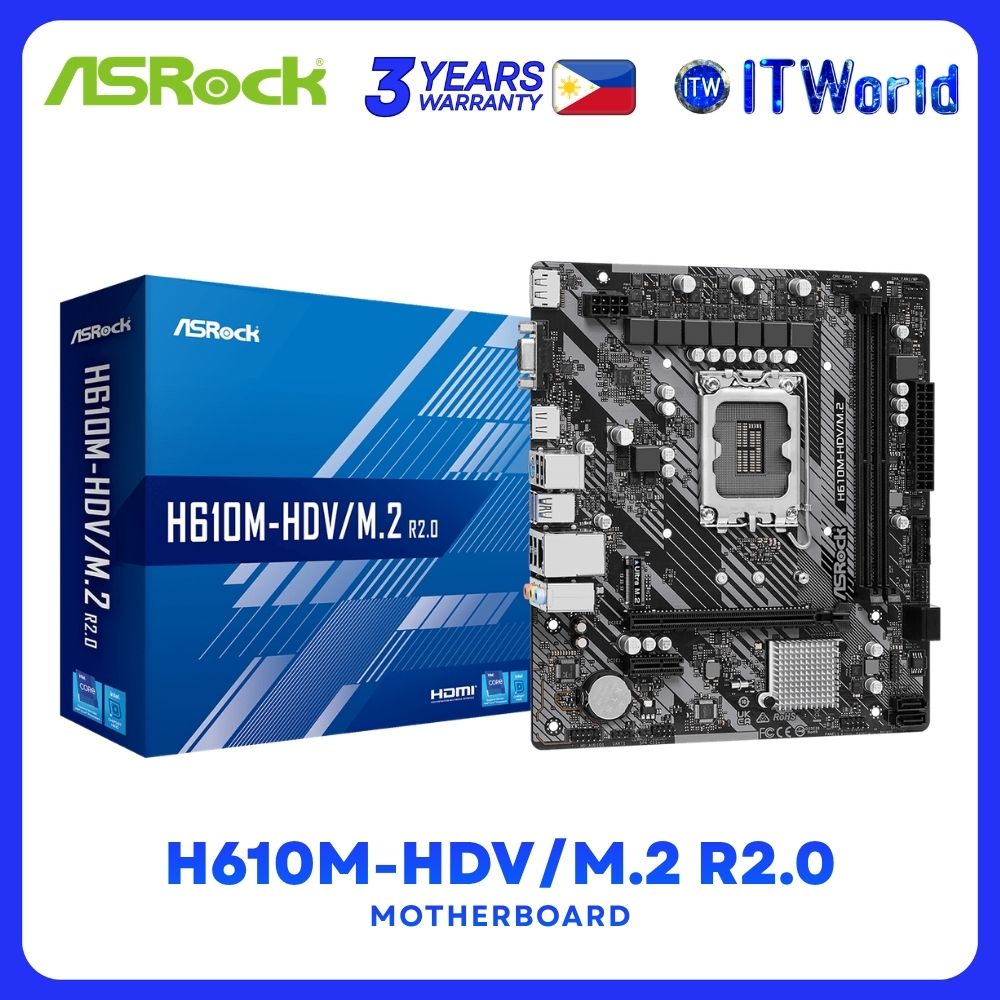

ASRock H610M-HDV/M.2 R2.0 micro-ATX LGA1700 DDR4 Intel® H610 Chipset Motherboard
🖥️ Build a reliable Intel desktop with the ASRock H610M-HDV/M.2 R2.0 motherboard. Designed for 14th, 13th, and 12th Gen Intel® Core™ processors, this Micro-ATX motherboard offers stable performance, PCIe 4.0 support, Ultra M.2 storage, and multiple display outputs—ideal for home, office, and productivity PC builds.
✨ Product Highlights
✅ Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
⚡ Intel® H610 Chipset
🔋 6+1+1 Phase Power Design for stable power delivery
🧠 2× DDR4 DIMM Slots (Dual Channel)
🚀 Supports up to 64GB DDR4 3200MHz memory with Intel® XMP 2.0
🎮 1× PCIe 4.0 x16 + 1× PCIe 3.0 x1 Expansion Slots
💾 1× Ultra M.2 PCIe Gen3 x4 (NVMe) + 4× SATA3 Ports
🌐 Realtek Gigabit LAN (10/100/1000 Mbps)
🔊 Realtek ALC897 7.1 Channel HD Audio
🖥️ Triple Display Outputs: HDMI, DisplayPort 1.4 & D-Sub (VGA)
🎥 HDMI supports up to 4K@60Hz
📺 DisplayPort 1.4 supports up to 8K@60Hz / 5K@120Hz (with supported processor)
🔌 Rear I/O includes
🔹 2× USB 3.2 Gen1
🔹 4× USB 2.0
🔹 PS/2 Combo Port
🔹 RJ-45 Gigabit LAN
🔹 HD Audio Jacks
🔹 HDMI
🔹 DisplayPort 1.4
🔹 D-Sub (VGA)
🛠️ Internal Connectors
🔹 USB 3.2 Gen1 Header (2 Front USB Ports)
🔹 USB 2.0 Header (2 Front USB Ports)
🔹 CPU Fan & Chassis/Water Pump Fan Connectors
🔹 24-pin ATX Power Connector
🔹 8-pin CPU Power Connector
🔹 Front Panel Audio Header
🔹 SPI TPM Header
📐 Form Factor
📏 Micro-ATX (22.0 × 19.3 cm / 8.66 × 7.6 inches)
🛡️ Solid Capacitor Design
💻 Supported Operating System
🔹 Microsoft Windows® 10 64-bit
🔹 Microsoft Windows® 11 64-bit
