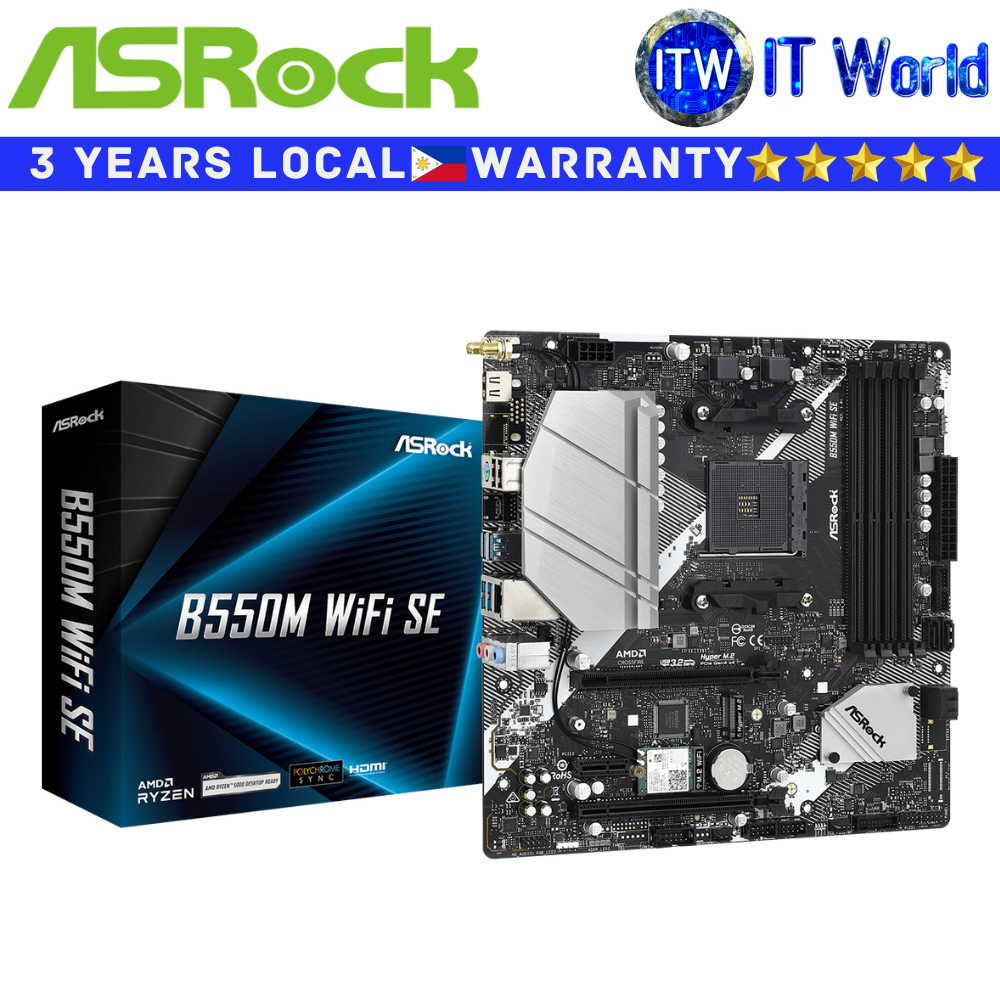

Product Name: Itw | ASRock Motherboard B550M Wifi SE microATX AM4 DDR4
B550M WiFi SE
> Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
> Supports DDR4 4733+ (OC)
> 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
> Graphics Output Options: HDMI
> 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
> 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4)
> 8 USB 3.2 Gen1 (4 Rear, 4 Front)
> 6 USB 2.0 (2 Rear, 4 Front)
> Realtek Gigabit LAN
> Intel® 802.11ac WiFi Module + Bluetooth 4.2
*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.
Specification
CPU
> Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
> Digi Power design
> 8 Power Phase design
Chipset
> AMD PRO565
Memory
> Dual Channel DDR4 Memory Technology
> 4 x DDR4 DIMM Slots
> AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
> AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*
> Max. capacity of system memory: 128GB
> Supports Extreme Memory Profile (XMP) memory modules
> 15μ Gold Contact in DIMM Slots
Graphics
> Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
> DirectX 12, Pixel Shader 5.0
> Shared memory default 2GB. Max Shared memory supports up to 16GB.**
> Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
> Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
> Supports HDR (High Dynamic Range) with HDMI 2.1
> Supports HDCP 2.3 with HDMI 2.1 Port***
> Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
> Supports Microsoft PlayReady
Audio
> 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
> Premium Blu-ray Audio support
> Supports Surge Protection
> PCB Isolate Shielding
Wireless LAN
> Intel® 802.11ac WiFi Module
> Supports IEEE 802.11a/b/g/n/ac
> Supports Dual-Band (2.4/5 GHz)
> Supports high speed wireless connections up to 433Mbps
> Supports Bluetooth 4.2+ High speed class II
Slots
> AMD Ryzen series CPUs (Vermeer and Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
> AMD Ryzen series APUs (Cezanne and Renoir)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*
> AMD Ryzen series APUs (Picasso)
- 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)*
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module
Storage
> 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
> 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir and Picasso)*
Connector
> 1 x COM Port Header
> 1 x SPI TPM Header
> 1 x Power LED and Speaker Header
> 2 x RGB LED Headers*
> 2 x Addressable LED Headers**
> 1 x CPU Fan Connector (4-pin)***
> 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
> 1 x 24 pin ATX Power Connector
> 1 x 8 pin 12V Power Connector
> 1 x Front Panel Audio Connector
> 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
> 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
Form Factor
> Micro ATX: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
> Solid Capacitor design
> 2oz Copper PCB
