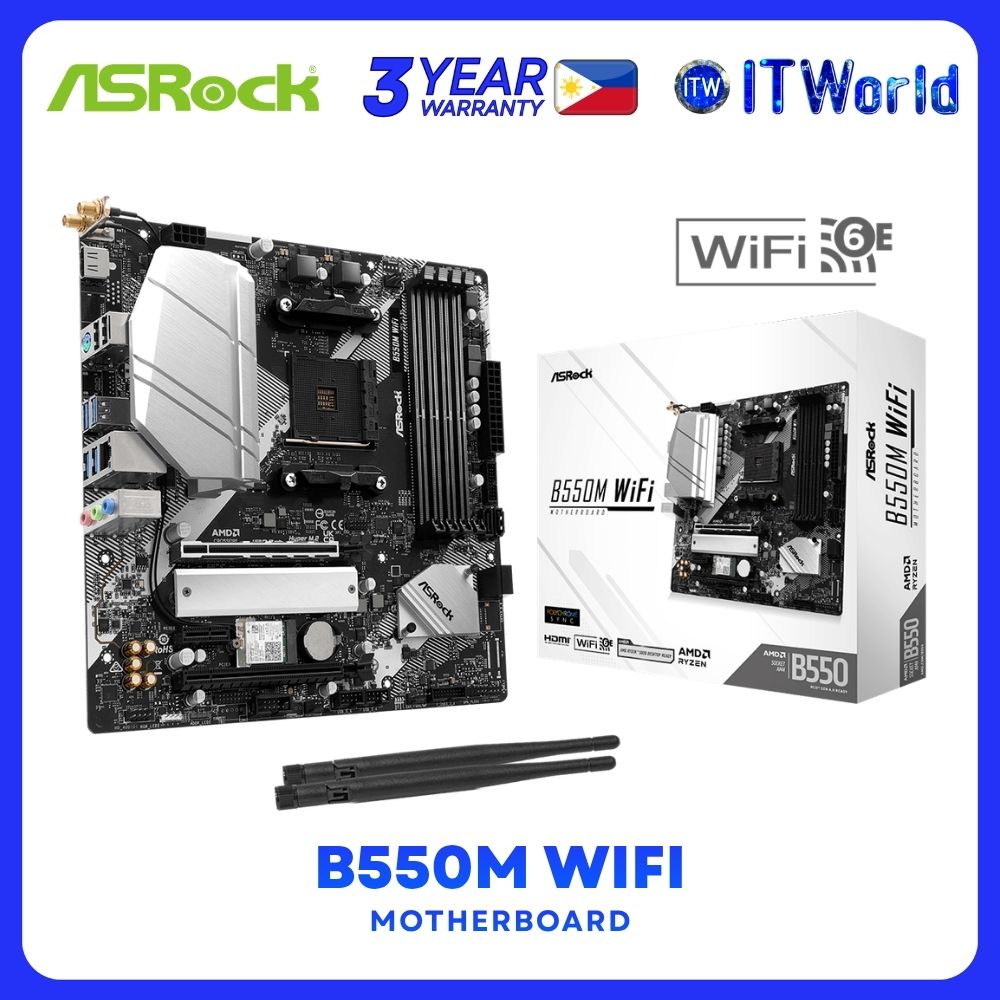

ASRock B550M WiFi microATX AM4 DDR4 AMD B550 Chipset Motherboard
🔥 Build a Powerful AMD Ryzen System with Reliable Connectivity! The ASRock B550M WiFi Micro ATX motherboard delivers robust performance with an 8-phase power design, PCIe 4.0 support, high-speed DDR4 memory compatibility, Wi-Fi 6E connectivity, and premium audio—ideal for gaming, productivity, and content creation builds.
✨ Key Features
⚡ AMD B550 Chipset with support for AMD Ryzen™ 3000, 4000 G-Series, 5000 & 5000 G-Series Desktop Processors
⚡ 8 Power Phase Design for stable and efficient power delivery
⚡ 4× DDR4 DIMM Slots supporting up to 128GB memory
⚡ Memory Overclocking support up to DDR4 4733+ (OC)
⚡ 1× PCIe 4.0 x16 Slot for next-generation graphics cards
⚡ 1× PCIe 3.0 x16 Slot and 1× PCIe 3.0 x1 Slot for expansion
⚡ Hyper M.2 PCIe Gen4x4 slot for high-speed NVMe SSDs
⚡ Built-in 802.11axe Wi-Fi 6E and Bluetooth 5.2
⚡ Realtek Gigabit LAN for dependable wired networking
⚡ Realtek ALC1220 7.1 Channel HD Audio with Nahimic Audio
⚡ HDMI 2.1 and DisplayPort 1.4 display outputs
⚡ Supports RAID 0, RAID 1, and RAID 10
⚡ RGB and Addressable RGB Header support
📋 Specifications
🌟 Model ASRock B550M WiFi
🌟 Chipset AMD B550
🌟 Socket AMD AM4
🌟 Form Factor Micro ATX (24.4 × 24.4 cm)
🌟 Memory Support 4× DDR4 DIMM, Dual Channel, up to 128GB
🌟 Max Memory Speed DDR4 4733+ (OC)
🌟 Graphics Outputs
🔹 1× HDMI 2.1
🔹 1× DisplayPort 1.4
🌟 Expansion Slots
🔹 1× PCIe 4.0 x16
🔹 1× PCIe 3.0 x16
🔹 1× PCIe 3.0 x1
🌟 Storage
🔹 1× Hyper M.2 PCIe Gen4x4
🔹 4× SATA3 6Gb/s
🌟 Networking
🔹 Realtek Gigabit LAN
🔹 Wi-Fi 6E (802.11axe)
🔹 Bluetooth 5.2
🌟 Audio
🔹 Realtek ALC1220 7.1 Channel HD Audio
🔹 Nahimic Audio
🌟 USB Connectivity
🔹 8× USB 3.2 Gen1
🔹 6× USB 2.0
🌟 Operating System Support
🔹 Windows® 10 64-bit
🔹 Windows® 11 64-bit
📦 Package Contents
📌 1× I/O Shield
📌 2× SATA Data Cables
📌 2× ASRock WiFi 2.4/5/6 GHz Antennas
