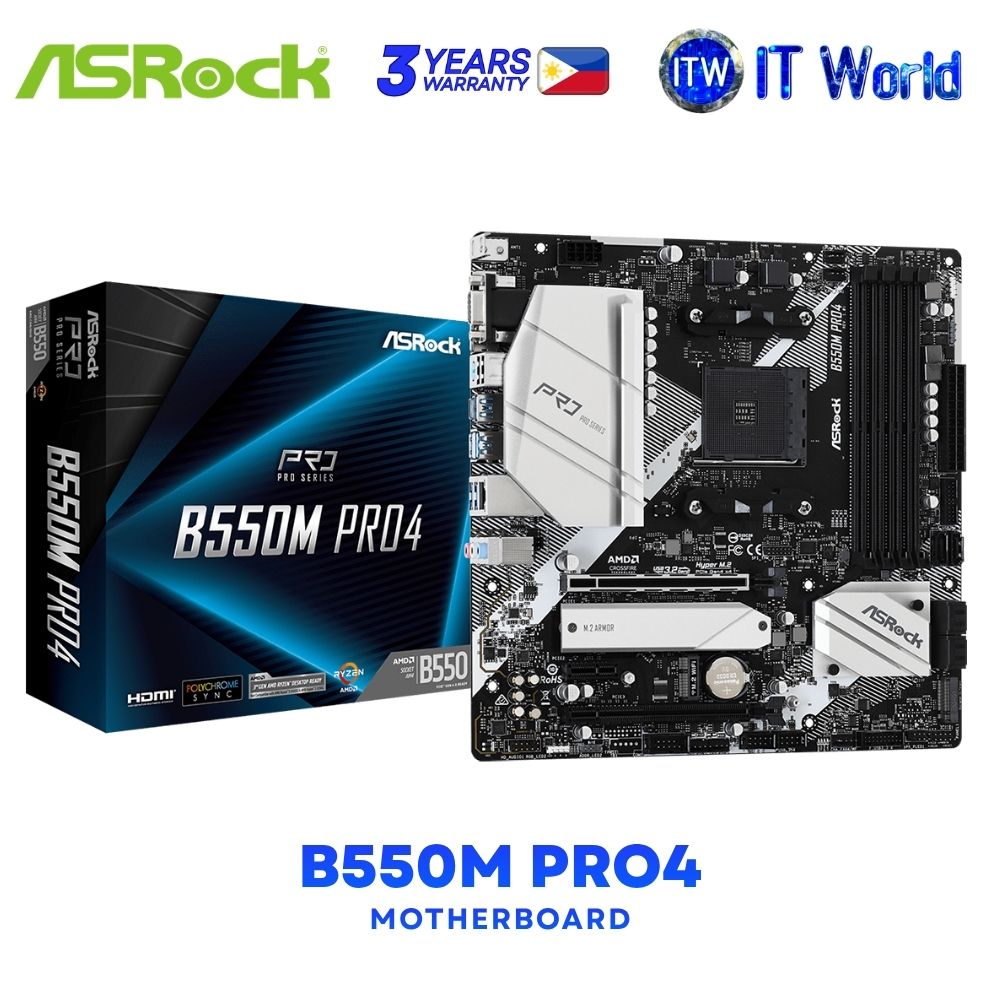

ASRock B550M PRO4 micro-ATX Socket AM4 DDR4 AMD B550 Chipset Motherboard
Product Overview
✨ The ASRock B550M PRO4 is a Micro-ATX motherboard built around the AMD B550 chipset with AM4 socket support. It supports a wide range of AMD Ryzen™ desktop processors and DDR4 memory, making it suitable for AM4-based PC builds.

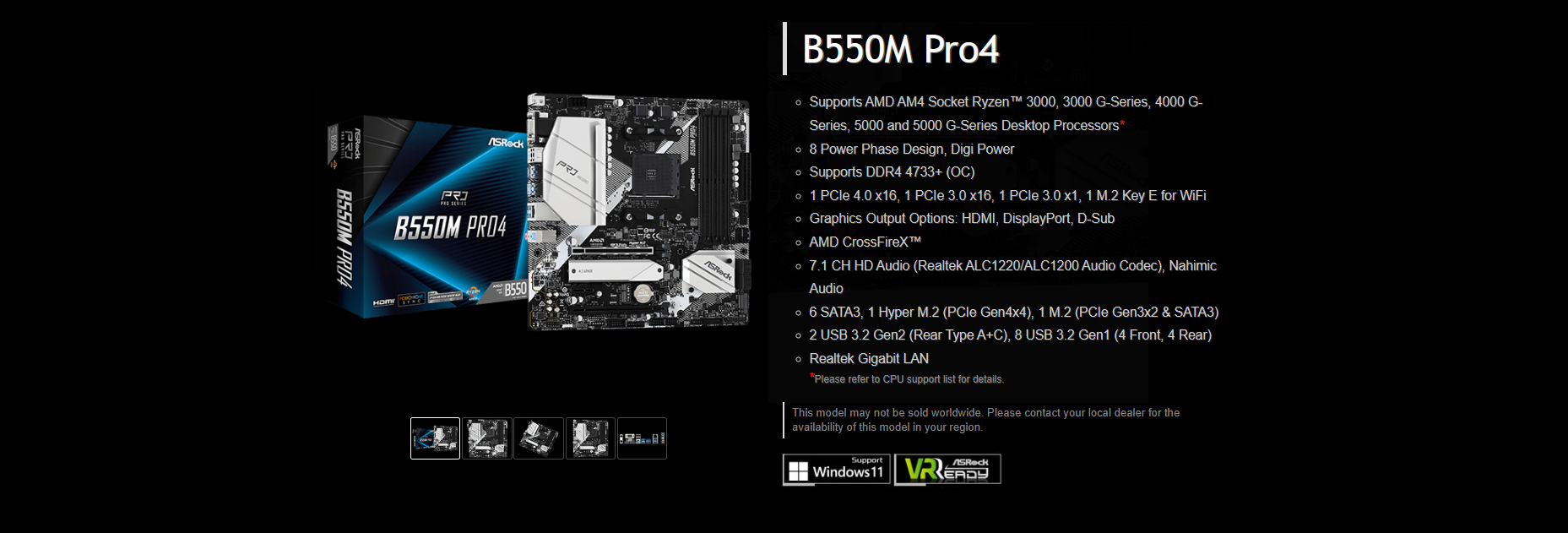

Key Features & Specifications
🔧 Socket: AMD AM4
🧠 CPU Support: Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 & 5000 G-Series Desktop Processors
⚡ Power Design: 8 Power Phase Design with Digi Power
💾 Memory: 4 × DDR4 DIMM slots, Dual Channel
🚀 Memory Speed: Supports DDR4 4733+ (OC), depending on processor
📦 Max Memory: Up to 128GB
🎮 Expansion: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x1
📶 WiFi Expansion: 1 × M.2 Key E slot for 2230 WiFi/BT module
💽 Storage: 6 × SATA3 6.0 Gb/s
⚡ M.2: 1 × Hyper M.2 PCIe Gen4x4 and 1 × M.2 PCIe Gen3x2/SATA3
🖥️ Graphics Outputs: HDMI, DisplayPort 1.4 & D-Sub
🎧 Audio: 7.1 CH HD Audio, Realtek ALC1220/ALC1200, Nahimic Audio
🌐 LAN: Realtek RTL8111H Gigabit LAN, 10/100/1000 Mb/s
🔌 USB: 2 × USB 3.2 Gen2 Type-A/C, 8 × USB 3.2 Gen1 ports, plus USB 2.0
🌈 Lighting: 2 × RGB LED Headers & 2 × Addressable LED Headers
🌀 Fan Support: CPU, CPU/Water Pump and multiple Chassis/Water Pump fan connectors with Smart Fan Speed Control
🖥️ Form Factor: Micro ATX, 24.4 × 24.4 cm
🛡️ PCB: 2oz Copper PCB with Solid Capacitor design
💻 OS Support: Microsoft Windows® 10 64-bit / 11 64-bit
📦 Included Accessories: I/O Shield, 2 × SATA Data Cables, 2 × M.2 Screws
⚠️ Reminders:
1️⃣ Please record a full unboxing video as proof in case of issues.
2️⃣ Verify the delivery rider’s ID or take a photo with your payment for security.
