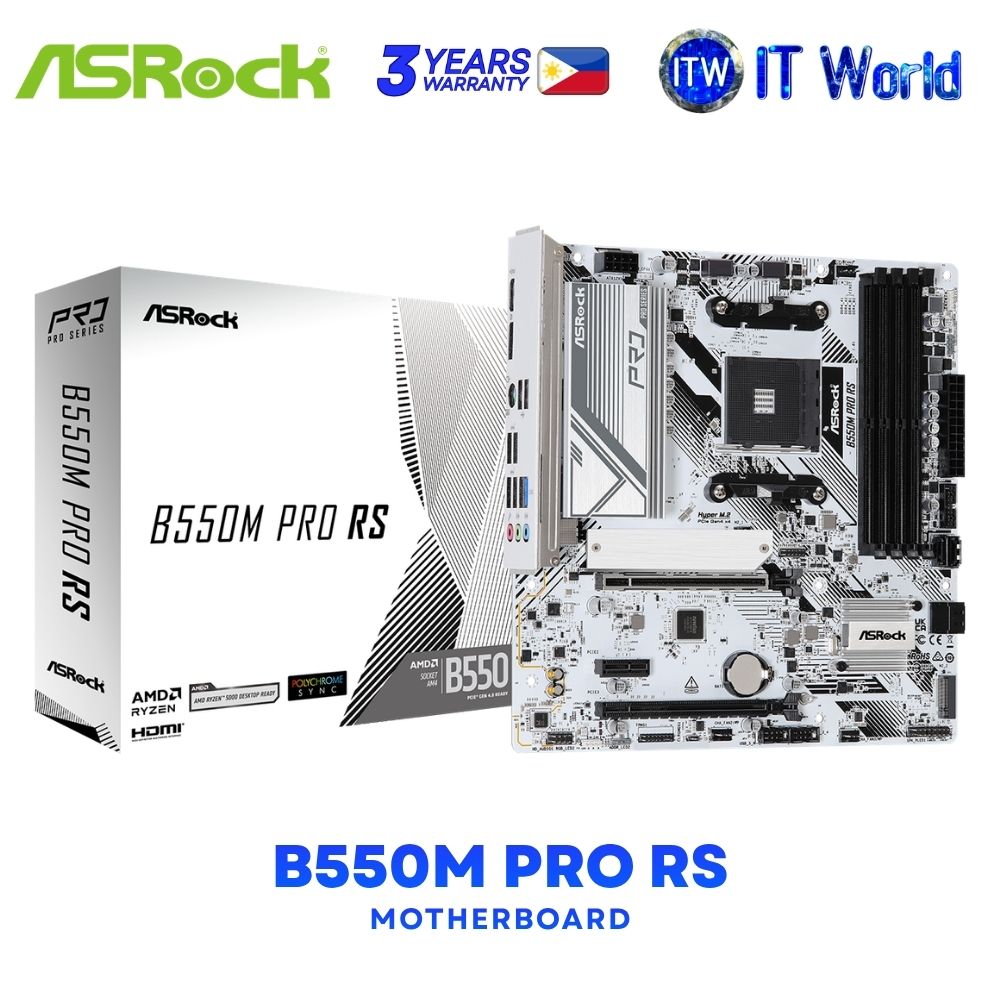

ASRock B550M Pro RS micro-ATX AM4 DDR4 AMD B550 Chipset Motherboard
Product Highlights & Specifications
🧩 Model: ASRock B550M Pro RS
🔧 Form Factor: Micro ATX — 24.4 × 24.4 cm
⚙️ Chipset: AMD B550
🔌 CPU Socket: AMD AM4
🖥️ Processor Support: Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
⚡ Power Design: 8 Power Phase
🧠 Memory: 4 × DDR4 DIMM slots, Dual Channel, up to 128GB system memory
🚀 Memory Speed: Supports up to DDR4 4733+ (OC) depending on CPU
💾 Storage: 1 × Hyper M.2 PCIe Gen4x4, 1 × M.2 PCIe Gen3x2/SATA3, 4 × SATA3 6.0 Gb/s
🎮 Expansion: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x16, 1 × PCIe 3.0 x1
🖥️ Display Outputs: HDMI 2.1 and DisplayPort 1.4
🎧 Audio: Realtek ALC897 7.1 CH HD Audio
🌐 Networking: Dragon 2.5G LAN, 10/100/1000/2500 Mb/s
🔌 USB: 6 × USB 3.2 Gen1 and 6 × USB 2.0
💡 RGB Support: 2 × RGB LED Headers and 2 × Addressable LED Headers
❄️ Fan Support: 1 × CPU Fan Connector and 3 × Chassis/Water Pump Fan Connectors
🛡️ BIOS: 128Mb AMI UEFI Legal BIOS with GUI Support
💻 OS Support: Microsoft Windows® 10 64-bit / 11 64-bit
🔩 PCB: 2oz Copper PCB
🎁 Accessories: User Manual, 2 × SATA Data Cables, 1 × M.2 Socket Screw
🏆 Features: AMD CrossFire™, RAID 0/1/10 for SATA storage devices, XMP support, ASRock Polychrome SYNC
